Switched Multimegabit Data Service (SMDS) Defined

1
SMDS

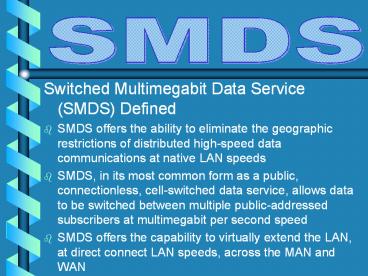

• Switched Multimegabit Data Service (SMDS) Defined
• SMDS offers the ability to eliminate the
  geographic restrictions of distributed high-speed
  data communications at native LAN speeds
• SMDS, in its most common form as a public,
  connectionless, cell-switched data service,
  allows data to be switched between multiple
  public-addressed subscribers at multimegabit per
  second speed
• SMDS offers the capability to virtually extend
  the LAN, at direct connect LAN speeds, across the
  MAN and WAN

2
SMDS

• Origins of SMDS
• SMDS was created as a Metropolitan Area Network
  (MAN) service by Bellcore as a service and not a
  protocol
• The first realization of SMDS was defined using
  the DQDB technology, as specified in the IEEE
  802.6 standard.
• The IEEE 802.6 DQDB standard defines
  connectionless data-transport service using
  53-byte slots to provide integrated data, video,
  and voice services over a MAN, which is typically
  a geographic area of diameter less than 150 km

3
SMDS

• Origins of SMDS (Continue)
• SMDS is a form of cell switching. Cell switching
  is defined in terms of standards, underlying
  architectures, initial services implementation
  (such as SMDS), and protocols.
• Cell switching has taken two development paths
• connectionless data transport in the form of IEEE
  802.6 (DQDB)
• connection-oriented and connectionless in the
  form of Asynchronous Transfer Mode (ATM)
• SMDS services use the IEEE 802.6 DQDB CL
  (Connectionless) service

4
SMDS

• Origins of SMDS (Continue)
• Central-office switch vendors such as Siemens
  Stromberg-Carlon were the primary players for the
  first versions of cell switching to hit the
  telecommunications market Switched Multimegabit
  Data Service (SMDS) using the DQDB architecture
  as access
• These switches first made use of DQDBs
  ConnectionLess (CL) service
• Versions of SMDS service have been offered by
  IXCs, LECs, and PTTs worldwide, including MCI
  Communications, Brotish Telecom, Telecom Ireland,
  and Deutsch Telecom

5
SMDS

• What is a MAN?
• The interconnection of multiple SMDS or DQDB
  subnetworks forms a Metropolitan Area Network
  (MAN).
• The MAN can provide shared media for voice, data,
  and video transmissions over a local geographic
  area, as well as high-speed extension of each LAN
  and WAN attached
• Cells are routed through the MAN wideband
  channels similar to packets in a packet-switched
  network, except that the bandwidth is 155 Mbps
• Refer to Figure 12.1 (p. 470)

6
SMDS

• What is a MAN? (Continue)
• MANs interconnect LANs and WANs, while providing
  switching, concentration, and high-speed data
  transport.
• The MAN operates on a shared DQDB bus. This bus
  operates as a LAN, where each station on the bus
  has equal access to all available bandwidth
• MANs implementing DQDB architecture to support
  SMDS will cut switched-network costs

7
SMDS

• SMDS Service-Public versus Private
• SMDS is primarily a public data network offering,
  but could also be used in a private network.
• SMDS will connect multiple nodes, referred to as
  Customer Access Nodes (CANs).
• SMDS can provide transport for a variety of
  customer network access methods, including
  packet-switched networks, synchronous data
  transport, ISDN, and LANs such as Ethernet and
  Token Ring
• SMDS is publicly offered by several RBOCs
  (Ameritech, Bell Atlantic, BellSouth, GTE,
  Pacific Bell, and SNET) and only one
  IntereXchange Carrier (IXC), MCI Communications

8
SMDS

• Subscriber Interface and Access Protocols
• There are six major methods for users to access
  an SMDS network
• SMDS Subscriber Network Interface (SNI)
• SMDS Interface Protocol (SIP)
• Data eXchange Interface (DXI)
• SIP Relay Access
• ATM UNI Access
• Refer to Figure 12.2 (p. 473)

9
SMDS

• SMDS L3_PDU
• The L3_PDU carries the real protocol value of
  SMDS
• Refer to Figure 12.3 (p. 474)
• The three most common types of transport for the
  L3 PDU are the DXI frame, 802.6 cell, and ATM
  cell
• SMDS Subscriber Network Interface (SNI)
• The SNI is the subscriber physical and
  administrative interface and boundary to the SMDS
  network or service provider
• Standard SNI access methods use the access DQDB
  protocol and standard CSU/DSU
• Refer to Figure 12.2 (p. 473)

10
SMDS

• SMDS Interface Protocol (SIP)
• SIP Provides for many CPE devices to communicate
  over the SNI using the DQDB protocol.
• SIP operation is primarily the exchange of
  L3_PDUs between CPE and SMDS network switching
  nodes
• This operation is called an Access DQDB, which
  is distinguished as CPE-to-MAN Switching System
  access
• The SMDS access DQDB is based on the open bus
  topology
• If there are multiple customers at a site, each
  customer must be provided a separate access DQDB
  into the SMDS network
• Refer to Figure 12.2 (p. 473)
• Refer to Figure 12.4 (p. 475)

11
SMDS

• Data eXchange Interface (DXI)
• The Data eXchange Interface (DXI) was developed
  by the SMDS Interest Group as a cost-effective
  access method
• It required only the upgrade of the CSU/DSU
  equipment and software on the CPE device rather
  than a hardware upgrade to the CPE device
• This allowed for easy integration and upgrade
  capability to SMDS for the existing router base
• Refer to Figure 12.2 (p. 473)

12
SMDS

• Data eXchange Interface (DXI) (Continue)
• The DXI Local Management Interface (LMI) protocol
  is used for signaling across the DXI
• A High Speed Serial Interface (HiSSI) can also
  provide transport for DS3 DXI access, and is used
  by providers such as MCI Communications
• The DXI is an enhanced version of the standard
  HDLC protocol and frame
• Refer to Figure 12.5 (p. 476)

13
SMDS

• Data eXchange Interface (DXI) (Continue)
• MCI Communications improved the specification by
  eliminating the need for a special CSU/DSU for
  speeds of 56 kbp. 476s to 1.544 Mbps
• DXI SMDS service is offered by some LECs, such as
  Bell Atlantic and Pacific Bell
• Both vendors provide an access server technology
  to convert the customer DXI into an SMDS
  Interface Protocol (SIP)
• Refer to Figure 12.6 (p.476)

14
SMDS

• Frame Relay Access
• SIP Relay is the method of using a frame relay
  protocol as an access to an SMDS service
• Refer to Figure 12.2e (p. 473)
• This method passes L3_PDUs into the FR frame and
  extracts them out of a FR frame at the
  destination end
• Refer to Figure 12.7 (p. 477)
• Refer to Figure 12.8 (p. 477)
• This allows the use of a single interface port
  for both frame relay and SMDS access to a public
  network

15
SMDS

• The Customer Premises Environment (CPE)
• The user environment, CPE, typically contains
  multiple applications using diverse protocols,
  and riding multiple subnetworks
• The customers requirements can either be
  satisfied by interfaces directly into the SMDS
  network or by concentration via a variety of
  devices (routers, bridges, DSUs, CSUs, etc.)
• Many vendors now support the SIP, DXI, and frame
  relay SIP interfaces

16
SMDS

• Addressing and Traffic Control
• The addressing scheme used by the SMDS network is
  formatted using the same structure as the North
  American Numbering Plan (NANP)
• This scheme was chosen to speed the integration
  of SMDS into the telephone network addressing
  infrastructure for integration of voice and data
  operations
• CPE interface methods to an SMDS network device
  via multiple access protocols across the SNI
  include SIP, DXI, SIP relay, ISDN, and ATM

17
SMDS

• Addressing and Traffic Control (Continue)
• The SMDS service provider will have full control
  over the use or more unique addresses
• The subscriber will have full control over the
  use of each individual address, and may assign
  multiple SMDS addresses per CPE
• SMDS can assign a group address to multiple
  devices so that they can multicast their data to
  other members of their group address
• There are many addressing functions available,
  such as unicasting and multicasting

18
SMDS

• Unicasting and Multicasting (Group Addressing)
• SMDS offers either a point-to-point datagram
  delivery service called unicasting or a
  point-to-multipoint service defines as a group
  multicast address
• Group-addressed data unit transport provides the
  CPE capability to transmit to a maximum of 128
  individual recipient addresses

19
SMDS

• Source Address Validation and Address Screening
• The SMDS source address is screened by the
  network to ensure that it is valid for the source
  SMDS access line
• SMDS customers can screen incoming data and only
  accept data from specific source SMDS addresses
  or block data
• SMDS users can also limit the destination SMDS
  addresses

20
SMDS

• SIR Access Classes as Traffic and Congestion
  Control
• SMDS controls congestion and traffic through the
  use of an open loop flow control mechanism called
  Sustained Information Rate (SIR) regulated
  through the assignment of classes
• SMDS SIR is based on the aggregate of all data
  originating on the SMDS access line regardless of
  its destination
• SIRs are defined by access class

21
SMDS

• Access Classes
• Access classes are a method of providing
  bandwidth priorities for times when there is
  network congestion at the SNI
• Network congestion occurs when there is an
  attempt by the network to transfer one or more
  SMDS data units without an interval of time
  between the units
• The access class places a limit per user on the
  rate of sustained information transfer available
• In actual practice on an SNI, the SMDS CSU/DSU
  chooses the access class and then clocks and
  meters the traffic from the router to average the
  traffic to meet the SIR rate

22
SMDS

• SMDS Addressing
• The public phone network uses an addressing, or
  numbering, scheme called E.164 that basically has
  a country code part and then a nationally
  assigned part for each country
• Today, SMDS 10-digit numbers do not coincide with
  the national phone number 10-digit system.
• Some moves by carriers such as MCI Communications
  are trying to change the system to be more in
  line with public phone numbers
• Refer to Figure 12.10 (p. 484)

23
SMDS

• SMDS and DQDB Protocol Structures
• The IEEE 802.6 standard is one of the 802.X
  series of LAN and MAN standards, which has been
  further modified for operation over the WAN
• IEEE 802.6 Compared to the OSIRM
• IEEE 802.6 is part of the IEEE defined 802.X
  suite of LAN and MAN protocols.
• The IEEE 802.6 MAN protocol spans both the
  physical layer and media access control (MAC)
  sublayer.
• Refer to to Figure 12.11 (p. 485)

24
SMDS

• Structure of SMDS and IEEE 802.6
• SMDS and the IEEE 802.6 DQDB protocol have
  one-to-one mapping to each other
• Refer to Figure 12.12 (p. 485)
• SMDS and DQDB Architecture
• SMDS is defined as a service, and therefore can
  be offered with multiple access protocols and
  over multiple backbone transport technologies
• Today, SMDS service is offered over both DQDB and
  ATM network transport architectures

25
SMDS

• SMDS Backbone Architecture
• SMDS public network backbone design can be
  composed of multiple MAN Switching Systems (SSs)
  connected by InterCarrier Interface (ICI)
  transport.
• Users interface to the network via SMDS CPE over
  the SMDS access protocols.
• Refer to Figure 12.16 (p. 489)
• Access DQDB refers to the use of the DQDB
  protocol as the basis for the SMDS interface
  protocol providing access to the SMDS service

26
SMDS

• SMDS Backbone Architecture (Continue)
• Bellcore standards define the SMDS Switching
  System (SS) as a collection of equipment that
  provides high-speed packet switching function in
  a network supporting SMDS
• Switching Systems (SSs) can be configured in a
  distributed architecture where multiple SSs would
  form the SMDS network
• Refer to Figure 12.17 (p. 491)

27
SMDS

• SMDS Backbone Architecture (Continue)
• SSs operate in either a store-and-forward mode
  where the SS reads in the entire L3-PDU on the
  SNI before transmitting it on to the next SS or
  end CPE device
• This technique of reassembly adds
  store-and-forward delay.
• One method of eliminating this delay is through
  pipe-lining, where the switch immediately starts
  forwarding part of the L3_PDU before the entire
  L3_PDU is received into the switch
• Switching systems can also take the form of a
  single switch in a centralized architecture
• Refer to Figure 12.18 (p. 491)

28
SMDS

• DQDB and SMDS Functions
• The DQDB architecture is based on a 45/155/622
  Mbps dual bus which operates similarly to token
  ring architecture
• Fixed-length cells are placed within time slots
  that move from a time slot generator on one end
  of the bus to a terminator on the other end
• There are three implementations of the DQDB the
  point-to-point bus, the open-dual bus, and th
  elooped dual (folded) bus
• Refer to Figure 12.19 (p. 492)
• Refer to Figure 12.20 (p. 492)

29
SMDS

• DQDB Architecture Bus Defined
• There are two unidirectional buses, A and B, that
  interconnect a number of nodes, often configured
  in a physical ring.
• Even though the physical configuration may be a
  ring, logical operation is bus-oriented.
• Nodes read from both buses, usually passing along
  any data onto the next node in the bus
• Each node may become the Head Of Bus (HOB) or End
  Of Bus (EOB)
• The HOB generates 53-octet slots in a framing
  structure to which the other nodes synchronize.
  The EOB node simply terminates the bus
• Refer to Figure 12.21 (493)

30
SMDS

• DQDB Architecture Bus Defined (Continue)
• Although the bus appears to pass through each
  node on the bus, in fact it only passes by each
  node. This provides for a highly reliable
  network, as a node failure will not affect the
  operation of the rest of the network
• The looped architecture provides a common point
  for timing into the network to ensure network
  synchronization, as well as a self-healing, fault
  isolation mechanism inherent to the architecture

31
SMDS

• SMDS Internetworking Bridging and Routing
• Bridging can be accomplished either with MAC
  bridging or simple encapsulation
• Routing can be accomplished with simple
  encapsulation of IP

32
SMDS

• SMDS Bridging with TCP/IP
• SMDS bridging is one method of extending the LAN
  environment through SMDS using a bridge
• Some protocols require bridging such as DEC LAT
  and NetBIOS.
• The local end-user device will send the IP
  packets within the IEEE 802.3 Ethernet frames to
  the local bridge.
• The bridge will use encapsulation bridging into
  SMDS SIP frames
• Refer to Figure 12.25 (p. 498)

33
SMDS

• SMDS Routing with TCP/IP
• The router provides the conversion from the MAC
  protocol to the SMDS SIP. Using the SIP, the
  router now uses a DQDB providing SMDS to allow
  high-speed connectivity over large geographic
  areas
• The router does pay attention to the LLC and IP
  addresses when making its routing decision,
  rather than forwarding the frames received
• The router makes the SMDS transport look like
  just another LAN segment
• Refer to Figure 12.26 (p. 499)

34
Cisco

• Managing Traffic with Access Lists

35
Objectives

• Configure IP standard access lists
• Configure IP extended access lists
• Configure IPX SAP filters
• Monitor verify access lists

36
Access Lists

• Purpose
• Used to permit or deny packets moving through the
  router
• Permit or deny Telnet (VTY) access to or from a
  router
• Create dial-on demand (DDR) interesting traffic
  that triggers dialing to a remote location

37
Important Rules

• Packets are compared to each line of the assess
  list in sequential order
• Packets are compared with lines of the access
  list only until a match is made
• Once a match is made acted upon no further
  comparisons take place
• An implicit deny is at the end of each access
  list
• If no matches have been made, the packet will be
  discarded

38
Types of Access Lists

• Standard Access List
• Filter by source IP addresses only
• Extended Access List
• Filter by
• Source IP
• Destination IP
• Protocol Field
• Port Number

39
Application of Access Lists

• Inbound Access Lists
• Packets are processed before being routed to the
  outbound interface
• Outbound Access Lists
• Packets are routed to the outbound interface
  then processed through the access list

40
ACL Guidelines

• One access list per interface, per protocol, or
  per direction
• More specific tests at the top of the ACL
• New lists are placed at the bottom of the ACL
• Individual lines cannot be removed

• End ACLs with a permit any command
• Create ACLs then apply them to an interface
• ACLs do not filter traffic originated from the
  router
• Put Standard ACLs close to the destination
• Put Extended ACLs close the the source

41
Standard IP Access Lists

• Routerconfig t
• Enter configuration commands, one per line. End
  with CNTL/Z.
• Router(config)access-list ?
• lt1-99gt IP standard access list
• lt100-199gt IP extended access list
• lt1000-1099gt IPX SAP access list
• lt1100-1199gt Extended 48-bit MAC address access
  list
• lt1200-1299gt IPX summary address access list
• lt200-299gt Protocol type-code access list
• lt300-399gt DECnet access list
• lt600-699gt Appletalk access list
• lt700-799gt 48-bit MAC address access list
• lt800-899gt IPX standard access list
• lt900-999gt IPX extended access list

42
Standard IP Access Lists

• Creating a standard IP access list
• Router(config)access-list 10 ?
• deny Specify packets to reject
• permit Specify packets to forward
• Permit or deny?
• Router(config)access-list 10 deny ?
• Hostname or A.B.C.D Address to match
• any any source host
• host A single host address
• Using the host command
• Router(config)access-list 10 deny host
  172.16.30.2

43
Wildcards

• What are they???
• Used with access lists to specify a.
• Host
• Network
• Part of a network

44
Block Sizes

• 64 32 16 8 4
• Rules
• When specifying a range of addresses, choose the
  closest block size
• Each block size must start at 0
• A 0 in a wildcard means that octet must match
  exactly
• A 255 in a wildcard means that octet can be any
  value
• The command any is the same thing as writing out
  the wildcard 0.0.0.0 255.255.255.255

45
Example

• 172.16.30.5 0.0.0.255
• The 0s tell the router to match the 1st three
  octets exactly
• The 255 tells the router the 4th octet can be any
  value
• This shows how a full subnet (172.16.30.0) is
  specified

46
Specifying a Range of Subnets

• (Remember specify a range of values in a block
  size)
• Requirement Block access in the range from
  172.16.8.0
• through 172.16.15.0
  block size 8
• Network number 172.16.8.0
• Wildcard 0.0.7.255
• The wildcard is always one number less than
  the block size

47
Examples

• RouterA(config)access-list 10 deny 172.16.10.0
  0.0.0.255
• RouterA(config)access-list 10 deny 172.16.0.0
  0.0.255.255
• RouterA(config)access-list 10 deny 172.16.16.0
  0.0.3.255
• RouterA(config)access-list 10 deny 172.16.16.0
  0.0.7.255
• RouterA(config)access-list 10 deny 172.16.32.0
  0.0.31.255
• RouterA(config)access-list 10 deny 172.16.64.0
  0.0.63.255

48
Examples

• Acmeconfig t
• Acme(config)access-list 10 deny 172.16.40.0
  0.0.0.255
• Acme(config)access-list 10 permit any
• (permit any Acme(config)access-list 10 permit
  0.0.0.0 255.255.255.255)
• Acme(config)int e0
• Acme(config-if)ip access-group 10 out

49
Controlling VTY (Telnet) Access

• Why??
• Without an ACL any user can Telnet into the
  router via VTY and gain access
• Controlling access
• Create a standard IP access list
• Permitting only the host/hosts authorized to
  Telnet into the router
• Apply the ACL to the VTY line with the
• access-class command

50
Example

• RouterA(config)access-list 50 permit
  172.16.10.3
• RouterA(config)line vty 0 4
• RouterA(config-line)access-class 50 in
• (implied deny)

51
Extended IP Access Lists

• Allows you to choose...
• IP Source Address
• IP Destination Address
• Protocol
• Port number

52
Extended IP ACLs

• Router(config)access-list ?
• lt1-99gt IP standard access list
• lt100-199gt IP extended access list
• lt1000-1099gt IPX SAP access list
• lt1100-1199gt Extended 48-bit MAC address access
  list
• lt1200-1299gt IPX summary address access list
• lt200-299gt Protocol type-code access list
• lt300-399gt DECnet access list
• lt600-699gt Appletalk access list
• lt700-799gt 48-bit MAC address access list
• lt800-899gt IPX standard access list
• lt900-999gt IPX extended access list
• Router(config)access-list 110 ?
• deny Specify packets to reject
• dynamic Specify a DYNAMIC list of PERMITs or
  DENYs
• permit Specify packets to forward

53
Extended IP ACLs

• Router(config)access-list 110 deny ?
• lt0-255gt An IP protocol number
• ahp Authentication Header Protocol
• eigrp Cisco's EIGRP routing protocol
• esp Encapsulation Security Payload
• gre Cisco's GRE tunneling
• icmp Internet Control Message Protocol
• igmp Internet Gateway Message Protocol
• igrp Cisco's IGRP routing protocol
• ip Any Internet Protocol
• ipinip IP in IP tunneling
• nos KA9Q NOS compatible IP over IP
  tunneling
• ospf OSPF routing protocol
• pcp Payload Compression Protocol
• tcp Transmission Control Protocol
• udp User Datagram Protocol
• Router(config)access-list 110 deny tcp ?
• A.B.C.D Source address

54
Extended IP ACL Steps

• 1 Select the access list
• RouterA(config)access-list 110
• 2 Decide on deny or permit
• RouterA(config)access-list 110 deny
• 3 Choose the protocol type
• RouterA(config)access-list 110 deny tcp
• 4 Choose source IP address of the host or
  network
• RouterA(config)access-list 110 deny tcp any
• 5 Choose destination IP address
• RouterA(config)access-list 110 deny tcp any
  host 172.16.30.2
• 6 Choose the type of service, port, logging
• RouterA(config)access-list 110 deny tcp any
  host 172.16.30.2 eq 23 log

55
Steps (cont.)

• RouterA(config)access-list 110 deny tcp any host
  172.16.30.2 eq 23 log
• RouterA(config)access-list 110 permit ip any
  0.0.0.0 255.255.255.255
• RouterA(config)ip access-group 110 in
• or
• RouterA(config)ip access-group 110 out

56
Example

• Acmeconfig t
• Acme(config)access-list 110 deny tcp any host
  172.16.10.5 eq 21
• Acme(config)access-list 110 deny tcp any host
  172.16.10.5 eq 23
• Acme(config)access-list 110 permit ip any any
• Acme(config)int e0
• Acme(config-if)ip access-group 110 out

57
Monitoring IP Access Lists

• Display all access lists their parameters
• show access-list
• Show only the parameters for the access list 110
• show access-list 110
• Shows only the IP access lists configured
• show ip access-list
• Shows which interfaces have access lists set
• show ip interface
• Shows the access lists which interfaces have
  access lists set
• show running-config

58
Summary

• Configured IP standard access lists
• Configured IP extended access lists
• Configured IPX SAP filters
• Monitored verified access lists
