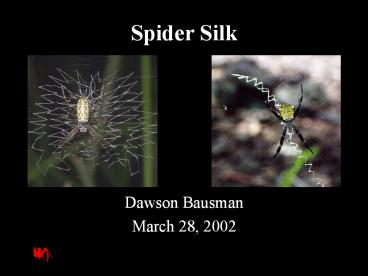

Spider Silk

1
Spider Silk

• Dawson Bausman
• March 28, 2002

2

• Variations
• Golden Orb Web Weaver

3
Spider Silk

• Where does it come from?
• What is it?
• What are its advantageous properties?
• How can it be mass produced?
• What are the applications?

4
Where does it come from?
5

• The seven glands are
• Ampulleceae major and minor for walking threads
  and dragline
• Pyriformes for the attaching threads
• Aciniformes for encapsulating prey
• Tubiliformes for the silk of the egg-sac
• Coronatae threads for the axis of the sticking
  threads
• Glandula aggregata for the sticky binding material

6
(No Transcript)
7
Silk Releasing Tubes

• 100-50,000 tubes
• Strands as small as 20 nanometers

8
(No Transcript)
9

• Each fiber only 4 to 5 microns in diameter
• Entire strand about 15 to 20 microns in diameter

10
What is it?

• 30 to 45 crystalline

11
What is it?

• More than 50 of silk is a polymerized protein
  called fibroine.

12
What is it?

• Exact sequence and structure unknown (at least
  unpublished)
• Main contents are 7 natural Amino Acids
• Alanine and Glycine
• Glutamine, Leucine, Arginine, Tyrosine, Serine

13
What is it?

• 2 Alanine rich proteins embedded in a jelly like
  glycine rich polymer
• 1 protein is highly ordered crystalline, other is
  not ordered. These proteins give toughness.

14
What is it?

• How can proteins compete with Kevlar???

15
Advantageous Properties

• Tailorable Properties

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Advantageous Properties
Normal
5x
20x
21
Diameter

• Average is .15 mm
• Smallest Measured is .02 mm
• Human Detection
• Insect Detection of the web

22
(No Transcript)
23
Advantageous Properties

• Coated with antiseptic agents (pyrolidin,
  potassium hydrogen phosphate and potassium
  nitrate)
• Process proteins from water based solutions
• Water

24
Water
25
Mechanical Properties

• Inelastic or Elastic
• Tough at low temperatures
• Tensile Strength of 400,000 lbs / sq. in
• 25 lighter than other synthetic petroleum based
  fibers
• Specific Strength

26
(No Transcript)
27
Nature vs. Man

• Nature is uncertain and slow
• Farming is not possible

28
Mass Production

• 22,000 base pairs to the genetic sequence
• Believed to only need 300 of these pairs

29
Mass Production

• Plants, Fungi, Bacteria
• Mammals

30
Webster and Pete
31
(No Transcript)
32
Stress Strain
33
Draw Ratio
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Uses

• Past WWI Cross hairs, Tribal uses

39
Uses

• Medical - sutures, tendons, ligaments
• 10,000/gram

40
Uses

• Textile Industry

41
Automotive Industry
42
Bullet Proof Vests
43
Space Station Coatings
44
Biodegradable Fishing Line
45
Spider Man
46
Conclusions

• Spider Silk is an excellent tailorable fiber
  material
• There is quite a bit of work yet to be done to
  perfect the process of making silk
• There are many potential applications of silk

47
Acknowledgements

• Jeffery Turner and Chantal LaRouche of Nexia
  Biotechnologies
• David Knight and Fritz Vollrath of Oxford
  University
• Randy Lewis of the University of Wyoming

48
QUESTIONS?
