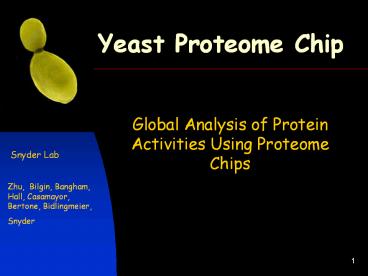

Yeast Proteome Chip

• Global Analysis of Protein Activities Using
  Proteome Chips

Snyder Lab Zhu, Bilgin, Bangham, Hall,
Casamayor, Bertone, Bidlingmeier, Snyder
2
Why Develop Protein Microarray-Chip Technology?
3
Applications of Biochips

• DNA microarrays
• Gene expression analysis
• Genotyping
• Toxicogenomics
• Pharmacogenomics
• Diagnostics

• Protein microarrays
• Protein expression analysis
• Drug discovery
• Clinical diagnostics
• Others emerging

4
Yeast Proteome Chip

• First Protein chocolate Chip

2.99
5
Yeast Proteome ChipBuilding up the yeast ORF
collection

• Aimed at cloning 6144 yeast ORFs
• 5871 PCR amplified ORFs cloned into pEKGH
• 89 with correct ORF ID and in frame
  expression clones
• 300 represented gt1 copies
• To complete the collection
• 300 new unique clones sent for sequence
  confirmation
• 950 low quality sequencing

6
Experimental Approach
7
Chip Fabrication, Probing and Detection
Technical Issues

• High-throughput fusion protein purification
• Printing chips
• Suitable surface chemistry for attachment
  of proteins and retaining integrity,
  orientation, structure, activity
• Cross-contamination, Spot size, comets etc.
• Detection
• Sensitive-specific probe with
• Retain signal during washing
• Low background, high signal/noise

8

• Design of protein chips
• Chip probed with ?-GST antibody and signals
  detected after Cy5-conjugated IgG

12,938 data points Each spot corresponds to 30
fg-50 pg protein
9
Analysis of the Yeast Proteome Chip

• Protein Protein interactions
• 1 Ab against target protein domain
• 1 Ab against interacting partner protein
• Biotin labeled protein detected by Cy3 conjugated
  streptavidin
• Protein-Nucleic acid interactions
• Cy3 labeled genomic DNA
• Cy3 labeled mRNA
• Protein-Lipid interactions
• Biotin-conjugated liposome-phopshotidyl phosphate
  detected by Cy3 conjugated streptavidin

10
Detection of different interactions on yeast
proteome chips
PI(3,4,5)P3
PC
Calmodulin
Genomic DNA
11
Results Protein- Protein Interactions
Calmodulin

• Known interactions (4/8)
• Cmk1p, Cmk2p type I, type II calcium/calmodulin-d
  ependent serine/threonine kinases
• Cmp2 (Cna2p) calcineurin
• Arc35 actin-organizing complex, endocytosis
• 33 other potential in vitro interactors
  Rpn11p, Sps19p
• Pyc1p, pyruvate carboxylase I with biotin
  attachment region postranslational modification

12
Results Protein- Lipid InteractionsPhosphotidy
linositides

• Structural component of membranes and as
  second-messengers regulate several cellular
  processes
• Delivery Liposomes consist of PC, biotin-DHPE
  and six different Ptd-Ins (5 w/w)
• Detection Streptavidin conjugated Cy3
• 103 known proteins
• 37 common targets (15 kinases) for all six
  Ptd-Ins
• 8 to 34 protein targets specific for each Ptd-Ins
• 61 membrane associated protein , 5 involved in
  lipid metabolism (Bpl1p), lipid modification
  (Kcs1p) or predicted membrane/lipid associated
  function
• Lipid signalling in homeostasis Frm2p interacts
  with PI(3,4,5)P3

13
Detection of protein-Ptd-Ins interactions on
yeast proteome chips
a-GST
Probe
PI(3)P
PI(4,5)P2
PI(4)P
PI(3,4)P2
14
Selective binding of different Ptd-Ins to
proteins
Localization
Function
Target
PI(4,5)P2 RNA export Several RNA associated proteins
PI(3)P Vacuolar protein sorting Stp22
PI(4)P Plasma membrane Several membrane associated proteins
15
A
B
Rim15p Sps1p YGL059Wp Gcn2p
Rim15p
Hxk1p
Eno2p
BSA
GST
PI(4,5)P2
0.5mg 0.25mg 0.12mg 0.06mg 0.03mg 0.015mg
PI(3)P PI(4)P PI(3,4)P2 PI(4,5)P2 PI(3,4,5)P3 PC
C
D
Chip
Membrane
PI(3)P PI(3,4)P2 PI(4)P PI(4,5)P2 PI(3,4,5)P3
PC
Rim15p
Rim15p
PI(3)P PI(4)P PI(3,4)P2 PI(4,5)P2 PI(3,4,5)P3 PC
Rim15p
Relative Intensity
0.5 mg 0.2 mg
0.05 mg
100 mm
5000 mm
16
Data Analysis

• Flag contaminated data points
• Compare and scale signals from different
  experiments with respect to each other
• Compute neighborhood subtracted signals
• Create hit list
• Look at differences between replicate samples
  both green (probe) and red (GST-protein amount)
• Choose cut-off value for green signal
  G(G1G2)/2
• Visual check for further input
• Normalization
• Compute ratios of green/red signal
• Compute errors
• Compute confidence limits for ratios

17
Future Data Analysis

• Visual and computer assisted signal
  detection-quantification, hit list generation
• Search for common sequence motifs in hits list
• Web interface to retrieve hit lists and
  associated image data

18
Conclusions

• A high-throughput protein purification,
  high-density protein microarraying and protein
  interaction detection protocol was developed
• 1st entire eukaryotic proteome on chip
• Protein-protein, protein-nucleic acid,
  protein-lipid, protein modifications, and small
  molecule protein interactions can be screened
• Unique approach to study biomolecule-protein
  interaction
• Structural and functional categorization of yeast
  ORFs based on new findings

19
Future Directions

• Complete ORF clone collection
• Improve chip fabrication, storage conditions,
  probe labeling and signal detection protocols
• Screen proteome chip for other interactions
• Enzymatic assays on proteome chips

20
Collaborators

• Gerstein Lab MBB
• Ronald Jansen
• Ning Lan
• Mark Gerstein
• Kenneth Nelson
• NCSU Fungal Genomics Laboratory
