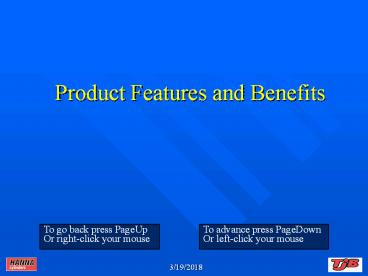

Product Features and Benefits

1
Product Features and Benefits
To advance press PageDown Or left-click your mouse
To go back press PageUp Or right-click your mouse
2
Hanna Duralon Rod Bearing

• Increased load carrying capabilities
• 51 versus bronze / iron
• Concentric travel
• Maximum load bearing
• No Lubrication
• Non-metallic
• Low coefficient of friction
• Teflon / Dacron
• No cold flow
• No slip - stick

3
Hanna Duralon Rod Bearing
4
Hanna Duralon Rod Bearing

• Increase cylinder life
• Rod seal inboard of bearing
• Seal wear minimized
• Minimize tube wear
• Ideal for heavy duty applications
• Servo-systems
• Fluid compatibility
• -65F to 325 F operating range
• Standard on all Hanna Products
• Except T 750 - bronze bearing
• RT - ductile iron bearing

5
Piston to Rod Connection

• What do most competitors do?
• None use stress relief grooves
• Most max piston rod turndown
• Most have minimal pilot
• Some use Loctite, some pin
• Most use an Oring at piston or cushion sleeve

6
Piston to Rod Connection

• Standard on All Hanna Cylinders
• No O Rings
• Relief Grooves
• Points of High Stress
• Minimum Turndown

7
Piston to Rod Connection

• Standard on All Hanna Cylinders
• No O Rings
• Relief Grooves
• Points of High Stress
• Minimum Turndown

• Generous Pilot

• Loctite adhesive
• Torque Applied
• Pinned

8
Polyurethane Rod Seal

• Standard on All Hanna Cylinders
• High durometer - 90
• Extra wide cross section
• Line contact
• Minimize frictional drag
• low pressure compensation
• Inboard of rod bearing
• bearing needs no lubrication
• Memory - will not set

9
Polyurethane Rod Seal

• Advantages
• Standard across product lines
• Minimize seal inventory
• Inboard arrangement
• wont intensify fluids
• seal will not see extreme pressure load
• maximized bearing length
• Seal wont wear from side load

10
Piston Seals

• Standard on 2H - 3L - 3AN - 3H - MT
• Energized seal
• glass filled Teflon
• No roll-over possible
• Wear Strips
• Bronze filled Teflon
• Non-metallic bearing points
• Very low friction
• No slip stick

11
Cushions

• Full Floating Design
• Self aligning bronze check seal
• Side load compensation
• Fast breakout
• Low breakaway pressure
• Full adjustability
• Retained adjustment needle

12
Cushions

• Full Floating Design
• Self aligning bronze check seal
• Side load compensation
• Fast breakout
• Low breakaway pressure
• Full adjustability
• Retained adjustment needle

• No ball checks required

13
Product Lines
14
Series 2H
15
Hanna Series 2HHeavy Duty Hydraulic Cylinders

• Heavy Duty Hydraulic Cylinders
• 1.50 to 14.00 bore standard
• Pressures to 3,000 PSI
• All NFPA mounts
• Duralon Rod Bearing
• Removable gland
• Heavy duty piston to rod connection
• Polyurethane rod seals

16
Hanna Series 2HHeavy Duty Hydraulic Cylinders

• Series 2H Options
• Cushions
• Special Porting
• Stainless Rods
• Air Bleeds
• Hi-Temp Seals
• Accessories
• Couplers
• Rod Boots
• Proximity Switches
• Electronic Feedback

17
Series 3H
18
Hanna Series 3HLarge Bore Hydraulic Cylinders

• Heavy Duty Hydraulic Cylinders
• 10.00 to 24.00 bore standard
• Pressures to 3,000 PSI
• 7 mounting styles
• Rod diameters to 12.00
• Duralon Rod Bearing
• Removable gland
• Heavy duty piston to rod connection
• Polyurethane rod seals

19
Series 3A /3AN
20
Hanna Series 3A/3ANAir and Non-lube Air Cylinders

• Heavy Duty Air Cylinders
• 1.50 to 14.00 bore standard
• Pressures to 250 PSI
• All NFPA mounts
• Series 3AN - non-lube option
• Duralon Rod Bearing
• Removable gland
• Heavy duty piston to rod connection
• Polyurethane rod seals

21
Hanna Series 3A/3ANAir and Non-lube Air Cylinders

• Series 3A / 3AN Options
• Cushions
• Special Porting
• Stainless Rods
• Air Bleeds
• Hi-Temp Seals
• Accessories
• Couplers
• Rod Boots
• Proximity Switches
• Electronic Feedback

22
Hanna Series 3A/3ANAir and Non-lube Air Cylinders

• Series 3A / 3AN Options
• Water Service
• Stroke adjustable cylinders
• Spring return - extend
• Tandem mounted units
• Tight stroke tolerance
• Special painting
• Special mountings
• Super cushion models

23
Series 3L
24
Hanna Series 3LMedium Duty Hydraulic Cylinders

• Medium Duty Hydraulic Cylinders
• 1.50 to 6.00 bore standard
• Pressures to 1800 PSI
• All NFPA mounts
• Duralon Rod Bearing
• Removable gland
• Heavy duty piston to rod connection
• Polyurethane rod seals

25
Hanna Series 3LMedium Duty Hydraulic Cylinders

• Series 3L Options
• Cushions
• Special Porting
• Stainless Rods
• Air Bleeds
• Hi-Temp Seals
• Accessories
• Couplers
• Rod Boots
• Proximity Switches
• Electronic Feedback

26
Series RT
27
Hanna Series RTHydraulic Rotating Cylinders

• Rotation and linear actuation interface
• 4.50 to 16.00 bore
• Up to 1500 PSI. and 500 RPMs
• Flush and Flange mounts
• Special bore and mounts
• 20 GPM coupling standard

28
Hanna Series RTHydraulic Rotating Cylinders

• Superior Coupling Design
• 2 anti-friction bearings
• Nitrogen heat treated
• Stem
• Housing
• Exclusive Sealing System
• Energized carbon graphite
• All fluid compatibility
• All porting options

29
Hanna Series RTHydraulic Rotating Cylinders

• Tell - Tale Sensor Option
• 20 or 45 GPM models
• Specials as required

• Electronic Feedback Option
• 45 GPM only
• /- .001 digital accuracy
• /- .010 analog accuracy
• Housing available

30
Series MT
31
Hanna Series MTMill Type Hydraulic Cylinders

• Extra Heavy Duty Construction
• 2.00 through 16.00 bore standard
• Specials to 32.00 bore
• 7 standard mountings
• 14 standard rod sizes
• Standard Features
• Duralon rod bearing
• Series 2H piston
• Series 2H gland
• Interchangeable rod and piston seals

32
Hanna Series MTMill Type Hydraulic Cylinders

• Mill Cylinder Options
• Cushions
• Special Porting
• Air Bleeds
• Hi-Temp Seals
• Accessories
• Couplers
• Rod Boots
• Proximity Switches
• Electronic Feedback

33
Series CA
34
Hanna Series CAComposite Air Cylinders

• When Corrosion is a Problem
• Pressures to 150 PSI
• 1.50 to 6.00 bore
• 11 NFPA interchangeable mountings
• 4 standard rod sizes

35
Hanna Series CAComposite Air Cylinders

• When Corrosion is a Problem
• Pressures to 150 PSI
• 1.50 to 6.00 bore
• 11 NFPA interchangeable mountings
• 4 standard rod sizes

• 303 stainless
• Tie rods
• Piston rod

36
Hanna Series CAComposite Air Cylinders

• Standard Features
• Duralon Bearing
• Heavy duty piston to rod connection
• Polyurethane rod seal
• Fiberglass Barrel
• Laminated phenolic end caps, etc.

37
Hanna Series CHComposite Hydraulic Cylinders

• Composite Hydraulic
• 1000 PSI service
• Limited bore and mountings
• High strength end caps
• Extra heavy fiberglass tube
• 303 Stainless

38
Series T 750
39
Hanna Series T 750Air Hydraulic Cylinders

• Cast Head Cylinder Line
• Not interchangeable
• 250 PSI Air, 750 PSI Hydraulic
• 1.50 to 4.00 bore
• 6 mounting styles
• Extra long bronze bearings
• Spring assisted cushions

40
Hanna Series LA

• Valve Operator Applications
• 150 PSI service - air or water
• 3.25 to 26.00 bore
• Head flange and tie rod mounts
• AWWA Construction
• Optional bronze or stainless construction
  available
• Consult factory

41
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

42
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

43
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

• Special materials
• High pressure

44
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

• Special materials
• High pressure

• Large Bore

45
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

• Special materials
• High pressure

• Large Bore

• Special application needs

46
Hanna Special Products

• 20 of Sales - Specials
• From design concept to product

• Special materials
• High pressure

• Large Bore

• Special application needs

• Any configuration

47
Programs and Sales Aids
48
Programs and Sales Aids

• Cutaway Cylinders
• Series 2H
• Series 3A / 3N
• Series CA
• Rotator Coupling / Housing
• Videos
• Product and Capabilities
• Catalogs and literature
• Expert factory assistance
• hannacylinders.com website

49
(No Transcript)
50
Programs and Sales Aids

• Hanna CAD
• Stand alone CAD software
• Series 3A / 3AN
• Series 2H / 3L
• Series MT
• Interchangeable files
• DXF format
• AutoLisp
• Layers
• Notes

51
Programs and Sales Aids
PowerPointSeries RT Coupler Seal Replacement
52
HANNAcylinders

• How to Replace
• RT Series
• Coupling seals

53
Work the next Roto seal over installation tool
R1755A and place the seal over the next o-ring
closest to the retainer plate. Use the
installation tool R1756A to compress seal to
original shape. (Hint Install the first seal
before installing front bearing.) Continue
installing the rest of the Roto seals.
54
Programs and Sales Aids
55
Programs and Sales Aids
Order by 1100 AM CST - out the next day
56
(No Transcript)
57
Standard Cylinder Lead Time Guide
58
Standard Cylinder Lead Time Guide
59
Summary

• Been around a long time!
• Wide variety of standard products to choose from
• Benefits . .
• Durlon rod bearing
• Heavy duty piston to rod connection
• Polyurethane rod seal
• Advanced piston sealing system
• Full floating cushions
• Go beyond the catalog!
• Quality, Delivery, Service
