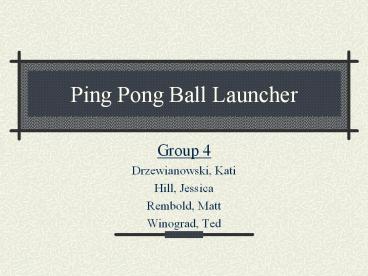

Ping Pong Ball Launcher

• Group 4
• Drzewianowski, Kati
• Hill, Jessica
• Rembold, Matt
• Winograd, Ted

2
The Matter at Hand

• 2001 ASEE National Design Competition
• Ping-pong ball launching device
• Fit within a 3ft x 3ft x 3ft cube (ready to
  launch)
• Student produced and powered (no flames)
• Must launch one ball at a time
• Must hit target from 15, 20, and 25 feet
• Target is 3ft x 3ft at a 30 degree angle with an
  18in diameter hole in the center

3
So You Already Made It Existing Ideas

• Pitching devices
• Tennis balls
• Baseballs
• Childrens toys
• Slingshots
• Nerf guns
• Catapults

4
Solution Proposals

• Mouse trap
• Rat trap
• Spring launcher
• Catapult
• Air pump
• Sling shot

• Robot
• Trained dog
• Small child

5
Mouse and Rat Traps

• A device powered by the spring and the firing
  action of a household rodent trap
• Spring constants and parabolic motion would be
  calculated to make the firing range and direction
  precise.

6
Spring Launcher

• Spring powered barrel (similar to pinball
  machine)
• Directed through tubing
• Angles adjustable for different distances
• Spring constants and parabolic motion would be
  calculated to make the firing range and direction
  precise.

7
Catapult

• Powered by source of tension (ex. Spring)
• Button-released lever arm
• Distance controlled by stopping lever arm

8
Air Pump

• Powered by compressed air
• Launched by releasing pressure
• Directed through tubing

9
Sling Shot

• Powered by bungee cords
• Angles and pullback distance manually adjustable
• Spring constants and parabolic motion would be
  calculated to make the firing range and direction
  precise.

10
Keeping Our Priorities Straight
11
Analysis of Options
12
The Final Decision
13
The Building of
14
Our Project
15
An Afterthought

• Upon trial an aiming device became necessary

16
New Improved!

• A dowel with marked guidelines customizes the
  launcher for this project

17
(No Transcript)
18
Lights, Camera, ACTION!
19
If only

• With more time
• Further research
• More precision and accuracy
• With more money
• Better/different materials
• With more resources
• Ability to compute trajectories
• Variety of tools allows wider range of materials

20
And yet

• Design advantages
• Relatively inexpensive
• Flexibility in construction
• Adaptable to user preference
• Tolerance in dimensions
