Network%20Intrusion%20Detection%20Using%20Random%20Forests

1

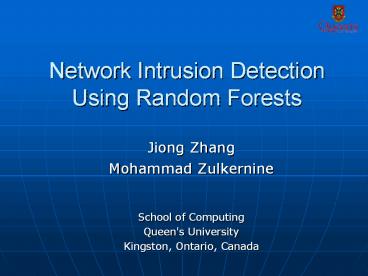

Network Intrusion Detection Using Random Forests

• Jiong Zhang
• Mohammad Zulkernine
• School of Computing
• Queen's University
• Kingston, Ontario, Canada

2
Outline

• Motivation
• Intrusion detection system
• Data mining meets intrusion detection
• Proposed architecture
• Challenges and solutions
• Experimental results
• Conclusion and future work

3
Motivation

• Intrusion Prevention System (firewall) can not
  prevent all attacks.

Intruder
Victim
Intruder
Firewall
Internet
4
Motivation (contd.)

• Statistical data for intrusions
• Total losses of 2004 (reported) 141,496,560.
• Source FBI survey for Year 2004
• 50 of security breaches are undetected.
• Source FBI Statistics for Year 2000

5
Intrusion Detection Techniques

• Misuse Detection
• Extracts patterns of known intrusions
• Cannot detect novel intrusions
• Has low false positive rate
• Anomaly Detection
• Builds profiles for normal activities
• Uses the deviations from the profiles to detect
  attacks
• Can detect unknown attacks
• Has high false positive rate

6
Network Intrusion Detection System (NIDS)

• Monitors network traffic to detect intrusions
• Monitors more targets on a network
• Detects some attacks that host-based systems miss
• Does not affect network operations

7
Current NIDS

• Many current NIDSs (like snort)
• Rule-based
• Unable to detect novel attacks
• High maintenance cost

8
Rule Based vs. Data Mining

• Rule based systems
• Data mining based systems

Intrusion Data
Security Experts
Rules
Labeled Data
Data Mining Engine
Patterns
9
Data Mining Meets Intrusion Detection

• Extract patterns of intrusions for misuse
  detection
• Build profiles of normal activities for anomaly
  detection
• Build classifiers to detect attacks
• Some IDSs have successfully applied data mining
  techniques in intrusion detection

10
Proposed Architecture
Database (On line)
Alarms
Packets
Audited data

• Networks

Alarmer
Detector
Sensors
On-line Pre- Processors
Feature vectors
Patterns
On line
Off line
Training data
Feature vectors
Pattern Builder
Data Set
Off-line Pre- processor
Database (Off line)
Architecture of the proposed NIDS
11
Random Forests

• Unsurpassable in accuracy among the current data
  mining algorithms
• Runs efficiently on large data set with many
  features
• Gives the estimates of what features are
  important
• No nominal data problem
• No over-fitting

12
Imbalanced Intrusion

• Problems
• Higher error rate for minority intrusions
• Some minority intrusions are more dangerous
• Need to improve the performance for the minority
  intrusions
• Proposed Solution
• Down-sample the majority intrusions and
  over-sample the minority intrusions

13
Feature Selection

• Essential for improving detection rate
• Reduces the computational cost
• Many NIDSs select features by intuition or the
  domain knowledge

14
Feature Selection over the KDD99 Dataset

• Calculate variable importance using random
  forests.
• Select the 38 most important features in
  detection.

15
Some Features

• The two most important features
• Feature 3. service type, such as http, telnet,
  and ftp
• Feature 23. count, connections to the same
  host as the current one during past two seconds
• The three least important features
• Feature 7. land, 1 if connection is from/to the
  same host/port 0 otherwise
• Feature 20. num_outbound_cmds, of outbound
  commands in an ftp session
• Feature 21. is_hot_login, 1 if the login belongs
  to the hot list 0 otherwise

16
Parameter Optimization for Random Forests

• Optimize the parameter Mtry of random forests to
  improve detection rate.
• Choose 15 as the optimal value, which reaches the
  minimum of the oob error rate.

17
Performance Comparison on the KDD99 Dataset

• Our approach provides lower overall error rate
  and cost compared to the best KDD99 result.
• Feature selection can improve the performance of
  intrusion detection.

18
Conclusion and Future Work

• Random forests algorithm can help improve
  detection performance and select features.
• Sampling techniques can reduce the time to build
  patterns and increase the detection rate of
  minority intrusions.
• In future, we will focus on anomaly detection and
  a multiple classifier architecture.
