Minimizing Communication Latency to Maximize Network Communication Throughput over InfiniBand

1

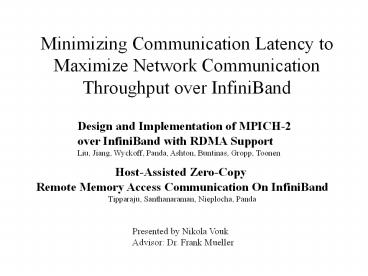

Minimizing Communication Latency to Maximize
Network Communication Throughput over InfiniBand
Design and Implementation of MPICH-2 over
InfiniBand with RDMA Support Liu, Jiang, Wyckoff,
Panda, Ashton, Buntinas, Gropp, Toonen
Host-Assisted Zero-Copy Remote Memory Access
Communication On InfiniBand Tipparaju,
Santhanaraman, Nieplocha, Panda
Presented by Nikola Vouk Advisor Dr. Frank
Mueller
2
Background
General Buffer Manipulation in Communication
Protoocls
3
InfiniBand

• 7.6 microsecond latency
• 857 MB/s peak bandwidth
• Send/Receive QueueWork Completed interface
• Asynchronous calls
• Remote Direct Memory Access
• Between Shared memory architecture and MPI
• Not exactly NUMA, but close
• Provides channel Interface (read/write) for
  communication
• Each side registers memory accessible freely to
  other hosts for security purposes.

4
(No Transcript)
5
Common Problems

• Link-layer/Network Protocol in-efficiencies
  (unnecessary messages sent)
• User-space to System-Buffer copy overhead (copy
  time)
• Synchronous sending/receiving and computing
  (Application has to stop in order to handle
  requests)

6
Problem 1 Message Passing Protocol
Basic InfiniBand protocol requires three matching
writes

• RDMA CHANNEL INTERFACE
• Put Operation
• Copy user buffer to pre-registered buffer
• RDMA write buffer to receiver
• Adjust local head pointer
• RDMA write new head pointer to receiver
• Return Bytes written

7
SolutionsPiggybacking and Pipelining
Send Pointer update with Packets
Chop buffers into packet size and Send out as
message comes in
Improvement, but still less than 870 MB/s
8
Problem 2 Internal buffer copying
overheadSolution Zero-Copy Buffers

• Internal overhead where the user must copy data
  to system (and into a registered memory slot)
• Allows system to read directly from the user

9
Zero-Copy Protocol at different Levels of MPICH
Hierarchy

• If Packet is Large enough
• Register user buffer
• Notify end-host of request
• End-host sends a RDMA-read
• Reads from user buffer space

10
Comparing Interfaces CH3 interface vs RDMA
Interface

• Implement directly off of CH3 interface
• More flexible due to access to complete ADI-3
  interface
• Always uses RMDA-write

11
(No Transcript)
12
CH3 Implementation Performance

• A function of raw underlying performance

13

• Pipelining always performed the worst
• RDMA Channel within 1 of CH3

14
Problem 3 To much overhead, not enough execution

• Unanswered Problems
• Registration overhead still there even in cached
  version
• Data transfer still requires significant
  cooperation from both sides (taking away from
  computation)
• Non-contiguous data not addressed

• Solutions
• Provide custom API allocates out of large
  pre-registers memory chunks
• Overlapping as much as possible communication
  with computation
• Applying zero-copy techniques using
  scatter/gather RMDA calls

15
Host-Assisted Zero-Copy Protocol

• Host sends request for gather from receiver
• Receiver posts a descriptor and continues working
• Can be implemented as a helper thread on
  receiving host
• Same as previous Zero-Copy idea, but extended to
  Non-contiguous data

16
NAS MG

• Again the Pipelined method performs similarly to
  the zero-copy method

17
Summa Matrix Multiplication

• Significant benefit of Host-Assisted Zero-Copy

18
Conclusions

• Minimizing internal memory copying removes
  primary memory performance obstacle
• Infiniband allows DMA that offloads work from the
  CPU. Can benefit by coordinating registered
  memory to minimize CPU involvment

• With proper coding, can achieve almost wire-speed
  on existing MPI programs over infiniband
• Could be implemented on other architectures
  (Gig-E, Myranet)

19
Thesis Implications

• Buddy MPICH is a latency hiding implementation
  of MPICH also.
• Separation at the ADI layer. Buddy thread listens
  for connections and accepts work from worker
  thread via send/receive queues.
