Scope of MeteoGIS in the International Context

1

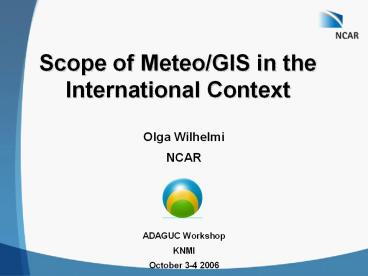

Scope of Meteo/GIS in the International Context

• Olga Wilhelmi
• NCAR
• ADAGUC Workshop
• KNMI
• October 3-4 2006

2
Outline

• Current state in integration of GIS and
  Atmospheric Sciences
• Progress
• Challenges
• Usability of atmospheric data in GIS
• Usability and uses of GIS for meteorological and
  climatological applications
• Future directions

3
The Purpose

• Challenges of earth system science research
  community include
• integration of complex physical processes into
  weather forecast and climate system models
• understanding interactions between climate,
  environment, and society
• integrating social and environmental information
  with weather and climate
• It is important to make atmospheric science
  usable and data accessible to a wide community of
  users, including researchers, educators,
  practitioners and policy-makers

4
The Challenge
5
The Challenge (cont.)

• Methods and concepts
• Limited knowledge of GIS concepts and data models
  among atmospheric scientists
• GIS community is making faster progress in
  adopting atmospheric concepts than atmospheric
  community adopting GIS concepts
• Technology
• Dimensions
• Interoperability between applications
• Data
• Formats
• Semantics
• People
• Learning curve
• Adoption of standards and data management
  practices

6
International Activities

• COST 719 (2001-2006)
• NCAR GIS Initiative (2001- present)
• Professional societies (EGU, AMS)
• University Consortium for Geographic Information
  Science
• Open Geospatial Consortium
• ESRI Atmospheric User Group
• Others

7
Uses of GIS

• Visualization of information
• Spatial analysis (exploration of spatial
  patterns, relationships, networks spatial
  statistics)
• Data distribution (web portals web services)
• Data integration (interoperability coupled
  systems, interdisciplinary research)
• First, need to resolve issues related to data
  usability and interoperability

8
Usability of Atmospheric Data

• Atmospheric Data Modeling working group
  categorized atmospheric data for usability in GIS
  as
• GIS Ready (fully described, point and click)
• GIS Friendly (some effort to transform into
  GIS-Ready not so friendly if heavy processing
  needed)
• GIS Alien (cannot be fully described)

9
GIS ReadyExisting GIS Data Structures
Shipley et al.
10
GIS FriendlyImages require additional info
500 hPa chart on ArcGlobe
World File
QTUA11.tif
QTUA11.tfw
14861.3 -36.775 -5.697 -14922.7 -12838043.0 109277
34.5
QTUA11.aux

Projection
Shipley et al.
11
GIS Friendly Data Processing Required
Lidar cross section over Cincinnati, OH
Shipley et al.
12
GIS Alien (at least for now)Meteogram
P (x,y,z,t), attributes p,q,u,v,
Time Series weather forecast (Meteogram) for
Washington DC, starting 21 June 2006
Shipley et al.
13
Potential GIS Data Structures
Shipley et al.
14
NetCDF in ArcGIS (now GIS-Ready)

• In ArcGIS 9.2 NetCDF data is accessed as
• Raster
• Feature
• Table
• Direct read
• Exports GIS data to netCDF

15
NetCDF Tools

• Toolbox Multidimension Tools
• Make NetCDF Raster Layer
• Make NetCDF Feature Layer
• Make NetCDF Table View
• Raster to NetCDF
• Feature to NetCDF
• Table to NetCDF
• Select by Dimension

16
Using NetCDF Data

• Display
• Same display tools for raster and feature layers
  will work on netCDF raster and netCDF feature
  layers.
• Graphing
• Driven by the table just like any other chart.
• Animation
• Multidimensional data can be animated through a
  dimension (e.g. time, pressure, elevation)
• Analysis Tools
• A netCDF layer or table will work just like any
  other raster layer, feature layer, or table.
  (e.g. create buffers around netCDF points,
  re-project rasters, query tables, etc.)
• Python

17
Emerging Standards

• CF Version 2
• The next generation of the Climate and Forecast
  convention of netCDF
• GALEON
• OGC testbed project to evaluate netCDF
  suitability as a WCS well known binary.
• Common Data Model (CDM)
• A new API to access netCDF, HDF, GRIB, and
  OpenDAP through a single API.
• NcML
• NetCDF Markup Language, like GML for netCDF earth
  science data

18
Data Visualization

• Symbology
• Identifying common symbols and creating defaults
  for weather and climate variables
• Integrating ESRI layer file and OGC style files
• Developing 3-D symbols for weather phenomena
• Use naming standards from CF convention

19
Spatial Analysis

• Interpolation methods
• More progress in interpolating climate data than
  weather data
• Challenges
• Temporal analysis (e.g., time series statistics,
  temporal interpolation, analysis and modeling of
  transitions, raster time series)
• Working across scales (upscaling, downscaling)
• Many suitable existing geoprocessing tools for
• Model verification
• Impact and risk assessment (interdisciplinary)
• Spatial patterns and suitability analysis

20
Example Impacts of Climate Change
21
Data Integration
GIS Client
AIS Client

• Coordinate Systems
• Many atmospheric models are based on a sphere
  much GIS data is based on an ellipsoid
• Temporal coordinate systems
• Interoperability
• Data
• Applications

22
Data Distribution

• Web portals

• Data Discovery

23
Example GIS Climate Change Data Portal

• Distributing outputs from NCARs Global Climate
  Model (CCSM) in a GIS format (shapefile, text
  file)
• Ongoing work downscaling

http//www.gisClimateChange.org
24
Users of GIS Climate Change Data Portal
Resource management
Biomass potential
Salmon conservation
Climate Change Education
Water Resources
Agriculture
Energy
Human Health

• Since February 2005 127K hits, 15K files
  downloaded, more than 1200 registered users from
  95 countries
• Many non-traditional users
• Challenge education about appropriate use of
  data

25
Future Direction

• Distributed collaboratories for geosciences
• Increased computing capacity and capability
• Increased focus on multidisciplinary research
• Web services
• Self-contained, modular applications that can be
  described, published, and accessed over the
  Internet
• promote interoperability by minimizing the
  requirements for understanding between client and
  service and between services
• Extensible, interoperable web services for data
  discovery, access and transformation
• Data services (e.g., WMS, WFC, WCS, ArcGIS
  server)
• Geoprocessing services (web GIS, ArcGIS server)
• Catalog services (e.g., THREDDS, CS-W)

26
Summary

• We are seeing progress in integration of GIS with
  atmospheric sciences, however many challenges
  remain
• Ongoing work with international data standards,
  web services, and integration of atmospheric and
  geospatial data make steps towards better
  understanding of the Earth System and solving
  societally relevant problems
• ADAGUC is on the right track for addressing
  challenging questions of data distribution and
  interoperability

27
Thank You!

• For more information
• http//www.gis.ucar.edu
• E-mail olgaw_at_ucar.edu
