Sequoia Voting Systems

1

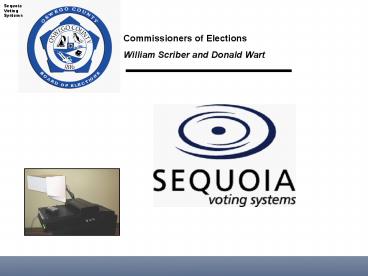

Sequoia Voting Systems
Commissioners of Elections William Scriber and
Donald Wart
2
System Orientation and Overview

• ImageCast Voting System and Ballot
  Marking Device

3
Ballot Marking Device

• The ImageCast voting system includes a Ballot
  Marking device (BMD)
• A device used to create a human-readable voted
  paper ballot through an electronic interface
• The interface must comply with the ADA
  requirements of HAVA.
• In other words, the system must produce a paper
  ballot through an audio, sip puff, etc.
  interface that reflects the voters selections.

4
General Requirements

• One BMD per Polling Place in each County
• BMD must have a display screen that matches the
  paper ballot
• BMD must produce a human and machine readable
  ballot
• All tabulation functionality must be disabledall
  ballots hand tabulated

5
Dominion ImageCast Voting System
Privacy Panel
LCD Display Screen
Adjustable Swivel Arm
Ballot Printer
ImageCast Precinct Tabulator
Audio-Tactile Interface (ATI)
Ballot Marker Table
Ballot Box
6
ImageCast Physical Overview

• Stand-alone System
• LCD Display Screen
• Audio-Tactile Interface
• Ballot Printer
• Precinct Counter/Tabulator
• Ballot Box and Compartments

BMD
7
BMD Audio Tactile Interface (ATI)

• ATI and headphones
• Additional Interfaces
• Sip and Puff
• Rocker Paddle

8
Ballot is Printed on demand
9
Using the ImageCast Counter

• BMD-printed ballot is inserted into Counter
• Voters choices may be read back
• Voter may spoil a ballot
• Voter may receive warnings
• Undervote
• Blank Ballot
• Voter approves and casts ballot
• Ballot is counted
• ImageCast Public Counter increments by 1
