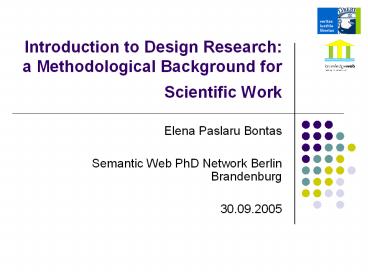

Introduction to Design Research: a Methodological Background for Scientific Work

1
Introduction to Design Research a
Methodological Background for Scientific Work

• Elena Paslaru Bontas
• Semantic Web PhD Network Berlin Brandenburg
• 30.09.2005

2
Outline

• Motivation
• Types of research
• Design Research Basics
• Evaluation in Design Research
• Conclusion

3
Motivation

• Motivation for research
• pure research enhance understanding of phenomena
• instrumentalist research a problem needs a
  solution
• applied research a solution needs application
  fields
• Motivation for research methodology
• (qualitatively) control research process
• validate research results
• compare research approaches
• respect rules of good scientific practice

4
Research A Definition

• Research
• an activity that contributes to the understanding
  of a phenomenon Kuhn, 1962 Lakatos, 1978
• phenomenon a set of behaviors of some
  entity(ies) that is found interesting by a
  research community
• understanding knowledge that allows prediction
  of the behavior of some aspect of the phenomenon
• activities considered appropriate to the
  production of understanding (knowledge) are the
  research methods and techniques of a research
  community
• paradigmatic vs multi-paradigmatic communities
  (agreement on phenomena of interest and research
  methods)

5
Scientific Disciplines

• Types of research Simon, 1996
• natural sciences phenomena occurring in the
  world (nature or society)
• design sciences sciences of the artificial
• all or part of the phenomena may be created
  artificially
• studies artificial objects or phenomena designed
  to meet certain goals
• social sciences structural level processes of a
  social system and its impact on social processes
  and social organization
• behavioural sciences the decision processes and
  communication strategies within and between
  organisms in a social system

6
phenomena
design sciences
Semantic Web (CS)
activities
Owen,1997
7
Design research basics

• Process model
• Artifact types
• result of the research work
• Artifact structure
• content of the research approach
• Evaluation
• evaluation criteria
• evaluation approach

8
Process model

• a problem-solving paradigm
• seeks to create innovations that define the
  ideas, practices, technical capabilities, and
  products through which the analysis, design,
  implementation, and use of information systems
  can be effectively and efficiently accomplished
  Tsichritzis 1997 Denning 1997

9
Design research process
knowledge flows
operation and goal knowledge
circumscription
process steps
Awareness of problem
Suggestion
Development
Conclusion
Evaluation
logical formalism
abduction
deduction
Takeda,1990
10
Artifacts

• are not exempt from natural laws or behavioral
  theories
• artifacts rely on existing "kernel theories" that
  are applied, tested, modified, and extended
  through the experience, creativity, intuition,
  and problem solving capabilities of the
  researcher Walls et al. 1992 Markus et al.
  2002

11
Design research outputs March Smith, 1995

• Constructs
• conceptual vocabulary of a problem/solution
  domain
• Methods
• algorithms and practices to perform a specific
  task
• Models
• a set of propositions or statements expressing
  relationships among constructs
• abstractions and representations
• Instantiations
• constitute the realization of constructs, models
  and methods in a working system
• implemented and prototype systems
• Better theories
• artifact construction

Thesis output
12
Design research outputs
constructs better theories models
emergent theory about embedded phenomena
abstraction
models methods constructs better theories
abstraction
knowledge as operational principles
abstraction
artifact as situated implementation
instatiations methods constructs
Purao , 2002
13
Examples

• Open up a new area
• Provide a unifying framework
• Resolve a long-standing question
• Thoroughly explore an area
• Contradict existing knowledge
• Experimentally validate a theory
• Produce an ambitious system
• Provide empirical data
• Derive superior algorithms
• Develop new methodology
• Develop a new tool
• Produce a negative result

14
Artifact structure

• Structure of the artifact
• the information space the artifact spans
• basis for deducing all required information about
  the artifact
• determines the configurational characteristics
  necessary to enable the evaluation of the
  artifact

Content of the thesis
15
Evaluation criteria

• Evaluation criteria
• the dimensions of the information space which are
  relevant for determining the utility of the
  artifact
• can differ on the purpose of the evaluation

Test cases
16
Evaluation approach

• Evaluation approach
• the procedure how to practically test an artifact
• defines all roles concerned with the assessment
  and the way of handling the evaluation
• result is a decision whether or not the artifact
  meets the evaluation criteria based on the
  available information.

Testing method
17
Evaluation approach (2)

• Quantative evaluation
• originally developed in the natural sciences to
  study natural phenomena
• approaches
• survey methods
• laboratory experiments
• formal methods (e.g. econometrics)
• numerical methods (e.g. mathematical modeling)

18
Evaluation approach (3)

• Qualitative evaluation
• developed in the social sciences to enable
  researchers to study social and cultural
  phenomena
• approaches
• action research
• case study research
• ethnography
• grounded theory
• qualitative data sources
• observation and participant observation
  (fieldwork)
• interviews and questionnaires
• documents and texts
• the researchers impressions and reactions

19
Constructs
Structure Evaluation criteria Evaluation approach
meta-model of the vocabulary construct deficit construct overload construct redundancy construct excess ontological analysis
20
Methods
Structure Evaluation criteria Evaluation approach
process-based meta model intended applications conditions of applicability products and results of the method application reference to constructs appropriateness completeness consistency laboratory research field inquiries surveys case studies action research practice descriptions interpretative research
21
Models
Structure Evaluation criteria Evaluation approach
domain scope, purpose syntax and semantics terminology intended application correcteness completeness clarity flexibility simplicity applicability implementability syntactical validation integrity checking sampling using selective matching of data to actual external phenomena or trusted surrogate integration tests risk and cost analysis user surveys
22
Instantiations
Structure Evaluation criteria Evaluation approach
executable implementation in a programming language reference to a design model reference to a requirement specification reference to the documentation reference to quality management documents reference to configuration management documents reference to project management documents functionality usability reliability performance supportability code inspection testing code analysis verification
23
Conclusion

• Good research results require a careful
• design of the research methodology and
• considerable evaluation efforts

24
References

• DFG Rules of Good Scientific Practice available
  at www.dfg.de, last seen September 2005
• Tsichritzis, D. "The Dynamics of Innovation,"
  Beyond Calculation The Next Fifty Years of
  Computing, Copernicus, 1997, pp. 259-265
• Denning, P.J. "A New Social Contract for
  Research," Communications of the ACM (402),
  February 1997, pp. 132-134
• Simon, H.A. The Sciences of the Artificial, 3rd
  Edition, MIT Press, Cambridge, MA, 1996
• Markus, M.L., Majchrzak, A., and Gasser, L., "A
  Design Theory for Systems that Support Emergent
  Knowledge Processes," MIS Quarterly (263),
  September, 2002, pp. 179-212
• Walls, J.G., Widmeyer, G.R., and El Sawy, O.A.
  "Building an Information System Design Theory for
  Vigilant EIS," Information Systems Research
  (31), March 1992, pp. 36-59
• Kuhn, T.S. The Structure of Scientific
  Revolutions, 3rd Edition, University of Chicago
  Press, 1996
• March, S.T. and Smith, G. Design and Natural
  Science Research on Information
• Technology, Decision Support Systems (154),
  December 1995, pp. 251-266
• Lakatos, I. The Methodology of Scientific
  Research Programmes, John Worral and Gregory
  Currie, Eds., Cambridge, Cambridge University
  Press, 1978
• Wikipedia available at www.wikipedia.org, last
  seen Semptember 2005
• Purao, S. Design Research in the Technology of
  Information Systems Truth or Dare. GSU
  Department of CIS Working Paper. Atlanta, 2002

25
Danke für die AufmerksamkeitViel Erfolg für die
Promotionpaslaru_at_inf.fu-berlin.de
