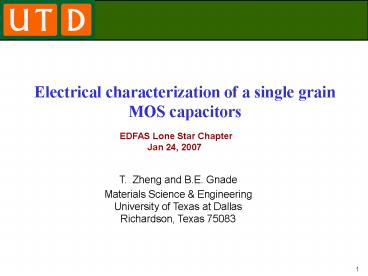

Electrical characterization of a single grain MOS capacitors

1
Electrical characterization of a single grain MOS
capacitors
EDFAS Lone Star Chapter Jan 24, 2007

• T. Zheng and B.E. Gnade
• Materials Science Engineering
• University of Texas at Dallas
• Richardson, Texas 75083

2
Acknowledgements

• University of Texas at Dallas
• Profs. Moon J. Kim, Eric M. Vogel
• Dr. H. Jia
• D. K. Cha, J. Huang, G. Pant
• Texas Instruments
• Drs. L. Colombo, H. Edwards, R. Irwin
• Sematech
• Dr. G. Brown
• Financial support
• Texas Instruments/SRC

3
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

4
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

5
Potential Issues with Scaling Polycrystalline
Metal Gates
Will the orientation dependence of the metal work
function affect the flat-band voltage of a MOS
capacitor?
6
Effective Work Function
7
Target and Task

• Target
• Will the orientation dependence of metal work
  function affect the flat-band voltage of a MOS
  capacitor?
• What is the effective work function of a metal
  gate with different orientations?

• Task
• Deposition of gate metal with different
  orientations
• Isolation/patterning of single grains
• Electrical characterization of a single grain
  capacitor
• Determination of the orientation of electrically
  characterized single grain

8
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

9
Spatial Limitation of Conventional C-V
Measurements
Same pattern under SEM
Image of 1?m x1?m pads taken by optical
microscope at 100X
Cascade Probe station
10
SEM based Probing PlatformZyvex Nano Probe with
low-noise update
Zyvex F-100 Nano Manipulator/ Probe system
11
Probing Nanostructures
Probing 90 nm Transistor with 10 nm spatial
movement resolution

• DC measurements on nanostructures demonstrated !
• AC measurements of small capacitance on
  nanostructures ?

• courtesy of Zyvex Corp.

12
Sample holder noise
13
Sample Mounting for Measurements Using Nano
Manipulator/Probe
14
C-V Measurements by Nano Manipulator/Probe
15
Small Capacitance Measurements by Nano
Manipulator/Probe

• Measuring 3?m diameter MOS capacitor with 75 Å
  SiO2 at 1MHz by Nano Manipulator bias reversed

16
Whats the problem?
17
Modification of Nano Manipulator for small value
CV Measurements

• Control signal and measurement signal need to be
  separated.
• Measurement signal needs to be guarded to the
  very end of the probe
• Cable length needs to be reduced.

18
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

19
E-beam Damage to MOS Structure
20
Electron-MOS structure interaction Monte Carlo
simulation
28nm
320nm
5kV
1kV
Simulation is done by using software CASINO
21
Electron-MOS structure interaction Monte Carlo
simulation
22
(No Transcript)
23
E-beam damage to MOS structureusing 1KeV E-beam
imaging
100KHz
24
(No Transcript)
25
E-beam damage to the uncapped oxide
26
Comparison of CV measurements by Cascade and
Nanoprobe

• Flat-band region is consistent between the two
  measurement platforms

27
3-Element model correction
K. J. Yang et al., IEEE Trans. Electron. Dev.,
vol. 46, 1500(1999).
28
CV measurements of 5um vs. 50um
29
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

30
Shunt Capacitance Phenomenon on Cascade Probe
station
Accurately measuring shunt capacitance is
critical to small capacitance measurement
Assumed shunt capacitance
31
Shunt capacitance reduction
32
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

33
Small signal method
If the noise is constant, increasing V or ? will
increase the signal-to- noise ratio
34
Noise analysis
35
AC signal effect on Nanoprobe
36
Noise analysis
37
Mechanical Vibration related noise
38
Expected Grain Size Calculation
39
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• Shunt capacitance reduction
• Noise analysis
• Formation of single grain Al gate MOS
  capacitor
• Grain Orientation Determination
• Summary

40
Selection of gate metal
Al has a low melting temperature of 660C,
resulting in a possible higher Tsub/Tm Al is
stable on SiO2 up to 400C.
H. B. Michaelson, J.A.P. 48 (1977) 4729
41
Room temperature deposited Al gate
Out of plane mode XRD
300C
150C
RT
42
Effect of deposition time
1hours
2hours
4hours
43
Formation of single Al grain gate
Before etching
Al

• Al grains are
• deposited by Ar sputtering at 300 C substrate
  temperature
• annealed at 360 C in Vacuum
• etched for 40 seconds by using Al etchant type-A
  to remove the nano grains

SiO2
After etching
44
Outline

• Motivation
• Introduction of Nanoprobe inside SEM
• E-beam damage to MOS capacitor
• C-V Measurement on single grain MOS capacitor
• single grain MOS capacitor measurement
• Grain Orientation Determination
• Summary

45
Single grain CV measurements (continued)
46
Single grain CV measurements
47
Mechanical stress effect on Nanoprobe
48
Single grain CV measurements
1MHz

• So far, all the grains show similar Flat-band
  voltage

Capacitor area analysis is done by using
software Image Tool
49
(No Transcript)
50
(No Transcript)
51
Grain Orientation Determination

• Orientation Imaging Microscopy (OIM)
• Transmission Electron Diffraction

52
Cross section Transmission Electron Diffraction
Pt
Al
Si
53
Orientation characterization of grain which has
been probed
tilted 40 degree
no tilt
54
Orientation Imaging Microscopy (OIM)
55
Example OIM Data
56
Summary

• CV measurements inside SEM using Nanoprobe is
  demonstrated
• E-beam damage to MOS device can be minimized by
  using low energy electrons
• CV measurements of single grain Al metal gate
  MOS capacitors can be achieved by carefully
  controlling the contact resistance

57
Future Work

• Probe more Al grains
• Study of FIB patterning of MOS CAP
• Explore single Al grain on high-K (HfO2) system
