The World Trade Center

1

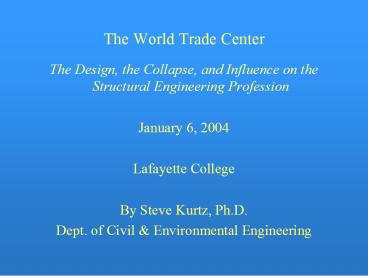

The World Trade Center

• The Design, the Collapse, and Influence on the
  Structural Engineering Profession

• January 6, 2004
• Lafayette College
• By Steve Kurtz, Ph.D.
• Dept. of Civil Environmental Engineering

2
Main Topics

• The 1960s Groundbreaking Design of WTC 12
• The Causes of Collapse
• Influence on the Future of Structural Engineering

3
WTC 1 2 A Groundbreaking Design
4
WTC 1 2 A Groundbreaking Design

• In order to appreciate the landmark structural
  design that was seen in the Twin Towers, we must
  first study

5
WTC 1 2 A Groundbreaking Design

• In order to appreciate the landmark structural
  design that was seen in the Twin Towers, we must
  first study

• High Rise 101

6
High Rise 101 The Empire State Building
Floor Plans
7
High Rise 101 The Empire State Building
Floor Plans
8
High Rise 101 The Empire State Building
Columns Spaced in 30 grid Long
spans avoided for efficiency

Floor Plans
9
High Rise 101

• Columns support Beams

10
High Rise 101

• Columns support Beams

Beam
Column
11
High Rise 101

• Columns support Beams
• Beam stresses increase with their span SQUARED

Beam
Column
12
High Rise 101

• Columns support Beams
• Beam stresses increase with their span SQUARED
• This makes long spans EXPENSIVE

Beam
Column
13
High Rise 101 The Empire State Building
THEREFORE Many Interior Columns
14
High Rise 101 The Empire State Building
THEREFORE Many Interior Columns Maximu
m Structural Economy

15
High Rise 101 The Empire State Building
THEREFORE Many Interior Columns Maximu
m Structural Economy NOT popular with Arch
itects

16
High Rise 101 The Empire State Building
THEREFORE Many Interior Columns Maximu
m Structural Economy NOT popular with Arch
itects
NOT popular with Developers
17
Inside the Empire State Building
18
Inside the Empire State Building
19
Inside the Empire State Building
20
Inside the Empire State Building
21
Inside the Empire State Building
22
High Rise 101 The Lateral System

• Lateral System the group of members (beams,
  columns, and braces) that resist wind or
  earthquake forces.

23
High Rise 101 The Lateral System

• Whereas

24
High Rise 101 The Lateral System

• Whereas
• Gravity forces grow linearly, with building height

25
High Rise 101 The Lateral System

• Whereas
• Gravity forces grow linearly, with building
  height

• Example A 20-story building supports about
  twice as much weight of occupants as a 10-story
  building

26
High Rise 101 The Lateral System

• Whereas
• Gravity forces grow linearly, with building
  height

• Example A 20-story building supports about
  twice as much weight of occupants as a 10-story
  building

• Lateral forces grow exponentially, with building
  height

27
High Rise 101 The Lateral System

• Whereas
• Gravity forces grow linearly, with building
  height

• Example A 20-story building supports about
  twice as much weight of occupants as a 10-story
  building

• Lateral forces grow exponentially, with building
  height

• Example A 20-story building may need to sustain
  4 times as much wind force as a 10-story building

28
High Rise 101 The Lateral System

• Hence, the amount of structural steel needed

Wind Steel
Tons of Steel
Gravity Steel
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
29
High Rise 101 The Lateral System

• Hence, the amount of structural steel needed is
  huge for tall buildings due to wind (or
  earthquake)

Wind Steel
Tons of Steel
Total Steel
Gravity Steel
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
30
High Rise 101 Lateral System Types

• Simple Braced Frame

31
High Rise 101 Lateral System Types

• Simple Braced Frame
• Beam-column connections do not resist moment.
• Connections designed for shear, only.
• Act as pins

Rentable Space
32
High Rise 101 Lateral System Types

• Simple Braced Frame
• Beam-column connections do not resist bending.
• Connections designed for shear, only.
• Act as pins
• Bracing provides primary means of resisting
  lateral forces

Bracing in the Core
Rentable Space
33
High Rise 101 Lateral System Types

• Simple Braced Frame
• Resists wind by putting columns and braces in
  TENSION or COMPRESSION (no bending)

34
High Rise 101 Lateral System Types

• Simple Braced Frame
• Resists wind by putting columns and braces in
  TENSION or COMPRESSION (no bending)

35
High Rise 101 Lateral System Types

• Simple Braced Frame
• Resists wind by putting columns and braces in
  TENSION or COMPRESSION (no bending)

• EFFICIENT, because no bending

Bracing in the Core
Rentable Space
36
High Rise 101 Lateral System Types

• Simple Braced Frame
• Resists wind by putting columns and braces in
  TENSION or COMPRESSION (no bending)

• EFFICIENT, because no bending
• But architecture may not always allow.

Bracing in the Core
Rentable Space
37
High Rise 101 Lateral System Types

• Rigid Frame

38
High Rise 101 Lateral System Types

• Rigid Frame
• No bracing
• Beam-column connections resist bending
• Moments in beams and columns are primary means of
  resisting lateral forces.


39
High Rise 101 Lateral System Types

• Rigid Frame

40
High Rise 101 Lateral System Types

• Rigid Frame
• Resists wind by putting columns and beams in
  BENDING

• INEFFICIENT, because of bending
• Often requires huge beams much bigger then
  needed to support the gravity loads.


41
World Trade Center Lateral System

• Exterior columns spaced at 34 on center

42
World Trade Center Lateral System

• Exterior columns spaced at 34 on center
• Rigid connections to very deep beams

43
World Trade Center Lateral System

• Exterior columns spaced at 34 on center
• Rigid connections to very deep beams
• A kind of rigid frame,

44
World Trade Center Lateral System

• Exterior columns spaced at 34 on center
• Rigid connections to very deep beams
• A kind of rigid frame, but with 1000 times less
  bending deformation

45
World Trade Center Lateral System
46
World Trade Center Lateral System

• Columns are principally in TENSION or COMPRESSION

47
World Trade Center Lateral System

• Columns so close that the entire BUILDING behaves
  as one massive tube-shaped beam.

• Engineering Terms The BUILDING has a huge
  Moment of Inertia

48
World Trade Center Gravity System
49
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.


50
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.


51
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Small floor beams (on 114 Floors!)

52
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Small floor beams (on 114 Floors!)
• Floor bar joists at 134 in each direction

53
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Small floor beams (on 114 Floors!)
• Floor bar joists at 134 in each direction

54
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Small floor beams (on 114 Floors!)
• Floor bar joists at 134 in each direction
• Very long spans! Nearly 60
• No intermediate columns in office area

55
World Trade Center Gravity System

• Because the entire lateral system was contained
  in the exterior walls, the floor beams did not
  need to resist bending.

• Small floor beams (on 114 Floors!)
• Floor bar joists at 134 in each direction
• Very long spans! Nearly 60
• No intermediate columns in office area
• Joists spanned between exterior wall and core,
  simply-supported


56

• WTC Floor Plan

57

• SE Corner
• Columns at 34 on-center
• Bar-Joists at 134 on center

58
Details Simple Connections
59
Details Simple Connections

• A simple connection acts like a pin it resists
  forces but is free to rotate

60
Details Simple Connections

• Two types of simple connections in the World
• Simple-Frame
• Seated Connection

61
Details Simple Connections

• Two types of simple connections in the World
• Simple-Frame
• Seated Connection

62
Details Simple Connections

• Two types of simple connections in the World
• Simple-Frame
• Seated Connection
• These two types of simple connections are
  considered equivalent. Both are

• Designed for vertical forces only. No bending
  resistance

• Widely used.

63
Details Simple Connections

• WTC used Seated Simple Connections for the Bar
  Joists


64

• Bar Joist Details

65

• Exterior Wall during construction

Seat
66

• Exterior Wall during construction

67
The Causes of the September 11th Collapse
68

• Satellite Photograph
• 9/17/02

69
Sept. 11th Damage Impact
Structural Model
70
Gravity Load Redistribution
71
Gravity Load Redistribution
A Computer-based Structural Analysis was
performed Impacted Columns removed from the model
Result Analysis showed that remaining column
s were within limit states. Conclude Extremely
high redundancy was critical in soft
redistribution of forces
72
Simple Connections, Revisited
Seated Connection
Simple Frame Connection
73
Simple Connections, Revisited
Seated Connection Resists vertical forces
Simple Frame Connection Resists vertical forces
74
Simple Connections, Revisited
Seated Connection Resists vertical forces Allo
ws rotation
Simple Frame Connection Resists vertical forces
Allows rotation
75
Simple Connections, Revisited
Seated Connection Resists vertical forces Allo
ws rotation
Simple Frame Connection Resists vertical forces
Allows rotation Resists horizontal forces
76
Simple Connections, Revisited
Seated Connection Resists vertical forces Allo
ws rotation DOES NOT Resist Horizontal Fo
rces
Simple Frame Connection Resists vertical forces
Allows rotation Resists horizontal forces
77
Sept. 11th Damage Fire
78
Sept. 11th Damage Fire
High Temperatures affects the stiffness of steel


79
Sept. 11th Damage Fire
High Temperatures affects the stiffness of steel

Results Reduced buckling capacity of columns
80
Sept. 11th Damage Fire
High Temperatures affects the stiffness of steel
Results Reduced buckling capacity of columns
Huge stretching of beams
Stretching beams (cable action)
81
Cable Action in other buildings
WTC 5
Simple Shear Connection (not a seated connection!
)
82
Catenary Action in other buildings
WTC 5
Huge Deformations Development of Catenary
action

83
Cable Action in WTC Towers?
Seated Connections not strong in tension.
No cable action developed. Failure of building in
itiated by falling slabs and pancaking

84
Conclusions and Future Influences on Structural
Engineering
85
Conclusions and Future Influences on Structural
Engineering

• High redundancy present in the WTC towers was
  extremely critical in sustaining the initial
  impact by soft redistribution of axial column
  forces to adjacent columns.

86
Conclusions and Future Influences on Structural
Engineering

• Although simple shear and seated connections are
  the same for normal design (to resist shear
  forces), seated connections may not be
  sufficiently strong in tension to develop
  cable-like action in extreme events such as 9/11
