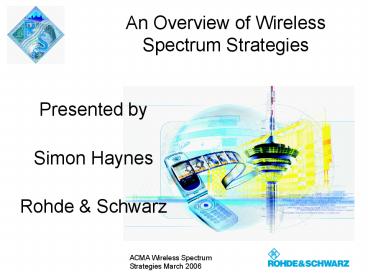

An Overview of Wireless Spectrum Strategies

• Presented by
• Simon Haynes
• Rohde Schwarz

2
Rohde Schwarz at a Glance

• Europes largest manufacturer of electronic test
  and measurement equipment
• Leading manufacturer of professional
  radiocommunications, radiomonitoring,
  broadcasting and IT security technology
• Founded in 1933
• Approx. 6000 employees worldwide
• Subsidiaries and representatives in over 70
  countries
• Celebrating 25 years in Australia as Rohde
  Schwarz

3
Our Business Fields

• Test and Measurement
• Radiocommunications Systems
• Professional Mobile Radio
• Information Security

• Broadcasting
• Radiomonitoringand Radiolocation
• Services

4
Rohde Schwarz Australia

• Mobile Broadcasting
• Wireless Technologies
• Whats Next

5
Rohde Schwarz Australia

• Mobile Broadcasting
• DVB-H
• T-DMB
• MediaFLO

6
Mobile Vs Broadcast

• Broadcast Networks
• Analog, DAB, DVB,
• Large Area Coverage
• Uni-directional
• Point-to-Multipoint
• Restricted mobility
• Attractive content
• High data capacity (BC IP)
• Public/Private
• Local competition

• Mobile Networks
• 2G, 2.5G, 3G
• Cellular
• Bi-directional
• On-demand
• Personalized
• Pay per use
• Billing
• International Rules
• Competitive international business

7
Beyond 3G - Cellular Broadcast Technologies
convergance

• Europe ? Cellular and DVB-H, T-DMB
• USA ? Cellular and DVB-H, MediaFLO
• Korea ? Cellular and T-DMB
• Australia ? DVB-H

8
Analysis of Mobile Broadcast

• Todays Broadcasters
• Standards are available
• Broadcast Models
• Broadcast Frequencies
• Are Mobile Broadcasts, a broadcast technology?

9
Comparison of Mobile Broadcasting
10
Simple Network Overview
MediaFLO
11
Technical Overview Data Playout
12
T-DMB Network
13
T-DMB Receivers
14
T-DMB Comparison
15
T-DMB Satellite Receiver

• Horizontal display
• MP3 player
• Mega pixel camera
• Video player
• Separate TV Viewer

16
MediaFLO Network
Source Qualcomm
17
Hidden slide

• This is a hidden slide in the slide show but
  contains notes

18
Tests on comparison of DVB-H/ DVB-T single
frontend/ diversity reception
19
Receiver characterisation as in ETSI TR 102 401
v1.1.1 (2005-06)
20
Conclusions from the tests

• The usage for MPE FEC increases the tolerable
  Doppler shift for mobile reception by about 40 ,
  and reduces the required C/N by about 6 dB.
• For very low Doppler shifts the gain in C/N is
  reduced. It remains to be investigated if this
  effect occurs in a similar way when a new profile
  for outdoor/ indoor reception at pedestrian speed
  is used. Such a profile is still under
  development. First result point to the conclusion
  that TU6 is less applicable in such circumstances.

TU6 - ETSI TR101 290 TYPICAL URBAN, 50
km/h V1.2.1 Annexe K3 P173)
21
Acknowledgements

• The INSTINCT project is partly funded by the
• European Commission (IST-1-507014-IP)

INSTINCT Web Page www.ist-instinct.org
22
Technologies, Bit rates and mobility
23

• Mobile Broadcasting
• Wireless Technologies
• Whats Next

24
Wireless Technologies

• WIMAX
• UWB
• RFID

• MBMS
• WiFi
• ZigBee
• HSDPA

25
Multimedia Broadcast Multicast Service (MBMS)

• MBMS designed to use 3G networks
• MBMS Bearer Service uses IP Multicast addresses
• MBMS User Service is basically the Service Layer
  and offers an Streaming- and a Download Delivery
  Method.
• Up to 4 time slots for the downlink

26
Wireless TechnologyPositioning
Source Siemens 2004
27
The 802 Wireless Space
WWAN
IEEE 802.22
IEEE 802.20
WMAN
WiMax IEEE 802.16
Range
WLAN
WiFi 802.11
ZigBee 802.15.4
802.15.3 802.15.3a 802.15.3c
Bluetooth 802.15.1
WPAN
0.01
0.1
1
10
100
1000
Data Rate (Mbps)
ZigBee Alliance
28
WiFi

• Based on IEEE802.11 standards
• Intended for mobile services and WLANs
• Now used for internet access at Hotspots, VoIP
• Limited range

29
Wi-Fi

• Wi-Fi is expanding into consumer electronics and
  phones, building on success in the PC market
• Voice over WLAN
• Forecast of 120 million chipsets in 2006

30
(No Transcript)
31
WiFI Enterprise Network
32
WiMAX Overview

• WiMAX Worldwide Interoperability for Microwave
  Access

33
The 802 Wireless Space
WWAN
IEEE 802.22
IEEE 802.20
WMAN
WiMax IEEE 802.16
Range
WLAN
WiFi 802.11
UWB 802.15.3 802.15.3a 802.15.3c
ZigBee 802.15.4
Bluetooth 802.15.1
WPAN
0.01
0.1
1
10
100
1000
Data Rate (Mbps)
ZigBee Alliance
34
Organisations

• IEEE
• Standardisation of IEEE Standard Family
• ETSI
• ETSI BRAN standardised HiPERMAN (compatible,
• Global specification, no competition)
• WiMAX Forum
• Promotes and supports 802.16
• Global certification of interoparability of
  products
• WiMAX is comparable with the Wi-fi alliance (WLAN)

35
Market Roadmap

• Key driver is Intel
• Intels Roadmap
• Networks in USA, Argentina, France planned soon
• RD activities worldwide USA, Europe and Asia

Source Intel Feb 04 Cannes
36
WiMAXApplication Scenarios
Source WiMAX Forum
37
Zigbee

• Designed for
• Home Automation
• Building Automation
• Industrial Automation

38
The 802 Wireless Space
WWAN
IEEE 802.22
IEEE 802.20
WMAN
WiMax IEEE 802.16
Range
WLAN
WiFi 802.11
UWB 802.15.3 802.15.3a 802.15.3c
ZigBee 802.15.4
Bluetooth 802.15.1
WPAN
0.01
0.1
1
10
100
1000
Data Rate (Mbps)
ZigBee Alliance
39
Basic Radio Characteristics
ZigBee technology relies upon IEEE 802.15.4,
which has excellent performance in low SNR
environments
ZigBee Alliance
40
Network Structure
ZigBee Alliance
41
ZigBee Applications
CONSUMER ELECTRONICS
BUILDING AUTOMATION
security HVAC AMR lighting control access control
TV VCR DVD/CD remote
PC PERIPHERALS
PERSONAL HEALTH CARE
ZigBee Wireless Control that Simply Works
mouse keyboard joystick
patient monitoring fitness monitoring
RESIDENTIAL/ LIGHT COMMERCIAL CONTROL
INDUSTRIAL CONTROL
asset mgt process control environmental energy
mgt
security HVAC lighting control access
control lawn garden irrigation
ZigBee Alliance
42
High-Speed Downlink Packet Access or HSDPA

• HSDPA defines a new W-CDMA channel, the
  high-speed downlink shared channel (HS-DSCH) that
  operates in a different way from existing W-CDMA
  channels, but is only used for downlink
  communication to the mobile.
• sometimes referred to as a 3.5G (or "3½G")
  technology.
• designed to increase the available data rate by a
  factor of 5 or more.

43
Focus of HSDPA

• HSDPA is a 3GPP release 5 feature for UMTS
  FDD/TDD.
• Main focus Enhancements for downlink packet data
• Background Servicesemail delivery, file
  download, telematics
• Interactive Services web browsing, data base
  retrieval, server access
• Streaming Services audio/video streaming
• Mobility 0-30 km/h (pedestrian low speed
  vehicular)

44

• Oh no.
• Another 3.5G technology called Wi-Bro

45
Oh no. Another 3.5G technology called Wi-Bro

• CeBIT 2005 Just when you thought Wi-Max was the
  end
• By Tony Dennis at CeBIT Friday 11 March 2005,
  1213
• BUNNIES DAZZLED BY the headlights is the best
  description for the look on the faces of the
  massed hordes of CeBIT press gangsters when
  Samsung casually announced it was rolling out
  something called Wi-Bro in June 2006. Another
  3.5G technology had suddenly been sprung upon
  us.Yes, Wi-Bro (Wireless BROadband) will go head
  on against the likes of Wi-Max (and OFDM for that
  matter). It aims to offer susbscribers a true 50
  Mbit/s high speed wireless Internet connexion.

46
Wi-Bro

• Plus it will work even when you're travelling at
  speeds up to 60 Kph.
• And it works at 2.3 GHz - which is exactly where
  stuff like Bluetooth and Wi-Fi sit at the moment.
• In case you still weren't panicking enough,
  Samsung proudly announced it had already signed
  up three Korean operators to offer it.

47
Rohde Schwarz Australia

• Mobile Broadcasting
• Wireless Technologies
• Whats Next

48
Life after 3G?

• So where do we go from here?

49
Beyond 3G - Research premiere in Cannes Feb2005

• 1 Gbps Over the Air in Real Time
• 1,000,000,000 bits

50
Siemens

• The test transmission used a 100 MHz channel in
  the 5 GHz range,
• The transmission was encoded using a new
  Siemens-developed signal processing technique and
  transmitted using Orthogonal Frequency Division
  Multiplexing (OFDM), an increasingly popular
  system for high-bandwidth wireless transmissions.


51
Beyond 3G3GPP - MIMO
MIMO is seen as a key feature of the UMTS
enhancements
ITU-PA channel, 3km/h, Full buffer FTP,
Proportional Fairness Scheduler, Values from
Nortel Networks
52
UWB Ultra WidebandOverview
53
Ultra Wide Band
Data rate
1 Gbps
802.15.3a UWB
Intended UWB market
100 Mbps
?
802.11n
802.11a
802.15.3
10 Mbps
802.11b/g
1 Mbps
Bluetooth
802.15.4
100 kbps
Infrared devices
RFID
10 kbps
Range
WPAN
WLAN
54
FCC

• 3 frequency bands for devices based on UWB
  technology
• Below 960 MHz, between 1.61 and 3.1 GHz, between
  3.1 and 10.6 GHz
• UWB device classification by FCC
• Imaging systems (below 960 MHz)
• Ground Penetration Radar (GPR), Thru-wall imaging
• Vehicular Radar Systems (1.61 3.1 GHz)
• Collisions avoidance, improved airbag activation
• Communication and Measurement Systems (3.1 10.6
  GHz)
• Indoor Systems and hand-held systems

55
Emissions mask for UWB
-35
-40
-45
PT 0.562 mW
-50
-55
EIRPUWB Emission Level
-60
-65
-70
-75
3.1
10.6
f GHz
1.61
0.96
1.99
UWB Communication
56
Technical Frame IEEE 802.15.3a

• Selection criteria and technical requirements for
  standardization proposal

57
Standards are Proposed for UWB

• Multiband OFDM
• 7 of the 10 leading Chip manufacturers support
  the Multiband OFDM solution. (15 Authors 72
  Members)
• DS UWB (Pulse)

58
Multi-band OFDM

• 14 separate frequency bands with a 528 MHz
  Bandwidth
• Split into 5 groups (4-times 3 and 1-times 2)
• Orthogonal Frequency Division Multiplexing
• 128 sub carriers (IFFT/FFT)
• 100 data sub-carriers,012 pilot carriers, 010
  guard carriers
• 006 including DC or Null-tones
• Carrier spacing 4.125 MHz TSymbol 242.42 ns
• QPSK modulated (2 bit per Symbol)
• FEC (Forward Error Correction)
• Convolutional coding
• Code rate 11/32, ½ , ?, ¾

59
Multi-band OFDMFrequency Range and band groups
60
Direct Sequence UWB

• Data rates
• 28, 55, 110, 220, 500, 660 and 1.320 Mbps
• 2 (3) different frequency bands of operation
• Low band 4.1 GHz, bandwidth 1.368 GHz
• High band 8.2 GHz, bandwidth 2.736 GHz
• Forward Error Correction (FEC)
• Convolutional code, code rate ½ and ¾
• Modulation
• BPSK (mandatory) or 4-BOK3) (optional)
• Multiple Access
• Direct Sequence CDMA
• 24 Chips per symbol, ternary codeword -1 0 1

) Communication Research Laboratory
1) Document IEEE P802.15-04/0137r00137r00137r0
and IEEE 802.15-04/140r3 March/May 2004 2)
Communication Research Laboratory 3) 4-Binary
Orthogonal Keying
61
Direct Sequence UWB Frequency bands

• 5-GHz-ISM-Band is separated
• UNII-Band 5.15 5.35 and 5.725 5.825 GHz

62
WiMedia Alliance

• Members from both camps
• Motorola, Samsung, Texas Instruments, Intel,
  Hewlett Packard,
• Attach on the MAC1) and PHY Layer2) the
  WiMedia Alliance will set an convergence
  layer for all applications
• A brand name for a multimedia UWB device
• Interoperability between the products of
  different manufacturers
• Plug play

1) PHY Layer IEEE 802.15.3a 2) MAC Layer IEEE
802.15.3
63
Ultra Wide Band

• Multi-band OFDM
• Direct Sequence UWB
• Further development is suspended until the
  standard is rationalised!

64
Radio Frequency Identification

• Radio Frequency Identification (RFID) is an
  automatic identification method, relying on
  storing and remotely retrieving data using
  devices called RFID tags or transponders.
• An RFID tag is a small object that can be
  attached to or incorporated into a product,
  animal, or person.
• RFID tags contain silicon chips and antennas to
  enable them to receive and respond to
  radio-frequency queries from an RFID transceiver.

• Passive tags require no internal power source,
  whereas active tags require a power source.

65
RFID

• 3 types of chip
• Passive No internal power. Current induced in
  the antenna by the incoming radio frequency
  signal provides just enough power
• Semi-active small battery. Antenna used for
  backscattering signal
• Active tags (Beacons) - have internal power
  source life of gt10years and a range of gt50 metres

66

• Today the smallest chips are measured at 0.15 mm
  2 and 7.5 micrometres thick
• The AMEX Blue credit card now includes a
  high-frequency RFID tag

67
RFID Applications

• Retail Inventory Control - Product inventory,
  theft detection, point-of-sale verification.
• Manufacturing - RFID can track how far a product
  has progressed through the manufacturing cycle.
  RFID technology can tie an individual product to
  its current physical location and track when it
  was manufactured, whether it was received and
  where it is located.
• Logistics Supply Chain - RFID can have a
  significant impact on every aspect of supply
  chain management, including moving goods through
  loading docks, to managing terabytes of data as
  information about goods on hand is collected in
  real-time.

68

• If we get Wireless broadcasting wrong do we end
  up with wiknot?

69

• Thank you
• Proudly celebrating 25 years service in Australia
• www.rohde-schwarz.com.au

70
Rohde Schwarz Australia

• Mobile Broadcasting
• Wireless Technologies
• Whats Next

71
Well Beyond 3GInteroperability between cellular
networks wireless technologies
