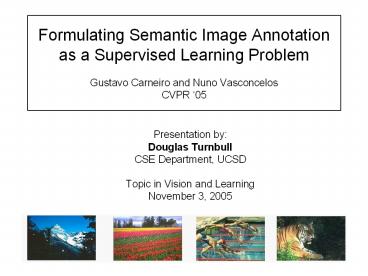

Formulating Semantic Image Annotation as a Supervised Learning Problem Gustavo Carneiro and Nuno Vasconcelos CVPR

1
Formulating Semantic Image Annotation as a
Supervised Learning ProblemGustavo Carneiro and
Nuno VasconcelosCVPR 05

• Presentation by
• Douglas Turnbull
• CSE Department, UCSD
• Topic in Vision and Learning
• November 3, 2005

2
What is Image Annotation?
Given an image, what are the words that describe
the image?
3
What is Image Retrieval?
Given a database of images and a query string
(e.g. words), what are the images that are
described by the words?
Query String jet
4
Problem Image Annotation Retrieval

• Based on the low cost of both digital camera and
  hard disk space, billions of consumer have the
  ability create and store digital images.
• There are already billions of digital images
  stored on personal computers and in commercial
  databases.
• How do store images in and retrieve images from a
  large database?

5
Problem Image Annotation Retrieval

• In general, people do not spent time labeling,
  organizing or annotating their personal image
  collections.
• Label
• Images are often stored with the name that is
  produced by the digital camera
• DSC002861.jpg
• When they are labeled, they are given a vague
  names that rarely describe the content of the
• GoodTimes.jpg, China05.txt
• Organize
• No standard scheme exists for filing images
• Individuals use ad hoc methods
  Chrismas2005Photos and Sailing_Photos
• It is hard to merge image collections since the
  taxonomies (e.g. directory hierarchies) differ
  from user to user.

6
Problem Image Annotation Retrieval

• In general, people do not spent time labeling,
  organizing or annotating their personal image
  collections.
• Annotate
• Explicit Annotation Rarely do we explicitly
  annotate our images with captions.
• An exception is when we are create web galleries
• i.e. My wedding photos on www.KodakGallery.com
• Implicit Annotation Sometimes we do implicitly
  annotate images we imbed images into text (as is
  the case with webpages.)
• Web-based search engines make use of the implicit
  annotation when they index images.
• i.e. Google Image Search, Picsearch

7
Problem Image Annotation Retrieval

• If we cant depend on human labeling,
  organization, or annotation, we will have to
  resort to content-based image retrieval
• We will extract features vectors from each image
• Based on these feature vectors, we will use
  statistical models to characterize the
  relationship between a query and image features.
• How do we specify a meaningful query to be able
  to navigate this image feature space?

8
Problem Image Annotation Retrieval

• Content-Based Image Retrieval How do we specify
  a query?
• Query-by-sketch Sketch a picture, extract
  features from the pictures, we the features to
  find similar images in the database.
• This requires that
• we have a good drawing interface handy
• everybody is able to draw
• the quick sketch is able to capture the salient
  nature of the desired query
• Not a very feasible approach.

9
Problem Image Annotation Retrieval

• Content-Based Image Retrieval How do we specify
  a query?
• Query-by-text Input words into a statistical
  model that models models the relationship between
  words and image features.
• This requires that
• 1. A keyboard
• 2. A statistical model that can relate words to
  image features
• 3. Words can be used to capture the salient
  nature of the desired query.
• A number of research systems have been develop
  that find a relationship content-based image
  features and text for the purpose of image
  annotation and retrieval.
• - Mori, Takahashi, Oka (1999)
• - Daygulu, Barnard, de Freitas (2002)
• - Blei, Jordan (2003)
• - Feng, Manmantha, Lavrenko (2004)

10
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

11
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

12
Notation and Problem Statement

13
Notation and Problem Statement

Image and Caption
Image Regions
xi vector of image features
x x1, x2 ,
vector of feature vectors
wi one word
w w1, w2 ,
vector of words
14
Notation and Problem Statement

15
Notation and Problem Statement
-

16
Notation and Problem Statement

Weak Labeling this image depict sky eventhough
the caption does contain sky
Image Regions
Multiple Instance Learning this regions has no
visual aspect of jet
17
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

18
Supervised OVA Models

• Early research posed the problem as a supervised
  learning problem train a classifier for each
  semantic concept.
• Binary Classification/Detection Problems
• Holistic Concepts landscape/cityscape,
  indoor/outdoor scenes
• Object Detection horses, buildings, trees, etc
• Much of the early work focused on feature design
  and used existing models developed by the machine
  learning community (SVM, KNN, etc) for
  classification.

19
Supervised OVA Models

20
Supervised OVA Models

• Pro
• Easy to implement
• Can design features and tune learning algorithm
  for each classification task
• Notion of optimal performance on each task
• Data sets represent basis of comparison OCR
  data set
• Con
• Doesnt scale well with a large vocabulary
• Requires train and use L classifier
• Hard to compare posterior probabilities output
  by L classifier
• No natural ranking of keywords.
• Weak labeling is a problem
• Images not labeled with keyword are placed in D0

21
Unsupervised Models

• The goal is to estimate the joint distribution
• We introduce a latent (e.g. hidden) variable L
  that encode S hidden states of the world.
• i.e. Sky state, Jet state
• A state defines a joint distribution of image
  features and keywords.
• i.e. P(x(blue, white, fuzzy), w(sky,
  cloud,blue) Sky State) will have high
  probability.
• We can sum over the S states variable to find the
  joint distribution
• Learning is based on the expectation maximization
  (EM)
• 1) E-step update strength of association
  between image-caption with state
• 2) M-step maximize likelihood of joint
  distribution for each state
• Annotation involves the most probable words under
  the joint distribution model

22
Unsupervised Models

• Multiple-Bernoulli Relevance Model (MBRM)
  (Feng, Manmantha, Lavrenko CVPR 04)
• Simplest unsupervised model which achieves best
  results
• Each of the D images in the training set is a
  not-so-hidden state
• Assume conditional independence between image
  features and keywords given state
• MBRM eliminates the need for EM since we dont
  need to find the strength of association between
  image-caption and state.
• Parameter estimation is straight forward
• PXL is estimated using a Gaussian kernel
• PWL reduces to counting
• The algorithm becomes essentially smoothed
  k-nearest neighbor.

23
Unsupervised Models

• Pros
• More scaleable than Supervised OVA
• Size of vocabulary
• Natural ranking of keywords
• Weaker demands on quality of labeling
• Robust to a weakly labeled dataset
• Cons
• No guarantees of optimality since keywords are
  not explicitly treated as classes
• Annotation What is a good annotation?
• Retrieval What are the best images given a query
  string?

24
Supervised M-ary Model

• Critical Idea Why introduce latent variables
  when a keyword directly represents a semantic
  class.
• A random variable W which takes values in 1,,L
  such that W i if x is label with keyword wi.
• The class conditional distributions PXW(xi) are
  estimated using the images that have keyword wi.
• To annotate a new image with features x, the
  Bayes decision rule is invoked
• Unlike Supervised OVA which consist of solving L
  binary decision problems, we are solving one
  decision problem with L classes.
• The keyword compete to represent the image
  features.

25
Supervised M-ary Model

• Pros
• Natural Ranking of Keywords
• Similar to unsupervised models
• Posterior probabilities are relative to same
  classification problem.
• Does not require training of non-class models
• Non-class model are the Yi 0 in Supervised OVA
• Robust to weakly labeled data set since images
  that contain concept but are not labeled with the
  keyword do not adversely effect learning.
• Non-class models are computational bottleneck
• Learning a density estimates PXW(xi) is
  computationally equivalent to learning density
  estimates for each image in MBRM model.
• Relies on Mixture Hierarchy method (Vasconcelos
  01)
• When vocabulary size (L) is smaller than the
  training set size (D), annotation is
  computationally more efficient than the most
  efficient unsupervised algorithm.

26
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

27
Density Estimation

• For Supervised M-ary learning, we need to find
  the class-conditional density estimates
  PXW(xwi) using a training data set Di.
• All the images in Di have been labeled with wi
• Two Questions
• Given that a number of the image regions from
  images in Di will not exhibit visual properties
  that relate to wi, can we even estimate these
  densities?
• i.e An image labeled jet will have regions
  where only sky is present.
• 2) What is the best way to estimate these
  densities?
• best the estimate can be calculated using a
  computationally efficient algorithm
• best the estimate is accurate and general.

28
Density Estimation

• Multiple Instance Learning a bag of instance
  receive a label for the entire bag if one or more
  instances deserves that label.
• This makes the data noisy, but with enough
  averaging we can get a good density estimate.
• For example
• 1 Suppose all images has three
• regions.
• 2 Every image annotated with jet
• have one region with jet-like
• features (i.e. mu 20, sigma 3).
• 3 The other two regions are uniformly
• distributed with mu U(-100,1000)
• and sigma U(0.1,10)
• 4 If we average 1000 images, the
• jet distribution emerges

29
Density Estimation

• For word wi, we have Di images each of which is
  represented by a vector of feature vectors.
• The authors discuss four methods of estimating
  PXW(xi).
• Direct Estimation
• Model Averaging
• Histogram
• Naïve Averaging
• Mixture Hierarchies

30
Density Estimation

• 1) Direct Estimation
• All feature vectors for all images represent a
  distribution
• Need to does some heuristic smoothing e.g. Use
  a Gaussian Kernel
• Does not scale well with training set size or
  number of vector per image

Smoothed kNN
Feature 2
Feature 1
31
Density Estimation

• 2) Model Averaging
• Each image l in Di represents a individual
  distribution
• We average the image distributions to find one
  class distribution
• The paper mentions two techniques
• Histograms partition space and count
• Data sparsity problems for high dimensional
  feature vectors.
• Naïve Averaging using Mixture Models
• Slow annotation time since there will be KD
  Gaussian if each image mixture has K components

Histogram
Smoothed kNN
Mixtures
Feature 2
Feature 2
Feature 2
Feature 1
Feature 1
Feature 1
32
Density Estimation

• 3) Mixture Hierarchies (Vasconcelos 2001)
• Each image l in Di represents a individual
  mixture of K Gaussian distributions
• We combine redundant mixture components using
  EM
• E-Step Compute weight between each of the KD
  components and the T components
• M-Step Maximize parameters of T components using
  weights
• The final distribution is one Mixture of T
  Gaussians for each keyword wi where T ltlt KD.

Di
l1
l3
lDi
l2
. . .
33
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

34
Experimental Setup

• Corel Stock Photos Data Set
• 5,000 images 4,500 for training, 500 for
  testing
• Caption of 1-5 words per image from a vocabulary
  of L371 keywords
• Image Features
• Convert from RGB to YBR color space
• Computes 8 x 8 discrete cosine transform (DCT)
• Results is a 364 192 dimensional feature vector
  for each image region
• 64 low frequency features are retain so that

35
Experimental Setup

• Two (simplified) tasks
• Annotation given a new image, what are the best
  five words that describe the image
• Retrieval Given a one word query, what are the
  images that match the query.
• Evaluation Metrics
• wH - number of images that have been annotated
  with w by humans
• wA - number of images that have been
  automatically annotated with w
• wC - number of images that have been
  automatically annotated with w AND where
  annotated with w by humans
• Recall wC/wH
• Precision wC/wA
• Mean Recall and Mean Precision are average over
  all the words found in the test set.

36
Other Annotation Systems

• 1. Co-occurrence (1999) Mori, Takahashi, Oka
• Early work that clusters sub-images (block-based
  decomposition) and counts word frequencies for
  each cluster
• 2. Translation (2002) Duygulu, Barnard, de
  Freitas, Forsyth
• Vocabulary of Blobs
• Automatic Segmentation -gt Feature Vectors -gt
  Clustering -gt Blobs
• An image is made of of Blobs, Words are
  associated with Blobs -gt New Caption
• Blobs are latent states

Block-Based Decomposition
Automatic Decomposition
37
Other Annotation Systems

• 3. CRM (2003)- Lavrenko, Manmatha, Jeon
• Continuous-space Relevance Model
• smoothed KNN algorithm
• image features are modeled using kernel-based
  densities
• automatic image segmentation
• color, shape, texture features
• word features are modeled using multinomial
  distribution
• Training Images are latent states.
• 4. CRM-rect(2004) Feng Manmantha, Lavrenko
• Same as CRM but using block-based decomposition
  rather than segmentation
• 5. MBRM (2004) Feng, Manmantha, Lavrenko
• Multiple-Bernoulli Relevance Mode
• Same as CRM-rect but uses multiple-Bernoulli
  distribution to model word features
• shifts emphasis to presence of word rather than
  prominence of word.

38
New Annotation Systems

• 6. CRM-rect-DCT (2005) Carneiro, Vasconcelos
• CRM-rect with DCT features
• 7. Mix-hier(2005) -Carneiro, Vasconcelos
• Supervised M-ary Learning
• Density estimation using Mixture Hierarchies
• DCT features

39
Annotation Results

• Examples of Image Annotations

40
Annotation Results

• Performance of Annotation system on Corel test
  set
• 500 images, 260 keywords, generate 5 keywords
  per image
• Recall wC/wH, Precision wC/wA

Gain of 16 recall at same or better level of
precision Gain of 12 in words with positive
recall i.e. a word is found in both human and
automatic annotation at least once.
41
Annotation Results

• Annotation computation time for Mix-Hier scales
  with training set size.
• MBRM is O(TR), where T is training set size
• Mix-Hier is O(CR), where C is the size of the
  vocabulary
• R is the number of image regions per image.
• Complexity is measured in seconds to annotated a
  new images.

42
Retrieval Results

• First five ranked images for mountain, pool,
  blooms, and tiger

43
Retrieval Results

• Mean Average Precision
• For each word wi, find all na,i images that have
  been automatically annotated with word wi.
• Out of the na,i images, let nc,i be the number
  of images that have been annotated with wi by
  humans.
• The precision of wi is nc,i / na,i.
• If we have L words in our vocabulary, mean
  average precision is

Mix-Hier does 40 better on words with positive
recall.
44
Outline

• Notation and Problem Statement
• Three General Approaches to Image Annotation
• Supervised One vs. All (OVA) Models
• Unsupervised Models using Latent Variables
• Supervised M-ary Model
• Estimating P(image featureswords)
• Experimental Setup and Results
• Automatic Music Annotation

45
Automatic Music Annotation

• Annotation Given a song, what are the words that
  describe the music.
• Automatic Music Reviews
• Retrieval Given a text query, what are the songs
  that are best describe by the query.
• Song Recommendation, playlist generation, music
  retrieval
• Features extraction involves applying filters to
  digital audio signals
• Fourier, Wavelet, Gammatone are common
  filterbank transforms
• Music may be more difficult to annotate since
  music is inherently subjective.
• -Music evokes different thoughts and feeling to
  different listeners
• -An individual experience with music changes all
  the time
• -All music is art unlike most digital images.
• -The Corel data set consists of concrete
  object and landscape scene
• -An similar dataset might focus on Modern Art
  (Pollack, Mondrian, Dali)

46
Automatic Music Annotation

• Computer Hearing (aka Machine Listening, Computer
  Audition)
• Music is one subdomain of sound
• Sound Effects, Human speech, Animal Vocalization,
  Environment Sounds all represent other subdomains
  of sound
• Annotation is one problem
• Query-by-humming, Audio Monitoring, Sound
  Segmentation, Speech-to-Text are examples of
  other Computer Hearing Problems

47
Automatic Music Annotation

• Computer Hearing and Computer Vision are closely
  related
• Large public and private database exist that are
  rapidly growing in size
• Digital Medium
• Sound is 2D intensity (amplitude) time or
  frequency magnitude
• Sound is often represented in 3D magnitude,
  time and frequency
• Image is 3D 2 spatial dimensions, an intensity
  (color)
• Video is 4D 2 spatial dimensions, an intensity,
  time
• Video is comprised of both images and sound
• Feature extraction techniques are similar
• Applying filters to digital medium

48
Work Cited

• Carneiro, Vasconcelos. Formulating Semantic
  Image Annotation as a Supervised Learning
  Problem (CVPR 05)
• Vasconcelos. Image Indexing with Mixture
  Hierarchies (CVPR 01)
• Feng, Manmatha, Lavernko. Multiple Bernoulli
  Relevance Models for Image and Video Annotation
  (CVPR 04)
• Blei, Jordan. Modeling Annotated Data (SIGIR
  03)
