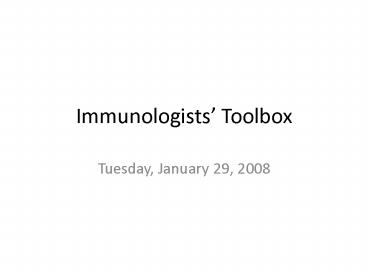

Immunologists Toolbox

1
Immunologists Toolbox

• Tuesday, January 29, 2008

2
Haptens

• Small, simple organic molecules that do not
  provoke antibodies when injected on their own.
• Examples phenyl arsonates and nitrophenyls.
• Can elicit an immune response if it is attached
  to a larger Carrier molecule.
• Commonly proteins
• Examples of protein carrier molecules - BSA,
  ovalbumin.

3
Medical importance of anti-hapten antibodies

• Penicillin allergies
• Penicillin is too small to elicit an immune
  response on its own.
• Poison ivy
• Toxin is oxidized in the skin cell to create a
  quinone molecule.
• Quinone reacts with proteins in skin cells to
  create hapten-carrier conjugates.

4
Three types of antibodies produced against
hapten-carrier conjugates.
5
Purification of specific antibody

• Antigen is bound covalently to small beads, which
  are loaded into a column.
• Antiserum is passed over beads.
• Specific antibodies bind to the immobilized
  antigen
• Everything else passes through the column.
• Purified antibodies are eluted from the beads by
  raising or lowering pH.

6
Affinity Chromatography

7
Enzyme-Linked Immunosorbant Assay (ELISA)

• Labeled antibody used for detection scheme.
• Commonly used for viral diagnostics such as HIV
  detection.
• Detects specific viral proteins.
• Detects specific anti-viral antibodies.
• Does NOT allow one to measure amount of antigen
  present.
• Two common methods.
• Direct binding.
• Sandwich method.

8
Direct labeling of antigen

• Coat plate with specific antigen.
• Add specific, labeled antibody .
• Rinse out extra antibody.
• Add enzyme, commonly horseradish peroxidase.
• Add substrate to cause color change.
• Measure color.

9
Sandwich Method

• Coat plate with specific antibody.
• Add antigen of interest, serum, etc.
• Add labeled antibody specific for a different
  epitope of the antigen.
• Add enzyme linked 2 antibody
• Add substrate to cause color change.
• Measure color

10
Quantifying antigen or antibody concentration
using competitive inhibition assay.

• Fixed amount of antibody attached to well.
• Standard concentration of labeled standard added
  to wells.
• Unlabeled standard or test samples are then added
  in various amounts to multiple wells.
• Displacement of labeled antigen is then measured
  and compared to standard curve.

11
Precipitation reaction

• Addition of sufficient amounts of antibody to
  soluble antigen causes a precipitate to form.
• The first method used to quantify antibody
  concentration.
• Now seldomly used in immunology.
• Good example of the mechanisms for
  antigenantibody complex formation.
• Antigen must have multiple binding sites for
  precipitation to occur.

12
Precipitation Curve

• At equivalence, the largest immune complexes
  form.
• Excessive antibody will form small amounts of
  complexes.
• In antigen excess some of the complexes are too
  small to precipitate out.
• Can cause damage to small blood vessels in vivo.

13
Antigen Valence

• Valence is the maximum number of antibodies that
  can bind to a single antigen at one time
• Valence of an antigen does not have to equal the
  number of epitopes the antigen has.
• Steric hinderance prevents all different
  antibodies from binding.

14
Hemagglutination and Blood typing

• Three primary blood types A, B, and O.
• Common gut bacteria bear antigens on their
  surfaces that are similar or identical to
  blood-group antigens.
• Therefore we produce antibodies against these
  antigens if we do not bear them on our own red
  blood cells.
• We can use these antibodies to test for blood
  type.
• When serum from an individual is added to blood
  of another individual, if blood type does not
  match antibodies will cause the red blood cells
  to clump up.

15
(No Transcript)
16
The use of antibodies as research and diagnostic
tools.

• Detection of bound antibodies.
• Monoclonal and polyclonal antibodies.
• Immuno fluorescence.
• Flow Cytometry
• Immunoelectron microscopy.
• Immunoprecipitation.
• Immunoblotting.

17
Detection of bound antibodies.

• Protein A.
• Produced in S. aureus.
• Binds Fc portion of some immunoglobulins)
• Can be labeled for detection of specific
  antibodies or used for purification.
• Protein G
• isolated from Group C Strep.
• Works the same is protein A
• Binds some of the same Igs as Protein A and some
  others as well.
• Protein A/G
• Combination of Fc binding domains of Protein A
  and Protein G.

18

• Anti-immunoglobulin antibodies
• Can be specific for
• Ig heavy chains
• Ig light chains.
• Unique features within the antigen-binding site
  (idiotype).
• Individual species.
• Antibodies raised in goats to mouse antigen.
• Different alleles within the same species
  (allotypes).
• Due to genetic polymorphisim.
• Individual (isotypes) such as
• IgG, IgA, IgD.

19
Monoclonal and polyclonal Antibodies

• Polyclonal antibodies are derived from multiple
  cell lines against one particular antigen each
  recognizing a different epitope.
• Most easily obtained by immunizing a suitable
  mammal, such as a mouse, rabbit or goat.
• Although all antibodies will bind to the specific
  antigen, some are better than others.
• Monoclonal antibodies are derived from a single
  cell line and recognize one single epitope.
• Obtained by fusing a B cell secreting the
  antibody with the desired specificity with
  myeloma cells to create an immortal cell line to
  produce mass quantities of antibody.
• Fused by adding polyethelyne glycol.
• Fused cells are called hybridomas
• In culture the cells will make many clones of
  itself all secreting identical antibodies.

20
Creation of a hybridoma

• Monoclonal antibodies are derived from a single
  cell line and recognize one single epitope.
• Obtained by fusing a B cell secreting the
  antibody with the desired specificity with
  myeloma cells to create an immortal cell line to
  produce mass quantities of antibody.
• Fused by adding polyethelyne glycol.
• Fused cells are called hybridomas
• In culture the cells will make many clones of
  itself all secreting identical antibodies.

21
Immunofluorescence

• Used to identify a particular molecule in cells,
  tissues or biological fluids.
• Can be used to locate target molecules accurately
  in single cells or tissues.
• Useful for a variety of methods

22
How it works

• A fluorescent molecule is attached to
• An antibody against a molecule of interest
  (direct immunofluorescence).
• An anti-immunoglobulin antibody (indirect
  immunofluorescence).
• Add labeled antibody (for direct) or primary
  unlabeled antibody (for indirect) to single cell
  suspension. If indirect, add secondary (labeled
  antibody) to cell suspension.
• Expose the labeled cells to a specific wavelength
  of light.
• Fluorescent molecule will emit light at a greater
  wavelength.
• Multiple proteins can be identified in the same
  sample by using different antibody/fluorphor
  conjugates.

23
(No Transcript)
24
Immunofluorescence microscopy

• Light microscope with filter sets that allow
  only certain wavelengths of light to pass
  through.
• Allows for the detection and location of specific
  proteins of interest.
• Usually limited to a maximum of 5 fluorophores.

25
Laser confocal microscopy

• An improvement to fluorescence microscopy.
• Laser is tuned to a specific wavelength of light
  to excite the fluorescent molecules.
• Can excite and detect many fluorophores.
• Detects a variable range of fluorsecence set by
  user.
• Uses a pinhole to block out of focus light.
• Allows for better sectioning.
• Allows for better resolution.
• Can do live, real time, imaging.

26
Confocal image of multi-colored image.
27
Immunoelectron microscopy

• Gold particles are attached to antibodies used to
  identify intracellular molecules within cells.
• Can identify multiple molecules by varying the
  size of the gold particle attached to each
  antibody.
• Very time consuming and expensive.

28
Flow Cytometry

• Counts and sorts thousands of individual cells
  per second.
• Newer machines can count and sort up to 21
  paramaters at a time.
• Identifys cells based upon
• Size
• Complexity
• Specific molecules tagged with fluorsecent
  probes.

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Immunoprecipitation

• Using an antigen-specific antibody to pull a
  protein out of solution.
• Can pull down a single protein or a complex of
  proteins (co-immunoprecipitation) if they are
  attached. If it is a DNA binding protein, the
  attached DNA can also be isolated (chromatin
  immunoprecipitation).
• Process will isolate the protein with a
  relatively high degree of purity.
• Proteins identified by
• SDS PAGE
• Western Blot
• Mass spectometry

33
(No Transcript)
34
TUNEL assay to detect apoptosis.

• Apoptotic cells degrade their chromatin.
• Cells are exposed to TdT and biotin labeled UTPs.
• TdT adds the labeled UTPs to the 3 end of the
  fragmented DNA.
• Streptavadin tagged with fluorescent antibodies
  are then added to the mix.
• SA will bind to the biotin.
• Amount of labeled UTPs is measured with Flow
  Cytometery or fluorescence microscopy. Large
  signal indicates apoptosis.

35
(No Transcript)
36
Transgenic mice

• Mice can be altered to contain altered or extra
  copies of a gene.
• Allows researchers to study the effects of
  specific mutations in the whole mouse such as
• Identification or regluatory gtenes.
• Effects of a genes over-expression
• Expression in inappropriate tissues
• Effects of mutations on gene function.

37
Congenic Mice

• Transgenic mice need to be introduced into a
  well-categorized , stable genetic background.
• It is often difficult to successfully prepare
  transgenic embryos in inbred strains of mice.
• SOwe breed the transgene onto the well
  categorized, stable background.
• Usually a C57BL/6 mouse.
• Needs to be back crossed at least 10 generations.
• Creates 99 genetically identical mice.

38
Knockout Mice

• Replacing a normal gene with a defective copy.
• Often the gene is disrupted by inserting another
  gene, commonly for antibiotic resistance, in the
  middle of it.
• Defective gene is cloned and inserted into
  embryonic stem cell.
• Defective gene then recombines with the
  homologous copy in the cells genome.
• These cells are then inserted into a mouse
  blastocyst which, in turn, are in placed into a
  pseudopregnant female.
• Some of the offspring will contain tissues
  derived from the injected cells (chimeric mice).

39
(No Transcript)
