Tuberculosis

1

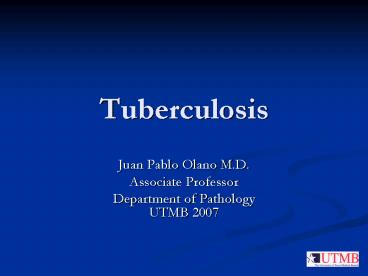

Tuberculosis

• Juan Pablo Olano M.D.
• Associate Professor
• Department of PathologyUTMB 2007

2
History

• Archeological evidence of TB in mummies and stone
  age skeletons
• Hippocrates Pthisis
• Responsible for thousands to millions of deaths
  during middle ages, renaissance and into the XXI
  century.
• Tubercles, miliary forms described
• 1882 Kochs description of mode of transmission.
• 1918 BCG (bacille Calmette-Guerin) vaccine.
• 1940s-1970s. Therapy Streptomycin, INH,
  rifampin
• 1950s Atypical mycobacteria.
• 1990s Genome sequencing

3
Epidemiology

• Two billion infected
• Eight million new cases per year
• 1.5-3.0 million deaths
• US
• 1953 84,000 cases
• 1983 24,000 cases (10.2 x 100,000)
• 1990 New York 48 x 100,000.

4
Microbiology

• Gram positive rod with waxy wall (long chain
  fatty acids).
• Acid fast
• Complex growth requirements
• Aerobic, non-spore forming, non-motile,
  facultative intracellular
• 0.2-0.5 by 2-4 ?m
• Other members of MTB complex M. microti, M.
  bovis, M. africanum

5
Genome

• Size 4.4 Mbp
• Protein coding genes 3,959 (90.8)
• Pseudogenes 6
• Known function 2,441
• Conserved hypotheticals 912
• Unknown genes 606
• Fatty acid metabolism 250 genes

6
Cell wall of MTB
7
Pathogenesis

• Port of entry
• Adhesion
• Internalization
• Intracellular survival/killing
• Pathology (tissue damage)
• Immune response

8
Portal of entry

• Inhalation
• Contact
• Duration
• Inoculum
• Gi tract, skin (rare)

9
Adhesion

• Complement receptors CR1, CR3 (cholesterol-depend
  ent) and CR4
• Opsonization (C3b via C2a activation or
  alternative pathway activation).
• Non-opsonin driven internalization (CR3 and CR4)
• Mannose residues and lectins
• Scavenger receptor(CD36)
• Enhanced internalization Collectins (surfactant
  protein A), mannose binding lectins (MBL).
• Heparin binding adhesins and fibronectin binding
  proteins.
• Target cells Macrophages
• Other cells PMNs

10
Adhesion and internalization
11
Internalization and intracelullar survival

• Relative importance of each of the adhesion
  mechanisms remains to be determined in vivo.
• Membrane-coated vesicles
• Hydrogen pump ATP-ase inhibition
• Phagolysosomal fusion
• Mycobacterial sulfatides
• Ammonia production
• Urease and glutamine synthetase
• GTPases of Ras family
• TACO (tryptophan aspartate-containing coat)
• Phagosome escape

12
Internalization and intracellular survival

• Endosomal traficking
• PI3 Kinases recruited to phagosome via Rab5
• Generation of PI3P
• Binding to proteins with FYVE motifs
• EEA1 and Hrs Myobacteria deplete these two from
  endosomal membranes
• Inhibition of calcium signaling in early
  endosomes via depletion of sphingosine kinase

13
Endosomal traficking

• Myobacterial factors
• Acid phosphatase (SapM)
• Protein kinase G
• Glycosylated PI lipoarabinomannan (ManLAM)
• PIP3 interference
• Calcium signaling interference

14
Internalization and intracelullar survival

• ROS Controversial
• In vitro Resistant to killing (sulfatides and
  LAM, phenolic glycolipid I)
• In vivo NADPH oxidase deficient mice vs. chronic
  granulomatous disease in humans
• RNI Supported by in vitro experiments. In vivo
  role remains to be determined. Probably
  important. Activated Vit D seems to play a role
• Apoptosis vs. necrosis of macrophages infected
  with MTB.

15
Pathology

• Primary tuberculosis
• Gohns complex
• Dissemination
• Reactivation
• AIDS, neoplasia, immunosupression,
  malnourishment, silicosis
• Common lesion Granuloma

16
Tuberculosis stages
17
Tuberculosis stages
18
Lung Granulomas
19
Granuloma
20
Granuloma
21
Primary tuberculosis
22
Miliary tuberculosis
23
Millet seeds
24
Miliary tuberculosis
25
Immune response

• CD4 responses
• MHC class II context
• Gamma interferon
• CD8 responses
• MHC driven
• Th1 and Th2 responses (IL12 and IL4) in humans
  remains uncertain. Theoretically Th1 responses
  are beneficial
• Toll-like receptors
• Essential for innate immune responses. MTB is no
  exception
• Cytokines and lysis of infected cells.
• IL-12 production
• MHC I and II responses
• IFN-?
• TNF-a

26
Immune response (cont.)

• CD4 responses
• MHC class II Macrophages
• IFN-?
• Interferon and NOS-2 independent mechanisms are
  at play.
• Activation and maturation of APC via CD40-CD40L
• Apoptotic cell death of targets controversial
• Downregulation of MHC class II molecules

27
Immune response (cont.)

• CD8 responses Lysis of affected cells and IFN-?
  production.
• MHC class I presentation of mycobacterial
  antigens is in its infancy.
• MHC class I restricted
• 65, 38, 19 kDa proteins.
• Via pores in endosomal vesicles.

28
Immune response (cont.)

• Non-restricted CD8 cells
• Via CD1 molecules
• Lipids and glycolipids
• CD4, CD8 or CD4 and CD8 neg
• Mycolic acid, LAM PIM
• Different CD1 sample different compartments
• Dendritic cells and macrophages

29
Immune response (cont.)

• Cytokines
• TNF alpha
• Granuloma formation, macrophages activation,
  tissue pathology and systemic manifestations.
• IL-1beta
• Expressed in excess at the site of disease.
• Animal models support role in containing
  infection
• IL-6
• Controversial role. Can be both pro- and
  anti-inflammatory.

30
Immune response (cont.)

• Cytokines (cont.)
• IL-12
• Crucial role. Induces IFN gamma production and
  early immune events.
• Human and mice deficiencies support role.
• IL-15 and IL-18
• IL-18 synergistic with IL-12. Also induces other
  chemokines, transcription factors and other
  inflammatory cytokines. IL-15 stimulates T-cell
  and NK cell proliferation
• Lymphotoxin alpha 3 Granuloma stability

31
Immune response (cont.)

• Cytokines (cont.)
• IFN gamma
• Role well defined
• Antigen dependent (CD4 cells) and independent
  (macrophages, gamma-delta T cells and NK cells
  possibly).
• Activation of macrophages and their intracellular
  killing mechanisms
• Induction of LRG-47 (P47 phosphatases belonging
  to GTPase family)
• Induction of autophagy

32
Immune response (cont.)

• Anti-inflammatory cytokines
• IL-10, TGFbeta and IL-4
• IL-10 Down regulation of TNF, IFN and IL-12.
  IL10 production higher in anergic patients
• TGF beta Synergistic with IL-10. Also inhibits
  proliferation of T- cells. Possible role in
  tissue damage.
• IL-4 IFN and macrophage activation.
• Chemokines
• IL-8, MCP-1 and RANTES

33
Immune response (cont.)

• Toll-like receptors
• Toll/Cactus/Dorsal IL-1 receptor/I-?/NF-?B.
• TLR2 (LAM) and TLR4
• Production of IL-12, NOS-2, TNF-a.
• Other TLR possibly involved.

34
Immunopathology
35
Immune response
36
Virulence factors

• Phenolic glycolipids
• Hemolysin-like substance (listeriolysin)
• Lipoarabinomannan T-cell proliferation and
  interferon inducible genes, ROS scavenger.
• Antigen 85 Induction of antibodies
• Tissue damage Mycolic acids, muramyl dipeptide,
  TNF alpha, lysosomal enzymes, oxygen radicals

37
Host susceptibility

• Natural resistance macrophage associated protein
  (Nramp-1)
• Membrane protein
• Metal ion transporter (Fe)
• Essential for intracellular killing
• Internalized with membrane coated vesicles
• Phagosomal maturation
• Mice and human studies conflicting
• Spectrum of disease HLA

38
Vaccines

• BCG
• Protection Children vs. adults
• Severe forms
• Live vs. killed vaccines
• BCG manipulation.
• BCG as vector for other vaccines

39
Latency and persistence

• Spore-like status sigF gene
• Marginal metabolic activity.
• Other genes acr (alpha crystallin)
• Isocitrate lyase
• Switching to lipid catabolism and nitrogen
  respiration

40
Diagnosis

• PPD
• Smears
• Cultivation
• Standard media LJ
• Radioactive
• Non-radioactive
• Molecular techniques

41
Medications

• Isoniazid, ethambutol, rifampin and ethambutol,
  pyrazinamide
• Cycloserine, streptomycin, kanamycin and
  ethionamide
• Fluoroquinolones
• New targets Isocitrate lyase, antigen 85
