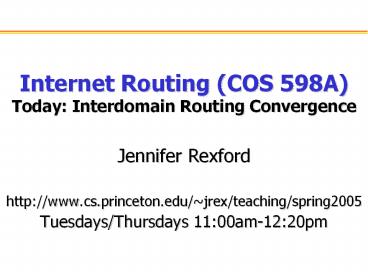

Internet Routing COS 598A Today: Interdomain Routing Convergence

1
Internet Routing (COS 598A)Today Interdomain
Routing Convergence

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• BGP convergence
• Causes of routing changes
• Detecting session failures
• BGP path exploration
• Route-flap damping
• Damping persistent flapping
• Interaction with path exploration
• Stability of popular destinations
• Are things really all that bad?
• Reducing convergence delay
• Avoiding complete path exploration
• Why this is harder than it looks

3
Causes of BGP Routing Changes

• Topology changes
• Equipment going up or down
• Deployment of new routers or sessions
• BGP session failures
• Due to equipment failures, maintenance, etc.
• Or, due to congestion on the physical path
• Changes in routing policy
• Reconfiguration of preferences
• Reconfiguration of route filters
• Persistent protocol oscillation
• More on this next week!

4
BGP Session Operation
Establish session on TCP port 179
AS1
BGP session
Exchange all active routes
AS2
While connection is ALIVE exchange route UPDATE
messages
Exchange incremental updates
5
BGP Session Failure

• BGP runs over TCP
• BGP only sends updates when changes occur
• TCP doesnt detect lost connectivity on its own
• Detecting a failure
• Keep-alive 60 seconds
• Hold timer 180 seconds
• Reacting to a failure
• Discard all routes learned from the neighbor
• Send new updates for any routes that change

AS1
AS2
6
Routing Change Before and After
0
0
(2,0)
(2,0)
(1,0)
(1,2,0)
1
1
2
2
(3,2,0)
(3,1,0)
3
3
7
Routing Change Path Exploration

• AS 1
• Delete the route (1,0)
• Switch to next route (1,2,0)
• Send route (1,2,0) to AS 3
• AS 3
• Sees (1,2,0) replace (1,0)
• Compares to route (2,0)
• Switches to using AS 2

0
(2,0)
(1,2,0)
1
2
(3,2,0)
3
8
Routing Change Path Exploration
(2,0) (2,1,0) (2,3,0) (2,1,3,0)

• Initial situation
• Destination 0 is alive
• All ASes use direct path
• When destination dies
• All ASes lose direct path
• All switch to longer paths
• Eventually withdrawn
• E.g., AS 2
• (2,0) ? (2,1,0)
• (2,1,0) ? (2,3,0)
• (2,3,0) ? (2,1,3,0)
• (2,1,3,0) ? null

(1,0) (1,2,0) (1,3,0)
1
2
3
(3,0) (3,1,0) (3,2,0)
9
Convergence Overhead and Delay

• Path exploration is expensive
• Large number of possible paths
• Might have to explore (nearly) all of them
• Minimum Route Advertisement Interval
• Minimum time between advertisement of routes for
  a given destination to a given neighbor
• Rate limit on BGP update messages
• and allows combining multiple messages in one
• Typical value of 30 seconds
• Convergence delay
• (30 seconds) ( of paths)

10
Four Kinds of BGP Routing Changes

• Destination becomes reachable
• Switch from no path to a new path
• Better path becomes available
• Switch from old path to new, better path
• Best path becomes unavailable
• Switch from old path to new, worse path
• Destination becomes unreachable
• Switch from old path to no path at all

lower delay
higher delay
11
Questions About Convergence Delay

• Reduce the MRAI timer?
• High message overhead on the router?
• Delays from overloading the CPU?
• What is the right value?
• Dependence on topology?
• Worst-case n!
• Fully-connected graph (i.e., a clique)
• No filtering of advertisements
• Shortest-path routing
• Destination dies completely
• Typical case?????

12
Route Flap Damping
13
Persistent Routing Changes

• Causes
• Link with intermittent connectivity
• Congestion causing repeated session resets
• Persistent oscillation due to policy conflicts
• Effects
• Lots of BGP update messages
• Disruptions to data traffic
• High overhead on routers
• Solution
• Suppress paths that go up/down repeatedly
• to avoid updates and prefer stable paths

14
Route Flap Damping

• BGP-speaking router
• One or more BGP neighbors
• Keep an RIB-in per neighbor
• Select single best route per destination prefix
• Route-flap damping
• Penalty counter per (peer, prefix) pair
• Increment penalty when peer changes route
• Decrease penalty over time when route is stable
• Design and deployed in the mid 1990s
• Widely viewed as helping improve stability

15
Example Why Damping is Good

• Consider AS 3
• Path 1 (3,1,0)
• Path 2 (3,2,0)
• If link (1,0) fails
• AS 3 switches routes
• If link (1,0) restores
• AS 3 switches routes
• If this happens a lot
• Better for AS 3 to stick with (3,2,0)

0
(1,0)
(2,0)
1
2
3
16
Damping Penalty Function
suppression threshold
penalty
reuse threshold
time
17
Configurable Damping Parameters

• Penalty for a routing change
• May vary with the type of update message
• Advertisement vs. withdraw? Attributes change?
• Decaying in absence of a change
• Exponent in the exponential decay
• Suppression threshold
• Trigger for damping the route
• Determines how many updates are tolerated
• Reuse threshold
• Trigger for considering the route again
• Determines how long the route is not usable

18
Best Common Practices for Damping

• Different parameters for different prefixes
• More aggressive with small address blocks
• Disable damping on certain prefixes (e.g.,
  corresponding to the DNS root servers)
• Avoid suppressing stable routes
• Tolerate at least four routing changes
• Suppress unstable routes for quite a while
• Values ranging from 10 minutes to 1 hour
• Values for 30 minutes are not uncommon

19
Interaction with Path Exploration

• BGP routing convergence
• Explore one or more alternate paths
• Number of alternate paths may be quite high
• Time between steps is small (e.g., 30 seconds)
• Triggering route-flap damping
• Increasing penalty with each step
• Only small amount of decay between steps
• Convergence may trigger route flap damping
• Convergence may involve more than 4 changes
• Routing change may trigger lost connectivity!!!
• Confirmed by recent active measurement studies

20
Effects of Damping are Confusing

• AS 0 is a stable network
• Link (1,3) fails a lot
• AS 3 switches routes back and forth a lot
• Sends new BGP updates to its customers
• Suppose AS 3 does not apply route-flap damping
• AS 3s customers
• Eventually dampen route
• Causes lost reachability to destination in AS 0
• How can AS 0 diagnose this problem, and fix it?

0
1
2
3
21
Open Questions

• Want to suppress unstable routes
• Otherwise, lots of update messages
• and lots of transient disruptions
• Yet, want to tolerate path exploration
• Otherwise, you suppress stable routes
• and black-hole otherwise reachable destinations
• How to reconcile?
• Better flap-damping parameters?
• More information in update messages?
• Something more gentle than suppression?

22
BGP Stability of Popular Destinationshttp//www.c
s.princeton.edu/jrex/papers/imw02.pdf
23
BGP Routing and Traffic Popularity

• A possible saving grace
• Most BGP updates due to few prefixes
• and, most traffic due to few prefixes
• ... but, hopefully not the same prefixes
• Popularity vs. BGP stability
• Do popular prefixes have stable routes?
• Yes, for 10 days at a stretch!
• Does most traffic travel on stable routes?
• A resounding yes!
• Direct correlation of popularity and stability?
• Well, no, not exactly

24
BGP Updates

• BGP updates for March 2002
• ATT route reflector
• RouteViews and RIPE-NCC
• Data preprocessing
• Filter duplicate BGP updates
• Filter resets of monitor sessions
• Removes 7-30 of updates
• Grouping updates into events
• Updates for the same prefix
• Close together in time (45 sec)
• Reduces sensitivity to timing

Confirmed few prefixes responsible for most
events
25
Two Views of Prefix Popularity

• ATT traffic data
• Netflow data on peering links
• Aggregated to the prefix level
• Outbound from ATT customers
• Inbound to ATT customers
• NetRatings Web sites
• NetRatings top-25 list
• Convert to site names
• DNS to get IP addresses
• Clustered into 33 prefixes

26
Traffic Volume vs. BGP Events (CDF)
50 of traffic 0.1 of events (0.3 of prefixes)
27
Update Events/Day (CCDF, log-log plot)
Most popular prefixes had lt 0.2 events/day and
just 1 update/event
28
An Interpretation of the Results

• Popular ? stable
• Well-managed
• Few failures and fast recovery
• Single-update events to alternate routes
• Unstable ? unpopular
• Persistent flaps hard to reach
• Frequent flaps poorly-managed sites
• Unpopular does not imply unstable
• Most prefixes are quite stable
• Well-managed, simple configurations
• Managed by upstream provider

29
Avoiding Path Exploration
30
Reducing Path Exploration By Tagging

• When AS 1 sees (1,0) fail
• Switches to (1,2,0)
• Why not say because the link (1,0) has failed?
• Allow ASes to discard all paths that use edge
  (1,0)
• Should reduce exploration
• E.g., AS 3 should not consider (3,2,1,0)
• E.g., AS 2 should not consider (2,3,1,0)
• Seems appealing, but

(1,0) (1,2,0) (1,3,0)
(2,0) (2,1,0) (2,3,0)
1
2
3
(3,0) (3,1,0) (3,2,0)
31
Problem 1 Timing of Information

• How long should the ASes believe the info?
• What if the link (1,0) comes back up?
• What if the info about the failure is still
  propagating?
• Do the ASes need to remember the old paths?
• E.g., should AS 2 remember (2,3,1,0) in case it
  learns later that (1,0) has come back up?
• BGP is an incremental protocol, so forgetting
  information may be risky unless you will get it
  back again
• But, these issues are probably surmountable
• with some attention to the details

32
Problem 2 AS With Multiple Routers/Links

• BGP introduces abstraction
• Treats each AS as a single node
• Doesnt distinguish between links
• Example one link fails
• Should AS 1 tell others?
• Need to identify which link?
• Does it introduce more updates?
• Internal BGP details matter
• Some AS 1 routers dont know about both paths
  through AS 0

1
0
d
33
Internal BGP Convergence
Briefly, the border router has no route at all!
34
Questions

• Can we reduce path exploration
• Hints in the BGP update messages
• To avoid exploring a set of related paths
• Handling the challenges
• Timing details
• Multiple routers and links per AS
• without excessive overhead
• Can we change the problem
• Server per AS that stores all candidate routes
• Exchanging information about the root cause

35
Next Time Protocol Divergence

• Two papers
• The Stable Paths Problem and Interdomain
  Routing
• Stable Interdomain Routing Without Global
  Coordination
• Review only of the first paper
• Summary
• Why accept
• Why reject
• Future work
• Optional NANOG video on BGP Wedgies
