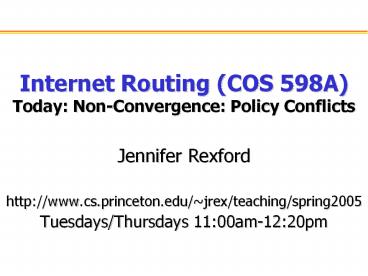

Internet%20Routing%20(COS%20598A)%20Today:%20Non-Convergence:%20Policy%20Conflicts

1
Internet Routing (COS 598A)Today
Non-Convergence Policy Conflicts

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• Stable Paths Problem
• The problem BGP is solving
• Abstract model for BGP
• Translating reality into SPP
• Conflicting routing policies
• Examples of policy conflicts
• Difficulty of identifying conflicts
• Guaranteeing convergence
• Guidelines based on business relationships
• Provable convergence without global control
• Recent work and a project idea

3
What Problem Does a Routing Protocol Solve?

• Most do shortest-path routing
• Shortest hop count
• Distance vector routing (e.g., RIP)
• Shortest path as sum of link weights
• Link-state routing (e.g., OSPF and IS-IS)
• Policy makes BGP is more complicated
• An AS might not tell a neighbor about a path
• E.g., Sprint cant reach UUNET through ATT
• An AS might prefer one path over a shorter one
• E.g., ISP prefers to send traffic through a
  customer

What is a good model for BGP?
4
Could Use A Simulation Model

• Simulate the message passing
• Advertisements and withdrawals
• Message format
• Timers
• Simulate the routing policy on each session
• Filter certain route advertisements
• Manipulate the attributes of others
• Simulate the decision process
• Each router applying all the steps per prefix

Feasible, but tedious and ill-suited for formal
arguments
5
Stable Paths Problem (SPP) Instance

• Node
• BGP-speaking router
• Node 0 is destination
• Edge
• BGP adjacency
• Permitted paths
• Set of routes to 0 at each node
• Ranking of the paths

2
1
most preferred least preferred
6
A Solution to a Stable Paths Problem

• Solution
• Path assignment per node
• Can be the null path
• If node u has path uwP
• u,w is an edge in the graph
• Node w is assigned path wP
• Each node is assigned
• The highest ranked path consistent with the
  assignment of its neighbors

2
2 1 0 2 0
4 2 0 4 3 0
3 0
1 3 0 1 0
1
A solution need not represent a shortest path
tree, or a spanning tree.
7
Translating a Real Configuration into SPP

• Permitted paths at a node
• Composition of export policies at other nodes
• Ranking of paths at a node
• Import policies at the node
• Rank in terms of BGP decision process (i.e.,
  local preference, AS path length, origin type,
  MED, )

2 1 0 2 0
Node 2 exports 2 1 0 but not 2 0
Node 0 exports route to node 2
5 2 1 0
Node 1 exports 1 0 to node 2
8
An SPP May Have Multiple Solutions
1 2 0 1 0
2 1 0 2 0
9
An SPP May Have No Solution
2 1 0 2 0
2
4
0
3 2 0 3 0
1 3 0 1 0
3
3
10
Stable System Unstable After Failure
2 1 0 2 0
Becomes a BAD GADGET if link (4, 0) goes down.
2
4 0 4 2 0 4 3 0
4
BGP is not robust it is not guaranteed to
recover from network failures.
0
3
1
3 4 2 0 3 0
1 3 0 1 0
11
Strawman Solution Doesnt Work

• Create a global Internet routing registry
• Store the AS-level graph and all routing policies
• Store all routing policies
• But, ASes may be unwilling to divulge
• Check for conflicting policies
• Analyze the global system and identify conflicts
• Contact the affected ASes to resolve them
• But, checking is an NP-complete problem
• and, a safe system may be unsafe after failure

Goal sufficient condition for convergence with
local control
12
Guaranteeing Convergence
13
Think Globally, Act Locally

• Key features of a good solution
• Flexibility allow diverse local policies for
  each AS
• Privacy do not force ASes to divulge their
  policies
• Backwards-compatibility no changes to BGP
• Guarantees convergence even if system changes
• Restrictions based on AS relationships
• Path selection rules which route you prefer
• Export policies who you tell about your route
• AS graph structure who is connected to who

14
Customer-Provider Relationship

• Customer pays provider for Internet access
• Provider exports customers routes to everybody
• Customer exports only to downstream customers

Traffic to the customer
Traffic from the customer
d
provider
provider
customer
d
customer
15
Peer-Peer Relationship

• Peers exchange traffic between customers
• AS exports only customer routes to a peer
• AS exports a peers routes only to its customers

Traffic to/from the peer and its customers
peer
peer
d
16
Hierarchical AS Relationships

• Provider-customer graph is directed acyclic
• If u is a customer of v and v is a customer of w
• then w is not a customer of u

w
v
u
17
Local Path Selection Rules

• Classify routes based on next-hop AS
• Customer routes, peer routes, and provider routes
• Rank routes based on classification
• Prefer customer routes over peer/provider routes
• Allow any ranking of routes within a class
• E.g., rank one customer route higher than another
• Gives network operators the flexibility they need
• Consistent with traffic engineering practices
• Customers pay for service, and providers are paid
• Peer relationship based on balanced traffic load

18
Two Interpretations

• System is stable because ASes act like this
• High-level argument
• Export and topology assumptions are reasonable
• Path selection rule matches with financial
  incentives
• Empirical results
• BGP routes for popular destinations stable for
  10 days
• Most instability from a few flapping destinations
• ASes should follow rules for system stability
• Encourage operators to obey these guidelines
• and provide ways to verify the configuration
• Need to consider more complex relationships

19
Playing One Condition Off Against Another

• All three conditions are important
• Path ranking, export policy, and graph structure
• Allowing more flexibility in ranking routes
• Allow same preference for peer and customer
  routes
• Never choose a peer route over a shorter customer
  route
• at the expense of stricter AS graph assumptions
• Hierarchical provider-customer relationship (as
  before)
• No private peering with (direct or indirect)
  providers

Peer-peer
20
Extension to Backup Relationships

• Backups liberal export and ranking policies
• The motivation is increased reliability
• but ironically it may cause routing instability!

Backup Provider
Peer-Peer Backup RFC 1998
provider
primary provider
backup path
backup path
failure
backup provider
failure
peer
21
Backup Path Needs Global Significance
2
4
3
0
1

• Peer-backup relationship between 0 and 1
• Adds backup paths (2,1,0), (3,1,0),
• When link 2,0 fails
• Node 2 prefers (2,3,1,0) through a peer over the
  backup path (2,1,0)
• Leads to the bad gadget example

22
Backup Paths Keeping Count of Backup Edges

• Solution
• Prefer routes with fewest backup links
• Then, break ties by preferring customer routes
• Mechanism
• Tag BGP route advertisement with a counter
• Increment the count as you cross a backup edge

No backup
2 0 2 1 0 2 3 1 0 2 4 1 0
2
4
3
One backup customer
One backup peer
0
1
23
Recent Work
24
Recent Work Relaxing Export Rules

• Goal no restrictions on export and topology
• Allow an AS to decide whether to export
• Do not require hierarchical relationships
• Question
• How much do you have to restrict path ranking to
  have a guarantee that the system is safe?
• Answer
• Limited to shortest-path routing
• Implications
• Trade-off in safety, autonomy, expressiveness

Recent work by Nick Feamster and Ramesh Johari
25
Recent Work MED Oscillation (RFC 3345)

• MED comparison when next-hop AS is same
• No total ordering at the leftmost router
• B gt A preferring smaller router-id
• C gt B preferring smaller MED attribute
• A gt C preferring eBGP-learned over iBGP

AS 2
AS 1
B Id1, MED20
C MED10
A Id2
iBGP
26
Project Idea Stable Paths Problem and Root-Cause
Analysis
27
Project Idea Root-Cause Analysis

• Root-cause analysis
• Identify location and cause of routing changes
• Inference from BGP protocol messages
• Active area of research
• Several proposed algorithms
• Limited accuracy in making inferences
• Research question
• Is the problem just very hard?
• Does the data not reveal enough information?
• Project idea study using SPP

28
Project Idea, Continued

• Model root-cause analysis
• Start with an SPP instance
• Fail a link (or a node)
• See what path changes would occur
• What events might cause these changes?

1 2 0 1 0
2 3 4 0 2 0
3 4 0 3 2 0
1
3
2
4 0
0
4
29
Questions

• Can you infer cause and location
• If you observe routing changes at all nodes
• If you observe only some of the nodes
• What if you make some assumptions
• E.g., policies based on business relationships
• Where would you place monitors?
• Best locations to place n monitors
• Minimum number of monitors you need
• What changes would you make to the routing
  protocol to make diagnosis easier?

30
Next Time Hot-Potato Routing

• Two papers
• Dynamics of Hot-Potato Routing in IP Networks
• TIE Breaking Tunable Interdomain Egress
  Selection
• NANOG video
• Covering material in the first paper
• In honor of spring break
• No written reviews
• Talk with me about your course project
• ... by Thursday March 24
• Final written report due Tuesday May 10
