Title: Question%20Answering%20Techniques%20and%20Systems


1

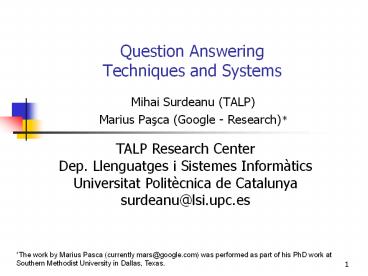

Question Answering Techniques and Systems
  • Mihai Surdeanu (TALP)
  • Marius Pasca (Google - Research)

TALP Research Center Dep. Llenguatges i Sistemes
Informàtics Universitat Politècnica de
Catalunya surdeanu_at_lsi.upc.es
The work by Marius Pasca (currently
mars_at_google.com) was performed as part of his PhD
work at Southern Methodist University in Dallas,
Texas.
2
Overview
  • What is Question Answering?
  • A traditional system
  • Other relevant approaches
  • Distributed Question Answering

3
Problem of Question Answering
When was the San Francisco fire? were driven
over it. After the ceremonial tie was removed -
it burned in the San Francisco fire of 1906
historians believe an unknown Chinese worker
probably drove the last steel spike into a wooden
tie. If so, it was only
What is the nationality of Pope John Paul II?
stabilize the country with its help, the Catholic
hierarchy stoutly held out for pluralism, in
large part at the urging of Polish-born Pope John
Paul II. When the Pope emphatically defended the
Solidarity trade union during a 1987 tour of the
Where is the Taj Mahal? list of more than 360
cities around the world includes the Great Reef
in Australia, the Taj Mahal in India, Chartres
Cathedral in France, and Serengeti National Park
in Tanzania. The four sites Japan has listed
include
4
Problem of Question Answering
Natural language question, not keyword queries
What is the nationality of Pope John Paul II?
stabilize the country with its help, the Catholic
hierarchy stoutly held out for pluralism, in
large part at the urging of Polish-born Pope John
Paul II. When the Pope emphatically defended the
Solidarity trade union during a 1987 tour of the
Short text fragment, not URL list
5
Compare with
Document collection
Searching for Etna
Where is Naxos?
Searching for Naxos
What continent is Taormina in?
What is the highest volcano in Europe?
Searching for Taormina
6
Beyond Document Retrieval
  • Document Retrieval
  • Users submit queries corresponding to their
    information needs.
  • System returns (voluminous) list of full-length
    documents.
  • It is the responsibility of the users to find
    information of interest within the returned
    documents.
  • Open-Domain Question Answering (QA)
  • Users ask questions in natural language.
  • What is the highest volcano in Europe?
  • System returns list of short answers.
  • Under Mount Etna, the highest volcano
    in Europe, perches the fabulous town
  • Often more useful for specific information needs.

7
Evaluating QA Systems
  • National Institute of Standards and Technology
    (NIST) organizes yearly the Text Retrieval
    Conference (TREC), which has had a QA track for
    the past 5 years from TREC-8 in 1999 to TREC-12
    in 2003.
  • The document set
  • Newswire textual documents from LA Times, San
    Jose Mercury News, Wall Street Journal, NY Times
    etcetera over 1M documents now.
  • Well-formed lexically, syntactically and
    semantically (were reviewed by professional
    editors).
  • The questions
  • Hundreds of new questions every year, the total
    is close to 2000 for all TRECs.
  • Task
  • Initially extract at most 5 answers long (250B)
    and short (50B).
  • Now extract only one exact answer.
  • Several other sub-tasks added later definition,
    list, context.
  • Metrics
  • Mean Reciprocal Rank (MRR) each question
    assigned the reciprocal rank of the first correct
    answer. If correct answer at position k, the
    score is 1/k.

8
Overview
  • What is Question Answering?
  • A traditional system
  • SMU ranked first at TREC-8 and TREC-9
  • The foundation of LCCs PowerAnswer system
    (http//www.languagecomputer.com)
  • Other relevant approaches
  • Distributed Question Answering

9
QA Block Architecture
Question Semantics
Passage Retrieval
Answer Extraction
Question Processing
Q
A
Passages
Keywords
WordNet
WordNet
Document Retrieval
Parser
Parser
NER
NER
10
Question Processing Flow
Question semantic representation
Construction of the question representation
Q
Question parsing
Answer type detection
AT category
Keyword selection
Keywords
11
Lexical Terms Examples
  • Questions approximated by sets of unrelated words
    (lexical terms)
  • Similar to bag-of-word IR models

Question (from TREC QA track) Lexical terms
Q002 What was the monetary value of the Nobel Peace Prize in 1989? monetary, value, Nobel, Peace, Prize
Q003 What does the Peugeot company manufacture? Peugeot, company, manufacture
Q004 How much did Mercury spend on advertising in 1993? Mercury, spend, advertising, 1993
Q005 What is the name of the managing director of Apricot Computer? name, managing, director, Apricot, Computer
12
Question Stems and Answer Type Examples
  • Identify the semantic category of expected answers

Question Question stem Answer type
Q555 What was the name of Titanics captain? What Person
Q654 What U.S. Government agency registers trademarks? What Organization
Q162 What is the capital of Kosovo? What City
Q661 How much does one ton of cement cost? How much Quantity
  • Other question stems Who, Which, Name, How
    hot...
  • Other answer types Country, Number, Product...

13
Building the Question Representation
from the question parse tree, bottom-up traversal
with a set of propagation rules
Q006 Why did David Koresh ask the FBI for a word
processor?
SBARQ
SQ

VP

PP
WHADVP NP
NP NP
WRB VBD NNP NNP VB DT NNP
IN DT NN NN
Why did David Koresh ask the
FBI for a word processor
published in COLING 2000
  • - assign labels to non-skip leaf nodes
  • propagate label of head child node, to parent
    node
  • link head child node to other children nodes

14
Building the Question Representation
from the question parse tree, bottom-up traversal
with a set of propagation rules
Q006 Why did David Koresh ask the FBI for a word
processor?
SBARQ
SQ

VP

PP
WHADVP NP
NP NP
WRB VBD NNP NNP VB DT NNP
IN DT NN NN
Why did David Koresh ask the
FBI for a word processor
Koresh
FBI
ask
Question representation
David
REASON
processor
word
15
Detecting the Expected Answer Type
  • In some cases, the question stem is sufficient to
    indicate the answer type (AT)
  • Why ? REASON
  • When ? DATE
  • In many cases, the question stem is ambiguous
  • Examples
  • What was the name of Titanics captain ?
  • What U.S. Government agency registers trademarks?
  • What is the capital of Kosovo?
  • Solution select additional question concepts (AT
    words) that help disambiguate the expected answer
    type
  • Examples
  • captain
  • agency
  • capital

16
AT Detection Algorithm
  • Select the answer type word from the question
    representation.
  • Select the word(s) connected to the question.
    Some content-free words are skipped (e.g.
    name).
  • From the previous set select the word with the
    highest connectivity in the question
    representation.
  • Map the AT word in a previously built AT
    hierarchy
  • The AT hierarchy is based on WordNet, with some
    concepts associated with semantic categories,
    e.g. writer ? PERSON.
  • Select the AT(s) from the first hypernym(s)
    associated with a semantic category.

17
Answer Type Hierarchy
PERSON
PERSON
18
Evaluation of Answer Type Hierarchy
  • Controlled variation of the number of WordNet
    synsets included in answer type hierarchy.
  • Test on 800 TREC questions.

Precision score (50-byte answers)
Hierarchy coverage
0 0.296 3
0.404 10
0.437 25
0.451 50 0.461
  • The derivation of the answer type is the main
    source of unrecoverable errors in the QA system

19
Keyword Selection
  • AT indicates what the question is looking for,
    but provides insufficient context to locate the
    answer in very large document collection
  • Lexical terms (keywords) from the question,
    possibly expanded with lexical/semantic
    variations provide the required context

20
Keyword Selection Algorithm
  1. Select all non-stop words in quotations
  2. Select all NNP words in recognized named entities
  3. Select all complex nominals with their adjectival
    modifiers
  4. Select all other complex nominals
  5. Select all nouns with adjectival modifiers
  6. Select all other nouns
  7. Select all verbs
  8. Select the AT word (which was skipped in all
    previous steps)

21
Keyword Selection Examples
  • What researcher discovered the vaccine against
    Hepatitis-B?
  • Hepatitis-B, vaccine, discover, researcher
  • What is the name of the French oceanographer who
    owned Calypso?
  • Calypso, French, own, oceanographer
  • What U.S. government agency registers trademarks?
  • U.S., government, trademarks, register, agency
  • What is the capital of Kosovo?
  • Kosovo, capital

22
Passage Retrieval
Question Semantics
Passage Retrieval
Answer Extraction
Question Processing
Q
A
Passages
Keywords
WordNet
WordNet
Document Retrieval
Parser
Parser
NER
NER
23
Passage Retrieval Architecture
Passage Quality
Keywords
Yes
Keyword Adjustment
Passage Scoring
Passage Ordering
No
Passages
Ranked Passages
Passage Extraction
Documents
Document Retrieval
24
Passage Extraction Loop
  • Passage Extraction Component
  • Extracts passages that contain all selected
    keywords
  • Passage size dynamic
  • Start position dynamic
  • Passage quality and keyword adjustment
  • In the first iteration use the first 6 keyword
    selection heuristics
  • If the number of passages is lower than a
    threshold ? query is too strict ? drop a keyword
  • If the number of passages is higher than a
    threshold ? query is too relaxed ? add a keyword

25
Passage Scoring (1/2)
  • Passages are scored based on keyword windows
  • For example, if a question has a set of keywords
    k1, k2, k3, k4, and in a passage k1 and k2 are
    matched twice, k3 is matched once, and k4 is not
    matched, the following windows are built

Window 1
Window 2
k1 k2
k3 k2 k1
k1 k2
k3 k2 k1
Window 3
Window 4
k1 k2
k3 k2 k1
k1 k2
k3 k2 k1
26
Passage Scoring (2/2)
  • Passage ordering is performed using a radix sort
    that involves three scores largest
    SameWordSequenceScore, largest DistanceScore,
    smallest MissingKeywordScore.
  • SameWordSequenceScore
  • Computes the number of words from the question
    that are recognized in the same sequence in the
    window
  • DistanceScore
  • The number of words that separate the most
    distant keywords in the window
  • MissingKeywordScore
  • The number of unmatched keywords in the window

27
Answer Extraction
Question Semantics
Passage Retrieval
Answer Extraction
Question Processing
Q
A
Passages
Keywords
WordNet
WordNet
Document Retrieval
Parser
Parser
NER
NER
28
Ranking Candidate Answers
Q066 Name the first private citizen to fly in
space.
  • Answer type Person
  • Text passage Among them was Christa McAuliffe,
    the first private citizen to fly in space. Karen
    Allen, best known for her starring role in
    Raiders of the Lost Ark, plays McAuliffe. Brian
    Kerwin is featured as shuttle pilot Mike
    Smith...
  • Best candidate answer Christa McAuliffe

29
Features for Answer Ranking
  • relNMW number of question terms matched in the
    answer passage
  • relSP number of question terms matched in the
    same phrase as the candidate answer
  • relSS number of question terms matched in the
    same sentence as the candidate answer
  • relFP flag set to 1 if the candidate answer is
    followed by a punctuation sign
  • relOCTW number of question terms matched,
    separated from the candidate answer by at most
    three words and one comma
  • relSWS number of terms occurring in the same
    order in the answer passage as in the question
  • relDTW average distance from candidate answer
    to question term matches

Robust heuristics that work on unrestricted text!
30
Answer Ranking based on Machine Learning
  • Relative relevance score computed for each pair
    of candidates (answer windows)
  • relPAIR wSWS ? ?relSWS wFP ? ?relFP
  • wOCTW ? ?relOCTW wSP ? ?relSP wSS
    ? ?relSS
  • wNMW ? ?relNMW wDTW ? ?relDTW
    threshold
  • if relPAIR positive, then first candidate from
    pair is more relevant
  • Perceptron model used to learn the weights
  • published in SIGIR 2001
  • Scores in the 50 MRR for short answers, in the
    60 MRR for long answers

31
Evaluation on the Web
  • test on 350 questions from TREC (Q250-Q600)
  • extract 250-byte answers

Google Answer extraction from Google AltaVista Answer extraction from AltaVista
Precision score 0.29 0.44 0.15 0.37
Questions with a correct answer among top 5 returned answers 0.44 0.57 0.27 0.45
32
System ExtensionAnswer Justification
  • Experiments with Open-Domain Textual Question
    Answering. Sanda Harabagiu, Marius Pasca and
    Steve Maiorano.
  • Answer justification using unnamed relations
    extracted from the question representation and
    the answer representation (constructed through a
    similar process).

33
System ExtensionDefinition Questions
  • Definition questions ask about the definition or
    description of a concept
  • Who is John Galt?
  • What is anorexia nervosa?
  • Many information nuggets are acceptable answers
  • Who is George W. Bush?
  • George W. Bush, the 43rd President of the
    United States
  • George W. Bush defeated Democratic incumbentAnn
    Richards to become the 46th Governor of the State
    of Texas
  • Scoring
  • Any information nugget is acceptable
  • Precision score over all information nuggets

34
Answer Detection with Pattern Matching
  • For Definition questions

Q386 What is anorexia nervosa? cause of anorexia nervosa, an eating disorder...
Q358 What is a meerkat? the meerkat, a type of mongoose, thrives in...
Q340 Who is Zebulon Pike? in 1806, explorer Zebulon Pike sighted the...
35
Answer Detection with Concept Expansion
  • Enhancement for Definition questions
  • Identify terms that are semantically related to
    the phrase to define
  • WordNet hypernyms (more general concepts)

Question WordNet hypernym Detected answer candidate
What is a shaman? priest, non-Christian priest Mathews is the priest or shaman
What is a nematode? worm nematodes, tiny worms in soil
What is anise? herb, herbaceous plant anise, rhubarb and other herbs
published in AAAI Spring Symposium 2002
36
Evaluation on Definition Questions
  • Determine the impact of answer type detection
    with pattern matching and concept expansion
  • test on the Definition questions from TREC-9 and
    TREC-10 (approx. 200 questions)
  • extract 50-byte answers
  • Results
  • precision score 0.56
  • questions with a correct answer among top 5
    returned answers 0.67

37
References
  • Marius Pasca. High-Performance, Open-Domain
    Question Answering from Large Text Collections,
    Ph.D. Thesis, Computer Science and Engineering
    Department, Southern Methodist University,
    Defended September 2001, Dallas, Texas
  • Marius Pasca. Open-Domain Question Answering from
    Large Text Collections, Center for the Study of
    Language and Information (CSLI Publications,
    series Studies in Computational Linguistics),
    Stanford, California, Distributed by the
    University of Chicago Press, ISBN (Paperback)
    1575864282, ISBN (Cloth) 1575864274. 2003

38
Overview
  • What is Question Answering?
  • A traditional system
  • Other relevant approaches
  • LCCs PowerAnswer COGEX
  • IBMs PIQUANT
  • CMUs Javelin
  • ISIs TextMap
  • BBNs AQUA
  • Distributed Question Answering

39
PowerAnswer COGEX (1/2)
  • Automated reasoning for QA A ? Q, using a logic
    prover. Facilititates both answer validation and
    answer extraction.
  • Both question and answer(s) transformed in logic
    forms. Example
  • Heavy selling of Standard Poors 500-stock
    index futures in Chicago relentlessly beat stocks
    downwards.
  • Heavy_JJ(x1) selling_NN(x1) of_IN(x1,x6)
    Standard_NN(x2) _CC(x13,x2,x3) Poor(x3)
    s_POS(x6,x13) 500-stock_JJ(x6) index_NN(x4)
    futures(x5) nn_NNC(x6,x4,x5) in_IN(x1,x8)
    Chicago_NNP(x8) relentlessly_RB(e12)
    beat_VB(e12,x1,x9) stocks_NN(x9)
    downward_RB(e12)

40
PowerAnswer COGEX (2/2)
  • World knowledge from
  • WordNet glosses converted to logic forms in the
    eXtended WordNet (XWN) project (http//www.utdalla
    s.edu/moldovan)
  • Lexical chains
  • gamen3 ? HYPERNYM ? recreationn1 ? HYPONYM ?
    sportn1
  • Argentinea1 ? GLOSS ? Argentinan1
  • NLP axioms to handle complex NPs, coordinations,
    appositions, equivalence classes for prepositions
    etcetera
  • Named-entity recognizer
  • John Galt ? HUMAN
  • A relaxation mechanism is used to iteratively
    uncouple predicates, remove terms from LFs. The
    proofs are penalized based on the amount of
    relaxation involved.

41
IBMs Piquant
  • Question processing conceptually similar to SMU,
    but a series of different strategies (agents)
    available for answer extraction. For each
    question type, multiple agents might run in
    parallel.
  • Reasoning engine and general-purpose ontology
    from Cyc used as sanity checker.
  • Answer resolution remaining answers are
    normalized and a voting strategy is used to
    select the correct (meaning most redundant)
    answer.

42
Piquant QA Agents
  • Predictive annotation agent
  • Predictive annotation the technique of
    indexing named entities and other NL constructs
    along with lexical terms. Lemur has built-in
    support for this now.
  • General-purpose agent, used for almost all
    question types.
  • Statistical Query Agent
  • Derivation from a probabilistic IR model, also
    developed at IBM.
  • Also general-purpose.
  • Description Query
  • Generic descriptions appositions, parenthetical
    expressions.
  • Applied mostly to definition questions.
  • Structured Knowledge Agent
  • Answers from WordNet/Cyc.
  • Applied whenever possible.
  • Pattern-Based Agent
  • Looks for specific syntactic patterns based on
    the question form.
  • Applied when the answer is expected in a
    well-structured form.
  • Dossier Agent
  • For Who is X? questions.
  • A dynamic set of factual questions used to learn
    information nuggets about persons.

43
Pattern-based Agent
  • Motivation some questions (with or without AT)
    indicate that the answer might be in a structured
    form
  • What does Knight Rider publish? ? transitive
    verb, missing object.
  • Knight Rider publishes X.
  • Patterns generated
  • From a static pattern repository, e.g. birth and
    death dates recognition.
  • Dynamically from the question structure.
  • Matching of the expected answer pattern with the
    actual answer text is not at word level, but at a
    higher linguistic level based on full parse trees
    (see IE lecture).

44
Dossier Agent
  • Addresses Who is X? questions.
  • Generates initially a series of generic
    questions
  • When was X born?
  • What was Xs profession?
  • Future iterations dynamically decided based on
    the previous answers?
  • If Xs profession is writer the next question
    is What did X write?
  • A static ontology of biographical questions used.

45
CyC Sanity Checker
  • Post-processing component that
  • Rejects insane answers
  • How much does a grey wolf weigh?
  • 300 tons
  • A grey wold IS-A wolf. Weight of a wolf known in
    Cyc.
  • Cyc returns SANE, INSANE, or DONT KNOW.
  • Boosts answer confidence when the answer is SANE.
  • Typically called for numerical answer types
  • What is the population of Maryland?
  • How much does a grey wolf weigh?
  • How high is Mt. Hood?

46
Answer Resolution
  • Called when multiple agents are applied for the
    same question. Distribution of agents the
    predictive-annotation and the statistical agent
    by far the most common.
  • Each agent provides a canonical answer (e.g.
    normalized named entity) and a confidence score.
  • Final confidence for each candidate answer
    computed using a ML model with SVM.

47
CMUs Javelin
  • Architecture combines SMUs and IBMs approaches.
  • Question processing close to SMUs approach.
  • Passage retrieval loop conceptually similar to
    SMUs, but an elegant implementation.
  • Multiple answer strategies similar to IBMs
    system. All of them are based on ML models (K
    nearest neighbours, decision trees) that use
    shallow-text features (close to SMUs).
  • Answer voting, similar to IBMs, used to exploit
    answer redundancy.

48
Javelins Retrieval Strategist
  • Implements passage retrieval, including the
    passage retrieval loop.
  • Uses the Inquiry IR system, probably Lemur by
    now.
  • The retrieval loop uses all keywords in close
    proximity of each other initially (stricter than
    SMU).
  • Subsequent iterations relax the following query
    terms
  • Proximity for all question keywords 20, 100,
    250, AND
  • Phrase proximity for phrase operators less than
    3 words or PHRASE
  • Phrase proximity for named entities less than 3
    words or PHRASE
  • Inclusion/exclusion of AT word
  • Accuracy for TREC-11 queries how many questions
    had at least one correct document in the top N
    documents
  • Top 30 docs 80
  • Top 60 docs 85
  • Top 120 docs 86

49
ISIs TextMap Pattern-Based QA
  • Examples
  • Who invented the cotton gin?
  • ltwhogt invented the cotton gin
  • ltwhogt's invention of the cotton gin
  • ltwhogt received a patent for the cotton gin
  • How did Mahatma Gandhi die?
  • Mahatma Gandhi died lthowgt
  • Mahatma Gandhi drowned
  • ltwhogt assassinated Mahatma Gandhi
  • Patterns generated from the question form
    (similar to IBM), learned using a pattern
    discovery mechanism, or added manually to a
    pattern repository
  • The pattern discovery mechanism performs a series
    of generalizations from annotated examples
  • Babe Ruth was born in Baltimore, on February 6,
    1895.
  • PERSON was born g in DATE

50
TextMap QA ? Machine Translation
  • In machine translation, one collects translations
    pairs (s, d) and learns a model how to transform
    the source s into the destination d.
  • QA is redefined in a similar way collect
    question-answer pairs (a, q) and learn a model
    that computes the probability that a question is
    generated from the given answer p(q
    parsetree(a)). The correct answer maximizes this
    probability.
  • Only the subsets of answer parse trees where the
    answer lies are used as training (not the whole
    sentence).
  • An off-the-shelf machine translation package
    (Giza) used to train the model.

51
TextMapExploiting the Data Redundancy
  • Additional knowledge resources are used whenever
    applicable
  • WordNet glosses
  • What is a meerkat?
  • www.acronymfinder.com
  • What is ARDA?
  • Etcetera
  • The known answers are then simply searched in
    the document collection together with question
    keywords
  • Google is used for answer redundancy
  • TREC and Web (through Google) are searched in
    parallel.
  • Final answer selected using a maximum entropy ML
    model.
  • IBM introduced redundancy for QA agents, ISI uses
    data redundancy.

52
BBNs AQUA
  • Factual system converts both question and answer
    to a semantic form (close to SMUs)
  • Machine learning used to measure the similarity
    of the two representations.
  • Was ranked best at the TREC definition pilot
    organized before TREC-12
  • Definition system conceptually close to SMUs
  • Had pronominal and nominal coreference resolution
  • Used a (probably) better parser (Charniak)
  • Post-ranking of candidate answers using a tf
    idf model

53
Overview
  • What is Question Answering?
  • A traditional system
  • Other relevant approaches
  • Distributed Question Answering

54
Sequential Q/A Architecture
Keywords
Question
Question Processing
Accepted Paragraphs
Paragraphs
Paragraph Retrieval
Paragraph Scoring
Paragraph Ordering
Answer Processing
Answers
55
Sequential Architecture Analysis
  • Module timing analysis
  • Analysis conclusions
  • Performance bottleneck modules have
    well-specified resource requirements ? fit for
    DLB
  • Iterative tasks ? fit for partitioning
  • Reduced inter-module communication ? effective
    module migration/partitioning

56
Inter-Question Parallelism (1)
Internet/DNS
Node 1
Node N
Question Dispatcher
Load Monitor
Question Dispatcher
Load Monitor

Q/A Task
Q/A Task
Local Interconnection Network
57
Inter-Question Parallelism (2)
  • Question dispatcher
  • Improves upon the DNS blind allocation
  • Allocates a new question to the processor p best
    fit for the average question. Processor p
    minimizes
  • Recovers from failed questions
  • Load monitor
  • Updates and broadcasts local load
  • Receives remote load information
  • Detects system configuration changes

58
Intra-Question Parallelism (1)
Paragraph Retrieval Dispatcher
Paragraph Merging
Paragraph Retrieval (1)
Paragraph Scoring (1)
Keywords
Paragraphs
Paragraph Retrieval (2)
Paragraph Scoring (2)
Question Processing

Question

Paragraph Retrieval (k)
Paragraph Scoring (k)
Load Monitor
59
Intra-Question Parallelism (2)
Answer Processing Dispatcher
Answer Merging
Answer Processing (1)
Accepted Paragraphs
Unranked Answers
Paragraphs

Paragraph Ordering
Answer Sorting
Answer Processing (2)
Answers

Answer Processing (n)
Load Monitor
60
Meta-Scheduling Algorithm
  • metaScheduler(task, loadFunction,
    underloadCondition)
  • select all processors p with underloadCondition(p)
    true
  • if none selected then select processor p with the
    smallest value for loadFunction(p)
  • assign to each selected processor p an weight wp
    based on its current load
  • assign to each selected processor p a fraction wp
    of the global task

61
Migration Example
processors
time
QP
QP
PR
PR
PS
PS
PO
PO
AP
AP
P1
P2
Pn

62
Partitioning Example
processors
QP
time
PR1
PR2
PRn

PS1
PS2
PSn
PO
AP1
AP2
APn
P1
P2
Pn

63
Inter-Question ParallelismSystem Throughput
64
Intra-Question Parallelism
65
End
Gràcies!
Write a Comment
User Comments (0)
About PowerShow.com
