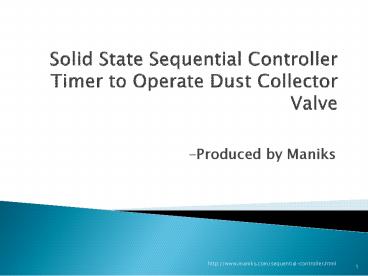

Solid State Sequential Controller Timer to
Operate Dust Collector Valve

• -Produced by Maniks

2
INDEX
Sr .No Content Page No
1 Basics of Sequential Timer Controller 3
2 Sequential controller Timer 4
3 Solid State Sequential Timer Operation 5
4 Methods 6
5 Specifications of Maniks Solid State Sequential Controller 7
6 Important of Maniks Sequential Controller 8
7 Benefits Maniks Sequential Controller 9
8 Applications 10
3
Sequential controller

• Basics of Sequential Timer Controller
• Sequential controller is a device used to operate
  Maniks pilot operator dust collector valves.
• It provides sequenced step operation of valves
  in a dust collector system.
• Dust collector equipments must have high
  filtering efficiency even for the finest dust.
  The proper use of time-controlled cleaning can
  result in less human resources. Hence high
  efficiency dust collector parts play a very
  important role here. By any measure, an efficient
  dust collector system is an investment that more
  than pays for itself

4
Sequential controller

• Sequential controller Timer
• Light emitting diodes (LEDs) provide visual
  indication of which pilot valve is being
  energized as well as "Power On" indication. The
  number of sequenced steps is adjustable from 2
  through 10.Controls are provided to adjust the
  length of time between valves being de-energized
  (Pulse Frequency / off time) and the length of
  time that the valve is energized (Pulse Duration
  / on time). Silicon semiconductor components
  control all timing and logic Functions

5
Sequential controller

• Solid State Sequential Timer Operation
• The Sequential Controller gives continuous
  sequential energization of associated loads.
• The Power On light emitting diode (LED) gives
  visual indication and the Pulse Valve number 1 is
  immediately charged, when power is applied to the
  sequential led controller. LED provides visual
  indication of this event as Output 1.
• For the particular length of time which is
  indicated by the setting of the On time/ Pulse
  Duration control, the pilot valve will remain
  energized. Note that the aligned dials are for
  estimated settings only and they must be
  measured, if exact times are required.

6
Sequential controller

• Methods
• 1. The first method will consequently stop the
  sequence and reset the controller to the initial
  valve position whenever A. C. power is detached
  and then again reconnected.
• 2. The second strategy is by a remote control
  contact associated with the terminals provided.
• At the point when the remote contact is opened,
  the execution stops.
• When the remote contact is released, the
  execution proceeds from the previous.

7
Sequential controller

• Specifications of Maniks Solid State Sequential
  Controller
• Supply Voltage
• Input Fuse
• 230VAC
• 1.5A
• 24VDC
• 3A
• 110VAC
• 3A
• Pulse Frequency / Range Adjustability Standard
  2 to 60 seconds

8
Sequential controller

• Important of Maniks Sequential Controller
• Maniks is a leading Indian brand who supplies the
  high efficient and best quality components for
  the dust collector system.
• Sequential controller is one of the key products
  of the dust collector equipment.
• All these elements are compatible with each other
  and give best performance in dust collection
• Maniks is supplying these products since three
  decades they have proven their best quality and
  reliable performance in various industrial
  applications. Their all the products are
  ecofriendly and energy conserving thats why
  these products are preferred by the clients.

9
Sequential controller

• Benefits Maniks Sequential Controller
• The Sequential controller by Maniks has following
  preferences
• It is a Cost effective item
• Provides top notch execution for longer life
• Automatic control to the framework is
  conceivable
• Consumes low Time and Power
• Ease of establishment and upkeep
• Possess Good stream attributes

10
Sequential controller

• Applications
• Because of the benefits discussed earlier Maniks
  sequential controller is used by following
  industries in their dust collection equipments
• Lime and cement processing
• Grain, agriculture, and feed
• Metalworking (welding, grinding, cutting)
• Food processing
• Heavy industries (iron, steel)
• Pharmaceutical Industries
• Power engineering (coal-fired power plants)
• Wood machining
