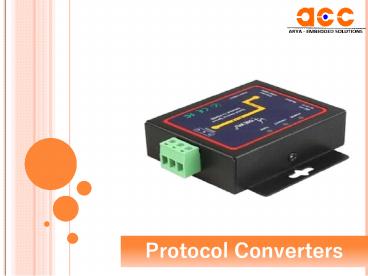

Protocol Converters

1
Protocol Converters
2
Overview -

• A Protocol Converter is a method used to
• transform ordinary or registered protocol
  of one
• device to the protocol appropriate for the
  other
• device or tools to accomplish the
  interoperability.
• Communication protocols are essentially the
• rules that define how the data passing
  through a
• device are to be processed and transmitted,
  so if
• two devices do not use the same protocol,
  then
• they would not be able to understand each
  other,
• hence the need for a protocol converter.
• Arya Electronics Protocol Converters help
  attain
• Interoperability efficiently and
  seamlessly.

CONFIDENTIAL Copyright 2020 Arya Electronics And
Controls Pvt. Ltd
3
Specifications -

• 1. 1xEthernet, 1xRS485 Ports
• 2. RJ45 Ethernet Connector
• 3. 3way 5mm terminal block RS485 Connector
• 4. 10/100 Base - T Autosensing Data Rates
  Ethernet
• 5. Up to 115200 bps Data Rates Serial
• 8..24V AC 12..35V DC Power supply
• 7. -40C/85C (-40F/185F) Operating
  temperature
• 8. 71x60x95 mm (D x W x H) Dimensions
• 9. 200g approx Weight
• 10. DIN Rail montage Mechanical fixing

CONFIDENTIAL Copyright 2020 Arya Electronics And
Controls Pvt. Ltd
4
Contact Us-
ARYA ELECTRONICS AND CONTROL PVT. LTD. S.NO.15,
GANESH NAGAR, DHAYARI, PUNE - 411041, INDIA.
Arya Electronics And Controls Pvt. Ltd.
91- 9822534825
contactus_at_aryaelectronicsandcontols.com
