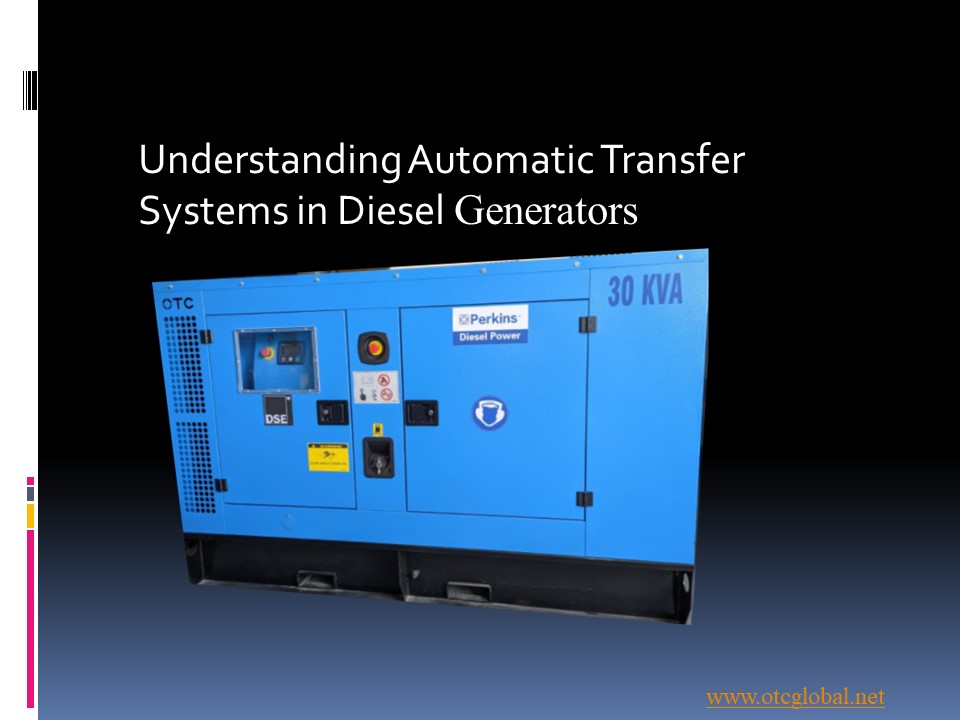

Understanding Automatic Transfer Systems in
Diesel Generators
www.otcglobal.net
2

• Diesel generators must include Automatic Transfer
  Systems (ATS), which guarantee a smooth transfer
  of power from the generator to the utility grid.
• They are essential for supplying backup power in
  the event of utility power outages or other
  crises. Among the diesel generator suppliers in
  UAE, here is an explanation of how ATS works with
  diesel generators
• Components of an ATS System.
• Transfer Switch
• The transfer switch serves as an ATS's primary
  structural element. It supervises the
  distribution of electrical load between the
  utility and the generator and keeps an eye on the
  utility's availability and power quality.
• Control Panel
• The control panel houses the necessary
  electronics and controls for the ATS. It receives
  signals from the transfer switch and other
  sensors to determine the appropriate timing and
  conditions for transferring the load.

www.otcglobal.net
3
2. Normal Utility Power The ATS continuously
monitors the utility power during regular
operation. The transfer switch maintains the
electrical load's connection to the utility grid
and makes sure that the building or facility
receives a steady supply of power. 3. Utility
Power Failure The transfer process is started
when the ATS notices a utility power outage. The
electrical load is disconnected from the utility
grid using the transfer switch. 4. Generator
start and Synchronization The ATS starts the
diesel generator after cutting off the utility
grid. In order to do this, the generator engine
must first be started, allowed to attain the
proper operating speed and voltage, and then
synchronized with the load.
www.otcglobal.net
4
5. Load Transfer The transfer switch shifts the
electrical load from the utility grid to the
generator after the generator is synchronized.
This ensures that the facility or equipment
connected to it will always have power. 6.
Generator Power Supply The diesel generator
currently serves as the main energy source. Up
until the utility power is restored, it keeps
supplying power to the load. 7. Utility Power
Restoration. The reverse transfer operation is
started when the ATS notices that the utility
power has been restored and stabilized. The
transfer switch reconnects the electrical load to
the utility grid after disconnecting it from the
generator.
www.otcglobal.net
5
8. Generator Shutdown The ATS manages the
shutdown of the diesel generator once the load
has been returned to the power grid. The
generator is normally turned off after a
cooling-down time to avoid any potential
harm. 9. Monitoring and Safety Features To
ensure dependable operation, ATS systems contain
a variety of monitoring and safety elements.
Among them are possible electrical parameters
like voltage and frequency monitoring, phase
synchronization, overcurrent protection,
under-voltage protection, and others. We are one
of the top diesel generator suppliers in Sharjah,
and our diesel generator warranties last at least
a year.
www.otcglobal.net
6

• Here are some more details on the automatic
  transfer system from one of the diesel generator
  suppliers in Congo.
• Manual and Automatic Operation.
• Both manual and automatic operation modes are
  available for ATS systems. In manual mode, a
  human operator controls the transfer process in
  automatic mode, the ATS detects a utility power
  breakdown and automatically starts the transfer.
• 2. Transfer Time
• The amount of time it takes for the ATS to move a
  load from the utility grid to a generator is
  referred to as the transfer time. Modern ATS
  systems are made to offer quick and flawless
  transfers, usually taking only a few milliseconds
  to a few seconds, avoiding downtime for expensive
  machinery.

www.otcglobal.net
7

• 3. Load Prioritization
• ATS systems can be configured to prioritize some
  loads during a power transfer over others.
  Priority loads can be assigned to make sure that
  crucial devices or systems get power from the
  generator first, followed by less crucial loads.
• Testing and maintenance
• To guarantee the ATS system's dependability
  during a real power loss, regular testing and
  maintenance are crucial. ATS systems frequently
  have built-in test modes or manual testing
  options, allowing users to check the system's
  functionality without interrupting the power
  supply. One of the diesel generator suppliers in
  dubai,we offer maintenance assistance following
  each generator delivery.

www.otcglobal.net
8

• 5. Remote Monitoring and Control
• Many contemporary ATS systems allow for remote
  monitoring and management. Operators can check on
  the ATS's status, run tests, and get alerts or
  warnings about system performance or errors
  through a network connection or specialized
  software.
• ATS Sizing
• To make sure the ATS can meet the electrical load
  requirements of the linked equipment or facility,
  proper ATS sizing is essential. When choosing the
  right ATS capacity, factors including peak load
  demand, motor starting currents, and future
  expansion plans must be taken into account.

www.otcglobal.net
9
7. Safety considerations To safeguard people and
property, safety features are built into ATS
systems. These could include of safeguards
against backfeeding (the simultaneous connection
of the generator and utility electricity), surge
protection, grounding systems, and built-in
alarms or shut-off mechanisms in the event of
abnormal operating conditions. 8. Redundancy and
Parallel Operation Redundancy and parallel
operation of numerous diesel generators with
related ATS systems may be used in bigger
installations or mission-critical applications.
In the event of a generator or ATS failure, this
configuration guarantees more backup capacity,
fault tolerance, and better reliability.
