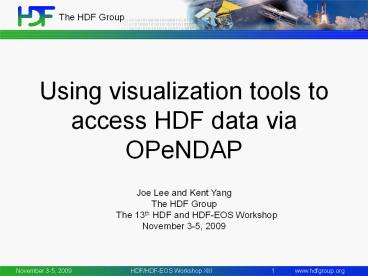

Using visualization tools to access HDF data via
OPeNDAP
Joe Lee and Kent Yang The HDF Group The
13th HDF and HDF-EOS Workshop November 3-5, 2009
2
HDF-OPeNDAP Tutorial Outline

• Why OPeNDAP?
• OPeNDAP Client Tools
• Visualization and Analysis
• OPeNDAP Servers
• Viewing Data with Panoply

3
Why So Difficult?

• Getting and Listening to MP3 song
• Yesterday - Beatles
• Getting and Viewing HDF-EOS dataset
• Yesterdays Ozone - OMI

4
Mirador Data Access Made Simple
5
Access HDF via FTP/HTTP
All I want is x-region data but data is missing.
Aura
Users
All I want is a dataset, not the entire file.
Tool (IDL)
OMI
FTP
FTP / HTTP Clients
FTP / HTTP Servers
HDF Files
Local HDF Files
6
Why OPeNDAP?
Why MP3?

• MP3 over CD
• Pick one song, not album (Quick)
• Listen now and Buy later (Right)
• OPeNDAP over FTP/HTTP
• Pick one dataset, not file (Quick)
• View now and Download later (Right)
• Benefit Save Time and Resource!

7
OPeNDAP Concept
Typical Remote Access
Remote Data (HDF4/5)
View Data (User)
OPeNDAP client Visualization Tools
Visualization tools (e.g. grads)
FTP Server
Local Data (HDF4/5)
OPeNDAP Server
FTP Client
File Transfer Protocol (FTP) via Internet
Data Access Protocol (DAP) via Internet
8
Access HDF via FTP/HTTP
Aura
Users
HDF Tool
OMI
FTP/HTTP
FTP / HTTP Clients
FTP / HTTP Servers
HDF Files
Local HDF Files
9
Access HDF via OPeNDAP
Aura
Users
OMI
DAP
OPeNDAP Servers
HDF Files
OPeNDAP Client Tool
10
OPeNDAP Why Not?
11
How to Enjoy MP3
How to Enjoy HDF via OPeNDAP

• MP3

• HDF via OPeNDAP

1. Install MP3 player
2. Search web for MP3
3. Listen to your MP3

• Install OPeNDAP tool
• Search web for data
• View data

12
OPeNDAP Tools

1. Panoply
2. GrADS
3. IDV
4. IDL
5. NCL
6. ODC
7. Ferret
8. ncBrowse

http//www.giss.nasa.gov/tools/panoply/
http//www.iges.org/grads/
http//www.unidata.ucar.edu/software/idv/
http//www.ittvis.com/ProductServices/IDL.aspx
http//www.ncl.ucar.edu/
http//opendap.org/ODC/
http//ferret.wrc.noaa.gov/Ferret/
http//www.epic.noaa.gov/java/ncBrowse/
13
Install Panoply

• http//www.giss.nasa.gov/tools/panoply/
• Java 5 Runtime Environment

14
Search Web for Data

• Open Web Browser
• Search omi opendap (or Enter URL)
• http//acdisc.gsfc.nasa.gov/opendap/
• (http//www.hdfgroup.org/projects/opendap4/o
  pendap4_demo.html)
• (Click HDF-EOS5)
• (Click Aura OMI Level 3)
• Click OMTO3d.003

15
Search Web for OPeNDAP Data

• Pick the Date
• Select Copy the DATA URL (Ctrl-C)

16
View Data

• Start Application
• Enter URL (Album)
• Pick Dataset (Track)
• Set Projection (Equalizer)
• Enter Lat / Lon (FF/REW)

17
Examples and Demo Pages
18
Thank You!

• More Tools Exampleshttp//hdfeos.org/software/i
  dv.phphttp//hdfeos.org/examples/using_grads.php

• More Demo Servers and Datahttp//hdfgroup.org/p
  rojects/opendaphttp//hdfgroup.org/projects/opend
  ap4

19
Acknowledgements

• This work was supported by cooperative agreement
  number NNX06AC83A, NNX08AO77A and NNX06AG75A
  from the National Aeronautics and Space
  Administration (NASA).
• Any opinions, findings, conclusions, or
  recommendations expressed in this material are
  those of the authors and do not necessarily
  reflect the views of the National Aeronautics and
  Space Administration.

20
Questions/comments?

• HDF-EOS to MP3?
• Earth Music??
