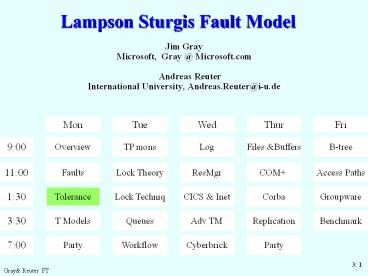

Lampson Sturgis Fault Model

1
Lampson Sturgis Fault Model

• Jim Gray
• Microsoft, Gray _at_ Microsoft.com
• Andreas Reuter
• International University, Andreas.Reuter_at_i-u.de

Mon
Tue
Wed
Thur
Fri
900
Overview
TP mons
Log
Files Buffers
B-tree
1100
Faults
Lock Theory
ResMgr
COM
Access Paths
130
Tolerance
Lock Techniq
CICS Inet
Corba
Groupware
330
T Models
Queues
Adv TM
Replication
Benchmark
700
Party
Workflow
Cyberbrick
Party
2
Rationale Fault Tolerance Needs a Fault
ModelWhat do you tolerate?

• Fault tolerance needs a fault model.
• Model needs to be simple enough to understand.
• With a model,
• can design hardware/software to tolerate the
  faults.
• can make statements about the system behavior.

3
Byzantine Fault Model

• Some modules are fault free (during the period of
  interest).Other modules may fail (in the worst
  way). Make statements about of the fault-free
  module behavior
• SynchronousAll operations happen within a time
  limit.
• Asynchronous No time limit on anything, No
  lost messages.
• Timed (used here)Notion of timeout and retry
• Key result N modules can tolerate N/3 faults.

4
Lampson Sturgis Model

• ProcessesCorrect Execute a program at a
  finite rate.Fault Reset to null state and
  "stop" for a finite time.
• MessageCorrect Eventually arrives and is
  correct.Fault Lost, duplicated, or
  corrupted.
• StorageCorrect Read(x) returns the most
  recent value of x. Write(x, v) sets the value
  of x to v.Fault All pages reset to
  null. A page resets to null. Read or Write
  operate on the wrong page.
• Other faults (called disasters) not dealt with.
• Assumption Disasters are rare.

5
Byzantine vs. Lampson-Sturgis Fault Models

• Connections unclear.
• Byzantine focuses on bounded-time bounded-faults
  (real-time systems)
• asynchronous (mostly) or
• synchronous (real time)
• Lampson/Sturgis focuses on long-term behavior
• no time or fault limits
• time and timeout heavily used to detect faults

6
Roadmap of What's Coming

• Lampson-Sturgis Fault Model
• Building highly available processes,
  messages, storage from faulty components.
• Process pairs give quick repair
• Kinds of process pairs
• Checkpoint / Restart based on storage
• Checkpoint / Restart based on messages
• Restart based on transactions (easy to program).

7
Model of Storage and its Faults

• System has several stores (discs).
• Each has a set of pages.
• Stores fail independently.
• probability write has no effect 1 in a million
• mean time to a page fail, a few days
• mean time to disc fail is a few years
• wild read/write modeled as a page fail.

a store
status
store_write(store, address, value)
a page
status
value
store_read (store, address, value)
8
Storage Decay (the demon)

• / There is one store_decay process for each
  store in the system /
• define mttvf 7E5 / mean time (sec) to a page
  fail, a few days /
• define mttsf 1E8 / mean time(sec) to disc fail
  is a few years /
• void store_decay(astore store) / /
• Ulong addr / the random places that will
  decay /
• Ulong page_fail time() mttvfrandf()/
  timeto next page decay /
• Ulong store_fail time() mttsfrandf() /
  timeto next store decay /
• while (TRUE) / repeat this loop forever /
• wait(min(page_fail,store_fail) - time())/
  wait for next event/
• if (time() gt page_fail) / if the event is a
  page decay /
• addr randf()MAXSTORE / pick a random
  address /
• store.pageaddr.status FALSE / set it
  invalid /
• page_fail time() - log(randf())mttvf /
  pick next fault time/
• / negative exp distributed, mean mttvf /
• if (time() gt store_fail) / if the event is a
  storage fault /
• store.status FALSE / mark the store as
  broken /
• for (addr 0 addr lt MAXSTORE addr)
  /invalidate all pages /
• store.pageaddr.status FALSE / /
• store_fail time() log(randf())mttsf /
  pick next fault time/

Simulates (specifies) system behavior.
9
Reliable Write Write all members of a N-plex
set.

• define nplex 2 / code works for ngt2, but do
  duplex /
• Boolean reliable_write(Ulong group, address addr,
  avalue value) / /
• Ulong i / index on elements of store
  group /
• Boolean status FALSE / true if any write
  worked /
• / each group uses Nplex stores /
• for (i 0 i lt nplex i ) /write each store
  in the group /
• status status / status indicates if
  any write worked /
• store_write(storesgroupnplexi,addr,value)
  / /
• / loop to write all stores of group /
• return status / return indicates if ANY write
  worked/
• / /

10
Reliable Read read all members of N-plex set
Problems All fail Disaster Ambiguity
(N-different answers) Take majority Take
"newest"

• Ulong version(avalue) / returns version of a
  value /
• / read an n-plex group to find the most recent
  version of a page /
• Boolean reliable_read(Ulong group, address addr,
  avalue value) / /
• Ulong I 0 / index on store group /
• Boolean gotone FALSE / flag says had a good
  read /
• Boolean bad FALSE / bad says group needs
  repair /
• avalue next / next value that is read /
• Boolean status / read ok /
• for (i 0 i lt nplex i ) / for each
  page in the nplex set /
• status store_read(storesgroupnplexi,addr
  ,next) /read value /
• if (! status ) bad TRUE / if status bad,
  ignore value /
• else / have a good read /
• if (! gotone) / if it is first good
  value /
• copy(value,next,VSIZE) gotone TRUE/
  make it best value /
• else if ( version(next) ! version(value))
  /if new val,compare /
• bad TRUE / if different, repair
  needed /
• if (version(next) gt version(value)) / if new
  is best version /
• copy(value, next, VSIZE) / copy it to best
  value /
• / end of read all copies /

on bad read rewrite with best value
11
Background Store Repair Process

• / repair the broken pages in an n-plex group.
  /
• / Group is in 0,...,(MAXSTORE/nplex)-1 /
• void store_repair(Ulong group) / /
• int i / next address to be repaired /
• avalue value / buffer holds value to be
  read /
• while (TRUE) / do forever /
• for (i 0 i ltMAXSTORE i) / for each page
  in the store /
• wait(1) / wait a second /
• reliable_read(group,i,value) / a reliable
  read repairs page/
• / if they do not match /
• Needed to minimize chances of N-failures.
• Repair is important.

on bad read rewrite with best value
12
Optimistic Reads

• Most implementations do optimistic reads
• read only one value.
• Boolean optimistic_read(Ulong group,address
  addr,avalue value) / /
• if (group gt MAXSTORES/nplex) return FALSE /
  return false if bad addr/
• if (store_read(storesnplexgroup,addr,value))
  / read one value /
• return TRUE / and if that is ok return it as
  the true value /
• else / if reading one value returned bad
  then /
• return (reliable_read(group,addr,value)) /
  n-plex read repair. /
• / /
• This is dangerous (especially without repair).

13
Storage Fault Summary

• Simple fault model.
• Allows discussion/specification of fault
  tolerance.
• Uncovers some problems in many implementations
• Ambiguous reads
• Repair process.
• Optimistic reads.

14
Process Fault Model

• Process executes a program and has state.
• Program causes state change plus send/get
  message.
• Process fails by stopping (for a while) and then
  resetting its data and message state.

Queue of
a
Sender Process
Input Messages to the process
new
Receiver Process
status
value
next
Data
Program
Data
message
Program
15
Process Fault Model The Break/Fix loop

• define MAXPROCESS MANY / the system will
  have many processes /
• typedef Ulong processid / process id is an
  integer index into array /
• typedef struct char programMANY/2char
  dataMANY/2 state/ program data /
• struct state initial / process initial
  state /
• state current / value of the process state
  /
• amessagep messages / queue of messages
  waiting for process /
• process MAXPROCESS / /
• / Process Decay execute a process and
  occasionally inject faults into it /
• define mttpf 1E7 / mean time to process
  failure Å4 months /
• define mttpr 1E4 / mean time to repair is 3
  hours /
• void process_execution(processid pid) / /
• Ulong proc_fail / time of next process
  fault /
• Ulong proc_repair / time to repair
  process /
• amessagep msg, next / pointers to process
  messages /
• while (TRUE) / global execution loop /
• proc_fail time() - log(randf())mttpf /
  the time of next fail /
• proc_repair -log(randf())mttpr / delay
  in next process repair /
• while (time() lt proc_fail) / /
• execute(processpid.current) / execute
  for about 4 months (work) /

16
Checkpoint/Restart Process (Storage based)

• / A checkpoint-restart process server generating
  unique sequence numbers /
• checkpoint_restart_process() / /
• Ulong disc 0 / a reliable storage
  group with state /
• Ulong address2 0,1 / page address of
  two states on disc /
• Ulong old / index of the disc with the old
  state /
• struct Ulong ticketno / process reads its
  state from disc. /
• char fillerVSIZE / newest state has
  max ticket number /
• value 2 / current state kept in
  value0 /
• struct msg / buffer to hold input message
  /
• processid him / contains requesting process
  id /
• char fillerVSIZE / reply (ticket num)
  sent to process /
• msg / /
• / Restart logic recover ticket number from
  persistent storage /
• for (old 0 oldlt1, old) / read the two
  states from disc /
• if (!reliable_read(disc,addressold,valueold
  )) /if read fails /
• panic() / then failfast /
• if (value1.ticketno lt value0.ticketno) old
  1 / pick max seq no /
• else old 0 copy(value0,
  value1,VSIZE)/which is old val /
• / Processing logic generate next number,
  checkpoint, and reply /

17
Process Pairs (message-based checkpoints)
Give me a ticket
Primary
Server Process
Next Ticket Number
Client Processes
Ticket Numbers
I'm Alive
State Checkpoint
Messages
Messages
Backup
Server Process
Next Ticket Number

• Problem Solutions
• Detect failure I'm Alive msg timeout N
  o "real" solution.
• Continuation Checkpoint Messages
• Startup backup waits for primary

18
Process Pairs (message-based checkpoints)
Restart
am I
Wait a second
default primary?
-
Backup Loop

Wait a second

new state
any
-
-
Broadcast "Im Primary"
in last second?
input?

Reply to last request
Read it
Primary Loop
any
newer
-
input?
-
state?


Set my state to new state
requests
Read it
Compute new state.
Send new state to backup.
Send state to backup.
Im alive
reply
replies

• Primary in tight loop sending "I'm alive" or
  state change messages to backup
• Backup thinks primary dead if no messages in
  previous second.

19
What We Have Done So Far

• Converted "faulty" processes to reliable ones.
• Tolerate hardware and some software faults
• Can repair in seconds or milli-seconds.
• Unlike checkpoint restart No process
  creation/setup time No client reconnect
  time.
• Operating systems are beginning to provide
  process pairs.
• Stateless process pairs can use transactional
  servers to
• Store their state
• Cleanup the mess at takeover.
• Like storage-based checkpoint/restart
• except process setup/connection is instant.

20
Persistent process pairs

• persistent_process() / prototypical persistent
  process /
• wait_to_be_primary() / wait to be told you are
  primary /
• while (TRUE) / when primary, do forever /
• begin_work() / start transaction or
  subtransaction /
• read request() / read a request /
• doit() / perform the desired function /
• reply() / reply /
• commit_work() / finish transaction or
  subtransaction/
• / did a step, now get next request /
• / /

21
Persistent Process Pairs The ticket server
redone as a transactional server.

• / A transactional persistent server process
  generating unique tickets /
• perstistent_ticket_server() / current state
  kept in sql database /
• int ticketno / next ticket ( from
  DB) /
• struct msg / buffer to hold input message
  /
• processid him / contains requesting
  process id /
• char fillerVSIZE / reply (ticket
  num) sent to that addr /
• msg / /
• / Restart logic recover ticket number from
  persistent storage /
• wait_to_be_primary() / wait to
  be told you are primary /
• / Processing logic generate next number,
  checkpoint, and reply /
• while (TRUE) / do forever /
• begin_work() / begin a transaction /
• while (! get_msg(msg)) / get next request
  for a ticket /
• exec sql update ticket / increment the next
  ticket number /
• set ticketno ticketno 1 / /
• exec sql select max(ticketno) / fetch current
  ticket number /
• into ticketno / into program local
  variable /
• from ticket / from SQL database /
• commit_work() / commit transaction /

22
Messages Fault Model

• Each process has a queue of incoming messages.
• Messages can be
• corrupted checksum detects it
• duplicated sequence number detects it.
• delayed arbitrarily long (ack retransmit).
• can be lost (ack retransmitseq number).
• Techniques here give messages fail-fast
  semantics.

23
Message Verbs SEND

• /send a message to a process returns true if
  the process exists /
• Boolean message_send(processid him, avalue value)
  / /
• amessagep it / pointer to message created
  by this call/
• amessagep queue / pointer to process
  message queue /
• if (him gt MAXPROCESS) return FALSE / test
  for valid process /
• loop it malloc(sizeof(amessage)) /
  allocate space to hold message /
• it-gtstatus TRUE it-gtnext NULL / and
  fill in the fields /
• copy(it-gtvalue,value,VSIZE) / copy msg
  data to message body /
• queue processhim.messages / look at
  process message queue /
• if (queue NULL) processhim.messages it
  / if the empty then /
• else / place this message at queue head /
• while (queue-gtnext ! NULL) queue
  queue-gtnext / else place /
• queue-gtnext it / the
  message at queue end . /
• if (randf() lt pmf) it-gtstatus FALSE /
  sometimes message corrupted /
• if (randf() lt pmd) goto loop / sometimes
  the message duplicated /
• return TRUE / /
• / /

24
Message Verbs GET

• / get the next input message of this process
  returns true if a message /
• Boolean message_get(avalue valuep, Boolean
  msg_status)/ /
• processid me MyPID() / callers
  process number /
• amessagep it / pointer to input
  message /
• it processme.messages / find
  callers message input queue /
• if (it NULL) return FALSE / return false
  if queue is empty /
• processme.messages it-gtnext/ take first
  message off the queue /
• msg_status it-gtstatus / record its
  status /
• copy(valuep,it-gtvalue,VSIZE) / value
  it-gtvalue /
• free(it) / deallocate
  its space /
• return TRUE / return status to
  caller /
• / /

25
Sessions Make Messages FailFast
Session
7
Ack 7

• CRC makes corrupt look like lost message
• Sequence numbers detect duplicates gt lost
  message
• So, only failure is lost message
• Timeout/retransmit masks lost messages. gt Only
  failure is delay.

26
Sessions Plus Process Pairs Give Highly
Available Messages
7
ack 7
7
ack 7

• Checkpoint messages and sequence numbers to
  backup
• Backup resumes session if primary fails.
• Backup broadcasts new identity at takeover (see
  book for code)

27
Highly Available Message Verbs
Output Message Session
Application Programs
reliable_send_msg()
reliable_get_msg()
Input Message Session
The
Listener
Process

• Hide under reliable get/send msg
• Sequence number,
• ack retransmit logic
• checkpoint
• process pair takeover
• resend of most recent reply.
• Uses a Listener process (thread) to do all this
  async work

28
Summary

• Went from faulty storage, processes, messages
• to fault tolerant
  versions of each.
• Simple fault model explains many techniques used
• (and mis-used) in FT systems.
