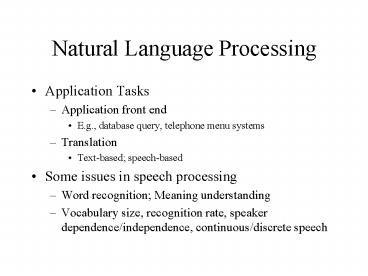

Natural Language Processing

1
Natural Language Processing

• Application Tasks
• Application front end
• E.g., database query, telephone menu systems
• Translation
• Text-based speech-based
• Some issues in speech processing
• Word recognition Meaning understanding
• Vocabulary size, recognition rate, speaker
  dependence/independence, continuous/discrete
  speech

2
Verbmobil

• German research project on natural language
  translation
• Video
• See link on http//verbmobil.dfki.de/overview-us.h
  tml
• Reports
• http//verbmobil.dfki.de/cgi-bin/verbmobil/htbin/d
  oc-access.cgi
• Book
• Wahlster, W. (2000). Verbmobil Foundations of
  Speech-to-Speech Translation. Springer-Verlag
  Berlin.

3
Verbmobil 1

• Translation task
• Speech input in source language
• Translation to an internal representation
• Speech output in target language
• Source/target languages
• English, German, Japanese
• Speaker independent, and adaptive
• Improves recognition results after a few words
  have been spoken by an individual
• Dialog understanding
• Tracks content of sentences from sentence to
  sentence
• Uses this information (or knowledge) to assist
  in context sensitive translation

4
Verbmobil - 2

• Speech
• Low quality input signal (e.g., mobile phone)
• Designed to deal with speech disfluencies
  repair
• Changes mid-word or mid-sentence
• Ums, ers, cases where short words left out in
  rapid speech
• Domains
• Appointment scheduling
• Trip planning (10,000 word vocabulary)
• Remote PC maintenance (35,000 word vocabulary)

5
Performance

• approximately correct translation
• if it preserves the intention of the speaker and
  the main information of his utterance (p. 1491,
  Wahlster, 2001)
• 43,180 Verbmobil translations evaluated by human
  evaluators
• 80 correct translations
• 80 correct gist
• 90 success rate for dialog tasks

6
System Architecture

• Multi-blackboard
• A blackboard is a global data object, allowing
  communication between components of a system
  through a common data format
• E.g., a database
• May allow for remote process access to data
• 198 blackboards
• Multi-engine
• An engine is a software module, probably in this
  case a separate communicating process in the
  system
• 69 modules modules typically subscribe to more
  than one blackboard
• Word-Hypothesis Graph (WHG)
• A graph structure representing the current
  hypothesis about the translation

7
Data Representations

• Various components of the system (e.g., parser
  output) share a common data representations
• VIT Central Data Format
• E.g., See Figure 7
• Processing module outputs specified with
  confidence values
• Selection modules choose most promising result
• Formalisms for under-specification
• There is ambiguity in language, and system needs
  to add constraints on to reduce ambiguity
• Constraints linguistic, discourse, domain

8
Data Corpus

• Translation process is strongly influenced by
  data collected from actual people speaking
• Multi-channel recordings made of
• 3,200 spontaneous dialogs
• Comprised
• 79,562 conversational turns 1,658 different
  speakers 21.5 GB of data
• Processing
• Transcribed and annotated in 15 levels (Figure 5)
  structure offline, human transcription
• Statistical properties extracted from all data,
  including transcriptions offline, automated
• Some hand-crafted knowledge sources
• E.g., language grammars (DCGs)

9
Usage of Prosody

• Prosody
• includes duration, pitch, energy, and pause
  features
• Prosody differences in one language can
  correspond to lexical or syntactic differences in
  another language
• wir habben noch
• in English, can be
• we still have or we have another
• Depending on whether noch is stressed.
• In Verbmobil
• Algorithms detect prosody features including
  stress, and interpret meaning of words
  accordingly

10
Another Use of Prosody

• During parsing, the clause boundary marks that
  are inserted into the Word Hypothesis Graph by
  the prosody module play the role of punctuation
  marks in written language (p. 1489)
• Important
• In speech processing programs that deal with
  continuous speech, we dont have have
  punctuation, and often no separation between words

11
Statistical Translation Module

• Input
• single best sentence hypothesis from speech
  recognizer
• Prosodic information about phrase boundaries
  utilized
• Output
• Sequence of word in target language with
  confidence measure

12
Case-Based Translation

• Substring-based
• Searches sentence-aligned translation database
  for substrings matching current hypothesis
  translation
• These substrings form units of processing
• Translation templates
• 30,000 templates, learned from sentence-aligned
  corpus
• Date, time, naming expressions recognized by
  definite clause grammars (DCGs)
• A search to explore cross-product graph of WHG
  (word hypothesis graph), subphrase tags, and
  template graph

13
Questions - 1

• What aspects of Verbmobil are
• A) empiricist oriented?
• B) rationalist oriented?

14
Questions - 2

• Verbmobil is specific to the following domains
• Appointment scheduling
• Trip planning (10,000 word vocabulary)
• Remote PC maintenance (35,000 word vocabulary)
• Why?
