TS Program DAC Presentation

1

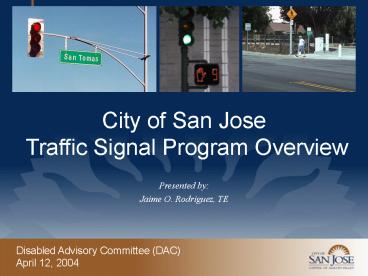

City of San Jose Traffic Signal Program Overview
Presented by Jaime O. Rodriguez, TE
Disabled Advisory Committee (DAC) April 12, 2004
2
Presentation Outline

• Traffic Signal Program Budget Activities
• Design Practice and Standards
• New Traffic Signal Equipment
• Traffic Signal Timing Practice
• New Installation Major Modification Criteria
• Open Discussion/Questions

Disabled Advisory Committee (DAC) April 12, 2004
3
Program Budget Activities
New Installations Major Modifications
4,250,000

• Staff Design of 10 12 Projects/Year
• Property Acquisition
• Inspection Services
• Survey Services
• Utility Relocation

Disabled Advisory Committee (DAC) April 12, 2004
4
Program Budget Activities
Minor Modifications
550,000

• Up to 180 Improvements/Year
• Traffic Signal Loop Repair Maintenance
• Vehicle Pedestrian Indication Upgrades
• Pedestrian Mobility Enhancements
• Utility Relocation

Disabled Advisory Committee (DAC) April 12, 2004
5
Program Budget Activities
Developer-Assisted Funding
200,000

• Projects Vary Upon Development Activity
• Complete projects off-set by contributions
  collected by developers.
• Evergreen Valley Development
• Balbach Market TS Installation, FY04-05

Disabled Advisory Committee (DAC) April 12, 2004
6
Program Budget Activities
Total Traffic Signal Program
4,250,000
New Modification Projects
550,000
Minor Modifications
200,000
Developer-Assisted Funding
5,000,000
Disabled Advisory Committee (DAC) April 12, 2004
7
Design Practice Standards

• Manual of Uniform Traffic Control Devices
  (MUTCD)
• California Traffic Manual

Design Rules Practice

• Always meet ADA Compliance on New Projects
• Minimum of Two Constantly Visible Vehicle
  Indications for all approaches.
• One Constantly Visible Pedestrian Indication for
  each crossing direction.

Disabled Advisory Committee (DAC) April 12, 2004
8
ADA Standards
Insert Picture of New Ped Ramp Santa Clara 6th
Curb Ramps

• ADA Compliant centered on each return

• Grooved banding for visually impaired

Pedestrian Push Buttons
Insert Picture of Push Button

• 2-inch Actuators, CSJ Bumblebee Brand Standard

• Within 5-ft of crosswalk, goal in practice

Disabled Advisory Committee (DAC) April 12, 2004
9
ADA Standards
Insert Picture of Audible Ped Signal 4th St
Garage
Audible Signals

• Installed at all new signals with major
  pedestrian generators

• Upon Request if warranted

Insert Picture of Streetlight Improvements on
The Alameda
Street Light Improvements

• Install or Upgrade Intersection safety lighting
  on all major projects

Disabled Advisory Committee (DAC) April 12, 2004
10
Audible Pedestrian Signals
Installation Criteria

• Pedestrian Generators (disabled centers, schools,
  public transit)
• Push Buttons (pretimed vs actuation). Are they
  working properly?
• Major Streets Widths
• Continuous, Unobstructed Crosswalks Indication
  Visibility
• Request from Visually-Impaired Patron

Disabled Advisory Committee (DAC) April 12, 2004
11
Audible Pedestrian Signals
Installation Time

• If criteria met during time of design for new or
  major modification project, automatic.
• Funding for up to 10 locations per year to
  respond to customer requests. Denied requests
  are presented at DAC meetings.
• Requests take about 6 to 8 weeks.

Department of Transportation [phone]
Disabled Advisory Committee (DAC) April 12, 2004
12
Pedestrian Countdown Signals
Background

• CSJ evaluation for the California Traffic Control
  Devices committee (CTCDC) in 2001
• MUTCD 2003 discusses use recommends operation
  consistency. Still not California approved.
• State of California to adopt MUTCD in August 04
  with supplement (Countdown not discussed in
  supplement yet).

Disabled Advisory Committee (DAC) April 12, 2004
13
Pedestrian Countdown Signals
CSJ Practice

• All new signals major modifications in
  Downtown, will use the Countdown Modules.
• Deployment outside of Downtown will occur after
  Caltrans adoption of the device.

Equipment Operation Requirements

• Filled Upraised Hand/Walking Person Indications
• Double Row Countdown
• Start counting at Flashing Dont Walk. Terminate
  at the end of the Flashing Dont Walk (begin of
  yellow)

Disabled Advisory Committee (DAC) April 12, 2004
14
New PPB Equipment
Tactile Push Buttons

• Vibrating actuator w/directional arrow when
  WALK indication is in effect.
• Ambient programmable audible messages.

Early Model Install in Santa Cruz
CSJ to Evaluate. Recommendations for test site
accepted.
Disabled Advisory Committee (DAC) April 12, 2004
15
New PPB Equipment
Braille Labels Signs

• Useful information for visually-impaired.

Challenges

• Special-order. Cost.
• Maintenance.
• Pole placement at existing signals.

Disabled Advisory Committee (DAC) April 12, 2004
16
Pedestrian Signal Timing
Pre-Timed Signals
Insert Picture Of Santa Clara St Green

• Downtown SJ, Julian St to Reed St, 4th St to
  Route 87
• Closely spaced intersections
• Predictable traffic pedestrian patterns

Actuated Signals

• Intermittent traffic pedestrian patterns
• Minimize delays to vehicles pedestrians

Disabled Advisory Committee (DAC) April 12, 2004
17
Pedestrian Signal Timing
Pedestrian Scramble
Insert Picture Of 9th San Fernando

• Provide pedestrians with ownership of
  intersection
• Effective at heavy pedestrian traffic locations

Challenges

• Compliance
• Delay to vehicles pedestrians
• Modification cost

Disabled Advisory Committee (DAC) April 12, 2004
18
Pedestrian Signal Timing
Early Pedestrian Release
Insert Picture Of Kieley Kaiser Dr

• Provides pedestrians with early access to the
  intersection before conflicting turning movements.

Challenges

• Traffic Signal Controller function.
• Compliance

Disabled Advisory Committee (DAC) April 12, 2004
19
Signal Timing
Program

• Aggressive grant application process for projects
• Signal Central for synchronization response

Active Projects

• SJ LRT Signal Retiming (xx)
• ITS San Jose Signal Retiming (xx)

Disabled Advisory Committee (DAC) April 12, 2004
20
Signal Timing Development
Walking Person Display
Insert Picture Of Pedestrian Crossing Street

• 5-Sec Min. Display

Flashing Dont Walk Display

• Crosswalk length/4 Sec/ft
• Terminate FDW at Beginning of Yellow (end of
  green)

Disabled Advisory Committee (DAC) April 12, 2004
21
Traffic Signal Criteria
New Installations Must Meet CA Traffic Signal
Warrants

• Warrant 1 Min. Vehicle Volume
• Warrant 2 Interruption of Continuous Traffic
• Warrant 3 Minimum Pedestrian Vol
• Warrant 4 School Areas
• Warrant 5 Progressive Movement
• Warrant 6 Accident Experience
• Warrant 7 Systems Warrant
• Warrant 8 Combination of Warrants
• Warrant 9 Four Hour Volume Warrant

• Warrant 10 Peak Hour Delay
• Warrant 11 Peak Hour Volume

Disabled Advisory Committee (DAC) April 12, 2004
22
Traffic Signal Criteria
Left-Turn Phasing Warrant
Insert Picture Of LT Indication

• Accidents
• Delay
• Left Turn vs Through Volume
• Influence Factors

Disabled Advisory Committee (DAC) April 12, 2004
23
CSJ Traffic Signal Program
Design, Equipment Upgrades, Signal Timing
Questions
Department of Transportation 4 North Second
Street, Ste. 1000 San Jose, CA 95113 (408)
277-3743 traffic.signals_at_sanjoseca.gov
Disabled Advisory Committee (DAC) April 12, 2004
