A Brief History of DB Theory

1

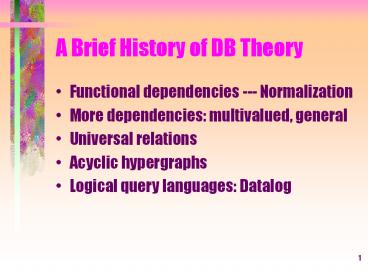

A Brief History of DB Theory

• Functional dependencies --- Normalization
• More dependencies multivalued, general
• Universal relations
• Acyclic hypergraphs
• Logical query languages Datalog

2
Functional Dependencies

• Setting A relation table with column headers
  (schema ) and a finite number of rows (tuples ).
• A B C
• 0 1 2
• 0 3 4

3
FD X -gtY

• A statement about which instances (finite sets
  of tuples) are legal for a given relation.
• If two tuples agree in all the attributes of set
  X , then then must also agree in all attributes
  of set Y.
• Common case X is the key of the relation, Y is
  the other attributes.

4
Issue 1 Inference

• Armstrongs Axioms
• X -gtY if Y is a subset of X
• X -gtY implies XZ -gtYZ (XZ , etc. union)
• X -gtY and YZ -gtW implies XZ -gtW
• Closure test (Bernstein) given FDs and a
  possible consequent X -gtY , use the FDs to see
  what X determines, and then see if Y is
  contained therein.

5
Issue 2 Redundancy

• Certain combinations of FDs lead to redundancy
  and other anomalies.
• Example B -gtC is the only FD
• A B C
• 0 1 2
• 3 1 ?
• The FD lets us predict the value of ?.

6
Issue 3 Normalization

• Eliminate redundancy by splitting schemas.
• A FD X -gtY allows us to split schema XYZ into
  XY and XZ .
• Without the FD, the decomposition would lack a
  lossless join the ability to reconstruct the
  original XYZ relation from the decomposed
  relations.

7
How I Met Moshe Learned Database Theory

• Tsichritzis
• Bernstein Beeri
• Ullman Vardi

8
Why I Like Working With Vardi

• Taste, selection of issues.
• Best inventor of constructions.
• Name comes after mine in alphabet.

9
Lossless Joins

• When relations are decomposed, do the pieces
  allow reconstruction of the original?
• Only way join the projected relations.
• You always get back what you started with.
• Bad case is when you get more.

10
Example

• A B C
• 0 1 2
• 3 1 4
• A B A B C B C
• 0 1 0 1 4 1 2
• 3 1 3 1 2 1 4
• 0 1 2
• 3 1 4

11
More Kinds of Dependencies

• In essence, a dependency is any predicate that
  tells whether a given set of tuples is OK for a
  given schema.
• The language chosen determines what constraints
  can be expressed and what we can decide about
  relations.
• FDs are just one, simple example

12
Multivalued Dependencies

• These occur when a relation tries to connect one
  class of objects to independent sets from two
  other classes..
• Notation X -gt-gtY means
• If two tuples agree on X , then we may swap the Y
  components and get two tuples that are also in
  the relation.

13
Example

• EmpID -gt-gt Phone
• EmpID Addr Phone Project
• If 123 a1 p1 j1
• 123 a2 p2 j2
• Then 123 a1 p2 j1
• 123 a2 p1 j2

14
MVD Origins

• Independent work of Delobel, Fagin, Zaniolo
• Inference of MVDs FDs Beeri, Fagin, and
  Howard.

15
Generalized Dependencies

• Equality-generating dependencies
• If tuples with this pattern of equal symbols
  appear in a relation instance, then certain
  symbols must also be equal.
• Generalizes FDs.
• Tuple-generating dependencies
• If tuples with this pattern of equal symbols
  appear in a relation instance, then a certain
  tuple must also appear.
• Generalizes MVDs.

16
Example EGD

• FD A -gtB in schema ABC
• A B C
• a b1 c1 (Hypotheses)
• a b2 c2
• b1 b2 (Conclusion)

17
Example TGD

• MVD A -gt-gtB in schema ABC
• A B C
• a b1 c1 (Hypotheses)
• a b2 c2
• a b1 c2 (Conclusion)

18
Full Versus Embedded GDs

• Full GDs have a conclusion with only symbols
  that appear in the hypotheses.
• Embedded GDs may have new symbols in the
  conclusion.
• Existentially quantified.
• Embedded EGD makes no sense, but embedded TGDs
  are quite interesting.

19
The Chase for Inferring GDs

• Test whether a GD G follows from given GDs.
• Start with R the hypotheses of G .
• Apply GD H by mapping the hypotheses of H to
  some rows of R .
• If so, infer the (mapped) conclusion of H ---
  equate two symbols of R or add a tuple to R .
• If you eventually infer the conclusion of G ,
  then G follows, else it does not.

20
Example If A -gtB Then A -gt-gtB

• R has tuples (a,b1,c1) and (a,b2,c2). Does it
  have (a,b1,c2)?
• Apply A -gtB .
• Its hypotheses are the same as the two tuples of
  R , so surely they map.
• Lets us conclude b1b2.
• Thus, since R has (a,b2,c2), It surely has
  (a,b1,c2).

21
Decision Properties of GDs

• If all dependencies are full, no new symbols ever
  appear, so the chase must terminate.
• Either we prove the desired conclusion, or R
  becomes a relation that provides a counterexample
  --- it satisfies all the given GDs, but not the
  one we were trying to infer.

22
Undecidability of Embedded GDs

• First undecidability results involved the
  inference of untyped GDs (symbols may appear in
  several columns).
• Beeri and Vardi
• Chandra, Lewis, and Makoswky
• Tough result is undecidability even when GDs are
  typed (one column per symbol).
• Vardi
• Gurevich and Lewis

23
History of GDs

• Similar ideas were developed independently by
  several people
• Yannakakis and Papadimitriou
• Beeri and Vardi
• Fagin
• Sadri and Ullman

24
The Universal Relation

• Idea attributes carry information regardless of
  how they are placed in relation schemas.
• One of the cool things about Moshe Vardi is the
  collection he keeps of re-inventions of this
  universal relation concept.
• Typically touted by some HCI type as a wonderful
  new interface to databases.

25
UR Query Systems

• Query
• UR
• Stored
• Relations

26
Example

• Stored relations ES(Emp,Sal), ED(Emp,Dept),
  DM(Dept,Mgr)
• Universal relation U(Emp,Sal, Dept,Mgr)
• UR query
• SELECT Mgr WHERE Empa
• Translated to
• SELECT Mgr FROM ED, DM WHERE Empa AND
  ED.DeptDM.Dept
• U ! join(ES, ED, DM) empty ES proves it.

27
Theory of Universal Relations

• Some were quite upset by the UR idea.
• Objection the informal or ad-hoc way queries
  were translated from UR to stored relations.
• Codd Neither the collection of all base
  relations nor the collection of all views should
  be cast by the DBMS in the form of a universal
  relation (in the Stanford University sense)
  Vardi, 1988.

28
Some Early Approaches to the UR

• Selected joins of stored relations.
• Representative instance pad stored relations
  with nulls in missing attributes then chase with
  given dependencies.
• Contributions by Vassiliou, Honeyman, Mendelzon,
  Sagiv, Yannakakis.
• Maximal objects union of joins within acyclic
  hypergraphs.
• Maier, Ullman

29
Window Functions

• Two stage process
• 1. If query involves set of attributes X ,
  compute the window function X some relation
  with schema X derived from the UR.
• 2. Apply the query to X .
• Different UR definitions give different window
  functions, e.g., join-based, rep.-instance,
  maximal-object.
• From Maier, Ullman, Vardi 1984.

30
Acyclic Hypergraphs

• Several different applications led to the
  identification of a class of database schemas
  (collection of relation schemas) with useful
  properties.
• Sensible connections among stored relations in
  maximal-object theory of UR.
• Joins of many relations in time polynomial in the
  size of the input and output (Yannakakis).
• Etc., etc.

31
Hypergraphs

• Nodes (typically attributes)
• (Hyper)edges sets of any number of nodes.
• A B C D
• E F

32
GYO Reduction

• Graham, Yu-Ozsuyoglu, independently defined
  acyclic hypergraphs thusly
• Two transformations
• 1. Delete a node that is in only one hyperedge.
• 2. Delete a hyperedge contained in another.
• Hypergraph is acyclic iff the result is a single,
  empty edge.
• Limit is unique for any hypergraph.

33
Example

• GYO steps delete C delete D delete B delete
  F delete B,E delete A delete B delete E
• A B C D
• E F

34
History

• Acyclic hypergraph idea from Bernstein and
  Goodman.
• But the definition is rather different.
• Hypergraph version from Fagin, Mendelzon, Beeri,
  Maier, others.
• And dont forget the GYO folks.
• Fagin defined several related-but-distinct
  concepts of acyclic.
• This one is alpha-acyclic.

35
Logical Query Languages

• Collections of Horn-clause rules without function
  symbols behave almost like SQL, but can do
  recursion.
• Conjunctive queries single Horn-clause rules
  w/o function symbols have decidable containment
  (Chandra and Merlin).

36
Conjunctive Queries

• Example path(X,Y) - edge(X,Z) edge(Z,Y)
• Atoms in the body (hypothesis) refer to stored
  relations (EDB or Extensional Database).
• Atom in head (conclusion) is the result.
• Q1 is contained in Q2 if for every database D,
  Q1(D ) is a subset of Q2(D ).

37
Containment Mappings

• Mapping from the variables of Q2 to the variables
  of Q1 that
• 1. Turns the head of Q2 into the head of Q1.
• 2. Turns every atom in the body of Q2 into some
  atom in the body of Q1.
• Containment mapping exists iff Q1 is contained in
  Q2.

38
Example

• Q1 answer(X,Y) - e(X,Y) e(Y,X)
• Q2 answer(X,Y) - e(X,W) e(W,Z) e(Z,Y)

39
Datalog Programs

• Collection of conjunctive queries.
• Some predicates are EDB (stored).
• Other predicates are IDB (intensional database
  defined by the CQs only).
• One IDB predicate is the answer least
  fixedpoint of the CQs.

40
Example

• path(X,Y) - edge(X,Y)
• path(X,Y) - path(X,Z) edge(Z,Y)
• Value of path is all pairs of nodes such that
  there is a path from the first to the second
  according to EDB predicate edge .

41
Optimization of Datalog Programs

• Problem often the query asks for only a fraction
  of the answer.
• e.g., find path(0,Y) for fixed node 0.
• Bottom-up methods (seminaive) evaluate the
  whole least-fixedpoint, throw most away.
• Top-down (goal seeking) can get stuck in
  left-recursion.

42
Linear-Recursion Methods

• Recursion is linear if at most one IDB atom in
  the body.
• Henschen-Naqvi.
• Magic-sets for linear (Bancilhon, Maier, Sagiv,
  Ullman).
• Left- and right-linear special cases (Naughton).
• Conversion of nonlinear to linear (Ramakrishnan,
  Sagiv, Ullman, Vardi).

43
Magic Sets

• Several similar techniques for rewriting or
  executing Datalog programs in a way that avoids
  generation of useless facts.
• Rohmer, Lescoeur, and Kerisit (earliest
  exposition).
• Beeri and Ramakrishnan (reordering of atoms).
• Sacca and Zaniolo (simplification of rules).
• Dietrich and Warren (tabulation).
• Vielle (query-subquery).

44
Bounded Recursion

• Sometimes a recursive Datalog program is
  equivalent to a nonrecursive program.
• Sufficient conditions (Naughton, Ioannidis,
  Naughton and Sagiv).
• Undecidability (Gaifman, Mairson, Sagiv, and
  Vardi).
• Decidable cases (Vardi, Cosmodakis, Gaifman,
  Kanellakis, and Vardi)

45
Containment for Datalog

• Undecidable if one Datalog program is contained
  in another (Shmueli).
• NP-complete whether a CQ is contained in a
  Datalog program.
• Triply exponential whether a Datalog program is
  contained in a CQ (Chaudhuri and Vardi).

46
What Is It All Good For?

• Dependencies and normalization are now familiar
  to most CS graduates.
• Difference between BCNF and 3NF.
• Tradeoffs lossless joins versus maintaining
  dependencies.
• Magic-sets, recursion used in IBMs DB/2.
• Universal-relation interfaces despite Codd.

47
More What Is It All Good For?

• Information integration . While logical query
  languages have not caught on, logic has been used
  to specify how legacy databases are combined into
  a uniform whole.
• Tsimmis (Papakonstantinou, Vassalos).
• Information Manifold (Levy).
• Infomaster (Duschka, Genesereth).
