Design of PCB and MCM for high speed digital systems

1

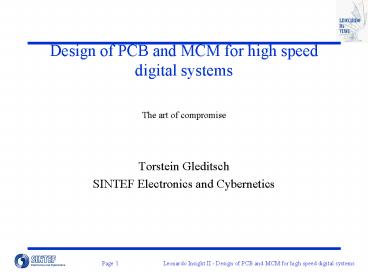

Design of PCB and MCM for high speed digital
systems
The art of compromise

• Torstein Gleditsch
• SINTEF Electronics and Cybernetics

2
What this course is and what it is not

• This course is an introductory course to
  designing Printed Circuit Boards and Multi Chip
  Modules for high frequency digital applications.
• It will introduce you to the basic concepts of
  transmission lines and how utilize this theory
  into practical designs.
• It will introduce you to modeling of lines,
  drivers and receivers to help you get a better
  understanding of the effects of the different
  measures.
• It will not make you a proficient SPICE user.
• At last it will make you understand why high
  speed digital design is difficult and how to
  improve a design.

3
What is so special with high-speed digital

• Broad band
• Must cover every frequency from DC to GHz
• No Dirty tricks possible
• Higher order harmonics is necessary for edge
  integrity.
• High number of critical signals
• Digital signals is more tolerant to distortion
• Switching create high currents in short periods

4
A digital signal

• Frequency 50MHz
• Risetime 1ns ( 10 - 90 )
• Falltime 1ns ( 10 - 90 )
• Bandwidth 350MHz

5
Spectrum of a single pulse
10 ns risetime
1 ns risetime
6
Spectrum of a pulse train
7
The effect of missing harmonics
1st harmonic only
1st to 5th harmonic
1st and 3rd harmonic only
1st to 21st harmonic
8
Why transmission line calculations

• Transmission line theory describe the behavior of
  the signals on a PCB or MCM
• Simple models like RC-calculation do not apply at
  higher frequencies
• It is possible to predict the quality of the
  signal.
• It is possible to experiment with different types
  of termination.

9
When do I have to take into account transmission
lines effects

• Thumb rule When the rise time is less 2.5 times
  the time delay of the signal on the trace.
  (Transit time)
• Another If the trace length is larger than 1/7
  of the largest wavelength of the signal. (At
  upper frequency edge)
• Example with two different effective dielectric
  constants

Trace length (mm)
Trace length (mm)
Risetime (ns)
Risetime (ns)
10
Reflections from a 1ns risetime signal
40 mm non terminated line
300 mm non terminated line
11
Crosstalk
300 mm non terminated line
40 mm non terminated line
12
Transmission Lines

• A brief introduction

13
Basic Transmission Line Types
Microstrip
W
t
H
Stripline
er tand
W
H
t
14
Dielectric constant (Relative permittivity) (er )

• Describe a materials ability to hold charge
  compared to vacuum when used in a capacitor.
• The permittivity of a vacuum is e0 8.85419
  10-10
• The permittivity of a material is e e0 er
• If we put a dielectric material between two
  capacitor plates of area A and a distance D the
  capacitance in Farad is

?
A
F
C

D
15
Loss tangent ( tand )

• Describe the materials resistance to change of
  polarization
• s is the conductivity of the dielectric at
  frequency ?. (S/m)
• e is the permittivity of the material. (F/m)

?
tan
?

2
f
?
?
16
Magnetic permeability (m)

• The magnetic permeability describe a magnetic
  property of a material. It is the ratio between
  the magnetic flux density (B) and the external
  field strength (H).

B
H/m
?

H
The relative permeability of a material is the
permeability relative to vacuum.
µ

µ
µ
0
r
?
4
µ

0
7
10
17
Properties of glass reinforced materials
18
Basic transmission line diagram
Transmission line
Driver
Termination resistor
19
Some Transmission Line Properties

• Signal velocity (m/s)
• Influenced by dielectric constant of materials
• Impedance
• Mostly influenced by dielectric constant of
  material, width of line and distance to ground
  plane(s)
• Loss
• Influenced by conductivity of conducting
  material, frequency of signal and loss tangent of
  the material.
• Dispersion
• Influenced by frequency dependant dielectric
  constant

20
The four describing parameters

• R Resistance per unit length ohm / m
• C Capacitance F / m
• L Inductance H / m
• G Conductance S / m

21
Signal velocity ( ? )

• The signal velocity ? is measured in m/s
• For a practical calculations the signal velocity
  is only dependant on the relative dielectric
  constant er
• With c0 the velocity of light in vacuum, we get

c
0
v
m/s

?
e
r
22
Impedance ( Z0 )

• Impedance is measured in Ohms
• Impedance describes the AC resistance a driver
  will see when driving a signal into a
  indefinitely long transmission line.

?
R
L
j

?
ohm
Z

0
G
C
j

?
For a loss less line this simplifies to
?
L
ohm
Z

0
C
23
Loss ( a )

• Loss a is measured in dB / m
• Loss is the reduction of signal voltage along a
  line due to resistance and leakage
• The resistive losses is due to resistance in
  conductor and ground plane.
• The dielectric losses is due to the energy needed
  to change polarization of the dielectric
  material.
• The radiation losses is the energy sent from the
  conductor acting as an antenna.

24
Resistive losses ( aC )

• The resistance is based on the cross-section of
  the conductor and the bulk resistivity of the
  conductor material

s bulk conductivity S/m w line width m t
line thickness m
1
ohm
R

w
t
?
The loss factor is then calculated by
8,68589
R
dB/m
?

2
Z
0
25
Skin depth ( ds )
At higher frequencies only a thin layer of the
conductor transport the current. The thickness
where the current density is reduced to 1/e is
called the skin depth ds.
?
1
m
d

s
f
?
?
µ
26
Resistance at higher frequencies
When the conductor is much thicker than the skin
depth one have to substitute the skin depth for
the thickness in the resistance formula
1

R
ohm
?
d
w
s
1

R
?
1
?
w
?
?
µ
f
The resistance has now become frequency dependent
!
27
Dielectric loss ( aD )
The dielectric loss aD is due to the energy
needed to change the polarization of the
dielectric material. The conductance is then
S/m

?
?
G
2
f
C
tan
The dielectric loss is then
1
?

8,68589
G
Z
dB/m
0
D
2
28
Radiation loss

• All lines are radiating more or less
• Radiation loss is often negligible from a signal
  integrity standpoint but important from a EMC
  standpoint.
• Radiation loss is difficult to calculate

29
Dispersion

• Dispersion is an effect caused by different
  velocities for the different frequency
  components. The result is a different phase
  change for each of the frequency components.
• The reason for this is that the dielectric
  constant of the material vary with frequency.
• Dispersion is one of many sources of signal
  distortion.
• It is not easy to calculate dispersion because
  the lack of frequency dependant material data.
• Dispersion may cause trouble when exact edge
  position is important.

30
Crosstalk
Crosstalk is coupling of a signal form one line
to another There are two key parameters used to
describe crosstalk Kf the forward crosstalk
coefficient Kb the backward crosstalk
coefficient (normally the largest) Td is the
transit time delay
(
)
1
L
m

-
-
K
C
Z
m
0
f
2
Z
0
L
m
-
C
Z
0
m
Z
0

-
K
b
4
T
d
31
Reflections
In this case Z1 R2 25 ohm, and Z0 50
ohm. Then r -0.333 gt -1.66 overshoot
32
Via modeling

• Inductance and capacitance of vias is difficult
  to calculate without 3D field analysis tools.
• A 1nH inductance and a 1pF capacitance can be
  used as a start
• Careful use of coaxial line equations can also
  give an indication of the values.

33
Building a good board

• Some hints for the high performance designer

34
What is important for a good board

• Symmetrical around center
• Tolerant for etch variations (/- 1 mil is not
  unusual)
• Lines spaced for acceptable crosstalk
• Standard dielectric thickness
• Tolerant for variation in dielectric thickness
• Acceptable high loss. (The loss may be your
  friend)
• Acceptable total thickness
• Power and ground layers close together (typically
  100um)

35
Laminate tolerances
Dictionary Toleranse Tolerance Tykkelse
Thickness Klasse Class Glassvevtype
Glass fabric type
36
Prepreg Tolerances
37
Impedance tolerance to line width
As line width increases, dependence on absolute
tolerance decreases
Border lines on -1mils absolute line width
tolerance
38
Impedance tolerance to laminate tolerance
39
Minimum line widths vs. er and dielectric
thickness
Curves on equivalent dielectric thickness
40
8 layer high-speed lay-up example 1
Dictionary Kobber Copper rent pure
41
8 layer high-speed lay-up example 2
42
Pack32

• A desktop calculator for transmission lines

43
Idea behind the program

• Easy to use
• PC based ( Windows 95 or NT )
• Good enough results (better than textbook
  formulas)
• Easy to organize material, component and lay-ups
• Easy for the developers to add new functions.
• Data is stored one place, no tedious typing
• Fast, no calculation take more than one second

44
Workflow for transmission line analysis

• 1. Enter material data if not in database
• 2. Define a Lay-up
• 3. Calculate the line properties for a single
  line
• 4. Adjust Lay-up and re-calculate until satisfied
• 5. Calculate for double lines to check for
  crosstalk and dual line impedance.
• 6. Generate a SPICE model for a critical net in
  the design, single or double lines as appropriate
• 7. Simulate and adjust line parameters (width,
  spacing, lay-up)
• 8. Use the obtained parameters as design rules
  for your critical nets.

45
Material database
Sorry! You have not got the English version!

• For transmission line calculation,
• one need
• Electrical conductivity
• Dielectric constant
• Dielectric loss factor
• Magnetic permeability

46
Lay-up definition
Sorry! Norwegian text!
47
Single line analysis
Stripline
Microstrip
Buried microstrip
48
Dual Line Analysis
49
Exercise

• Design a lay-up with these properties
• 50 Ohms impedance
• FR-4 Dielectric
• No Solder resist
• 4 Signal layers
• Two Power layers
• Two Ground layers
• No more than 3dB loss for a 10cm line at 1GHz
• Tolerant for /- 1 mil etch error.

50
Analog simulation of digital signals

• Time for sacrifice

51
The two main simulation approaches

• Time domain simulators
• Easy to model nonlinear circuits such as digital
  drivers
• Has no possibility to handle frequency dependent
  parameters
• Convergence problems
• Relatively slow simulation
• Typical product SPICE
• Frequency domain simulators
• Easy to model circuits with frequency dependent
  parameters
• Only possible to model linear circuits
• Fast and easy convergence
• Typical product HP-EEsof Series IV Linear
  simulator
• What we really need does not exist

52
Aim-SPICE

• Based on Berkeley SPICE version 3.E1
• Good user interface
• Good post processor
• Cheap
• Student version is limited but usable
• Designed for Windows95 / NT
• Text based, no schematic editor

53
A SPICE example

• First line
• .MODEL LineModel LTRA L460N C94P R10 LEN .04
• V1 in 0 PULSE(0,10,10n,1n,1n,10n,20n)
• R1 in lin 50
• O1 lin 0 out 0 LineModel
• R2 out 0 50

54
General

• All values are in basic SI units Ohm, Farad,
  Henry,Volt, Ampere
• Postfixes are allowed m 10-3 , u 10-6 , n
  10-9 , p 10-12 k 103 , meg 106 , g 109
• Element names must be unique and is interpreted
  by ASCII value
• Node names can be numbers or names and is
  interpreted by ASCII
• Node 0 is the system ground and MUST be
  connected.
• The first line MUST be the model name
• Blank lines are allowed
• On the following pages some important elements is
  shown, refer to the online SPICE manual for
  details and more options.

55
Passive elements

• Resistor
• Rxxx ltN1gt ltN2gt ltValuegt
• Capacitor
• Cxxx ltN1gt ltN2gt ltValuegt
• Inductor
• Lxxx ltN1gt ltN2gt ltValuegt

56
Transmission lines

• Loss-less transmission line
• Txxx ltN1gt ltGndgt ltN2gt ltGndgt ltZ0Valuegt TdValue
• Lossy transmission line
• .MODEL LineModel LTRA L460N C94P R10 LEN .04
• Oxxx ltN1gt ltGndgt ltN2gt ltGndgt ltNamegt

57
Voltage sources

• Voltage source
• Vxxx ltNgt ltN-gt ltTypegt
• Some useful Types for transient analysis
• For a pure DC source
• DC ltValuegt
• For a pulse train generator
• PULSE(ltHigh voltagegt,ltLow voltagegt,ltDelaygt,ltRise-t
  imegt,ltFall-timegt,ltHigh timegt,ltCycle timegt)

58
Exercise

• Simulate a 15cm long microstrip with these specs
• 125 um wide
• 17.5um thick
• Dielectric is polyimide
• Dielectric thickness is 100um
• Source impedance is 70 Ohm
• Termination resistance is 50 Ohms
• Rise and fall times is 0.8ns, frequency is 200MHz
• 1. What is the maximum over / undershoot
• 2. Insert a capacitor of 50pF in parallel with
  the terminator, see what happens.

59
Subcircuits

• SPICE have a nice feature called sub-circuits
  which work like subroutines.
• The syntax is
• .SUBCKT ltNamegt ltNode1gt ltNode2gt ....Node n
• ltSpice code with the node names as I/Ogt
• .ENDS
• You call this subcircuit with
• Xxxx ltN1gt ltN2gt ... Nn ltNamegt

60
Distributed models
An other way of simulating transmission lines is
by using distributed models.
Selecting a high number of segments will give
excellent results but may cause problems in
initialization. The Student version can only
handle 10 of these segments due to the maximum of
50 elements.
61
PACK model generation

• PACK can generate the models for you

62
Pack Generated Distributed Model
63
Exercise

• Make a distributed model of the last exercise and
  compare results

64
Exercise

• A board needs 60 Ohms lines in the inner layers.
• Design a board for 60 Ohm lines and generate a
  single LTRA model of 5 cm.
• Make a three segment line with a 60 Ohm
  driver.After the first segment the line splits
  into the two other segments. Each of the splits
  is terminated in 60 ohms.

65
Modeling of drivers and receivers

• When is enough enough

66
Not all models have long hair and blue eyes

• Driver models are difficult to obtain, usually
  you have three options
• 1. Use vendor supplied SPICE models of the
  output stage
• 2. Use vendor supplied IBIS models
• 3. Roll your own simple models based on rise
  time and output impedance.

67
Vendor supplied SPICE models

• Difficult to obtain, vendors generally do not
  want to disclose their design.
• Most vendors require non disclosure agreement
• Difficult to run. Vendors usually use H-SPICE,
  board designers do not.
• Models are to detailed, unnecessary accuracy give
  slow simulation.
• Difficult to set the right environment for
  drivers etc.

So, vendor supplied SPICE models is generally not
a good idea.
68
Vendor supplied IBIS models

• IBIS solves most of the problems related to
  vendor models except
• Not all SPICE simulators run IBIS models
• Not all vendors supply IBIS models, although this
  is rapidly increasing
• IBIS models is sufficiently accurate for package
  and module simulation.
• So, use IBIS models (If you can)

69
IBIS model
70
IBIS I/V curves (ABT 244)
Pull-up curve ( Referenced to Vcc ) Y-axis
Current A X-axis Voltage V
Pull-down curve
71
IBIS viewing tool
72
Make your own models

• Simple models are sufficient to study
  transmission line effects and to develop design
  rules.
• They are not sufficient for optimizing a specific
  net.
• A very simple model

73
Exercise
Study the supplier SPICE model of an IBIS
driver. Adjust the data to fit an
SN74ALVCH16244 Compare with data sheets and the
timing article
74
Routing of high speed signals

• There is no easy way
• ( but some auto-routers are really good )

75
Main Issues for Routing

• Routing topologies and loading
• Impedance
• Rise and fall time degradation
• Signal Skew (Signal delay difference)
• First incident clocking
• Crosstalk
• Signal return path
• Termination

76
Point to Point Topology

• This is the ideal topology but not very efficient
  in that it requires a lot of extra buffers.
• Always use this topology for critical clock
  trees.
• Use low skew clock buffers
• Skew can be compensated with delay lines

77
Fan / Star topology

• This topology is routing efficient but put heavy
  load on the driver, especially where several
  lines fan out.
• Use drivers with low output impedance.
• Terminate properly at each receiver or
  reflections will propagate back and forth in the
  net.
• Be careful with the high power consumption of
  many terminated lines

78
T - Topology

• This split will cause a 33 negative reflection
  if all lines are of same impedance.
• All ends (also driver) should be terminated
  properly for larger nets
• The driver will have to drive twice the amount of
  DC into the termination resistors.

79
Daisy Chain

• The preferred topology for high speed digital.
• Terminate in both ends.
• Allow no stubs
• Keep tap load low.
• Keep distance between loads so high that the
  signal can recover.

80
Rise and fall time degradation

• Any lossy transmission line acts as a filter
  which filters the high frequency components
  first. Since the high frequency components is
  damped more the signal will show slower rise
  times at the end of the line.

81
Signal skew

• Signal skew is the delay difference at inputs.
• Keeping low signal skew in a clock system is a
  challenge and there are several effects to
  consider.
• Keep every signal trace equally long
• Use low skew drivers
• Rise time degradation may pose a problem in
  calculated delay daisy chains.
• Signals travel faster at outer layers, so trace
  lengths must be compensated. Or - use only inner
  layers.
• Poor decoupling influence rise time.
• Use only first incident clocking or better,
  reduce reflections to zero.

82
Signal return path

• The high frequency signals follow a mirror image
  of the trace on the ground plane. Do not degrade
  this return by
• Changing to layers which have another
  ground-plane without placing a ground-ground via
  close to the signal via. If the new reference
  plane is a power plane a low inductance
  decoupling is placed close to the signal via
• Using split reference planes.
• Using one small via for several returns, this may
  cause common mode problems.

83
How To Design Delay Lines

• Remember loss
• Use meander structure, be careful to avoid
  inductor effects.
• Keep meander lines at least 4 times the distance
  to ground plane apart to avoid distortion.
• Preferably use inner layers, this reduce
  distortion and keep inductance low.

84
Line Termination

• Terminating lines driven with drivers that do not
  allow termination

85
Why terminate the signals

• Termination is a method to match the driver, line
  and receiver in such way that no reflections are
  generated.
• Generally the ideal would be to do a parallel
  termination in the line impedance
• Terminate critical lines that are longer than 1/3
  of the rise time. On FR-4 this mean that a 1ns
  rise signal, the longest unterminated line is
  5cm.
• Reflections can cause double trigging, if using
  non- terminated nets do not use data before the
  reflections have settled.

86
Series Termination

• Used to match driver impedance
• Slow rise and fall times (Some times good, for
  instance to achieve low crosstalk)
• Absorb reflections if matched to line

87
Parallel Termination

• The termination of choice for high speed digital,
  especially for ECL, PECL and other technologies
  intended for termination.
• High power consumption.
• 100 clean signals possible

88
RC Termination

• AC termination, better for technologies not
  intended for termination.
• Low power consumption (No DC consumption)
• Be careful with inductive capacitors, select
  capacitors with care.

89
Thevenin Termination

• Ideal for bus termination or lines with 3-State
  drivers.
• 330 Ohm 220 Ohm is often used.
• Faster switching from 3-state
• Does NOT correctly terminate the line,
  reflections will occur

90
Diode Termination

• Kills large over and undershoot
• Not generally useful in high-speed systems. (A
  design needing this type of termination have
  probably greater problems elsewhere)

91
Power distribution and de-coupling

• How to supply the right voltage at the right
  place at the right time

92
Power distribution

• The power and ground system serves two purposes.
• First to serve as a return path for the signal.
• Second to supply the devices with power.
• The high frequency components of today is using a
  lot of power at a low voltage. The result is very
  high currents.
• A modern FPGA can draw several amperes the first
  nanosecond after switching.
• To meet these challenges one need a low
  inductance, low resistance and high capacitance
  power system.

93
Why Decoupling

• The high switching currents in today's components
  create a need for a local current supply with
  sufficient charge to avoid a severe voltage drop
  at the power pins.
• When these resources are exhausted on need larger
  supplies that are closer than the power supply.
• Closely spaced power planes give a good high
  frequency, low inductance decoupling but it can
  not hold much charge.

94
A Capacitor is Not a Capacitor
1

f
res
?
?
2
L
C

• A capacitor is a passive device dominated by
  capacitance.
• A 100nF capacitor can have C84nF, L1.3nH,
  R0.13ohm
• A capacitor is often described with its resonance
  frequency
• Different dielectrics NPO, X7R or Z5U have
  different properties.
• Usually thin and wide X7R chips is the best
  choice for decoupling.
• To be sure on have to measure the inductance
  which is difficult
• To compare two capacitors of same nominal
  capacitance chose the one with the highest
  resonance frequency.
• So called high frequency capacitors is not
  necessarily less inductive

95
Selecting Decoupling Capacitors

• Selecting a decoupling capacitor is not easy but
  some general
• rules apply
• Select the smallest value that is sufficient to
  decouple the device. If you do not know what is
  sufficient choose one 100nF capacitor for each
  power pin
• Use only chip capacitors, leaded capacitors is to
  inductive to be of any help.
• Decouple in levels with the smallest value (i.e.
  100nF) close to the power pin, the medium
  values(i.e. 10mF) evenly distributed, the higher
  values (i.e. 47mF tantalum) close to the
  connector power pins.

96
Where to place decoupling capacitors

• Get as close as possible to power and ground
  pins.
• Keep distance to pin very SHORT and the trace
  WIDE.
• Set the via as close as possible to the
  capacitor, preferably in the pad.
• One capacitor for every power (and ground) pin is
  a good rule of thumb, you do not have to mount
  all of them in production if the system works
  with less.
• Calculate inductance. If too high - forget the
  capacitor.
• Do not forget to place decoupling capacitors
  close to termination resistors, it is important
  to keep the reference voltages steady.

97
Splitting power planes

• Be very careful with splitting ground planes.
• If you have to split, keep the split narrow and
  secure an AC return path.
• Splits act as slot antennas and will radiate
  heavily.
• Remember that digital signals are broad band and
  that filters are narrow band. Filters over the
  gap may cause problems.

98
Microstrip Over a Slotted Ground Plane
1
2
3
4
IEEE Circuits Devices Nov. 1997
