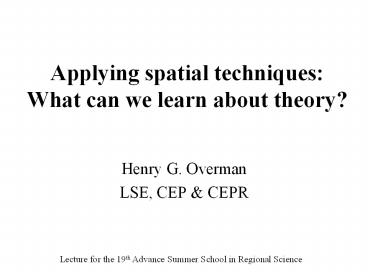

Title: Applying spatial techniques: What can we learn about theory?
1Applying spatial techniquesWhat can we learn
about theory?
- Henry G. Overman
- LSE, CEP CEPR
Lecture for the 19th Advance Summer School in
Regional Science
2Publishing papers in spatial economics
- Types of paper
- Methodological
- Applied
- For applied papers the key question is do we
learn anything new about - Theory
- Policy
3Some casual empiricism
- Based on a spatial econ workshop (Kiel 05)
- 60 papers at the conference
- 12 methodological
- 48 empirical
- 10 growth in EU regions
- Theoretical and empirical issues
- Econometric theory and empirical work
- Economic theory and empirical work
- What do we learn from spatial econometric papers
about theories of economic growth and location?
4Some less casual empiricism
- Abreu, Groot and Florex space and growth
- 63 papers between 1995 and 2004
- Data
- 68 EU
- 11 country
- 8 US/Canada
- Relationship to theory
- 63 standard spatial
- 11 derive explicit models from theory
5Lessons from less casual empiricism
- Spatial econometrics literature should think
about underlying reasons for spatial dependence - Non-spatial literature should worry about spatial
dependence of residuals - Spatial economics literature unduly concentrated
on methodological issues - HGO What new things do we learn about growth?
6Space as nuisance
- For better or worse, spatial correlation is
often ignored in applied work because correcting
the problem can be difficult - Wooldridge, p. 7
- Key assumption
- We know the relationship we want to estimate
- Conclusion
- We should use spatial econometric toolbox to
correct residuals where appropriate
7An analogy
- The returns to education
- Wage f (ability, education)
- Ability unobserved but correlated with education
- ? Fixed/Random effects estimation to get
coefficient on education - Slightly unfair comparison because dealing with
spatial correlation harder - FE/RE maintains i.i.d. assumption
- Need different asymptotic theory etc
8The challenge
- The problem
- Way too many papers focus on space as nuisance
- Standard spatial techniques to correct the
coefficient estimates (63) - Important to understand these techniques but
- revised coefficient estimates often do not tell
us anything new! - How can we use spatial data or spatial techniques
to learn something new?
9The empirics of location
- Four types of papers on the location of economic
activity (or people) - Descriptive papers
- Empirical models
- Class of model approaches
- Structural approaches
10Descriptive work
- Good descriptive work should
- Give us a feel for the data
- Give us a feel for patterns in the data
- .. Without getting too hung up on the details
- Hopefully tell us something about theory
- Without claiming to tell us lots about theory
- Give us a feel for how we might best analyse the
data
11Location patterns
- For concreteness consider something specific
the spatial location of economic activity. - First important point define your terms
- Are places specialised in particular activities?
- Are activities localised in particular places?
- Second important point plot the data (GIS)
- Cross check from statistical results to data plot
12Source Duranton and Overman, Review of Economic
Studies (2005)
13Source Duranton and Overman, Review of Economic
Studies (2005)
14First generation location measures
- Typical way to proceed is to calculate some
summary statistic for each industry/location - Specialisation Is the production structure of a
particular region similar or different from other
regions? how different is the production
structure? - Localisation Is economic activity in a
particular activity broadly in line with overall
economic activity or is the activity concentrated
in a few regions? how concentrated is the
economic activity?
15A typical paper
- Variety of measures to capture spatial location
patterns - Discussion of why some measures better than
others - But, no systematic attempt to outline criteria by
which to assess these methods - Arguments usually statistical and one dimensional
16Measuring localisation5 key properties
- Comparable across industries
- (e.g. can Lorenz curves be compared)
- Conditioning on overall agglomeration
- Spatial vs. Industrial concentration
- (The lumpiness problem)
- Ellison and Glaeser (JPE, 1997) dartboard
approach Maurel and Sedillot (RSUE, 1999)
Devereux et al (RSUE, 2005)
17Measuring localisation
- Scale and aggregation
- Dots on a map to units in a box
- Problem I scale of localisation
- Cutlery in Sheffield versus Motor cars in Thames
valley - Problem II size of units
- California 150 x Rhode Island
- Problem III MAUP
- Spurious correlations across aggregated variables
- Problem IV Downward bias
- Treat boxes separately
- Border problems
- Significance
- Null hypothesis of randomness
18Spatial point pattern techniques solve these
problems
- Select relevant establishments
- Density of bilateral distances between all pairs
of establishments (4) - Construct counterfactuals
- Same number of establishments (3)
- Randomly allocate across existing sites (2)
- Local and global confidence intervals (5)
19 and we learn something
- Excess localisation not as frequent as previous
studies - Significance versus border bias
- Highly skewed
- Some sectors very localised
- Others weakly
- Many not significantly
- Scale of localisation
- Urban/metropolitan
- Regional for 3d
- Broad sector effects
- 4d behave similarly within 3d
- Size of localised establishments
- Big or small depending on industry
201st generation Concentration regressions
- Get measures of industry characteristics and run
a concentration regression - CONC(s) a bTRCOSTS(s)
- cIRS(s) dLINKAGES(s)
eRESOURCE(s) - fHIGH_TECH(s)
21Conceptual limitations
- Theory tells us nothing about the relationship
between indices and industry characteristics when
more than two regions - Given availability of shares, why throw away lots
of information by calculating only one summary
statistic?
22Using industry shares
- Harrigan (1997) classical trade theory simple
translog revenue function hicks neutral
technology - a and r vary across industries, technologies and
factors
23Location theory
- Ellison and Glaeser (1999) sequential plant
choice expected profits depend on location
specific and spillovers - Expected shares a non-linear function of
- Interaction of industry/country characteristics
- No theoretical justification for using
intensities
24Industry intensities
- Midelfart et al (2002) CRS CES preferences
differentiate goods Armington transport costs
of industries proportional to country size
25Another interaction model
26Some comments
- Number of firms in industry s, region r as a
function of interaction between industry and
regional characteristics - E.g. first expression interacts vertical linkages
intensity (mu), sectoral labour intensity (phi)
with regional wages - Problems
- Hardly any data available
- No firm movement (short run)
- End up estimating sectoral transport variable
27An improvement over first generation?
- A much clearer link from theory to the empirical
specification that is estimated - Spatial interactions modelled explicitly
- But could still be spatial correlation in the
residuals - Get out the spatial econometrics toolbox?
- 2nd order issue relative to first order issue of
identification
28What do we learn about theory?
- Harrigan is a straightforward neo-classical trade
model - EG is a very stylised geography model with black
box assumptions to get to functional form - Midelfart et. al. has some geography effects but
no IRS - Gaigne et. al. have a functional form that is
very far from what they estimate
29An alternative strategy
- Take one particular class of models and test
whether the data are consistent with the model - Even better nest one class of models within
another class of models and test whether the data
allow us to reject the implied restrictions
30Testing agglomeration
- Agglomeration has two senses
- A process by which things come together
- A pattern in which economic activity is spatially
concentrated - Two paths approach
- Test mechanisms
- Test predictions
- We will consider NEG models
31Defining and delimiting NEG
- NEG (here) theories that follow the approach
put forward by Krugmans 1991 JPE article - Five key ingredients
- IRS internal to the firm no tech externalities
- Imperfect competition (Dixit-Stiglitz)
- Trade costs (iceburg)
- Endogenous firm locations
- Endogenous location of demand
- Mobile workers
- I/O linkages
32Antecedents Novelties
- Ingredients 1-4 all appeared in New Trade Theory
literature ? home market effects in Krugman 1980 - Key innovation of NEG relative to NTT is
assumption 5 - With all 5 assumptions, initial symmetry can be
broken and agglomeration form through circular
causation
33Testing NEG predictions
- Leamer and Levinsohn (1995)
- Estimate dont test
- Empiricists need to take theory seriously, but
not too seriously - False confirmation housing prices very
expensive in areas with concentrated activity - False rejection Krumans prediction of complete
concentration
34NEG predictions
- Access advantages raise factor prices
- Access advantages induce factor inflows
- Home market / magnification effects
- Lower t.c. increase HME
- More product differentiation (IRS? same
parameter) increases HME - Trade induces agglomeration
- Increases for high IRS, high diff
- t.c. inverted u?
- Catastrophe
- Small change t.c. large change location
- Temporary shocks can have permanent effects
35Strategy
- Take these predictions to the data
- Empirical specifications that are close to the
underlying theory - Allows us to assess whether these mechanisms and
predictions are consistent with data (not prove
that these are the mechanisms)
36Empirical NEG
- Papers that model spatial linkages explicitly
consistent with class of models approach - Redding and Venables (2004) income across
countries - Davis and Weinstein (2004) testing for home
market effect - Davis and Weinstein (2005) Catastrophe for
location of Japanese industry
37Lessons from NEG work
- Methods should connect closely to theory but not
be reliant upon features introduced for
tractability or clarity rather than realism - Better to have a limited number of parameters to
distinguish models? - e.g. beta/sigma convergence
- Much more work needed on observational
equivalence - 1st order issue
- A more accurate estimate of (say) a beta
coefficient? - Discriminating between alternative models of
differences across space?
38Structural estimation
- Estimation of specification directly derived from
the theoretical model without any further
simplifying/function form assumptions - Clear identification of which variables are
endogenous - Interpretations easier?
- Computation of the model parameters possible
simulation of the model on real data
39Lessons from structural models?
- Endogeneity
- Structural econometric specification identifies
precisely which variables are endogenous - In simpler situations (eg neighbourhood effects)
may get through intuition - Which variables should be on RHS/LHS
- Working with structural theory suggests these are
more complicated than expected - Structural identification of parameters
40The downside
- Do we really believe that the world looks like a
NEG model plus some random shocks? - Two issues here
- Is the world NEG?
- What are the shocks?
41Estimation versus testing
- Estimation assume NEG model is valid and
estimate its parameters under this assumption - Need to be confident that the model is true
before estimating it - A crazy model (D-S) might not be so bad an
approximation - Models place restrictions on parameters
- Reality checks with parameter values
- Testing requires nested structural models
42An alternative approach
- Structural estimation works well in simple
situations where we can observe agents actions
and where the real world is close to the model
(e.g. some IO situations) - A bounds approach can work well in situations
which are very complicated, but where different
classes of models consistently place restrictions
on the relationships between variables (Sutton)
43Lessons
- Mainstream economics increasingly recognising
importance of space - Huge scope for geo-referenced data to increase
our understanding of socio-economic processes - Spatial econometrics providing a rapidly
expanding toolbox for dealing with some problems
encountered with spatial data
44Lessons (cont)
- 3. Too much emphasis on application of methods
c.f. heteroscedastic robust errors - 4. Too little attention on issues of role of
theory and importance of identification - Why include a spatial lag?
- If answer to (a) is
- robustness for particular parameter estimate
see (3) - spatial interactions then identification is
everything - 5. Class of models approaches to identification
may be better than structural
