Digital Logic

1

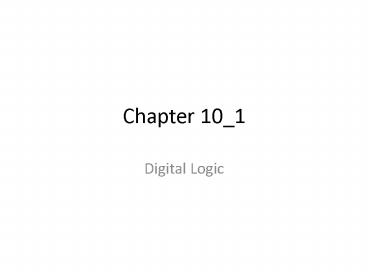

Chapter 10_1

• Digital Logic

2
Boolean Operators

• NOT
• AND
• OR
• XOR
• NAND
• NOR
• Truth Tables

3
Boolean Operators

• NOT A A
• A AND B A?B
• A OR B A B
• A XOR B 1 if and only if one of
  A or B is 1
• A NAND B NOT ( A AND B)
• NOR NOT (A OR B)
• Truth Tables

4
Boolean Algebra

• Based on symbolic logic, designed by George Boole
• Boolean expressions created from
• NOT, AND, OR

5
NOT

• Inverts (reverses) a boolean value
• Truth table for Boolean NOT operator

6
AND

• Truth table for Boolean AND operator

7
OR

• Truth table for Boolean OR operator

8
Operator Precedence

• Examples showing the order of operations

9
Truth Tables (1 of 3)

• A Boolean function has one or more Boolean
  inputs, and returns a single Boolean output.
• A truth table shows all the inputs and outputs of
  a Boolean function

Example ?X ? Y
10
Truth Tables (2 of 3)

• Example X ? ?Y

11
Truth Tables (3 of 3)

• Example (Y ? S) ? (X ? ?S)

12
Basic Identities of Boolean Algebra
Basic Postulates Basic Postulates Basic Postulates
A B B A A B B A Commutative Laws
A (B C) (A B) (A C) A (B C) (A B) (A C) Distributive Laws
1 A A 0 A A Identity Elements
A 0 A 1 Inverse Elements
Other Identities Other Identities Other Identities
0 A 0 1 A 1
A A A A A A
A (B C) (A B) C A (B C) (A B) C Associative Laws
DeMorgan's Theorem
13
De Morgans Theorem

• A NOR B (NOT A) AND (NOT B)
• A NAND B (NOT A) OR (NOT B)

14
Basic Logic Gates

15
NAND Gates
16
NOR Gates

17
Sum of products

• F ABC ABC ABC

18
Product of sums

• (X?Y?Z) X Y Z (De Morgan)

19
Product of sums

20
Simplification of Boolean expression

• Algebraic simplification
• Karnaugh maps
• Quine McKluskey Tables

21
Algebraic simplification

• Show how to simplify
• F ABC ABC ABC
• To become
• F AB BC
• B(A C)

22
Simplified implementation of F ABC ABC
ABC B(A C)
23
Karnaugh Maps
24
The use of Karnaugh maps
25
Overlapping groups F ABC ABC ABC
B(A C)
26
The Quine-McKluskey Method
27
2nd stageAll pairs that differ in one variable
28
Last stage
29
Final stage

• Circle each x that is alone in a column.
• Then place a square around each X in any row in
  which there is a circled X.
• If every column now has either a squared or a
  circled X, then we are done, and those row
  elements whose Xs have been marked constitute the
  minimal expression.
• ABC ACD ABC ACD

30
NAND

31
Multiplexor
S2 S1 F
0 0 D0
0 1 D1
1 0 D2
1 1 D3
32
Multiplexor implementation

33
Decoder

34
Use of decoders

• To address 1K byte memory using four
• 256 x 8 bit RAM chips

35
Small-scale integration

• Early integrated circuit provided from one to ten
  gates on a chip.
• The next slide shows a few examples of these SSI
  chips.

36
(No Transcript)
37
Programmable Logic Array (PLA)

38
Programmed PLA

39
Read-only memory

40
A 64 bit ROM

41
Adders

42
4-Bit Adder

43
Implementation of an Adder

44
Multi-output adder

• The output from each adder depends on the output
  from the previous adder.
• Thus there is an increasing delay from the least
  significant to the most significant bit.
• For larger adders the accumulated delay can
  become unacceptably high.

45
32-Bit Adder using 8-Bit Adders

46
Carry look ahead
