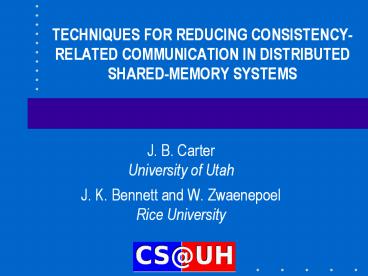

TECHNIQUES FOR REDUCING CONSISTENCY-RELATED COMMUNICATION IN DISTRIBUTED SHARED-MEMORY SYSTEMS

1
TECHNIQUES FOR REDUCING CONSISTENCY-RELATED
COMMUNICATION IN DISTRIBUTED SHARED-MEMORY SYSTEMS

• J. B. CarterUniversity of Utah
• J. K. Bennett and W. ZwaenepoelRice University

2
INTRODUCTION

• Distributed shared memory is a software
  abstraction allowing a set of workstations
  connected by a LAN to share a single paged
  virtual address space
• Key issue in building a software DSM is
  minimizing the amount of data communication among
  the workstation memories

3
Why bother with DSM?

• Key idea is to build fast parallel computers that
• are cheaper than conventional architectures
• are convenient to use
• Conventional parallel computer architecture was
  the shared memory multiprocessor

4
Conventional parallel architecture
CPU
CPU
CPU
CPU
Shared memory
5
Todays architecture

• Clusters of workstations are much more cost
  effective
• No need to develop complex bus and cache
  structures
• Can use off-the-shelf networking hardware
• Gigabit Ethernet
• Myrinet (1.5 Gb/s)
• Can quickly integrate newest microprocessors

6
Limitations of cluster approach

• Communication within a cluster of workstation is
  through message passing
• Much harder to program than concurrent access to
  a shared memory
• Many big programs were written for shared memory
  architectures
• Converting them to a message passing architecture
  is a nightmare

7
Distributed shared memory
main memories
DSM one shared global address space
8
Distributed shared memory

• DSM makes a cluster of workstations look like a
  shared memory parallel computer
• Easier to write new programs
• Easier to port existing programs
• Key problem is that DSM only provides the
  illusion of having a shared memory architecture
• Data must still move back and forth among the
  workstations

9
Characterizing a DSM (I)

• Four important issues
• 1. Size of transfer units (level of granularity)
• Big units are more efficient
• Virtual memory pages
• Can have false sharing whenever page contains
  different variables that are accessed at the same
  time by different processors

10
False Sharing
accesses y
accesses x
x y
page containing x and y will move back and
forthbetween main memories of workstations
11
Characterizing a DSM (II)

• 2. Consistency model
• Strict consistency is not possible
• Various authors have proposed weak consistency
  models
• Cheaper to implement
• Harder to use in a correct fashion

12
Characterizing a DSM (III)

• 3. Portability of programs
• Some DSMs allow programs written for a
  multiprocessor architecture to run on a cluster
  of workstations without any modifications (dusty
  decks)
• More efficient DSMs require more changes
• 4. Portability of DSM
• Some DSMs require specific OS features

13
MUNIN

• Developed at Rice University
• Based on software objects (variables)
• Uses the processor virtual memory to detect
  access to the shared objects
• Includes several techniques for reducing
  consistency-related communication
• Only runs on top of V kernel

14
Key features

• Software release consistency only requires the
  memory to be consistent at specific
  synchronization points,
• Multiple consistency protocols allow the user to
  select the best consistency protocols for each
  data item,
• Write-shared protocols reduce false sharing,
• An update-with-timeout mechanism

15
SW RELEASE CONSISTENCY (I)

• Well-written parallel programs use locks to
  achieve mutual exclusion when they access shared
  variables
• P(mutex) and V(mutex)
• lock(csect) and unlock(csect)
• request ( ) and release( )
• Unprotected accesses can produce unpredictable
  results

16
SW RELEASE CONSISTENCY (II)

• SW release consistency will only guarantee
  correctness of operations within a
  request/release pair
• No need to propagate new values of shared
  variables until the release
• Must guarantee that workstation has received the
  most recent values of all shared variables when
  it completes a request

17
SW RELEASE CONSISTENCY (III)

• shared int x
• request( )// wait for new value of x
• xrelease ( )
• // propagate x2

• shared int x
• request( ) x 1release ( )
• // propagate x1

18
SW RELEASE CONSISTENCY (IV)

• Munin uses eager release new values of shared
  variables are propagated at release time
• Lazy release delays propagation until a request
  is issued (Threadmarks)
• A workstation issuing a request gets the current
  values of all shared variables
• Shared variables are not associated to a
  particular critical section (as in Midway)

19
Munin Implementation (I)

• Three kinds of variables
• Ordinary variables can only be accessed by the
  process that created them
• Shared data variables should always be
  accessed from within critical regions
• Synchronization variables
• locks, barriers or condition variables
• must be accessed through special library
  procedures .

20
Munin Implementation (II)

• When a processor modifies shared data inside a
  critical region, all update messages are buffered
  and delayed until the processor leaves the
  critical region
• Processes accessing shared data variables outside
  critical regions do it at their own risks
• Same as with shared memory model
• Risk is higher

21
FOUR CONSISTENCY PROTOCOLS

• 1. Conventional shared variables
• Replicated on demand
• Single writer/multiple readers policy uses an
  invalidation-based protocol
• 2. Read-only variables
• Replicated on demand
• Any attempt to modify them will result in a
  runtime error

22
FOUR CONSISTENCY PROTOCOLS

• 3. Migratory variables
• Migrated among the processes accessing them
• Every process accessing them will always get full
  read and write access
• 4. Write-shared variables
• Can be updated concurrently because different
  portions of the page are accessed

23
Implementation

• Programmer uses annotations to specify any of the
  last three consistency protocols
• Read-only variables
• Migratory variables
• Write-shared variables
• Incorrect annotations may result in inefficient
  performance or in runtime errors but not in
  incorrect results

24
WRITE-SHARED PROTOCOL (I)

• Designed to fight false sharing
• Uses a copy-on-write mechanism
• Whenever a process is granted access to
  write-shared data, the page containing these data
  is marked copy-on-write
• First attempt to modify the contents of the page
  will result in the creation of a copy of the
  page modified (the twin).

25
Example
Before
First write access
x 1 y 2
x 1 y 2
twin
After
Compare with twin
x 3 y 2
New value of x is 3
26
WRITE-SHARED PROTOCOL (II)

• At release time, the DSM will perform a word by
  word comparison of the page and its twin, store
  the diff in the space used by the twin page and
  notify all processors having a copy of the shared
  data of the update
• A runtime switch can be set to check for
  conflicting updates to write-shared data.

27
UPDATE TIME-OUT MECHANISM

• Munin does not send updates to processors holding
  stale replicas
• Anytime a processor receives an update for a page
  for which it does not have a twin, the page is
  marked supervisor-only and the time of receipt of
  the update is recorded.
• First local access to the page will cause a trap
  that will remove the restriction

28
UPDATE TIME-OUT MECHANISM

• When a process receives an update for a page that
  is still marked supervisor only, it checks the
  timestamp of the last update
• If more than 50 ms have elapsed, process notifies
  the originator of the update not to send more
  updates and invalidates the page.

29
CONCLUSIONS (I)

• The strongest point of Munin is its excellent
  performance
• typically within 5 to 33 of the performances of
  hand-coded message passing versions of the same
  programs
• Its major limitation is its dependence of some
  features of the V kernel

30
CONCLUSIONS (II)

• Munin requires programs to access shared data
  from within critical regions or after barriers
• Appears to be a reasonable requirement
• Munin allows users to tune the performance of
  their programs by selecting the best consistency
  protocol for each shared variable
• Can quickly become a tedious process

31
FURTHER DEVELOPMENTS

• Same team has come with a successor to Munin
  named TreadMarks
• Key differences are
• TreadMarks uses a more complexlazy release
  protocol
• TreadMarks is UNIX-based
• More portable
