Fusion Design Overview

1

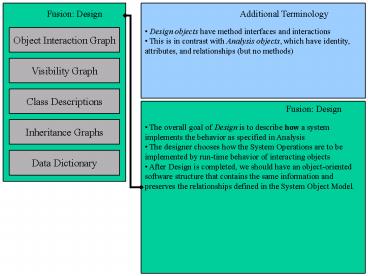

Fusion Design Overview

• Design objects have method interfaces and
  interactions
• This is in contrast with Analysis objects, which
  have identity, attributes, and relationships (but
  no methods)

Fusion Design
Additional Terminology
Object Interaction Graph
Visibility Graph
Class Descriptions

• The overall goal of Design is to describe how a
  system implements the behavior as specified in
  Analysis
• The designer chooses how the System Operations
  are to be implemented by run-time behavior of
  interacting objects
• After Design is completed, we should have an
  object-oriented software structure that contains
  the same information and preserves the
  relationships defined in the System Object Model.

Fusion Design
Inheritance Graphs
Data Dictionary
2
Object Interaction Graph

• Controllers receive and handle system operations
  (perhaps by dispatching messages to other
  objects)
• Collaborators are other objects (that are not
  controllers) that help complete the system
  operation

Additional Terminology
Fusion Design
Object Interaction Graph
Visibility Graph
Class Descriptions

• The Object Interaction Graph will provide what
  methods are needed for each class.
• The Object Interaction Graph details the
  behavior of each system operation by building the
  object messaging structures that will satisfy the
  functionality as specified in the operation
  schema.
• In other words, for each operation schema, we
  want to show the actual interactions between
  objects.
• The process suggested is (Coleman 1994, p69)
• Identify relevant objects
• Establish the role of each object
• Decide on messages between objects
• Record these interactions in an object
  interaction graph

Object Interaction Graph
Inheritance Graphs
Data Dictionary
3
Object Interaction Graph Notation
(From Coleman 1994, p259)
4
Object Interaction Graph Notes
A dashed box denotes a Collection of objects,
typically a list or array.
A solid box denotes a Design Object
An arrow represents message passing from a client
to a server, typically a function or method call.
The number in parenthesis represents ordering of
messages.
Message (1.1) must complete in order for message
(1) to complete.
(From Coleman 1994, p259)
5
Creating Object Interaction Graphs
Creating Object Interaction Graphs

• For each Operation Schema / System Operation, do
  the following
• 1. Identify relevant objects involved in the
  implementation of the system operation.
• The Reads clause provides a list of the objects
  that a system operation accesses but doesn't
  modify.
• The Changes clause lists the objects changed by
  the functional behavior.
• Other objects may be involved in addition to
  those explicitly listed in the schema. For
  example, other objects may be introduced for
  abstraction purposes and not identified on the
  analysis models.
• The Sends clause of the schema lists output
  events to agents of the system. The actual object
  that does this may need to be created.

6
Creating Object Interaction Graphs
Creating Object Interaction Graphs

• 2. Establish the role of each object.
• Identify the controller (i.e. object receiving
  system operation)
• Identify the collaborators involved (i.e. object
  not a controller)
• 3. Decide on the messages between objects.
• Each object provides different pieces of
  functionality.
• Functionality is composed by message passing
  between objects.
• 4. Record interaction of identified objects on
  Object Interaction Graph.
• Each object provides part of the functionality
  of the operation
• This info can be used to define the object
  method interface.
• Add a text description of each method in the
  data dictionary, explaining what the method does
  and the algorithm used to solve the system
  operation.

7
Checking Object Interaction Graphs
Checking Object Interaction Graphs

• 1. Consistency with System Specification
• Ensure that each of the classes in the System
  Object Model is represented in at least one
  Object Interaction Graph
• 2. Verification of Functional Effect
• Ensure that each Object Interaction Graph
  implements the System Operation correctly by
  checking the Results clause.

8
Visibility Graph

• Referencing is the process of identifying and
  addressing objects.
• A Client is any object requesting the services
  of another object, called a Server.

Fusion Design
Additional Terminology
Object Interaction Graph
Visibility Graph
Class Descriptions

• The Visibility Graph will provide object
  attributes for each class description.
• Visibility Graphs define the communication paths
  between objects
• For each class, identify what object references
  are needed, and what kind of reference it is.
• A reference can have four different attributes
• Lifetime (dynamic / permanent)
• Sharing (shared / exclusive)
• Binding (bound / unbound)
• Mutability (constant / variable)
• In other words, for each class, identify the
  objects each instance of that class will need to
  reference, and the kind of reference to those
  objects (see Coleman 1994, p83-84).
• Use the Object Interaction Graphs to create the
  Visibility Graph

Visibility Graph
Inheritance Graphs
Data Dictionary
9
Visibility Graph Notation
Visibility Graph Notation
(From Coleman 1994, p260)
10
Visibility Graph Notes
Visibility Graph Notes
A reference is constant if it cannot be changed
after initialization. Denote this by placing the
keyword constant next to the server name (even
though its really the reference that is
constant, not the server - JH).
Server Lifetime Bound means that this server will
be deleted when its client is deleted. In this
case, put the server box inside the client box.
Exclusive reference means that there is at most
one instance of a client using this server at a
given time. Use a double box to denote this, a
single box if the server can be shared.
A Permanent reference means that we can always
access this object. Use a solid line to denote
this.
A Dynamic Reference is typically implemented by a
parameter or local variable. Use a dashed line to
denote this.
(From Coleman 1994, p260)
11
Creating Visibility Graphs
Creating Visibility Graphs

• For each Object Interaction Graph, do the
  following
• 1. Inspect each Object Interaction Graph
• Each arrow going from a client to a server
  requires a visibility reference to the server
• 2. Annotate the arrow with visibility
  information, detailing
• Reference lifetime (dynamic / permanent)
• Server visibility (shared / exclusive)
• Server binding (bound / unbound)
• Reference mutability (constant / variable)
• 3. Construct the Visibility Graph
• For each class, find all instances where it is a
  client
• Use all of the annotated arrows

12
Checking Visibility Graphs
Checking Visibility Graphs

• 1. Consistency with Analysis
• Relationships identified in Analysis define
  invariants
• Ensure that the structures defined in the
  visibility graphs maintain the relationships
  between classes.
• For each relationship in the System Object
  Model, ensure that there is a path of visibility
  between the corresponding classes.
• 2. Mutual Consistency
• Ensure that exclusive server objects are not
  referenced by more than one instance of a client
• 3. Completeness
• Ensure that all message passing defined in the
  Object Interaction Graphs are realized in the
  Visibility Graphs.

13
Class Descriptions

• Fusion makes a distinction between a Data
  Attribute and an Object Attribute. Essentially,
  an Object Attribute is a reference to an object.
  A Data Attribute is any other kind of attribute
  (e.g., String, int, char, etc).

Additional Terminology
Fusion Design
Object Interaction Graph
Visibility Graph
Class Descriptions

• Class Descriptions are the specifications from
  which coding begins. It is the final step in the
  design phase.
• We take information from the object model, the
  object inheritance graphs, and the visibility
  graphs.
• Methods for each class are derived from the
  object interaction graphs.
• Data Attributes for each class are derived from
  the system object model and the data dictionary.
  Additional attributes may be derived from method
  descriptions.
• Object Attributes for each class are derived
  from the visibility graph for that class.

Class Descriptions
Inheritance Graphs
Data Dictionary
14
Inheritance Graphs
Additional Terminology
Fusion Design
Object Interaction Graph
Visibility Graph
Class Descriptions

• Inheritance Graphs are used to refactor the
  inheritance from Analysis to capture common
  patterns in the objects, including
• Common methods
• Common interaction patterns
• Common visibility structures
• Use the System Object Model, the Object
  Interaction Graphs, and the Visibility Graphs to
  construct the Inheritance Graphs.

Inheritance Graphs
Inheritance Graphs
Data Dictionary
15
Overview of Creating Class Definitions
Class Descriptions
16
Checking Design Models

Additional Terminology
Fusion Design
Object Interaction Graph
Visibility Graph
Class Descriptions

• For each analysis relationship, there is a
  visibility reference between the corresponding
  classes.
• Exclusive server objects are truly exclusive.
• Visibility graphs cover all needed interactions.
• Review data attributes by checking that all data
  attributes from the system object model are
  recorded.
• Review object attributes by checking that all
  visibility references are recorded.
• Review methods and parameters by checking that
  all methods from object interaction graphs are
  recorded.
• Ensure that the Inheritance Graph retains the
  sub-type relations from Analysis.

Checking Design Models
Inheritance Graphs
Data Dictionary
