P2P: An Overview

1

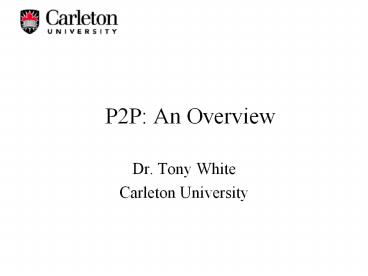

P2P An Overview

• Dr. Tony White
• Carleton University

2
Outline

• Introduction
• Evolution of Network Computing
• Definitions
• The Rise of Edge Computing
• Why Peer-to-Peer? What is it?
• Applications
• Cycle Sharing
• Content Delivery
• Open Problems
• Summary

3
Evolution of Network Computing

• Web introduced
• - A common protocol HTTP
• - A common document format HTML
• - A universal client the browser

• Client/server
• - Introduced inequalities
• - Required homogeneity

4
P2P Definition

• Peer-to-peer computing is the location and
  sharing of computer resources and services by
  direct exchange between servents.
• A servent is a peer that can adopt the roles of
  both server and client when operating.

5
P2P Definition

• P2P is a class of applications that takes
  advantage of resources -- storage, cycles,
  content, human presence -- available at the edges
  of the Internet. Because accessing these
  decentralized resources means operating in an
  environment of unstable connectivity and
  unpredictable IP addresses, P2P nodes must
  operate outside the DNS system and have
  significant or total autonomy from central
  servers. Clay Shirkey February, 2000

6
Definitions I

• Pure peer-to-peer is completely decentralized and
  characterized by lack of a central server or
  central entity clients make direct contact with
  one another.
• Computational peer-to-peer uses P2P technology to
  disseminate computational tasks over multiple
  clients peers do not have a direct connection to
  one another.

7
Definitions II

• Datacentric peer-to-peer is information and data
  residing on systems or devices that is accessible
  to others when users connect. It is sometimes
  called peer-assisted or grid-assisted delivery.
  Applications include distributed file and content
  sharing.
• Usercentric/hybrid peer-to-peer involves clients
  contacting others via a central server or entity
  to communicate, share data, or process data.
  Often used in collaboration applications.

8
What is a P2P network?

• It is an overlay network
• Peer applications know IP addresses of other peer
  applications.
• Link between two nodes is actually an
  application-level connection.

9
What matters?

• Topology of overlay matters
• Where content is stored matters
• Search protocol matters
• Gnutella results in
• Poor performance
• Poor reliability

10
The Rise of Edge Computing

• In P2P, clients also are servers, hence are
  peers.
• Driving P2P is the abundance of
• Computing power
• Non-volatile storage
• Network bandwidth
• (This seems to turn thin clients on their heads.)
• Sharing from the edge
• Physical Resources cycles, disk
• Information Resources files, database access
• Services code mobility implied

11
P2P Enables Complete Access

• P2P file swapping is the obvious application
• Text, audio, video, executables,
• Searching and sharing
• Resources
• Information
• Information processing capacity
• Searches
• More current than Google
• Indexing web logs (blogs, klogs )
• More focused search within a peer group

12
P2P Enables Complete Access

• Searching and sharing
• Instant messaging
• locate user quickly independent of service
  provider.
• Buyers and sellers
• P2P auctions compete with Ebay.
• Blogging
• Sharing of self.
• Edge-based multi-media streaming
• Web radio
• Web TV
• Peer shells
• Script complex P2P applications from simpler
  ones.
• Service creation using service composition.

13
P2P Enables Complete Access

• A New Style of Distributed Computing
• P2P applications tolerate peers coming/going.
• Result depends on which peers are available.
• High availability comes from probability that
  some peers are available.
• Not on load-balancing and fail over schemes.
• Must avoid tragedy of the commons.

14
Examples of Early P2P

• Some new Internet applications are different
• SETI_at_home
• Instant messaging services (AIM, MS Messenger, )
• P2P applications no central authority/server.
• Napster quasi-P2P
• Gnutella
• Freenet
• These applications are vertically integrated
• Non-standard protocols
• Closed namespaces
• Stand alone

15
Problems I

• Topology
• Bandwidth usage
• Fault tolerance
• Search efficiency
• Identity
• Trust
• Anonymity
• Security
• Authorization
• Privacy

16
Problems II

• Namespaces
• Community Management
• Overlaps traditional enterprise groups
• Highly dynamic, user controlled
• Firewall traversal
• Political
• IT loses control of content distribution
• No control of information flow!
• Legal
• DRM

17
What is needed?

• Interoperability (common protocols standards)
• Communication protocols (e.g. JXTA, Jabber, )
• Representation of identity (or not!)
• Semantic content (meta-data)
• Secure information exchange
• Must be able to guarantee trust within a network
• Prevent unauthorized access to network
• Policy-based control of information exchange
• Ubiquity
• Buy-in from large groups of users

18
Securing Distributed Computationsin a Commercial
Environment

• Philippe Golle, Stanford University
• Stuart Stubblebine, CertCo

19
Example of a Distributed Computation

• 580,000 active participants
• 565,800 years of CPU time since 1996
• 26.1 TeraFLOPs / sec

20
Commercialization supply

• A dozen of companies have recruited thousands of
  participants
• 100 million in venture funding in 2000
• www.mithral.com
• www.dcypher.net
• (with www.processtree.com)
• www.distributed.net
• www.entropia.com
• www.parabon.com
• www.uniteddevices.com
• www.popularpower.com
• www.distributedsciences.com
• www.datasynapse.com
• www.juno.com

21
Commercialization demand

• Super-computing market 2 billion / year
• Computationally intensive parallelizable
  projects
• Drug design research
• Mathematical research
• Economic simulations
• Digital entertainment

22
Cheaters!
"Fifty percent of the project's resources have
been spent dealing with security problems"
The really hard part has to do with verifying
computational results" David Anderson,
Seti_at_home's director.
23
Cycle Sharing Participants

• Trusted supervisor
• Maintains a pool of registered participants
• Bids for large computations
• Divides the computation into tasks that are
  assigned to participants
• Collects the results and distributes payment to
  the participants
• Example Distributed.net, Entropia.com, etc

• Untrusted participants
• May range from large companies to individual
  users
• Participants are anonymous (No real world
  leverage)
• Participants may collude. We distinguish between
  real-world entities (agents) and anonymous
  participants.
• Participants may leave the computation at any
  time, either temporarily or for good.

24
Organization

• Distribution of tasks
• The unit of computation is a task
• Assumption all tasks have the same size and can
  be run by any participant within the same time
  bounds.
• The supervisor runs a probabilistic algorithm to
  assign tasks to participants.
• The supervisor keeps track of who did what

25
Security

• Definition a computation is secure if no
  rational, non-risk-seeking participant ever
  cheats.
• Collusion may occur only before tasks are
  assigned.
• A participant has 3 choices
• Request a computation and do it
• Request a computation and NOT do it
• Take a leave
• Assumption all errors are malicious

26
Utility function of an agent
a
Run the computation Cheat and guess the
result
Cheating detected Cheating
undetected
L a E
a Payment received per task E Benefit of
defecting (E e a) L Cost of getting caught
cheating

• Security condition (aE)P L(1-P) lt 0
• where P is the probability that cheating is
  undetected

27
Basic scheme

• Registration
• Participant performs d1 unpaid tasks
• The supervisor verifies them (at limited cost)
• The participant is accepted iff all the results
  are correct
• Assignment of a task
• A task is given to N participants chosen
  uniformly independently at random
• The number N is chosen according to the
  probability distribution
• Payment a constant amount a per task if all the
  results agree
• If not, the task is re-assigned to a new set of
  participants
• Severance a participant is paid an amount d.a

28
Properties

• Computational overhead
  (aE)P L(1-P) lt 0
• Security condition

Computational overhead Setup time Maximum coalition size Maximum e
10 10 1 1
17 10 10 1
46 10 1 10
243 10 1 100

• Overhead for small
  p

29
Participants with varying computational resources

• Until now, implicit assumption that all
  participants have the same computational
  resources.
• Unrealistic assumption
• Security threat an adversary may briefly control
  a number of participants out of proportions with
  her real computational power

• Activity a probability distribution over the
  pool of participants, which evolves dynamically
  over time
• Participants are drawn at random according to the
  Activity
• We define rules for updating the activity
• Security implications

30
Content Delivery Networks

• Swarmcast/OnionNetworks
• File is stored in multiple locations
• Idea is to retrieve portions of file from
  separate hosts
• File is split into small (32k) pieces
• Requests are random
• Space of packets bigger than file
• Only subset of packets required
• Technique is Forward Error Correction
• Kazaa/Morpheus
• MojoNation (HiveCache)
• Distributed backup and restore system

31
Privacy Networks Publius

• Publius
• Publishers want to publish anonymously
• Servers host random-looking content
• Storage
• The publisher takes the key, K that is used to
  encrypt the file and splits it into n shares,
  such that any k of them can reproduce the
  original K, but k-1 give no hints as to the key.
• Each server receives the encrypted Publius
  content and one of the shares.
• Retrieval
• A retriever must get the encrypted Publius
  content from some server and k of the shares.
• Content is tied to URL that is used to recover
  the data and the shares.

32
Privacy Networks Freehaven

• Anonymity
• Publishers that insert documents,
• Readers that retrieve documents,
• Servers that store documents.
• Uses a free, low-latency, two-way mixnet for
  forward-anonymous communication.
• Accountability
• Reputation and micropayment schemes, which allow
  us to limit the damage done by servers that
  misbehave.
• Persistence
• Publisher of a document determines its lifetime.
• Flexibility
• System functions smoothly as peers dynamically
  join or leave

33
OceanStoreToward Global-Scale, Self-Repairing,
Secure and Persistent Storage

• John Kubiatowicz
• University of California at Berkeley

34
OceanStore Context Ubiquitous Computing

• Computing everywhere
• Desktop, Laptop, Palmtop
• Cars, Cellphones
• Shoes? Clothing? Walls?
• Connectivity everywhere
• Rapid growth of bandwidth in the interior of the
  net
• Broadband to the home and office
• Wireless technologies such as CMDA, Satelite,
  laser
• Where is persistent data????

35
Utility-based Infrastructure?

• Data service provided by storage federation
• Cross-administrative domain
• Pay for Service

36
OceanStore Everyones Data, One Big Utility
The data is just out there

• How many files in the OceanStore?
• Assume 1010 people in world
• Say 10,000 files/person (very conservative?)
• So 1014 files in OceanStore!
• If 1 gig files (ok, a stretch), get 1 mole of
  bytes!
• Truly impressive number of elements but small
  relative to physical constants
• Aside new results 1.5 Exabytes/year (1.5?1018)

37
OceanStore Assumptions

• Untrusted Infrastructure
• The OceanStore is comprised of untrusted
  components
• Individual hardware has finite lifetimes
• All data encrypted within the infrastructure
• Responsible Party
• Some organization (i.e. service provider)
  guarantees that your data is consistent and
  durable
• Not trusted with content of data, merely its
  integrity
• Mostly Well-Connected
• Data producers and consumers are connected to a
  high-bandwidth network most of the time
• Exploit multicast for quicker consistency when
  possible
• Promiscuous Caching
• Data may be cached anywhere, anytime

38
The Peer-To-Peer ViewIrregular Mesh of Pools
39
Key ObservationWant Automatic Maintenance

• Cant possibly manage billions of servers by
  hand!
• System should automatically
• Adapt to failure
• Exclude malicious elements
• Repair itself
• Incorporate new elements
• System should be secure and private
• Encryption, authentication
• System should preserve data over the long term
  (accessible for 1000 years)
• Geographic distribution of information
• New servers added from time to time
• Old servers removed from time to time
• Everything just works

40
Outline Three Technologies anda Principle

• Principle ThermoSpective Systems Design
• Redundancy and Repair everywhere
• Structured, Self-Verifying Data
• Let the Infrastructure Know What is important
• Decentralized Object Location and Routing
• A new abstraction for routing
• Deep Archival Storage
• Long Term Durability

41
Attack Resistant P2P

• Content can be compromised by
• Attack by malicious agents
• Censorship
• Faulty nodes
• Remember
• Nodes have finite resources

42
Gnutella
43
Morpheus/Kazaa
super peer
44
Examples

• Napster shut down by attacks on central server
• Gnutella spammed by Flatplanet
• Removal of a few peers shatters Gnutella
• 63 from 1800 in figures

45
Performance
After deletion of 2/3 of peers, 99 of remainder
can still access 99 of the data items
46
DRN design Jared Saia

• Topology based upon butterfly network (constant
  degree version of hypercube)
• Each vertex of butterfly called a supernode
• Each supernode represents a set of peers
• Each peer is in multiple supernodes

47
DRN Topology
N peers, n supernodes Each peer participates in
Clogn randomly chosen supernodes Supernode X
connected to supernode Y means all nodes in X
connected to all nodes in Y
48
Conclusion

• P2P systems popular today
• Limewire, Kazaa
• Existing P2P systems vulnerable and inefficient
• Many challenges ahead
• Search
• Resource Management
• Security and Privacy

Lots of good research to be done
49
Appendix I

• Open Problems in P2P Data Sharing

50
Open Problems in Data Sharing Peer-To-Peer Systems

• Hector Garcia-Molina
• ICDT Conference, January 10, 2003
• Contributors Mayank Bawa, Brian Cooper, Arturo
  Crespo,
• Neil Daswani, Prasanna Ganesan, Sergio Marti,
• Qi Sun, Beverly Yang and others

51
P2P Challenges

• Search
• Resource Management
• Security Privacy

? not independent challenges!
52
Search

• Search Options
• Query Expressiveness
• Comprehensiveness
• Topology
• Data Placement
• Message Routing

53
Comparison
????
??
????
?
???
54
Content Addressable Network (CAN)
1
Nodes
Data
2
A distributed hash table on Internet scales
55
Comparison
????
?
??
????
????
??
???
?
???
??
56
Challenge Exploring the Space
autonomy

gnutella
can

efficiency
robustness

57
Search Index Link (SIL) Model

• Forwarding search link (FSL)
• Non-forwarding search link (NSL)
• Forwarding index link (FIL)
• Non-forwarding index link (NIL)

58
SIL Model

• Forwarding search link (FSL)
• Non-forwarding search link (NSL)
• Forwarding index link (FIL)
• Non-forwarding index link (NIL)

59
Super-Peer Network
D
E
A
H
C
core
B
G
F
60
SIL Challenges

• Desirable graph properties
• Desirable features
• Dynamic configuration

61
Example Property Redundancy
B
C
A

• Redundancy exists in a SIL graph if a link can
  be removed without reducing coverage

62
Example Undesirable Feature
B
E
A
D
C

• One-index cycle Node A has an index link to B,
  and there is a search path from B to A

63
Avoiding Undesirable Features

• Node D is joining the system
• what neighbors should it connect to?
• what type of links should it use?

B
E
A
D
?
C
64
Open Problems Security

• Availability (e.g., coping with DOS attacks)
• Authenticity
• Anonymity
• Access Control (e.g., IP protection,
  payments,...)

65
Authenticity
title origin of species
author charles darwin
?
date 1859
body In an island far, far away ...
...
66
More than Just File Integrity
title origin of species
author charles darwin
?
date 1859
00
body In an island far, far away ...
checksum
67
More than Fetching One File
Torigin Y? Adarwin B?
68
Solutions

• Authenticity Function A(doc) T or F
• at expert sites, at all sites?
• can use signature expert sig(doc)
  user
• Voting Based
• authentic is what majority says
• Time Based
• e.g., oldest version (available) is authentic

69
Added Challenge Efficiency

• Example Current music sharing
• everyone has authenticity function
• but downloading files is expensive

70
How to Track Peer Behavior?

• Trust Vector v1, v2, v3, v4
  a b c d

• Pair of values total downloads, good
  downloads ?

71
Trust Operations
update?
a
1, .9, .5, 0, 0
.5
.9
b
c
1, 1, 0, .3, 1
1, 0, 1, 1, .2
.3
1
.3
.2
e
d
72
Issues

• Trust computations in dynamic system
• Overloading good nodes
• Bad nodes provide good content sometimes
• Bad nodes can build up reputation
• Bad nodes can form collectives
• ...

73
Sample Results
Fraction of inauthentic downloads
Fraction of malicious peers
74
P2P Challenges

• Search
• Resource Management
• Security and Privacy

75
Resource Management
1
2
capacity C1
capacity C2
3
capacity C3

• Local work ?Ci
• Remote work (1 - ?) Ci

76
Incentives for Remote Work

• What is best value for ??
• How do I get remote nodes to work for me?

2
1
C2
C1

• Local work ?Ci
• Remote work (1 - ?) Ci

3
C3
77
Conclusion

• P2P systems popular today
• Limewire, Kazaa
• Existing P2P systems vulnerable and inefficient
• Many challenges ahead
• Search
• Resource Management
• Security and Privacy

Lots of good research to be done
78
For Additional Information

• Google
• Stanford Peers, OceanStore, Tapestry, Chord
• http//www-db.stanford.edu/peers/
• http//www.freehaven.net/
• http//cs1.cs.nyu.edu/waldman/publius/
• http//www.onionnetworks.com

79
Appendix II

• P2P Architectures

80
Peer-to-Peer is Not Always Decentralizedwhen
Centralization is Good

• Nelson Minar
• ltnelson_at_monkey.orggt
• http//www.media.mit.edu/nelson/

81
Talk Overview

• Topologies of distributed systems
• Strengths and weaknesses
• Conclusions

Warning Broad generalizations ahead
82
What is P2P Anyway?

• Decentralized Systems no
• Popular Power fails test
• Napster fails test
• Most Instant Messaging fails test
• Confuses topology with function
• Edge Resources yes
• Small computers on edges contribute back
• All peers are active participants

83
Distributed Systems Topologies

• Get away from fundamentalism
• Pure P2P, True P2P, etc
• Focus instead on system architecture
• How do the pieces fit together?
• Concentrate on connection topology
• Which topology for which problem?

84
Centralized

• Client/server
• Web servers
• Databases
• Napster search
• Instant Messaging
• Popular Power

85
Ring

• Fail-over clusters
• Simple load balancing
• Assumption
• Single owner

86
Hierarchical

• DNS
• NTP
• Usenet (sort of)

87
Decentralized

• Gnutella
• Freenet
• Hive
• Internet routing

88
(No Transcript)
89
Centralized Centralized

• N-tier apps
• Database heavy systems
• Web services gateways
• Grand Central

90
Centralized Ring

• Serious web applications
• High availability servers

91
Centralized Decentralized

• Clip2 Gnutella Reflector
• FastTrack
• KaZaA
• Morpheus
• Email

92
What about other topologies?

• Centralized Hierarchical?
• Back end tree of information
• Caching architectures
• Decentralized Ring?
• P2P network of fail-over clusters
• Decentralized Hierarchical?
• Decentralized Centralized?

93
Strengths and Weaknesses

• Plenty of topologies to choose from
• What is each kind good for?
• Need a set of properties to measure
• Caution What follows is very high level

94
Things to Measure

• Manageability
• How hard is it to keep working?
• Information coherence
• How authoritative is info? (Auditing,
  non-repudiation)
• Extensibility
• How easy is it to grow?
• Fault tolerance
• How well can it handle failures?
• Security
• How hard is it to subvert?
• Resistance to legal or political intervention
• How hard is it to shut down? (Can be good or bad)
• Scalability
• How big can it grow?

95
Centralized

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• System is all in one place
• All information is in one place
• No one can add on to system
• Single point of failure
• Simply secure one host
• Easy to shut down
• One machine. But in practice?

96
Ring

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• Simple rules for relationships
• Easy logic for state
• Only ring owner can add
• Fail-over to next host
• As long as ring has one owner
• Shut down owner
• Just add more hosts

97
Hierarchical

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• Chain of authority
• Cache consistency
• Add more leaves, rebalance
• Root is vulnerable
• Too easy to spoof links
• Just shut down the root
• Hugely scalable DNS

98
Decentralized

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• Very difficult, many owners
• Difficult, unreliable peers
• Anyone can join in!
• Redundancy
• Difficult, open research
• No one to sue! (but follow )
• Theory yes Practice no

99
Centralized Ring

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• Just manage the ring
• As coherent as ring
• No more than ring
• Ring is a huge win
• As secure as ring
• Still single place to shut down
• Ring is a huge win

Common architecture for web applications
100
Centralized Decentralized

• Manageable
• Coherent
• Extensible
• Fault Tolerant
• Secure
• Lawsuit-proof
• Scalable

• Same as decentralized
• Better than decentralized
• Anyone can still join!
• Plenty of redundancy
• Same as decentralized
• Still no one to sue
• Looking very hopeful

Best architecture for P2P networks?
101
Centralized vs. Decentralized

• Centralized is pretty good!
• Manageable
• Coherent
• Security
• Decentralized is exciting
• Extensible
• Massive fault tolerance
• Lawsuit-proof
• Scalability is the big question

102
Conclusions

• Centralized is easy to deal with
• Major architecture for distributed systems
• Combines well with rings
• Decentralized is good, needs research
• Coherence, Manageability, Security
• Scalability
• Hierarchical is overlooked
• Combining architectures is powerful

103
Peer-to-Peer is Not Always Decentralizedwhen
Centralization is Good

• Nelson Minar
• ltnelson_at_monkey.orggt
• http//www.media.mit.edu/nelson/

Thanks to Marc Hedlund, Raffi Krikorian, Tony
White
104
Appendix III

• P2P Industry

105
P2P Industry Outline

• Theres no peer-to-peer market any more than
  theres a client/server market Anne Manes, Sun
  Microsystems
• Peer-to-peer encompasses a wide range of
  technologies centered around decentralizing
  computing
• Business and revenue models are still fuzzy
• There are clear opportunities and research
  excitement

106
Distribution of P2P Companies
Category Examples Industry Share
Distributed Computing Entropia United Devices 35
Collaboration / Knowledge Management Groove Networks Engenia 20
Content Distribution Akamai Proksim 10
Infrastructure / Platform Akavi Xdegrees 10
File Sharing Kazaa Napster 10
Distributed Search OpenCola Thinkstream 5
(From P2P 101 An Overview of the P2P Landscape
by Larry Cheng)
107
Major Features of P2P Industry

• (From P2P 101 An Overview of the P2P Landscape
  by Larry Cheng)
• Lack of experienced, quality management teams
• Lack of detailed business models
• Skeptical investors
• 150 active companies
• Estimated 95 failure rate
• The elephant in the room is the fact that most
  companies here are not commercially viable. -
  Heard from a speaker at OReilly

108
Current P2P Business Models

• Sell P2P products to end-users
• No current revenue-generating business model
• Sometimes coupled with content-sale models
• Sell content through P2P
• Subscription-based I buy content from you
• Sponsor-based Someone pays you to give me
  content
• Ad-based You give me content and sell ads

109
Current P2P Business Models

• Sell something which lets others profit from P2P
• Solve a critical problem for decentralized
  applications
• Offer support and enhanced services for free
  tools
• Specialized packages for particular industries
• Tools and libraries for P2P infrastructure
• The people most likely to make money during a
  Gold Rush are the ones selling pickaxes and
  shovels. Andy Oram, The OReilly Network
