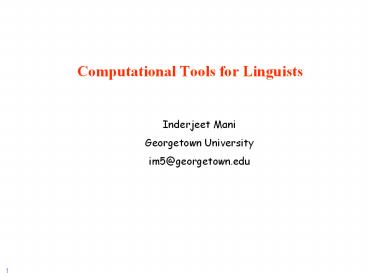

Computational Tools for Linguists

• Inderjeet Mani
• Georgetown University
• im5_at_georgetown.edu

2
Topics

• Computational tools for
• manual and automatic annotation of linguistic
  data
• exploration of linguistic hypotheses
• Case studies
• Demonstrations and training
• Inter-annotator reliability
• Effectiveness of annotation scheme
• Costs and tradeoffs in corpus preparation

3
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

4
Corpus Linguistics

• Use of linguistic data from corpora to test
  linguistic hypotheses gt emphasizes language use
• Uses computers to do the searching and counting
  from on-line material
• Faster than doing it by hand! Check?
• Most typical tool is a concordancer, but there
  are many others!
• Tools can analyze a certain amount, rest is left
  to human!
• Corpus Linguistics is also a particular approach
  to linguistics, namely an empiricist approach
• Sometimes (extreme view) opposed to the
  rationalist approach, at other times (more
  moderate view) viewed as complementary to it
• Cf. Theoretical vs. Applied Linguistics

5
Empirical Approaches in Computational Linguistics

• Empiricism the doctrine that knowledge is
  derived from experience
• Rationalism the doctrine that knowledge is
  derived from reason
• Computational Linguistics is, by necessity,
  focused on performance, in that naturally
  occurring linguistic data has to be processed
• Naturally occurring data is messy! This means we
  have to process data characterized by false
  starts, hesitations, elliptical sentences, long
  and complex sentences, input that is in a complex
  format, etc.
• The methodology used is corpus-based
• linguistic analysis (phonological, morphological,
  syntactic, semantic, etc.) carried out on a
  fairly large scale
• rules are derived by humans or machines from
  looking at phenomena in situ (with statistics
  playing an important role)

6
Example metonymy

• Metonymy substituting the name of one referent
  for another
• George W. Bush invaded Iraq
• A Mercedes rear-ended me
• Is metonymy involving institutions as agents more
  common in print news than in fiction?
• The X Vreporting
• Lets start with The X said
• This pattern will provide a handle to identify
  the data

7
Exploring Corpora

• Datasets
• http//complingtwo.georgetown.edu/cgi-bin/gwilson/
  bin/DataSets.cgi
• Metonymy Test using Corpora
• http//complingtwo.georgetown.edu/gwilson/Tools/M
  etonymy/TheXSaid_MST.html

8
The X said from Concordance data
Words Freq Freq/ M Words
Fiction 1870 1.7M 60 35
Fiction 2000 1.5M 219 146
Print News 1.9M 915 481
The preference for metonymy in print news arises
because of the need to communicate Information
from companies and governments.
9
Chomskys Critique of Corpus-Based Methods

• 1. Corpora model performance, while linguistics
  is aimed at the explanation of competence
• If you define linguistics that way, linguistic
  theories will never be able to deal with actual,
  messy data
• Many linguists dont find the competence-performan
  ce distinction to be clear-cut. Sociolinguists
  have argued that the variability of linguistic
  performance is systematic, predictable, and
  meaningful to speakers of a language.
• Grammatical theories vary in where they draw the
  line between competence and performance, with
  some grammars (such as Hallidays Systemic
  Grammar) organized as systems of
  functionally-oriented choices.

10
Chomskys Critique (concluded)

• 2. Natural language is in principle infinite,
  whereas corpora are finite, so many examples will
  be missed
• Excellent point, which needs to be understood by
  anyone working with a corpus.
• But does that mean corpora are useless?
• Introspection is unreliable (prone to performance
  factors, cf. only short sentences), and pretty
  useless with child data.
• Also, insights from a corpus might lead to
  generalization/induction beyond the corpus if
  the corpus is a good sample of the text
  population
• 3. Ungrammatical examples wont be available in a
  corpus
• Depends on the corpus, e.g., spontaneous speech,
  language learners, etc.
• The notion of grammaticality is not that clear
• Who did you see pictures/?a picture/??his
  picture/Johns picture of?
• ARG/ADJUNCT example

11
Which Words are the Most Frequent?
Common Words in Tom Sawyer (71,730 words), from
Manning Schutze p.21
Will these counts hold in a different corpus (and
genre, cf. Tom)? What happens if you have 8-9M
words? (check usage demo!)
12
Data Sparseness

• Many low-frequency words
• Fewer high-frequency words.
• Only a few words will have lots of examples.
• About 50 of word types occur only once
• Over 90 occur 10 times or less.
• So, there is merit to Chomskys 2nd objection

Word Frequency Number of words of that frequency
1 3993
2 1292
3 664
4 410
5 243
6 199
7 172
8 131
9 82
10 91
11-50 540
51-100 99
gt100 102
Frequency of word types in Tom Sawyer, from MS
22.
13
Zipfs Law Frequency is inversely proportional
to rank
turned 51 200 10200
youll 30 300 9000
name 21 400 8400
comes 16 500 8000
group 13 600 7800
lead 11 700 7700
friends 10 800 8000
begin 9 900 8100
family 8 1000 8000
brushed 4 2000 8000
sins 2 3000 6000
could 2 4000 8000
applausive 1 8000 8000
Empirical evaluation of Zipfs Law on Tom Sawyer,
from MS 23.
14
Illustration of Zipfs Law (Brown Corpus, from
MS p. 30)
logarithmic scale

• See also http//www.georgetown.edu/faculty/wilsong
  /IR/WordDist.html

15
Tokenizing words for corpus analysis

• 1. Break on
• Spaces? ????????????????
• inuo butta otokonokowa
  otooto da
• Periods? (U.K. Products)
• Hyphens? data-base database data base
• Apostrophes? wont, couldnt, ORiley, cars
• 2. should different word forms be counted as
  distinct?
• Lemma a set of lexical forms having the same
  stem, the same pos, and the same word-sense. So,
  cat and cats are the same lemma.
• Sometimes, words are lemmatized by stemming,
  other times by morphological analysis, using a
  dictionary and/or morphological rules
• 3. fold case or not (usually folded)?
• The the THE Mark versus mark
• One may need, however, to regenerate the original
  case when presenting it to the user

16
Counting Word Tokens vs Word Types

• Word tokens in Tom Sawyer 71,370
• Word types (i.e., how many different words)
  8,018
• In newswire text of that number of tokens, you
  would have 11,000 word types. Perhaps because Tom
  Sawyer is written in a simple style.

17
Inspecting word frequencies in a corpus

• http//complingtwo.georgetown.edu/cgi-bin/gwilson/
  bin/DataSets.cgi
• Usage demo
• http//complingtwo.georgetown.edu/cgi-bin/gwilson/
  bin/Usage.cgi

18
Ngrams

• Sequences of linguistic items of length n
• See count.pl

19
A test for association strength Mutual
Information
Data from (Church et al. 1991)
1988 AP corpus N44.3M
20
Interpreting Mutual Information

• High scores, e.g., strong supporter (8.85)
  indicates strongly associated in the corpus
• MI is a logarithmic score. To convert it, recall
  that X2 log2X
• so, 28.85 ? 461.44. So this is 461 X chance.
• Low scores powerful support (1.74) this is 3X
  chance, since 21.74 ? 3
• I fxy fx fy x
  y
• 1.74 2 1984 13,428 powerful support
• I log2 (2N/198413428) 1.74
• So, doesnt necessarily mean weakly associated
  could be due to data sparseness

21
Mutual Information over Grammatical Relations

• Parse a corpus
• Determine subject-verb-object triples
• Identify head nouns of subject and object NPs
• Score subj-verb and verb-obj associations using MI

22
Demo of Verb-Subj, Verb-Obj Parses

• Who devours or what gets devoured?
• Demo http//www.cs.ualberta.ca/lindek/demos/depi
  ndex.htm

23
MI over verb-obj relations

• Data from (Church et al. 1991)

24
A Subj-Verb MI Example Who does what in news?

• executive police politician
• reprimand 16.36 shoot 17.37 clamor
  16.94
• conceal 17.46 raid 17.65 jockey 17.53
• bank 18.27 arrest 17.96 wrangle 17.59
• foresee 18.85 detain 18.04 woo 18.92
• conspire 18.91 disperse 18.14 exploit 19.57
• convene 19.69 interrogate 18.36 brand 19.65
• plead 19.83 swoop 18.44 behave 19.72
• sue 19.85 evict 18.46 dare 19.73
• answer 20.02 bundle 18.50 sway 19.77
• commit 20.04 manhandle 18.59 criticize 19.78
• worry 20.04 search 18.60 flank 19.87
• accompany 20.11 confiscate 18.63 proclaim 19.91
• own 20.22 apprehend 18.71 annul 19.91
• witness 20.28 round 18.78 favor 19.92

Data from (Schiffman et al. 2001)
25
Famous Corpora

• Must see http//www.ldc.upenn.edu/Catalog/
• Brown Corpus
• British National Corpus
• International Corpus of English
• Penn Treebank
• Lancaster-Oslo-Bergen Corpus
• Canadian Hansard Corpus
• U.N. Parallel Corpus
• TREC Corpora
• MUC Corpora
• English, Arabic, Chinese Gigawords
• Chinese, ArabicTreebanks
• North American News Text Corpus
• Multext East Corpus 1984 in multiple
  Eastern/Central European langauges

26
Links to Corpora

• Corpora
• Linguistic Data Consortium (LDC)
  http//www.ldc.upenn.edu/
• Oxford Text Archive http//sable.ox.ac.uk/ota/
• Project Gutenberg http//www.promo.net/pg/
• CORPORA list http//www.hd.uib.no/corpora/archive.
  html
• Other
• Chris Mannings Corpora Page
• http//www-nlp.stanford.edu/links/statnlp.htmlCor
  pora
• Michael Barlows Corpus Linguistics page
  http//www.ruf.rice.edu/barlow/corpus.html
• Cathy Balls Corpora tutorial http//www.georgetow
  n.edu/faculty/ballc/corpora/tutorial.html

27
Summary Introduction

• Concordances and corpora are widely used and
  available, to help one to develop
  empirically-based linguistic theories and
  computer implementations
• The linguistic items that can be counted are
  many, but words (defined appropriately) are
  basic items
• The frequency distribution of words in any
  natural language is Zipfian
• Data sparseness is a basic problem when using
  observations in a corpus sample of language
• Sequences of linguistic items (e.g., word
  sequences n-grams) can also be counted, but the
  counts will be very rare for longer items
• Associations between items can be easily computed
• e.g., associations between verbs and
  parser-discovered subjs or objs

28
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

29
Using POS in Concordances
Words Freq Freq/ Words
Fiction 2000 N \bdeal_NN 1.5M 115 7.66
Fiction 2000 VB 1.5M 14 9.33
Gigaword N 10.5M 2857 2.72
Gigaword VB 10.5M 139 1.32
deal is more often a verb In Fiction 2000
deal is more often a noun in English
Gigaword deal is more prevalent in Fiction 2000
than Gigaword
30
POS Tagging What is it?

• Given a sentence and a tagset of lexical
  categories, find the most likely tag for each
  word in the sentence
• Tagset e.g., Penn Treebank (45 tags, derived
  from the 87-tag Brown corpus tagset)
• Note that many of the words may have unambiguous
  tags
• Example
• Secretariat/NNP is/VBZ expected/VBN to/TO race/VB
  tomorrow/NN
• People/NNS continue/VBP to/TO inquire/VB the/DT
  reason/NN for/IN the/DT race/NN for/IN outer/JJ
  space/NN

31
More details of POS problem

• How ambiguous?
• Most words in English have only one Brown Corpus
  tag
• Unambiguous (1 tag) 35,340 word types
• Ambiguous (2- 7 tags) 4,100 word types 11.5
• 7 tags 1 word type still
• But many of the most common words are ambiguous
• Over 40 of Brown corpus tokens are ambiguous
• Obvious strategies may be suggested based on
  intuition
• to/TO race/VB
• the/DT race/NN
• will/MD race/NN
• Sentences can also contain unknown words for
  which tags have to be guessed Secretariat/NNP
  is/VBZ

32
Different English Part-of-Speech Tagsets

• Brown corpus - 87 tags
• Allows compound tags
• I'm tagged as PPSSBEM
• PPSS for "non-3rd person nominative personal
  pronoun" and BEM for "am, 'm
• Others have derived their work from Brown Corpus
• LOB Corpus 135 tags
• Lancaster UCREL Group 165 tags
• London-Lund Corpus 197 tags.
• BNC 61 tags (C5)
• PTB 45 tags
• To see comparisons ad mappings of tagsets, go to
  www.comp.leeds.ac.uk/amalgam/tagsets/tagmenu.html

33
PTB Tagset (36 main tags 9 punctuation tags)
34
PTB Tagset Development

• Several changes were made to Brown Corpus tagset
• Recoverability
• Lexical Same treatment of Be, do, have, whereas
  BC gave each its own symbol
• Do/VB does/VBZ did/VBD doing/VBG done/VBN
• Syntactic Since parse trees were used as part of
  Treebank, conflated certain categories under the
  assumption that they would be recoverable from
  syntax
• subject vs. object pronouns (both PP)
• subordinating conjunctions vs. prepositions on
  being informed vs. on the table (both IN)
• Preposition to vs. infinitive marker (both TO)
• Syntactic Function
• BC the/DT one/CD vs. PTB the/DT one/NN
• BC both/ABX vs.
• PTB both/PDT the boys, the boys both/RB,
  both/NNS of the boys, both/CC boys and girls

35
PTB Tagging Process

• Tagset developed
• Automatic tagging by rule-based and statistical
  pos taggers
• Human correction using an editor embedded in Gnu
  Emacs
• Takes under a month for humans to learn this (at
  15 hours a week), and annotation speeds after a
  month exceed 3,000 words/hour
• Inter-annotator disagreement (4 annotators, eight
  2000-word docs) was 7.2 for the tagging task and
  4.1 for the correcting task
• Manual tagging took about 2X as long as
  correcting, with about 2X the inter-annotator
  disagreement rate and an error rate that was
  about 50 higher.
• So, for certain problems, having a linguist
  correct automatically tagged output is far more
  efficient and leads to better reliability among
  linguists compared to having them annotate the
  text from scratch!

36
Automatic POS tagging

• http//complingone.georgetown.edu/linguist/

37
A Baseline Strategy

• Choose the most likely tag for each ambiguous
  word, independent of previous words
• i.e., assign each token to the pos-category it
  occurred in most often in the training set
• E.g., race which pos is more likely in a
  corpus?
• This strategy gives you 90 accuracy in
  controlled tests
• So, this unigram baseline must always be
  compared against

38
Beyond the Baseline

• Hand-coded rules
• Sub-symbolic machine learning
• Symbolic machine learning

39
Machine Learning

• Machines can learn from examples
• Learning can be supervised or unsupervised
• Given training data, machines analyze the data,
  and learn rules which generalize to new examples
• Can be sub-symbolic (rule may be a mathematical
  function) e.g. neural nets
• Or it can be symbolic (rules are in a
  representation that is similar to representation
  used for hand-coded rules)
• In general, machine learning approaches allow for
  more tuning to the needs of a corpus, and can be
  reused across corpora

40
A Probabilistic Approach to POS tagging

• What you want to do is find the best sequence
  of pos-tags CC1..Cn for a sentence WW1..Wn.
• (Here C1 is pos_tag(W1)).
• In other words, find a sequence of pos tags
  Cthat maximizes P(C W)
• Using Bayes Rule, we can say
• P(C W) P(W C) P(C) / P(W )
• Since we are interested in finding the value of C
  which maximizes the RHS, the denominator can be
  discarded, since it will be the same for every C
• So, the problem is Find C which maximizes
• P(W C) P(C)

• Example He will race
• Possible sequences
• He/PP will/MD race/NN
• He/PP will/NN race/NN
• He/PP will/MD race/VB
• He/PP will/NN race/VB
• W W1 W2 W3
• He will race
• C C1 C2 C3
• Choices
• C PP MD NN
• C PP NN NN
• C PP MD VB
• C PP NN VB

41
Independence Assumptions

• P(C1.Cn) ? ?i1, n P(Ci Ci-1)
• assumes that the event of a pos-tag occurring is
  independent of the event of any other pos-tag
  occurring, except for the immediately previous
  pos tag
• From a linguistic standpoint, this seems an
  unreasonable assumption, due to long-distance
  dependencies
• P(W1.Wn C1.Cn) ? ?i1, n P(Wi Ci)
• assumes that the event of a word appearing in a
  category is independent of the event of any other
  word appearing in a category
• Ditto
• However, the proof of the pudding is in the
  eating!
• N-gram models work well for part-of-speech
  tagging

42
A Statistical Method for POS Tagging
MD NN VB PRP he 0 0 0
.3 will .8 .2 0 0 race 0
.4 .6 0

• Find the value of C1..Cn which maximizes
• ?i1, n P(Wi Ci) P(Ci Ci-1)

Pos bigram probs
lexical generation probabilities
lexical generation probs
CR MD NN VB PRP MD .4 .6 NN
.3 .7 PP .8 .2 ?
1
pos bigram probs
43
Finding the best path through an HMM
C
E
willMD .8
raceNN .4
.4
Viterbi algorithm
A
.8
hePP 1
1
ltsgt?
lex(B)
.3
F
.6
B
.2
willNN .2
raceVB .6
.7
D

• Score(I) Max J pred I Score(J)
  transition(IJ) lex(I)
• Score(B) P(PP?) P(hePP) 1.3.3
• Score(C)Score(B) P(MDPP) P(willMD)
  .3.8.8 .19
• Score(D)Score(B) P(NNPP) P(willNN)
  .3.2.2 .012
• Score(E) Max Score(C)P(NNMD),
  Score(D)P(NNNN) P(raceNN)
• Score(F) Max Score(C)P(VBMD),
  Score(D)P(VBNN)P(raceVB)

44
But Data Sparseness Bites Again!

• Lexical generation probabilities will lack
  observations for low-frequency and unknown words
• Most systems do one of the following
• Smooth the counts
• E.g., add a small number to unseen data (to zero
  counts). For example, assume a bigram not seen in
  the data has a very small probability, e.g.,
  .0001.
• Backoff bigrams with unigrams, etc.
• Use lots more data (youll still lose, thanks to
  Zipf!)
• Group items into classes, thus increasing class
  frequency
• e.g., group words into ambiguity classes, based
  on their set of tags. For counting, alll words in
  an ambiguity class are treated as variants of the
  same word

45
A Symbolic Learning Method

• HMMs are subsymbolic they dont give you rules
  that you can inspect
• A method called Transformational Rule Sequence
  learning (Brill algorithm) can be used for
  symbolic learning (among other approaches)
• The rules (actually, a sequence of rules) are
  learnt from an annotated corpus
• Performs at least as accurately as other
  statistical approaches
• Has better treatment of context compared to HMMs
• rules which use the next (or previous) pos
• HMMs just use P(Ci Ci-1) or P(Ci Ci-2Ci-1)
• rules which use the previous (next) word
• HMMs just use P(WiCi)

46
Brill Algorithm (Overview)

• Assume you are given a training corpus G (for
  gold standard)
• First, create a tag-free version V of it
• Notes
• As the algorithm proceeds, each successive rule
  becomes narrower (covering fewer examples, i.e.,
  changing fewer tags), but also potentially more
  accurate
• Some later rules may change tags changed by
  earlier rules

• 1. First label every word token in V with most
  likely tag for that word type from G. If this
  initial state annotator is perfect, youre
  done!
• 2. Then consider every possible transformational
  rule, selecting the one that leads to the most
  improvement in V using G to measure the error
• 3. Retag V based on this rule
• 4. Go back to 2, until there is no significant
  improvement in accuracy over previous iteration

47
Brill Algorithm (Detailed)

• 1. Label every word token with its most likely
  tag (based on lexical generation probabilities).
• 2. List the positions of tagging errors and their
  counts, by comparing with ground-truth (GT)
• 3. For each error position, consider each
  instantiation I of X, Y, and Z in Rule template.
  If YGT, increment improvementsI, else
  increment errorsI.
• 4. Pick the I which results in the greatest
  error reduction, and add to output
• e.g., VB NN PREV1OR2TAG DT improves 98 errors,
  but produces 18 new errors, so net decrease of 80
  errors
• 5. Apply that I to corpus
• 6. Go to 2, unless stopping criterion is reached

• Most likely tag
• P(NNrace) .98
• P(VBrace) .02
• Is/VBZ expected/VBN to/TO race/NN tomorrow/NN
• Rule template Change a word from tag X to
  tag Y when previous tag is Z
• Rule Instantiation to above example NN VB
  PREV1OR2TAG TO
• Applying this rule yields
• Is/VBZ expected/VBN to/TO race/VB tomorrow/NN

48
Example of Error Reduction
From Eric Brill (1995) Computational
Linguistics, 21, 4, p. 7
49
Example of Learnt Rule Sequence

• 1. NN VB PREVTAG TO
• to/TO race/NN-gtVB
• 2. VBP VB PREV1OR20R3TAG MD
• might/MD vanish/VBP-gt VB
• 3. NN VB PREV1OR2TAG MD
• might/MD not/MD reply/NN -gt VB
• 4. VB NN PREV1OR2TAG DT
• the/DT great/JJ feast/VB-gtNN
• 5. VBD VBN PREV1OR20R3TAG VBZ
• He/PP was/VBZ killed/VBD-gtVBN by/IN Chapman/NNP

50
Handling Unknown Words

• Can also use the Brill method
• Guess NNP if capitalized, NN otherwise.
• Or use the tag most common for words ending in
  the last 3 letters.
• etc.

Example Learnt Rule Sequence for Unknown Words
51
POS Tagging using Unsupervised Methods

• Reason Annotated data isnt always available!
• Example the can
• Lets take unambiguous words from dictionary, and
  count their occurrences after the
• the .. elephant
• the .. guardian
• Conclusion immediately after the, nouns are more
  common than verbs or modals

• Initial state annotator for each word, list all
  tags in dictionary
• Transformation template
• Change tag ? of word to tag Y if the previous
  (next) tag (word) is Z, where ? is a set of 2 or
  more tags
• Dont change any other tags

52
Error Reduction in Unsupervised Method

• Let a rule to change ? to Y in context C be
  represented as Rule(?, Y, C).
• Rule1 VB, MD, NN NN PREVWORD the
• Rule2 VB, MD, NN VB PREVWORD the
• Idea
• since annotated data isnt available, score rules
  so as to prefer those where Y appears much more
  frequently in the context C than all others in ?
• frequency is measured by counting unambiguously
  tagged words
• so, prefer VB, MD, NN NN PREVWORD the
• to VB, MD, NN VB PREVWORD the
• since dict-unambiguous nouns are more common in
  a corpus after the than dict-unambiguous verbs

53
Summary POS tagging

• A variety of POS tagging schemes exist, even for
  a single language
• Preparing a POS-tagged corpus requires, for
  efficiency, a combination of automatic tagging
  and human correction
• Automatic part-of-speech tagging can use
• Hand-crafted rules based on inspecting a corpus
• Machine Learning-based approaches based on corpus
  statistics
• e.g., HMM lexical generation probability table,
  pos transition probability table
• Machine Learning-based approaches using rules
  derived automatically from a corpus
• Combinations of different methods often improve
  performance

54
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

55
Adjective Ordering

• A political serious problem
• A social extravagant life
• red lovely hair
• old little lady
• green little men
• Adjectives have been grouped into various classes
  to explain ordering phenomena

56
Collins COBUILD L2 Grammar

• qualitative lt color lt classifying
• Qualitative expresses a quality that someone or
  something has, e.g., sad, pretty, small, etc.
• Qualitative adjectives are gradable, i.e., the
  person or thing can have more or less of the
  quality
• Classifying used to identify the class
  something belongs to, i.e.., distinguishing
• financial help, American citizens.
• Classifying adjectives arent gradable.
• So, the ordering reduces to
• Gradable lt color lt non-gradable
• A serious political problem
• Lovely red hair
• Big rectangular green Chinese carpet

57
Vendler 68

• A9 lt A8 lt A2 lt A1x ltA1m lt ltA1a
• A9 probably, likely, certain
• A8 useful, profitable, necessary
• A7 possible, impossible
• A6 clever, stupid, reasonable, nice, kind,
  thoughtful, considerate
• A5 ready, willing, anxious
• A4 easy
• A3 slow, fast, good, bad, weak, careful,
  beautiful
• A2 contrastive/polar adjectives long-short,
  thick-thin, big-little, wide-narrow
• A1j verb-derivatives washed
• A1i verb-derivatives washing
• A1h luminous
• A1g rectangular
• A1f color adjectives
• A1a iron, steel, metal
• big rectangular green Chinese carpet

58
Other Adjective Ordering Theories
Goyvaerts 68 quality lt size/length/shape lt age lt color lt naturally lt style lt general lt denominal
Quirck Greenbaum 73 Intensifying perfect lt general-measurable careful wealthy lt age young old lt color lt denominal material woollen scarf lt denominal style Parisian dress
Dixon 82 value lt dimension lt physical property lt speed lt human propensity lt age lt color
Frawley 92 value lt size lt color (English, German, Hungarian, Polish, Turkish, Hindi, Persian, Indonesian, Basque)
Collins COBUILD gradable lt
color lt non-gradable Goyvaerts, QG, Dixon
size lt age lt color Goyvaerts, QG
color lt denominal Goyvaerts,
Dixon shape lt color
59
Testing the Theories on Large Corpora

• Selective coverage of a particular language or
  (small) set of languages
• Based on categories that arent defined precisely
  that are computable
• Based on small large numbers of examples
• Test gradable lt color lt non-gradable

60
Computable Tests for Gradable Adjectives

• Submodifiers expressing gradation
• veryrathersomewhatextremely A
• But what about very British?
• http//complingtwo.georgetown.edu/gwilson/Tools/A
  dj/GW_Grad.txt
• Periphrastic comparatives
• more A than "the most A
• Inflectional comparatives
• -er-est
• http//complingtwo.georgetown.edu/gwilson/Tools/A
  dj/BothLists.txt

61
Challenges Data Sparseness

• Data sparseness
• Only some pairs will be present in a given corpus
• few adjectives on the gradable list may be
  present
• Even fewer longer sequences will be present in a
  corpus
• Use transitivity?
• small lt red, red lt wooden --gt small lt red lt
  wooden?

62
Challenges Tool Incompleteness

• Search pattern will return many non-examples
• Collocations
• common or marked ones
• American green card
• national Blue Cross
• Adjective Modification
• bright blue
• POS-tagging errors
• May also miss many examples

63
Results from Corpus Analysis

• G lt C lt not G generally holds
• However, there are exceptions
• Classifying/Non-Gradable lt Color
• After all, the maple leaf replaced the British
  red ensign as Canada's flag almost 30 years ago.
• http//complingtwo.georgetown.edu/gwilson/Tools/A
  dj/Color2.html
• where he stood on a stage festooned with balloons
  displaying the Palestinian green, white and red
  flag
• http//complingtwo.georgetown.edu/gwilson/Tools/A
  dj/Color4.html
• Color lt Shape
• paintings in which pink, roundish shapes,
  enriched with flocking, gel, lentils and thread,
  suggest the insides of the female body.
• http//complingtwo.georgetown.edu/gwilson/Tools/A
  dj/Color4.html

64
Summary Adjective Ordering

• It is possible to test concrete predictions of a
  linguistic theory in a corpus-based setting
• The testing means that the machine searches for
  examples satisfying patterns that the human
  specifies
• The patterns can pre-suppose a certain/high
  degree of automatic tagging, with attendant loss
  of accuracy
• The patterns should be chosen so that they
  provide handles to identify the phenomena of
  interest
• The patterns should be restricted enough that the
  number of examples the human has to judge is not
  infeasible
• This is usually an iterative process

65
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Named Entity Tagging
• Inter-Annotator Reliability
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

66
The Art of Annotation 101

• Define Goal
• Eyeball Data (with the help of Computers)
• Design Annotation Scheme
• Develop Example-based Guidelines
• Unless satisfied/exhausted, goto 1
• WriteTraining Manuals
• Initiate HumanTraining Sessions
• Annotate Data / Train Computers
• Computers can also help with the annotation
• Evaluate Humans and Computers
• Unless satisfied/exhausted, goto 1

67
Annottation Methodology Picture
Raw Corpus
Initial Tagger
Annotation Editor
Annotation Guidelines
Machine Learning Program
Rule Apply
Learned Rules
Raw Corpus
Annotated Corpus
Annotated Corpus
Knowledge Base?
68
Goals of an Annotation Scheme

• Simplicity simple enough for a human to carry
  out
• Precision precise enough to be useful in CLI
  applications
• Text-based annotation of an item should be
  based on information conveyed by the text, rather
  than information conveyed by background
  information
• Human-centered should be based on what a human
  can infer from the text, rather than what a
  machine can currently do or not do
• Reproducible your annotation should be
  reproducible by other humans (i.e.,
  inter-annotator agreement should be high)
• obviously, these other humans may have to have
  particular expertise and training

69
What Should An Annotation Contain

• Additional Information about the text being
  annotated e.g., EAGLES external and internal
  criteria
• Information about the annotator who, when, what
  version of tool, etc. (usually in meta-tags
  associated with the text)
• The tagged text itself
• Example
• http//www.emille.lancs.ac.uk/spoken.htm

70
External and Internal Criteria (EAGLES)

• External participants, occasion, social
  setting, communicative function
• origin Aspects of the origin of the text that
  are thought to affect its structure or content.
• state the appearance of the text, its layout and
  relation to non-textual matter, at the point when
  it is selected for the corpus.
• aims the reason for making the text and the
  intended effect it is expected to have.
• Internal patterns of language use
• Topic (economics, sports, etc.)
• Style (formal/informal, etc.)

71
External Criteria state (EAGLES)

• Mode
• spoken
• participant awareness surreptitious/warned/aware

• venue studio/on location/telephone
• written
• Relation to the medium
• written how it is laid out, the paper, print,
  etc.
• spoken the acoustic conditions, etc.
• Relation to non-linguistic communicative matter
• diagrams, illustrations, other media that are
  coupled with the language in a communicative
  event.
• Appearance
• e.g., advertising leaflets, aspects of
  presentation that are unique in design and are
  important enough to have an effect on the
  language.

72
Examples of annotation schemes (changing the way
we do business!)

• POS tagging annotation Penn Treebank Scheme
• Named entity annotation ACE Scheme
• Phrase Structure annotation Penn Treebank
  scheme
• Time Expression annotation TIMEX2 Scheme
• Protein Name Annotation GU Scheme
• Event Annotation TimeML Scheme
• Rhetorical Structure Annotation - RST Scheme
• Coreference Annotation, Subjectivity Annotation,
  Gesture Annotation, Intonation Annotation,
  Metonymy Annotation, etc., etc.
• Etc.
• Several hundred schemes exist, for different
  problems in different languages

73
POS Tag Formats Non-SGML to SGML

• CLAWS tagger non-SGML
• What_DTQ can_VM0 CLAWS_NN2 do_VDI to_PRP
  Inderjeet_NP0 's_POS noonsense_NN1 text_NN1 ?_?
• Brill tagger non-SGML
• What/WP can/MD CLAWS/NNP do/VB to/TO
  Inderjeet/NNP 's/POS noonsense/NN text/NN ?/.
• Alembic POS tagger
• ltsgtltlex posWPgtWhatlt/lexgt ltlex posMDgtcanlt/lexgt
  ltlex posNNPgtCLAWSlt/lexgt ltlex posVBgtdolt/lexgt
  ltlex posTOgttolt/lexgt ltlex posNNPgtInderjeetlt/lexgt
  ltlex posPOSgt'lt/lexgtltlex posPRPgtslt/lexgt ltlex
  posVBPgtnoonsenselt/lexgt ltlex posNNgttextlt/lexgt
  ltlex pos"."gt?lt/lexgtlt/sgt
• Conversion to SGML is pretty trivial in such
  cases

74
SGML (Standard Generalized Markup Language)

• A general markup language for text
• HTML is an instance of an SGML encoding
• Text Encoding Initiative (TEI) defines SGML
  schemes for marking up humanities text resources
  as well as dictionaries
• Examples
• ltpgtltsgtIm really hungry right now.lt/sgtltsgtOh,
  yeah?lt/sgt
• ltutt speakFred date10-Feb-1998gtThat is an
  ugly couch.lt/uttgt
• Note some elements (e.g., ltpgt) can consist just
  of a single tag

• Character references ways of referring to the
  non-ASCII characters using a numeric code
• 229 (this is in decimal) xE5 (this is in
  hexadecimal)
• å
• Entity references are used to encode a special
  character or sequence of characters via a
  symbolic name
• reacutesumeacute.
• docdate

75
DTDs

• A document type definition, or DTD, is used to
  define a grammar of legal SGML structures for a
  document
• e.g., para should consist of one or more
  sentences and nothing else
• SGML parser verifies that document is compliant
  with DTD
• DTDs can therefore be used for XML as well
• DTDs can specify what attributes are required, in
  what order, what their legit values are, etc.
• The DTDs are often ignored in practice!

• DTD
• lt!ENTITY writer SYSTEM "http//www.mysite.com/all-
  entities.dtd"gt
• lt!ATTLIST payment type (checkcash) "cash"gt
• XML
• ltauthorgtwriterlt/authorgt
• ltpayment type"check"gt

76
XML

• Extensible Markup Language (XML) is a simple,
  very flexible text format derived from SGML.
• Originally designed to meet the challenges of
  large-scale electronic publishing, XML is also
  playing an increasingly important role in the
  exchange of a wide variety of data on the Web and
  elsewhere. www.w3.org/XML/
• Defines a simplified subset of SGML, designed
  especially for Web applications
• Unlike HTML, separates out display (e.g., XSL)
  from content (XML)
• Example
• ltp/gtltsgtltlex posWPgtWhatlt/lexgt ltlex
  posMDgtcanlt/lexgtlt/sgt
• Makes use of DTDs, but also RDF Schemas

77
RDF Schemas

• Example of Real RDF Schema
• http//www.cs.brandeis.edu/jamesp/arda/time/docum
  entation/TimeML.xsd (see EVENT tag and
  attributes)

78
Inline versus Standoff Annotation

• Usually, when tags are added, an annotation tool
  is used, to avoid spurious insertions or
  deletions
• The annotation tool may use inline or standoff
  annotation
• Inline tags are stored internally in (a copy
  of) the source text.
• Tagged text can be substantially larger than
  original text
• Web pages are a good example i.e., HTML tags
• Standoff tags are stored internally in separate
  files, with information as to what positions in
  the source text the tags occupy
• e.g., PERSON 335 337
• However, the annotation tool displays the text as
  if the tags were in-line

79
Summary Annotation Issues

• A best-practices methodology is widely used
  for annotating corpora
• The annotation process involves computational
  tools at all stages
• Standard guidelines are available for use
• To share annotated corpora (and to ensure their
  survivability), it is crucial that the data be
  represented in a standard rather than ad hoc
  format
• XML provides a well-established, Web-compliant
  standard for markup languages
• DTDs and RDF provide mechanisms for checking
  well-formedness of annotation

80
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

81
Background

• Deborah Schiffrin. Anaphoric then aspectual,
  textual, and epistemic meaning. Linguistics 30
  (1992), 753-792
• Schiffrin xamines uses of then in data elicited
  via 20 sociolinguistic interviews, each an hour
  long
• Distinguishes two anaphoric temporal senses,
  showing that they are differentiated by clause
  position
• Shows that they have systematic effects on
  aspectual interpretation
• A parallel argument is made for two epistemic
  temporal senses

82
Schiffrin Temporal and Non-Temporal Senses

• Anaphoric Senses
• Narrative temporal sense (shifts reference
  time)
• And then I uh lived there until I was sixteen
• Continuing Temporal sense (continues a previous
  reference time)
• I was only a little boy then.
• Epistemic senses
• Conditional sentences (rare, but often have
  temporal antecedents in her data)
• But if I think about it for a few days -- well,
  then I seem to remember a great deal
• if Im still in the situation where I am
  now.Im, not gonna have no more then
• Initiation-response-evaluation sequences (in
  that case?)
• Freda Do y still need the light?
• Debby Um.
• Freda Wll have t go in then. Because the bugs
  are out.

83
Schiffrins Argument (Simplified) and Its Test

• Shifting RT thens (call these Narrative) then
  in if-then conditionals
• similar semantic function
• mainly clause-initial
• Continuing RT thens (call these Temporal) IRE
  thens
• similar semantic function
• mainly clause final
• stative verb more likely (since RT overlaps,
  verbs conveying duration are expected)
• Call the rest Other
• isnt differentiated into if-then versus IRE
• So, only part of her claims tested

84
So, What do we do Then?

• Define environments of interest, each one defined
  by a pattern
• For each environment
• Find examples matching the pattern
• If classifying the examples is manageable, carry
  it out and stop
• Otherwise restrict the environment by adding new
  elements to the pattern, and go back to 1
• So, for each final environment, we claim that X
  of the examples in that environment are of a
  particular class
• Initial then Pattern (_CC_RB)\sthen\w\s\w

• Final then Pattern \,\sthen\.\?\'\\!\

85
Exceptions

• Non-Narrative Initial then
• then there be
• then come
• then again
• then and now
• only then
• even then
• so then

• Non-Temporal Final then
• What then?
• All right/OK , then
• And then?

86
Results
Written Fiction 2000 Written Fiction 2000 Written Fiction 2000 Spoken Broadcast News Spoken Broadcast News Spoken Broadcast News Written Gigaword News Written Gigaword News Written Gigaword News
T N O T N O T N O
Clause Initial 1.73 (23/1322) 96.67 (1276/1322) 1.58 (21/1322) .73 (6/818) 93.88(768/818) 5.3 (44/818) 3.64 (27/740) 75.94 (562/740) 20.40 (151/740)
Clause Final 71.81 (79/110) 2.72 (3/110) 25.45 (28/110) 72.61 (61/84) 5.95 (5/84) 21.42 (18/84) 93.23 (179/192) 0 6.77 (13/192)
Other is a presence in final position in fiction
and broadcast news, and in initial position in
print news. Is this real or artifact of catch-all
class? Conclusion only part of her claims
tested. But those claims are borne out across
three different genres and much more data!
87
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

88
Considerations in Inter-Annotator Agreement

• Size of tagset
• Structure of tagset
• Clarity of Guidelines
• Number of raters
• Experience of raters
• Training of raters
• Independent ratings (preferred)
• Consensus (not preferred)
• Exact, partial, and equivalent matches
• Metrics
• Lessons Learned Disagreement patterns suggest
  guideline revisions

89
Protein Names

• Considerable variability in the forms of the
  names
• Multiple naming conventions
• Researchers may name a newly discovered protein
  based on
• function
• sequence features
• gene name
• cellular location
• molecular weight
• discoverer
• or other properties
• Prolific use of abbreviations and acronyms

• fushi tarazu 1 factor homolog
• Fushi tarazu factor (Drosophila) homolog 1
• FTZ-F1 homolog ELP
• steroid/thyroid/retinoic nuclear hormone
  receptor homolog nhr-35
• V-INT 2 murine mammary tumor virus integration
  site oncogene homolog
• fibroblast growth factor 1 (acidic) isoform 1
  precursor
• nuclear hormone receptor subfamily 5, Group A,
  member 1

90
Guidelines v1 TOC
91
Agreement Metrics
Reference Candidate Candidate
Yes No
Yes TP ? FN
No FP TN ?
Measure Definition
Percentage Agreement 100(TPTN)/ (TPFPTNFN)
Precision TP/(TPFP)
Recall TP/(TPFN)
(Balanced) F-Measure 2PrecisionRecall/(PrecisionRecall)
92
Example for F-measure Scorer Output (Protein
Name Tagging)

• REFERENCE
  CANDIDATE
• CORR        FTZ-F1 homolog ELP
             FTZ-F1 homolog ELP INCO
  M2-LHX3
      M2SPUR

  -SPUR
                              LHX3
• Precision ¼ 0.25
• Recall ½ 0.5
• F-measure 2 ¼ ½ / ( ¼ ½ ) 0.33

93
The importance of disagreement

• Measuring inter-annotator agreement is very
  useful in debugging the annotation scheme
• Disagreement can lead to improvements in the
  annotation scheme
• Extreme disagreement can lead to abandonment of
  the scheme

94
V2 Assessment (ABS2)

• Old Guidelines
• protein 0.71 F
• acronym 0.85 F
• array-protein 0.15 F
• New Guidelines
• protein 0.86 F
• long-form 0.71 F
• these are only 4 of tags

Coders Correct Precision Precision Recall Recall F-mea- sure
ltproteingt ltproteingt ltproteingt ltproteingt ltproteingt ltproteingt
A1-A3 4497 0.874 0.852 0.852 0.863 0.863
A1-A4 4769 0.884 0.904 0.904 0.894 0.894
A3-A4 4476 0.830 0.870 0.870 0.849 0.849
Average 0.862 0.875 0.875 0.868 0.868
ltlong-formgt ltlong-formgt ltlong-formgt ltlong-formgt ltlong-formgt ltlong-formgt
A1-A3 172 0.720 0.599 0.599 0.654 0.654
A1-A4 241 0.837 0.840 0.840 0.838 0.838
A3-A4 175 0.608 0.732 0.732 0.664 0.664
Average 0.721 0.723 0.723 0.718 0.718
95
TIMEX2 Annotation Scheme

• Time Points ltTIMEX2 VAL"2000-W42"gtthe third week
  of Octoberlt/TIMEX2gt
• Durations ltTIMEX2 VALPT30Mgthalf an hour
  longlt/TIMEX2gt
• Indexicality ltTIMEX2 VAL2000-10-04gttomorrowlt/T
  IMEX2gt
• Sets ltTIMEX2 VALXXXX-WXX-2" SET"YES
  PERIODICITY"F1W" GRANULARITYG1Dgtevery
  Tuesdaylt/TIMEX2gt
• Fuzziness ltTIMEX2 VAL1990-SUgtSummer of 1990
  lt/TIMEX2gt
• ltTIMEX2 VAL1999-07-15TMOgtThis
  morninglt/TIMEX2gt
• Non-specificity ltTIMEX2 VAL"XXXX-04"
  NON_SPECIFICYESgtAprillt/TIMEX2gt is usually wet.
• For guidelines, tools, and corpora, please see
  timex2.mitre.org

96
TIMEX2 Inter-Annotator Agreement
193 NYT news docs 5 annotators 10 pairs of
annotators

• Human annotation quality is acceptable on
  EXTENT and VAL
• Poor performance on Granularity and Non-Specific
• But only a small number of instances of these
  (200 6000)
• Annotators deviate from guidelines, and produce
  systematic errors (fatigue?)
• several years ago PXY instead of PAST_REF
• all day P1D instead of YYYY-MM-DD

97
TempEx in Qanda
98
Summary Inter-Annotator Reliability

• Theres no point going on with an annotation
  scheme if it cant be reproduced
• There are standard methods for measuring
  inter-annotator reliability
• An analysis of inter-annotator disagreements is
  critical for debugging an annotation scheme

99
Outline

• Topics
• Concordances
• Data sparseness
• Chomskys Critique
• Ngrams
• Mutual Information
• Part-of-speech tagging
• Annotation Issues
• Inter-Annotator Reliability
• Named Entity Tagging
• Relationship Tagging

• Case Studies
• metonymy
• adjective ordering
• Discourse markers then
• TimeML

100
Information Extraction

• Types
• Flag names of people, organizations, places,
• Flag and normalize time expressions, phrases such
  as time expressions, measure phrases, currency
  expressions, etc.
• Group coreferring expressions together
• Find relations between named entities (works for,
  located at, etc.)
• Find events mentioned in the text
• Find relations between events and entities
• A hot commercial technology!
• Example patterns
• Mr. ---,
• , Ill.

101
Message Understanding Conferences (MUCs)

• Idea precise tasks to measure success, rather
  than test suite of input and logical forms.
• MUC-1 1987 and MUC-2 1989 - messages about navy
  operations
• MUC-3 1991 and MIC-4 1992 - news articles and
  transcripts of radio broadcasts about terrorist
  activity
• MUC-5 1993 - news articles about joint ventures
  and microelectronics
• MUC-6 1995 - news articles about management
  changes, additional tasks of named entity
  recognition, coreference, and template element
• MUC-7 1998 mostly multilingual information
  extraction
• Has also been applied to hundreds of other
  domains - scientific articles, etc., etc.

102
Historical Perspective

• Until MUC-3 (1993), many IE systems used a
  Knowledge Engineering approach
• They did something like full chart parsing with a
  unification-based grammar with full logical
  forms, a rich lexicon and KB
• E.g., SRIs Tacitus
• Then, they discovered that things could work much
  faster using finite-state methods and partial
  parsing
• And that using domain-specific rather than
  general purpose lexicons simplified parsing (less
  ambiguity due to fewer irrelevant senses)
• And that these methods worked even better for the
  IE tasks
• E.g., SRIs Fastus, SRAs Nametag
• Meanwhile, people also started using statistical
  learning methods from annotated corpora
• Including CFG parsing

103
An instantiated scenario template
Source
Wall Street Journal, 06/15/88 MAXICARE HEALTH
PLANS INC and UNIVERSAL HEALTH SERVICES INC have
dissolved a joint venture which provided health
services.
104
Templates Can get Complex! (MUC-5)
105
2002 Automatic Content Extraction (ACE) Program
Entity Types

• Person
• Organization
• (Place)
• Location e.g., geographical areas, landmasses,
  bodies of water, geological formations
• Geo-Political Entity e.g., nations, states,
  cities
• Created due to metonymies involving this class of
  places
• The riots in Miami
• Miami imposed a curfew
• Miami railed against a curfew
• Facility buildings, streets, airports, etc.

106
ACE Entity Attributes and Relations

• Attributes
• Name An entity mentioned by name
• Pronoun
• Nominal
• Relations
• AT based-in, located, residence
• NEAR relative-location
• PART part-of, subsidiary, other
• ROLE affiliate-partner, citizen-of, client,
  founder, general-staff, manager, member, owner,
  other
• SOCIAL associate, grandparent, parent, sibling,
  spouse, other-relative, other-personal,
  other-professional

107
Designing an Information Extraction Task

• Define the overall task
• Collect a corpus
• Design an Annotation Scheme
• linguistic theories help
• Use Annotation Tools
• - authoring tools
• -automatic extraction tools
• Apply to annotation to corpus, assessing
  reliability
• Use training portion of corpus to train
  information extraction (IE) systems
• Use test portion to test IE systems, using a
  scoring program

108
Annotation Tools

• Specialized authoring tools used for marking up
  text without damaging it
• Some tools are tied to particular annotation
  schemes

109
Annotation Tool Example Alembic Workbench
110
Callisto (Java successor to Alembic Workbench)
111
Relationship Annotation Callisto
112
Steps in Information Extraction

• Tokenization
• Language Identification
• D
