Title: Omnidirectional Vision


1

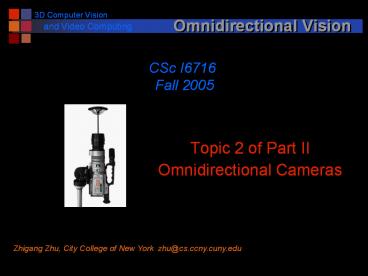

Omnidirectional Vision
CSc I6716 Fall 2005
  • Topic 2 of Part II
  • Omnidirectional Cameras

Zhigang Zhu, City College of New York
zhu_at_cs.ccny.cuny.edu
2
Lecture Outline
  • Applications
  • Robot navigation, Surveillance, Smart rooms
  • Video-conferencing/ Tele-presence
  • Multimedia/Visualization
  • Page of Omnidirectional Vision (Many universities
    and companies.)
  • http//www.cis.upenn.edu/kostas/omni.html
  • Design Requirements
  • 360 degree FOV, or semi-sphere or full sphere in
    one snapshot
  • Single effective viewpoint
  • Image Resolutions one or more cameras?
  • Image Sharpness optics as well as geometry
  • Several Important Designs
  • Catadioptric imaging mirror (reflection) lens
    ( refraction)
  • Mirrors Planar, Conic, Spherical, Hyperboloidal,
    Ellipsoidal, Paraboloidal
  • Systematic design ( S. Nayars group)

3
Sensor Design
  • Catadioptric imaging
  • mirror (reflection) lens ( refraction)
  • Theory of Catadioptric Image Formation ( S.
    Nayars group)
  • "A Theory of Single-Viewpoint Catadioptric Image
    Formation" , Simon Baker and Shree K. Nayar
    ,International Journal of Computer Vision, 1999.
  • Mirrors
  • Planar
  • Conic, Spherical
  • Hyperboloidal, Ellipsoidal
  • Paraboloidal
  • Cameras (Lens)
  • Perspective (pinhole) or orthogonal (tele-centric
    lens) projection
  • One or more?
  • Implementations
  • Compactness - size, support, and installation
  • Optics Image sharpness, reflection, etc.

4
Planar Mirror
  • Panoramic camera system using a pyramid with four
    (or more) planar mirrors and four (or more)
    cameras (Nalwa96) has a single effective
    viewpoint

Mirror pyramid
6 cameras
4 camera design and 6 camera prototype FullView
- Lucent Technology http//www.fullview.com/
5
Planar Mirror
  • Panoramic camera system using a pyramid with four
    (or more) planar mirrors and four (or more)
    cameras (Nalwa96) has a single effective
    viewpoint

Geometry of 4 camera approach four separate
cameras in 4 viewpoints can generate images with
a single effective viewpoint
6
Planar Mirror Approach
  • A single effective viewpoint
  • More than one cameras
  • High image resolution

7
Planar Mirror Approach
  • A single effective viewpoint
  • More than one cameras
  • High image resolution

8
Conic Mirror
  • Viewpoints on a circle
  • semispherical view except occlusion
  • Perspective projection in each direction
  • Robot Navigation (Yagi90, Zhu96/98)

9
Spherical Mirror
  • Viewpoints on a spherical-like surface
  • Easy to construct (Hong91 -UMass )

10
Hyperboloidal Mirror
  • Single Viewpoint
  • if the pinhole of the real camera and the virtual
    viewpoint are located at the two loci of the
    hyperboloid
  • Semi-spherical view except the self occlusion

11
Hyperboloidal Mirror
  • ACCOWLE Co., LTD, A Spin-off at Kyoto University
  • http//www.accowle.com/english/
  • Spherical Mirror
  • Hyperbolic Mirror

Image High res. in the top
12
Ellipsoidal Mirror
  • Single Viewpoint
  • if the pinhole of the real camera and the virtual
    viewpoint are located at the two loci of the
    ellipsoid
  • Semi-spherical view except the self occlusion

13
Panoramic Annular Lens
- geometric mathematical model for image
transform calibration
panoramic annular lens (PAL) - invented by Pal
Greguss 40 mm in diameter, C-mount view H
360, V -15 20 single view point (O)
14
Panoramic Annular Lens
  • panoramic annular lens (PAL)
  • - invented by P. Greguss
  • 40 mm in diameter, C-mount
  • view H 360, V -15 20
  • single view point (O)
  • C-Mount to CCD Cameras

Image High res. In the bottom
15
Cylindrical panoramic un-warping
Two Steps (1). Center determination (2)
Distortion rectification 2-order polynomial
approximation
16
Paraboloidal Mirror
  • Semi-spherical view except the self occlusion
  • Single Viewpoint at the locus of the paraboloid,
    if
  • Tele-lens - orthographic projection is used
  • Mapping between image, mirror and the world
    invariant to translation of the mirror. This
    greatly simplifies calibration and the
    computation of perspective images from
    paraboloidal images

17
Paraboloidal Mirror
  • Remote Reality A Spin-off at Columbia
    University
  • http//www.remotereality.com/

Camcorder
Web Camera
Back to Back Full Spherical View
18
Paraboloidal Mirror
  • Remote Reality A Spin-off at Columbia
    University
  • http//www.remotereality.com/

19
Catadioptric Camera Calibration
  • Omnidirectional Camera Calibration Harder or
    Easier?
  • In general, the reflection by the 2nd order
    surface makes the calibration procedure harder
  • However, 360 view may be helpful
  • Paraboloidal mirror orthogonal projection
  • Mapping between image, mirror and the world
    invariant to translation of the mirror.
  • Projections of two sets of parallel lines suffice
    for intrinsic calibration from one view
  • C. Geyer and K. Daniilidis, "Catadioptric Camera
    calibration", In Proc. Int. Conf. on Computer
    Vision, Kerkyra, Greece, Sep. 22-25, pp. 398-404,
    1999.

20
Image Properties of Paraboloid System
(Assuming aspect ratio 1)
  • The Image of a Line
  • is a circular arc if the line is not parallel to
    the optical axis
  • Is projected on a (radial) line otherwise
  • Dual Vanishing Points
  • There are two VPs for each set of parallel lines,
    which are the intersections of the corresponding
    circles
  • Collinear Centers
  • The center of the circles for a set of parallel
    lines are collinear
  • Vanishing Circle
  • The vanishing points of lines with coplanar
    directions lie on a circle ( all the lines
    parallel to a common plane)

21
Image Properties of Paraboloid System
(with aspect ratio)
  • The Image Center
  • Is on the (vanishing) line connecting the dual
    vanishing points of each set of parallel lines
  • Can be determined by two sets of parallel lines
  • Projection of a Line with unknown aspect ratio
  • Is an elliptical arc in the general case
  • The Aspect Ratio
  • Is determined by the ratio of the lone-short axes
    of the ellipse corresponding to a line
  • Intrinsic Calibration
  • Estimate aspect ratio by the ratio of ellipse
  • Estimate the image center by the intersection of
    vanishing lines of two sets of parallel lines in
    3-D space

22
Calibration of Paraboloid System
  • The Image Center
  • Is on the (vanishing) line connecting the dual
    vanishing points of each set of parallel lines
  • Can be determined by two sets of parallel lines

23
Calibration of Paraboloid System
  • The Image Center
  • Yellow vanishing line of horizontal set of
    parallel lines
  • Pink vanishing line of vertical set of parallel
    lines
  • The Vanishing Circle (Red dotted)
  • The vanishing points of lines with coplanar
    directions ( on a plane in this example)

Projected to the plane of the calibration pattern
24
Next
  • Turn in your projects and schedule meetings with
    me

END
