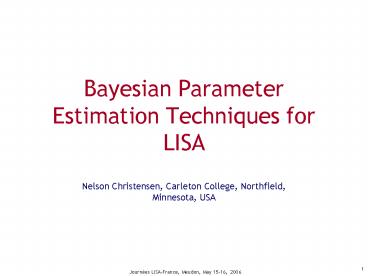

Bayesian Parameter Estimation Techniques for LISA

1
Bayesian Parameter Estimation Techniques for LISA

• Nelson Christensen, Carleton College,
  Northfield, Minnesota, USA

2
Outline of talk

• Bayesian methods - Quick Review
• Fundamentals
• Markov chain Monte Carlo (MCMC) Methods
• LISA data analysis applications
• LISA source confusion problem
• Time Delay Interferometry variables
• Parameter Estimation Binary inspiral signals

3
MCMC Collaborators

• Glasgow Physics and Astronomy Dr. Graham Woan,
  Dr. Martin Hendry, John Veitch
• Auckland Statistics Dr. Renate Meyer, Richard
  Umstätter, Christian Röver

4
Why Bayesian methods?
Orthodox statistical methods are concerned solely
with deductions following experiments with
populations
" The trouble is that what we statisticians
call modern statistics was developed under strong
pressure on the part of biologists. As a result,
there is practically nothing done by us which is
directly applicable to problems of astronomy."
Jerzy Neyman, founder of frequentist hypothesis
testing.
5
Why Bayesian methods?
Bayesian methods explore the joint probability
space of data and hypotheses within some global
model, quantifying their joint uncertainty and
consistency as a scalar function
means given
There is only one algebra consistent with this
idea (and some further, very reasonable,
constraints), which leads to (amongst other
things) the product rule
6
Why Bayesian methods?
Bayes theorem the appropriate rule for updating
our degree of belief (in one of several
hypotheses within some world view) when we have
new data
Posterior
Evidence, or global likelihood
7
Marginalisation

• We can also deduce the marginal probabilities.
  If X and Y are propositions that can take on
  values drawn from
  and then
  this gives us the probability of X when we
  dont care about Y. In these circumstances, Y is
  known as a nuisance parameter.
• All these relationships can be smoothly extended
  from discrete probabilities to probability
  densities, e.g.where p(y)dy is the
  probability that y lies in the range y to ydy.

1
8
Markov Chain Monte Carlo methods

• We need to be able to evaluate marginal integrals
  of the form
• The approach is to sample in the
  space so that the density of samples
  reflects the posterior probability
  .
• MCMC algorithms perform random walks in the
  parameter space so that the probability of being
  in a hypervolume dV is
  .
• The random walk is a Markov chain the transition
  probability of making a step depends on the
  proposed location, and the current location
• MCMC - demonstrated success with problems with
  large parameter number.
• Used by Google, WMAP, Financial Markets, LISA???

9
Metropolis-Hastings Algorithm

• We want to explore . Let the current
  location be .
• Choose a candidate state using a proposal
  distribution .
• Compute the Metropolis ratio
• If Rgt1 then make the step (i.e., )if
  Rlt1 then make the step with probability R,
  otherwise set , so that the
  location is repeated.i.e., make the step with an
  acceptance probability
• Choose the next candidate based on the (new)
  current position

r
10
Metropolis-Hastings Algorithm

• at form a Markov chain drawn from p(a), so a
  histogram of at, or any of its components,
  approximates the (joint) pdf of those
  components.
• The form of the acceptance probability guarantees
  reversibility even for proposal distributions
  that are asymmetric.
• There is a burn-in period before the equilibrium
  distribution is reached

11
Application to LISA data analysis Source
Confusion Problem TDI Variables Parameter
Estimation for Signals
12
LISA source identification

• This has implications for the analysis of LISA
  data, which is expected to contain many (perhaps
  50,000) signals from white dwarf binaries. The
  data will contain resolvable binaries and
  binaries that just contribute to the overall
  noise (either because they are faint or because
  their frequencies are too close
  together).Bayes can sort these
  out without having to introduce ad hoc acceptance
  and rejection criteria, and without needing to
  know the true noise level (whatever that
  means!).

13
Things that are not generally true

• A time series of length T has a frequency
  resolution of 1/T.
• Frequency resolution also depends on
  signal-to-noise ratio. We know the period of PSR
  191316 to 1e-13 Hz, but havent been observing
  it for 3e5 years. In fact frequency
  resolution is
• you can subtract sources piece-wise from data.
• Only true if the source signals are
  orthogonal over the observation period.
• frequency confusion sets a fundamental limit for
  low-frequency LISA.
• This limit is set by parameter confusion,
  which includes sky location and other relevant
  parameters (with a precision dependent on snr).

14
LISA source identification

• Toy (zeroth-order LISA) problem You are given
  a time series of 1000 data points comprising a
  number of sinusoids embedded in gaussian noise.
  Determine the number of sinusoids, their
  amplitudes, phases and frequencies and the
  standard deviation of the noise.
• We could think of this as comparing hypotheses Hm
  that there are m sinusoids in the data, with m
  ranging from 0 to mmax. Equivalently, we could
  consider this a parameter fitting problem, with m
  an unknown parameter within the global model.
  signalparameterised bygiving dataand a
  likelihood

15
LISA source identification

• With suitably chosen priors on m and am we can
  write down the full posterior pdf of the
  modelBut this is (3m2) dimensional, with m
  100 in our toy problem, so the direct evaluation
  of marginal pdfs for, say, m or ?m or to extract
  the pdf of a component amplitude, is unfeasible.
• Explore this space using a modified Markov Chain
  Monte Carlo technique

16
Reversible Jump MCMC

• Trans-dimensional moves (changing m) cannot be
  performed in conventional MCMC. We need to make
  jumps from to dimensions
• Reversibility is guaranteed if the acceptance
  probability for an upward transition is
  where is the
  Jacobian determinant of the transformation of the
  old parameters and proposal random vector r
  drawn from q(r) to the new set of parameters,
  i.e. .
• We use two sorts of trans-dimensional moves
• split and merge involving adjacent signals
• birth and death involving single signals

17
Trans-dimensional split-and-merge transitions

• A split transition takes the parameter subvector
  from ak and
  splits it into two components of similar
  frequency but about half the amplitude

A
A
f
f
18
Trans-dimensional split-and-merge transitions

• A merge transition takes two parameter subvectors
  and merges them to their mean

A
A
f
f
19
Initial values

• A good initial choice of parameters greatly
  decreases the length of the burn-in period to
  reach convergence (equilibrium). For simplicity
  we use a thresholded FFT
• The threshold is set low, as it is easier to
  destroy bad signals that to create good ones.

20
Simulations

• 1000 time samples with Gaussian noise
• 100 embedded sinusoids of form
• As and Bs chosen randomly in -1 1
• fs chosen randomly in 0 ... 0.5
• NoisePriors
• Am,Bm uniform over -55
• fm uniform over 0 ... 0.5
• has a standard vague inverse- gamma prior
  IG( 0.001,0.001)

21
results teaser (spectral density)
energy
energy density
energy density
frequency
22
results teaser (spectral density)
energy
energy density
energy density
frequency
23
Strong, close signals
A
A
B
f
f
1/T
B
24
Signal mixing

• Two signals (red and green) approaching in
  frequency

25
Marginal pdfs for m and ?
26
Spectral density estimates
27
Joint energy/frequency posterior
28
Well-separated signals (1/T)
These signals (separated by 1 Nyquist step) can
be easily distinguished and parameterized.
29
Closely-spaced signals
Signals can be distinguished, but parameter
estimation in difficult.
95 contour
30
Source Confusion Extensions to full LISA

• We have implemented an MCMC method of extracting
  useful information from zeroth-order LISA data
  under difficult conditions.
• Extension to orbital Doppler/source location
  information should improve source identification.
  This code extension is currently being tested.
• Extension to TDI variables is straightforward.
  Raw Doppler measurements could also be used, with
  a suitable data covariance matrix.
• There is nothing special about WD-WD signals
  here. Similar analyses could be performed for BH
  mergers, EMRI sources etc

31
Time Delay Interferometry (TDI) variables

• Principal Component Analysis (PCA)
• See Romano and Woan gr-qc/0602033
• Estimate signal parameters and noise with MCMC
• All information is in the likelihood
• TDI variables fall right out

32
Simple Example with Correlated Noise

• Data from 2 detectors
• s1 p n1 h1 s2 p n2 h2
• Astro-signal h12a and h2a
• n1 and n2 uncorrelated noise, p common noise all
  noise zero mean
• ltn12gt lt n22gt ?n2 and ltp2gt ?p2
• Uncorrelated ltn1n2gt ltn1pgt ltn2pgt 0
• Likelihood p(s1,s2a) ? exp-Q/2
• Q?(si-hi)C-1ij(sj-hj) C-noise covariance matrix

33
Principal Component Analysis

• C- find eigenvectors, factorize likelihood
• p(s1,s2a) ? p(sa)p(s-a)
• ss1s2 and s-s1-s2 where
• p(sa) ? exp(s-3a)2/(8?p2 4?n2)
• p(s-a) ? exp(s--a)2 /(4?n2)
• For LISA ?p2gtgt?n2, so there is
• no loss of information by
• doing statistical inference
• only on the s- term - TDI.

34
More Realistic LISA

• Data streams
• s1 D3p2 - p1 n1 h1
• s1 D2p3 - p1 n1 h1
• D - delay operator
• MCMC- Everything is in
• the likelihood.
• Toy problem - sinusoidal gravity wave from above
  LISA 3 signal parameters and 9 noise levels.
  1000 data points at 1 Hz.
• ?p2gtgt?n2 and ?pgtgth

35
Trace Plots

• Markov
• Chains
• Posterior
• PDFs made
• from these

36
Parameter Estimation

• Posterior
• PDFs for signal
• parameters
• and
• noise levels.

37
TDI Variables Summary

• TDI variables fall out of likelihood - matches
  well to MCMC approach
• Simplify calculation for MCMC too
• Incorporate LISA complexity, step by step.
  Realistic noise and signal terms, LISA orbit, arm
  length change, etc.
• MCMC methods handle large parameter number
  computational time grows linearly
• Long-term effort to develop realistic LISA
  scenario, with good prospects for success

38
Parameter Estimation for Signals

• Binary Inspiral as an MCMC exercise
• Numerous parameters
• MCMC can provides means for estimates
• Applications for other types of signals too
• Demonstrated to work with a network of
  ground-based interferometers - extend this work
  to LISA

39
Interferometer Detection

• Single Detector - 5 parameters m1, m2, effective
  distance dL, phase ?c and time tc at coalescence
• Reparameterize mass chirp mass mc and ?
• For multi-detectors- Coherent addition of signals
• Parameters for estimation m1, m2, ?c, tc, actual
  distance d, polarization ?, angle of inclination
  of orbital plane ?, sky position RA and dec

40
Amplitude Correction Work with Inspirals
We have already developed an inspiral (ground
based interferometer) MCMC pipeline for signals
that are 3.5 Post-Newtonian (PN) in phase, 2.5
PN in the amplitude Time domain templates, then
FFT into frequency domain MCMC provides
parameter estimation and statistics. Future
work will include spin of masses
41
Likelihood for Inspiral Signal

• Work in the frequency domain
• Detector output z(t) is the sum of gravity wave
  signal s(t,?), that depends on unknown parameters
  ?, and the noise n(t)
• z(t)s(t,?)n(t)
• Noise spectral density Sn(f)

42
Ground based example 2 LIGO sites and Virgo.
Code works, but optimization is still in progress.
43
(No Transcript)
44
MCMC LISA Summary

• LISA faces extremely complex data analysis
  challenges
• MCMC methods have demonstrated record of success
  with large parameter number problems
• MCMC for source confusion - binary background
• TDI variables, signal and noise estimation
• Parameter estimation binary inspirals and other
  waveforms

45
Delayed rejection

• Sampling can be improved (beyond Metropolis
  Hastings) if a second proposal is made following,
  and based on, an initial rejected proposal. The
  initial proposal is only rejected if this second
  proposal is also rejected.
• Acceptance probability of the second stage has to
  be chosen to preserve reversibility (detailed
  balance)acceptance probability for 1st
  stageand for the 2nd stage
• Delayed Rejection Reversible Jump Markov Chain
  Monte Carlo methodDRRJMCMC Green Mira (2001)
  Biometrika 88 1035-1053.

46
Label-switching

• As set up, the posterior is invariant under
  signal renumbering we have not specified what
  we mean by signal 1.
• Break the symmetry by ordering in frequency
• Fix m at the most probable number of signals,
  containing n MCMC steps.
• Order the nm MCMC parameter triples (A,B,f) in
  frequency.
• Perform a rough density estimate to divide the
  samples into m blocks.
• Perform an iterative minimum variance cluster
  analaysis on these blocks.
• Merge clusters to get exactly m signals.
• Tag the parameter triples in each cluster.

f
47
Application to the LISA confusion problem
