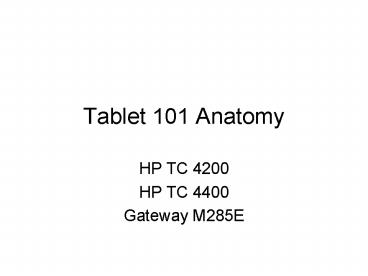

Tablet 101 Anatomy

1
Tablet 101 Anatomy

• HP TC 4200
• HP TC 4400
• Gateway M285E

2
What Is Tablet PC?

• A full-featured computer running Windows XP
  Tablet PC Edition, a superset of Windows XP
  Professional
• A highly mobile computer that enables new usage
  scenarios
• A powerful platform enabling a new generation of
  business applications

Windows XP
Tablet PC
SP1
Tablet PCComponents
Windows XP Professional
Service Pack 1
3
Convertible Tablets
4
Front Side TC 4400/4200
5
Back Side TC 4400/4200
6
Left Side of TC 4400/4200
7
Right Side of TC 4400/4200
8
Lights for TC 4400
9
Display Components TC 4400/4200
10
Pointing Devices TC 4400
11
Pen Activated Buttons TC 4400
12
Keys TC 4400
13
Keyboard TC 4200
14
Hot Key Reference TC 4400
15
Buttons and Reader TC 4400
16
Bottom of TC 4400
17
Bottom TC 4200
18
The Front of the M285E
19
7-in-1 Media Card Reader

• Memory Stick
• Memory Stick Pro
• MultiMediaCard
• Secure Digital
• xD Picture Card
• Mini Secure Digital
• RS-MultiMediaCard

20
The Port Side M285E
21
The Other Side M285E
22
The Bottom M285E
23
Marking Systems

• Mark your Power Supply and also your Tablet
• Use a business card and scotch tape
• Other types of marking is not encouraged and may
  be addressed in the districts acceptable use
  policy
• Some Year 1 schools etched the stylus and/or used
  a lanyard

24
The Keyboard Area
25
Status Indicators
26
Tablet control buttons
27
Five Way Switch Controlled by the Mode Button

• Mode 1 (Default) Controls scrolling in documents
  and in your internet browser
• Up/Down scrolling
• Right/Left Forward/Back (browser)
• Center portion is Enter
• Mode 2 Controls audio and video
• Up/Down brightness control
• Right/Left volume up and down
• Center mute volume

28
Using the EZ Pad touchpad
29
Converting the display from notebook to tablet
mode
30
Releasing the Pen

• To remove the pen, slide the release button
  towards the top of the pen

31
Using the Pen/Stylus
32
More Tablet Information From Microsoft Spend Time
Here
33
Stylus/Digitizer Thoughts

• Utilizes a plastic tip that is pressure sensitive
• Translates to lines, letters, numbers and even to
  some extent thicker lines with more pressure
• Stylus is to some extent machine specific
• Digitizer is linked to a given machine and stylus

34
More Stylus Thoughts

• Hold in a normal comfortable manner
• Be certain to rest your hand on the screen
• Do NOT attempt the Zorro method of using the
  stylus

35
Opening the Tablet and Pen Settings
Change tablet and pen settings
Two ways to open 1. Right mouse click and
properties 2. Double click
Start button, Control Panel, and Tablet and Pen
Setting
36
Tablet and Pen Setting Dialog Box Settings
Settings Tab Active Click the Calibrate
button Calibrate button
37
The Calibrate Screen
38
Calibrating the System

• This will need to be done for both the Portrait
  and Landscape modes
• Will also need to be done on a periodic basis

39
Additional Items to Think About Purchasing

• USB Flash/Jump/Thumb drives
• USB extender cables

40
Additional Items to Think About Purchasing

• USB Travel Hub
• Be certain it is USB 2.0
• Wireless optical mouse is a plus when working in
  laptop mode

41
Final Items to Purchase

• Microphone and headset combo for voice input
• CDs
• Note CD-R vs CD R/W

42
FM Modulator

• FM Modulator for sound out from portable computer
• Broadcasts to an FM boom box

43
A Book to Consider Purchasing

• ABSOLUTE BEGINNERS GUIDE TO Tablet PCs
• Author Craig Forrest Mathews
• Published by Que Publishing
• ISBN 0-789-73049-9
• US Price 18.95

44
