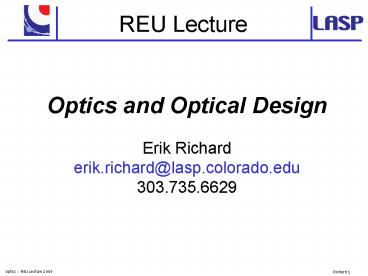

REU Lecture

1
REU Lecture
Optics and Optical Design Erik
Richard erik.richard_at_lasp.colorado.edu 303.735.662
9
2
Outline

• Brief Review Nature of Light (Electromagnetic
  Radiation)
• Propagation of EM waves
• Interaction with matter
• Wave-particle duality
• Brief Review Optics Concepts
• Refraction
• Reflection
• - Diffraction grating characteristics
• Imaging characteristics of lenses and mirrors
• Detectors
• Instrument Design and Function
• Drawings
• Block Diagram
• Mechanisms

3
Nature of Light (Electromagnetic Radiation)

• Classical Definition Energy Propagating in the
  form of waves
• Many physical processes give rise to EM
  radiation including accelerating charged
  particles and emission by atoms and molecules.

4
Electromagnetic Spectrum

• Velocity, frequency and wavelength are related
  cln?where
• c3x108 m/sec is the velocity in vacuum
• l and n are the wavelength and frequency
  respectively
• Electromagnetic radiation is typically classified
  by wavelength

5
Nature of Light Wave-Particle Duality

• Light behaves like a wave
• While propagating in free space (e.g. radio
  waves)
• On a macroscopic scale (e.g. while heating a
  thermometer)
• Demonstrates interference and diffraction effects
• Light behaves as a stream of particles (called
  photons)
• When it interacts with matter on a microscopic
  scale
• Is emitted or absorbed by atoms and molecules
• Photons
• Travel at speed of light
• Possess energy Ehnhc/l?
• Where hPlancks constant h6.63e-34 Joule hz-1
• A visible light photon (l 400 nm) has n7.5 x
  1014 hz and E4.97 x 10-19 J

6
Nature of Light Photon Examples
Atoms and Molecules
Photoelectric Effect
Electron kinetic energy K.E.hn-W. W is the
work function (depth of the potential well) for
electrons in the surface. 1ev1.6x10-19J
The nature of the interaction depends on photon
wavelength (energy).
7
A closer look at the Suns spectrum
Note log-scale for irradiance
The hotter and higher layers produce complex EUV
(10-120 nm) emissions dominated by multiply
ionized atoms with irradiances in excess of the
photospheric Planck distribution.
8
Atmospheric absorption of solar radiation
N2, O, O2
Solar FUV and MUV radiation is the primary
source of energy for earths upper atmosphere.
99 solar radiation penetrates to
the troposphere
Altitude (km)
stratosphere
O3
troposphere
Altitude contour for attenuation by a factor of
1/e
I(km) 37 x Io
9
Atmospheric Absorption in the WavelengthRange
from 1 to 15 ?m
10
Black Body Radiation

• An object radiates unique spectral radiant flux
  depending on the temperature and emissivity of
  the object. This radiation is called thermal
  radiation because it mainly depends on
  temperature. Thermal radiation can be expressed
  in terms of black body theory.

Black body radiation is defined as thermal
radiation of a black body, and can be given by
Planck's law as a function of temperature T and
wavelength
11
Blackbody Radiation Curves
12
Black body radiation

• Planck distributions

2 key points
Hot objects emit A LOT more radiation than cool
objects
I (W/m2) ????x T4
The hotter the object, the shorter the peak
wavelength
T x ?max constant
13
Solar Spectral Irradiance
SORCE Instruments measure total solar irradiance
and solar spectral irradiance in the 1 -2000 nm
wavelength range.
14
Solar Cycle Irradiance Variations
The FUV irradiance varies by 10-100 but the
MUV irradiance varies by 1-10 during an 11
year solar cycle.
15
Solar variability across the spectrum

• Solar irradiance modulated by presence of
  magnetic structures on the surface of the
  SunSolar Rotation (short) Solar Cycle (longer)
• The character of the variability is a strong
  function of wavelength.

Greatest absolute variability occurs in mid
visible
Greatest relative variability occurs in the
ultraviolet.
16
Atmospheric Observation Modes
17
Functional Classes of Sensors
18
Element of optical sensors characteristics
Sensor
Spectral bandwidth (?) Resolution (??) Out of
band rejection Polarization sensitivity Scattered
light
Detection accuracy Signal to noise Dynamic
range Quantization level Flat fielding Linearity
of sensitivity Noise equivalent power
Field of view Instan. Field of view Spectral band
registration Alignments MTFs Optical distortion
Spectral Characteristics
Radiometric Characteristics
Geometric Characteristics
19
Reflection and refraction
20
Critical angle for refraction
An interesting thing happens when light is going
from a material with higher index to lower index,
e.g. water-to-air or glass-to-airthere is an
angle at which the light will not pass into the
other material and will be reflected at the
surface.
Using Snells law
Examples
21
Total internal reflection
At angles gt critical angle, light undergoes total
internal reflection
It is common in laser experiments to use
roof-top prisms at 90 reflectors. (Notesurface
s are typically antireflection coated)
22
Brewsters Angle
Examples
23
Fresnel Reflection Equations
Polarization dependent Reflection fraction vs.
incident angle
Augustin-Jean Fresnel 1788-1827
Normal incidence
Examples Air-to-water R2.0 Air-to-glass
R4.2
24
Fresnel Reflection
Air-to-salt
salt-to-air
Salt AgCl (near-IR)
25
Familiar Examples of Brewster and TIR
Brewsters HeNe laser cell
Round trip gain must exceed round trip reflection
losses to achieve laser output
Want to MINIMIZE reflection here
TIR Diamond cutting
Want to MAXIMIZE reflection here
Brilliant diamond cut must maximize light return
through the top.
26
Prism refraction
27
(No Transcript)
28
Second issue Optical dispersion
29
Spectral Irradiance Monitor SIM

• Measure 2 absolute solar irradiance spectra per
  day
• Wide spectral coverage
• 200-2400 nm
• High measurement accuracy
• Goal of 0.1 (?1?)
• High measurement precision
• SNR ?500 _at_ 300 nm
• SNR ? 20000 _at_ 800 nm
• High wavelength precision
• 1.3 ?m knowledge in the focal plane
• (or ???? lt 150 ppm)
• In-flight re-calibration
• Prism transmission calibration
• Duty cycling 2 independent spectrometers

30
SIM Prism in Littrow
Al coated Back surface
n
31
SIM Optical Image Quality
32
(No Transcript)
33
SIM Measures the Full Solar Spectrum
34
Optical displacements Careful!
For small angles
35
Focal length (thin lens)
36
Chromatic Aberration
37
Chromatic Aberration
38
Chromatic Aberration
39
Focal ratio (f/)
40
Focal ratio cont
41
(No Transcript)
42
Optical Transmission
43
Reflection or Refraction?
44
Reflection
45
Diffraction grating fundamentals
Beam 2 travels a greater distance than beam 1
by (CD - AB) For constructive interference m??
(CD-AB) m is an integer called the diffraction
order CD dsin? AB -dsin? m?? d(sin?
sin?)
Note sign convention is minus when diffracted
beam is on opposite side of grating normal than
incidence beam plus when on same side
46
Diffraction grating fundamentals
Diffraction gratings use the interference
pattern from a large number of equally spaced
parallel grooves to disperse light by
wavelength. Light with wavelength ? that is
incident on a grating with angle a is diffracted
into a discrete number of angles ?m that obey the
grating equation m.? d.(sin(?)sin(?m)). In
the special case that m0, a grating acts like a
plane mirror and ?-?
Blue (400 nm) and red (650 nm) light are
dispersed into orders m0,1, and 2
47
Grating example
Illuminate a grating with a blaze density of 1450
/mm With collimated white light and a incidence
angle of 48, What are the ?s appearing at
diffraction angles of 20, 10, 0 and -10?
Wavelength (nm)
48
Reflection Grating Geometry
Gratings work best in collimated light and
auxiliary optical elements are required to make a
complete instrument
49
Auxiliary Optical Elements for Gratings
Lenses are often used as elements to collimate
and reimage light in a diffraction grating
spectrometer.
Imaging geometry for a concave mirror.
Tilted mirrors1. Produce collimated light when
pf (qinfinity).2. Focus collimated light to a
spot with qf (pinfinity).
50
Typical Plane Grating Monochromator Design
Grating spectrometer using two concave mirrors to
collimate and focus the spectrum
Entrance Slit
Only light that leaves the grating at the correct
angle will pass through the exit slit. Tuning
the grating through a small angle counter
clockwise will block the red light and allow the
blue light to reach the detector.
Exit Slit
Detector
51
Resolving Power
Na spectral lines
Na D-lines
D1589.6 nm D2589.0 nm
Instrument Detector
52
Free spectral range
For a given set of incidence and diffraction
angles, the grating equation is satisfied for a
different wavelength for each integral
diffraction order m. Thus light of several
wavelengths (each in a different order) will be
diffracted along the same direction light of
wavelength ? in order m is diffracted along the
same direction as light of wavelength ?/2 in
order 2m, etc.
The range of wavelengths in a given spectral
order for which superposition of light from
adjacent orders does not occur is called the free
spectral range F?.
53
Resolving Power
The resolving power R of a grating is a measure
of its ability to separate adjacent spectral
lines of average wavelength ?. It is usually
expressed as the dimensionless quantity
Here ?? is the limit of resolution, the
difference in wavelength between two lines of
equal intensity that can be distinguished (that
is, the peaks of two wavelengths ?1 and ?2 for
which the separation ?1 - ?2 lt ?? will be
ambiguous).
54
SOLSTICE Channel Assembly
A Channel During Preliminary Alignment Test
55
SOLSTICE Channel Assembly
56
Solstice Instrument
The SOLar-STellar Irradiance Comparison
Experiment consists of two identical channels
mounted to the SORCE Instrument Module on
orthogonal axes. They each measure solar and
stellar spectral irradiances in the 115 - 320 nm
wavelength range.
SOLSTICE Channels on the IM
57
SOLSTICE Grating Spectrometer

• SOLSTICE cleanly resolves the Mg II h k lines

58
(No Transcript)
59
Optical Aberrations
60
Optical Aberrations
61
Optical Aberrations
62
(No Transcript)
63
Optical Aberrations
64
Spherical Aberration
65
Coma
66
Astigmatism
67
Astigmatism
68
Optical Aberrations
69
(No Transcript)
70
Optical Aberrations
71
(No Transcript)
72
Unwanted Scattered Light
73
Cassegrain Baffling Example
74
The End Game
75
Optical Detection
76
Whats the Frequency--Albert?
77
Photomultiplier Tube Detectors
Single photon detection (pulse counting) with an
PMT
Output pulse
-1200 V
Ground

• A photon enters the window and ejects an electron
  from the photocathode (photoelectric effect)
• The single photoelectron is accelerated through a
  1200 volt potential down series of 10 dynodes
  (120 volts/dynode) producing a 106 electron
  pulse.
• The electron pulse is amplified and detected in a
  pulse-amplifier-discriminator circuit.
• Solstice uses two PMTs in each channel that are
  optimized for a specified wavelength range
• CsTe (F) Detector Photocathode) 170-320 nm
• CsI (G) Detector Photocathode) 115-180 nm

78
(No Transcript)
79
More Nomenclature
80
(No Transcript)
81
(No Transcript)
