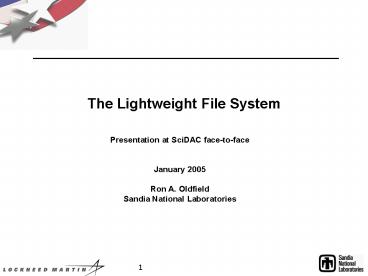

The Lightweight File System

• Presentation at SciDAC face-to-face
• January 2005
• Ron A. Oldfield
• Sandia National Laboratories

2
The Lightweight File System Project
An experimental object-based storage
system (funded by Sandias CS research foundation)

• Participants
• SNL Ward, Oldfield, Riesen, Lawry
• UNM Maccabe, Arunagiri
• Motivation
• Risk-mitigation for Red Storm PFS (Lustre)
• Vehicle for parallel I/O research
• Design Goals
• Lightweight design
• only critical I/O functionality (direct access to
  storage, security)
• special functionality implemented in I/O
  libraries (above LWFS)
• Scalable
• expect clients with tens-to-hundreds of thousands
  of processes
• I/O system should not hinder scalability of the
  application
• Secure
• authentication and authorization
• fine-grained access controls with revocation

3
Key features of LWFS

• Initial focus is on secure storage architecture
  (not a file system)
• Policy vs mechanism
• Separate policy decisions from policy enforcement
• Metadata servers and storage servers cooperate
  for policy consistency
• Access-control
• capability-based
• immediate revocation
• automatic refresh
• fine-grained operation control
• Containers for related objects
• the unit for access control (no control for byte,
  object, or block access)
• Every object is in a container
• LWFS knows nothing about the structure of
  container
• We have backwards pointers (not forwards)

4
What LWFS does not do

• naming (e.g, metadata)
• data synchronization
• data consistency
• caching
• prefetching
• quota enforcement
• data distribution

5
Basic LWFS Architecture

• Security model (Authentication and Authorization)
• Separation of policy from mechanism
• Scalable
• No connection-based mechanisms (e.g., Kerberos)
• Capabilities for access control (well... not
  quite)
• not independently verifiable
• Similar to the NASD access credential
• Coarse-grained access control (containers)
• Storage service
• object-based
• enforcement of access control policies

6
Security Assumptions and Requirements

• We assume a trusted transport mechanism
• prevents replay attacks, man-in-the-middle
  attacks, and eavesdropping
• provides network integrity
• We do not need to provide encryption
• Authentication
• Use existing mechanisms (e.g., Kerberos, GSS-API)
• Scalable (no connection-based schemes)
• Authorization
• Coarse grained access controls (at the container
  level)
• Capabilities for scalability
• Immediate revocation of capabilities
• Integrity
• Make sure users cannot modify capabilities

7
Understanding the Scalability Requirements
The I/O system should not hinder scalability of
application

• Prohibit ops with O(n) communications
• Prohibit data structures of size O(n)
• Limit ops with O(m) comms to rare events

8
Motivating the Open-Architecture Model
Applications should choose nearly all features of
the I/O system

• Application-specific APIs
• MPI-IO
• HDF5, PnetCDF
• ChemIO, SalvoIO
• Application control of policies
• Caching and prefetching
• Data distribution
• Synchronization

application
access to datasets, app-specific APIs, caching,
prefetching
high-level I/O lib
acesss to (parallel) files, reliability, data
distribution, consistency, synchronization
access to bytes (in objects), metadata
management, security
LWFS
9
Status

• APIs defined
• Storage service
• Authentication and Authorization
• Naming service
• Transactions (Locks and Journals)
• Prototype implementations
• Storage service
• Authorization service
• Naming service (in progress)

10
Current and Future Work

• Vehicle for parallel I/O research
• Scalable metadata
• Application-specific I/O libs and file systems
• data distribution, data consistency, caching,
  prefetching to match access patterns
• mobile app/lib code (e.g., active disk)
• Lock-free synchronization schemes
• Lightweight database (using LWFS)
• Framework for developing production-level
  parallel I/O systems
