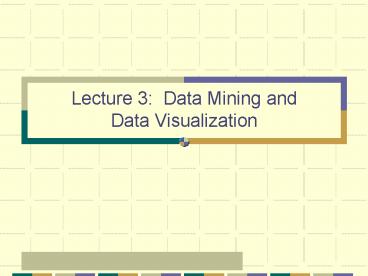

Lecture 3: Data Mining and Data Visualization

1
Lecture 3 Data Mining andData Visualization
2
3-1 A Picture is Worth a Thousand Words

• Definition Data mining is the set of activities
  used to find new, hidden, or unexpected patterns
  in data.
• These techniques are often called Knowledge Data
  Discovery (KDD), and include statistical
  analysis, neural or fuzzy logic, intelligent
  agents or data visualization.
• The KDD techniques not only discover useful
  patterns in the data, but also can be used to
  develop predictive models.

3
Verification Versus Discovery

• In the past, decision support activities were
  primarily based on the concept of verification.
• This required a great deal of prior knowledge on
  the decision-makers part in order to verify a
  suspected relationship.
• With the advance of technology, the concept of
  verification began to turn into discovery.

4
Data Minings Growth in Popularity

• One reason is that we keep getting more and more
  data all the time and need tools to understand
  it.
• We also are aware that the human brain has
  trouble processing multidimensional data.
• A third reason is that machine learning
  techniques are becoming more affordable and more
  refined at the same time.

5
Making Accurate Predictions with Data Mining

• Although the literature contains statements such
  as data mining will allow us to predict who will
  buy a particular product, that is against human
  nature.
• In situations where data mining is used to
  predict response to a marketing campaign, only
  about 5 of the people selected as likely
  respondents actually do respond.

6
Making Accurate Predictions with Data Mining
(cont.)

• Although the accuracy of predicting individual
  behavior is not so good, it is better than it
  seems, since direct marketing efforts often have
  hit rates of only about 1 without data mining.

7
3-2 Online Analytical Processing (OLAP)
Codd developed a set of 12 rules for the
development of multidimensional databases

• Multidimensional view
• Transparent to user
• Accessible
• Consistent reporting
• Client-server architecture
• Generic dimensionality

• Dynamic sparse matrix handling
• Multiuser support
• Cross-dimensional ops
• Intuitive manipulation
• Flexible reporting
• Unlimited dimension and aggregation

8
OLAP as Implemented

• To date, it does not appear that any
  implementation that exists that satisfies all 12
  rules?
• Some people argue it might not even be possible
  to attain all of them.
• More recently, the term OLAP has come to
  represent the broad category of software
  technology that enables multidimensional analysis
  of enterprise data.

9
Multidimensional OLAP (MOLAP)

• Data can be viewed across several dimensions.
  Here sales are arrayed by region and product.
• A fourth dimension could be added by using
  several graphs -- perhaps at different time
  points.
• Most analyses have many more dimensions than
  this. MOLAP handles data as an n-dimensional
  hypercube.

10
Relational OLAP (ROLAP)

• A large relational database server replaces the
  multidimensional one.
• The database contains both detailed and
  summarized data, allowing drill down techniques
  to be applied.
• SQL interfaces allow vendors to build tools, both
  portable and scalable.
• This does require databases with many relational
  tables which may lead to substantial processor
  overhead on complex joins.

11
A Typical Relational Schema
12
3-3 Techniques Used to Mine the Data

• Paralleling the popularity of data mining itself,
  the development of new techniques is exploding as
  well.
• Many innovations are vendor-specific, which
  sometimes does little to advance the state of the
  art.
• Regardless, data-mining techniques tend to fall
  into four major categories
• 1. classification 2. association
• 3. sequencing 4. clustering

13
Classification methods

• The goal is to discover rules that define whether
  an item belongs to a particular subset or class
  of data.
• For example, if we are trying to determine which
  households will respond to a direct mail
  campaign, we will want rules that separate the
  probables from the not probables.
• These IF-THEN rules often are portrayed in a
  tree-like structure.

14
Association Methods

• These techniques search all transactions from a
  system for patterns of occurrence.
• A common method is market basket analysis, in
  which the set of products purchased by thousands
  of consumers are examined.
• Results are then portrayed as percentages for
  example, 30 of the people that buy steaks also
  buy charcoal.

15
Sequencing Methods

• These methods are applied to time series data in
  an attempt to find hidden trends.
• If found, these can be useful predictors of
  future events.
• For example, customer groups that tend to
  purchase products tied-in with hit movies would
  be targeted with promotional campaigns timed to
  release dates.

16
Clustering Techniques

• Clustering techniques attempt to create
  partitions in the data according to some distance
  metric.
• The clusters formed are data grouped together
  simply by their similarity to their neighbors.
• By examining the characteristics of each cluster,
  it may be possible to establish rules for
  classification.

17
Data Mining Technologies

• Statistics the most mature data mining
  technologies, but are often not applicable
  because they need clean data. In addition, many
  statistical procedures assume linear
  relationships, which limits their use.
• Neural networks, genetic algorithms, fuzzy logic
  these technologies are able to work with
  complicated and imprecise data. Their broad
  applicability has made them popular in the field.

18
Data Mining Technologies (cont.)

• Decision trees these technologies are
  conceptually simple and have gained in popularity
  as better tree growing software was introduced.
  Because of the way they are used, they are
  perhaps better called classification trees.

19
The Knowledge Discovery Search Process

• Table 3-2 contains a more detailed outline of the
  process, but the major steps are
• Define the business problem and obtain the data
  to study it.
• Use data mining software to model the problem.
• Mine the data to search for patterns of interest.

20
The Knowledge Discovery Search Process (cont.)

• Review the mining results and refine them by
  respecifying the model.
• Once validated, make the model available to other
  users of the DW.

21
Creating a Data-Mining Model

• Although syntax differs from vendor to vendor,
  building a model on top of a database is much
  like creating a table
• CREATE MODEL mail_list
• Income character input, Age integer input,
  Respond character input
• To populate it with data, use an SQL INSERT
• INSERT INTO mail_list
• SELECT income, age, respond
• FROM client_list
• WHERE region Southeast

22
Creating a Data-Mining Model (cont.)

• The process automatically created additional
  views of the model (mail_list_UNDERSTAND and
  mail_list_PREDICT). These can be examined
• SELECT FROM mail_list_UNDERSTAND
• WHERE input_column_name income and
• input_column_value high and
• output_column_name respond and
• output_column_value yes
• Once these are created, they are treated as
  tables in the database so they can be viewed and
  joined by other users.

23
New Applications for Data Mining

• As the technology matures, new applications
  emerge, especially in two new categories, text
  mining and web mining.
• Some text mining examples are
• Distilling the meaning of a text
• Accurate summarization of a text
• Explication of the text theme structure
• Clustering of texts

24
Web mining

• Web mining is a special case of text mining where
  the mining occurs over a website.
• It enhances the website with intelligent
  behavior, such as suggesting related links or
  recommending new products.
• It allows you to unobtrusively learn the
  interests of the visitors and modify their user
  profiles in real time.
• They also allow you to match resources to the
  interests of the visitor.

25
3-4 Market Basket Analysis The King of
Algorithms

• This is the most widely used and, in many ways,
  most successful data mining algorithm.
• It essentially determines what products people
  purchase together.
• Stores can use this information to place these
  products in the same area.
• Direct marketers can use this information to
  determine which new products to offer to their
  current customers.
• Inventory policies can be improved if reorder
  points reflect the demand for the complementary
  products.

26
Association Rules for Market Basket Analysis

• Rules are written in the form left-hand side
  implies right-hand side and an example is
• Yellow Peppers IMPLIES Red Peppers, Bananas,
  Bakery
• To make effective use of a rule, three numeric
  measures about that rule must be considered (1)
  support, (2) confidence and (3) lift

27
Measures of Predictive Ability

• Support refers to the percentage of baskets where
  the rule was true (both left and right side
  products were present).
• Confidence measures what percentage of baskets
  that contained the left-hand product also
  contained the right.
• Lift measures how much more frequently the
  left-hand item is found with the right than
  without the right.

28
An Example

• The confidence suggests people buying any kind of
  pepper also buy bananas.
• Green peppers sell in about the same quantities
  as red or yellow, but are not as predctive.

29
Market Basket Analysis Methodology

• We first need a list of transactions and what was
  purchased. This is pretty easily obtained these
  days from scanning cash registers.
• Next, we choose a list of products to analyze,
  and tabulate how many times each was purchased
  with the others.
• The diagonals of the table shows how often a
  product is purchased in any combination, and the
  off-diagonals show which combinations were bought.

30
A Convenience Store Example (5 transactions)

• Consider the following simple example about five
  transactions at a convenience store
• Transaction 1 Frozen pizza, cola, milk
• Transaction 2 Milk, potato chips
• Transaction 3 Cola, frozen pizza
• Transaction 4 Milk, pretzels
• Transaction 5 Cola, pretzels
• These need to be cross tabulated and displayed in
  a table.

31
A Convenience Store Example (5 transactions)

• Pizza and Cola sell together more often than any
  other combo a cross-marketing opportunity?
• Milk sells well with everything people probably
  come here specifically to buy it.

32
Using the Results

• The tabulations can immediately be translated
  into association rules and the numerical measures
  computed.
• Comparing this weeks table to last weeks table
  can immediately show the effect of this weeks
  promotional activities.
• Some rules are going to be trivial (hot dogs and
  buns sell together) or inexplicable (toilet rings
  sell only when a new hardware store is opened).

33
Limitations to Market Basket Analysis

• A large number of real transactions are needed to
  do an effective basket analysis, but the datas
  accuracy is compromised if all the products do
  not occur with similar frequency.
• The analysis can sometimes capture results that
  were due to the success of previous marketing
  campaigns (and not natural tendencies of
  customers).

34
Performing Analysis with Virtual Items

• The sales data can be augmented with the addition
  of virtual items. For example, we could record
  that the customer was new to us, or had children.
• The transaction record might look like
• Item 1 Sweater Item 2 Jacket Item
  3 New
• This might allow us to see what patterns new
  customers have versus old customers.

35
Taxonomies

• The presence of items not purchased very
  frequently is an obstacle to a good market basket
  analysis.
• One way to deal with this is to eliminate
  products that occur with a frequency less than
  some threshold.
• A better idea would be to try to form groups of
  products that fall below the threshold. Four
  flavors of popsicle occur 9 of the time all
  together, but no more than 3 individually.

36
Multidimensional Market Basket Analysis

• Rules can involve more than two items, for
  example Plant and Clay Pot IMPLIES Soil.
• These rules are built iteratively. First, pairs
  are found, then relevant sets of three or four.
• These are then pruned by removing those that
  occur infrequently.
• In an environment like a grocery store, where
  customers commonly buy over 100 items, rules
  could involve as many as 10 items.

37
3-5 Current Limitations and Challenges to
Data Mining

• Despite the potential power and value, data
  mining is still a new field. Some things that
  that thus far have limited advancement are
• Identification of missing information not all
  knowledge gets stored in a database
• Data noise and missing values future systems
  need better ways to handle this
• Large databases and high dimensionality future
  applications need ways to partition data into
  more manageable chunks

38
3-6 Data Visualization Seeing the Data
39
Visual Presentation

• For any kind of high dimensional data set,
  displaying predictive relationships is a
  challenge.
• The picture on the previous slide uses 3-D
  graphics to portray the weather balloon data
  numbers . We learn very little from just
  examining the numbers .
• Shading is used to represent relative degrees of
  thunderstorm activity, with the darkest regions
  the heaviest activity.

40
A Bit of History

• An early effort used sequences of two-dimensional
  graphs to add depth.
• Current virtual reality programs allow the user
  to step through a data set. Try going to a
  realtors website and taking a tour of a house up
  for sale.

41
Human Visual Perception and Data Visualization

• Data visualization is so powerful because the
  human visual cortex converts objects into
  information so quickly.
• The next three slides show (1) usage of global
  private networks, (2) flow through natural gas
  pipelines, and (3) a risk analysis report that
  permits the user to draw an interactive yield
  curve.
• All three use height or shading to add additional
  dimensions to the figure.

42
Global Private Network Activity
High Activity
Low Activity
43
Natural Gas Pipeline Analysis
Note Height shows total flow through compressor
stations.
44
An Enlivened Risk Analysis Report
45
Geographical Information Systems

• A GIS is a special purpose database that contains
  a spatial coordinate system. A comprehensive GIS
  requires
• Data input from maps, aerial photos, etc.
• Data storage, retrieval and query
• Data transformation and modeling
• Data reporting (maps, reports and plans)

46
The Special Capabilities of a GIS

• In general, a GIS contains two types of data
• Spatial data these elements correspond to a
  uniquely-defined location on earth. They could
  be in point, line or polygon form.
• Attribute data These are the data that will be
  portrayed at the geographic references
  established by spatial data.
• Example Data from an opinion poll is displayed
  for multiple regions in the United States.
  Clicking on an area allows the user to drill down
  to the results for smaller areas.

47
Telephone Polling Results
Note On the live map, clicking on an area
allows the user to drill down and see results
for smaller areas.
48
3-7 Siftware Technologies

• Although data visualization product vendors seem
  to enter or leave the market with great
  frequency, several firms are beginning to develop
  significant brand loyalty.
• Red Brick Helped category managers at H.E.B. in
  San Antonio to determine which products to put in
  which stores. Another application was the
  consolidation of three old data warehouses at
  Hewlett-Packard.

49
Siftware -- Continued

• Oracle A large suite of connectivity products
  allows transparent access to mainframe databases.
  Some major customers include John Alden
  Insurance, ShopKo Stores and Pacific Bell.
• Informix Associated Grocers uses Informix data
  warehousing products at the heart of its
  three-tier client-server system.

50
Siftware -- Continued

• Sybase Sybase Warehouse WORKS is an integrated
  system designed around the four key functions in
  data warehousing.
• Silicon Graphics Data mining software is mated
  to 3-D visualization tools to allow users to fly
  through data.
• IBM provides a number of decision support tools
  in its Information Warehouse Solutions.
