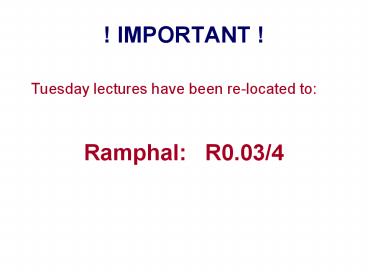

! IMPORTANT !
Tuesday lectures have been re-located
to Ramphal R0.03/4
2
Feedback

• Please give honest and critical feedback during
  the course
• During the lectures
• After the lectures
• Email t.p.a.hase_at_warwick.ac.uk

3
The Muppets Guide to

• The Structure and Dynamics of Solids

2. How do we describe a Crystal? - Looking
towards Group Theory
4
Unit Cell, Lattice and Basis
A crystal is a parallelepiped that is made up of
a regular repeat of some representative unit,
called the unit cell.
Unit Cell A volume of space bounded by lattice
points which describe the symmetry. It is defined
in terms of their axial lengths (a,b,c) and the
inter-axial angles (?,?,?).
TRANSLATIONAL SYMMETRY maps the unit cells across
the entire volume of the crystal
5
A crystal

• The lattice forms a series of points in space
• The basis is a group of atoms placed on the
  lattice points

6
Crystal Structure
Convolution of Basis and lattice
7
Lattice and Basis
BASIS
LATTICE
CRYSTAL
8
Lattice and Basis
BASIS
LATTICE
9
Lattice and Basis
The basis can be convolved with the lattice in
different ways
10
How Many Lattices are there?
11
2D Bravais Lattices
A lattice is an infinite periodic set of points
defined by the three basis vectors, a,b and c.
In 2D total of 5 distinct lattices
T
Lattice vector
12
Usually a unit cell is primitive i.e. it
contains one lattice point. More complex
structures are used to highlight the symmetry
Number of Lattice points in Primitive cell 1
Number of Lattice points in fcc cell 4
13
Bravais Lattices 14 possible in 3D
F
I
P
I
P
P
F
I
C
P
P
C
P
P trigonal R- rhombohedral
14
Other Symmetry Elements

• Introduction to Point Symmetry
• Rotation about an axis
• Reflection at a Plane
• Inversion through a point
• Rotoinversion

• 2 notations!
• Hermann-Mauguin or International system (used by
  crystallographers)
• Schoenflies System (Chemists)

15
Rotational Symmetry

• An object has n-fold rotational symmetry if it is
  invariant under a rotation of

What are the allowed values of n?
16
Crystallographic Constraints
Rotation about point 2 in row A takes 1 to the
position 1 in B
Similarly, rotation about (p-1) takes p to p
But these positions are all lattice points so
separated by a for appropriate rotation angles, a
17
Crystallographic Constraints
In row A, points 1 and p separated by (m-1)a
where m is an integer In row B points 1 and p
separated by Xsa
18
Crystallographic Constraints
19
Crystallographic Constraints
As m and s are positive integers,
Therefore only n1, 2, 3, 4 or 6 allowed
International symbol 1, 2, 3, 4 or
6 Schoenflies Cn
20
Mirror Planes
International symbol m Schoenflies is coupled
with rotations Cnh if mirror is normal to
rotation axis Cnv if mirror is parallel to
rotation axis
21
Schoenflies mirrors
C2v
C2h
Mirror plane within the rotation axis
Mirror plane normal to the rotation axis
22
Schoenflies
C1h or Cs
23
Inversion through a point

• Inversion symmetry occurs if for each point
  (x,y,z) there is a corresponding point
  (-x,-y,-z), or

All Bravais lattices have inversion symmetry
24
Point Symmetry of 2D Lattices
25
Point Symmetry of 2D Lattices
