Administration Tools for Managing Large Scale Linux Cluster

1

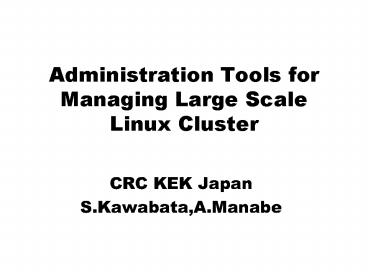

Administration Tools for Managing Large Scale
Linux Cluster

• CRC KEK Japan
• S.Kawabata,A.Manabe

2
Linux PC Clusters in KEK
3
PC Cluster 2 PenIII 800MHz 80CPU (40 nodes)
PC Cluster 1 PenIII Xeon 500MHz 144 CPUs (36
nodes)
4
PC Cluster 3 Pentium III Xeon 700MHz 320CPU (80
nodes)
5
PC Cluster 4 1U server Pentium III 1.2GHz 256
CPU (128 nodes)
6
3U
PC Cluster 5 Blade server LP Pentium III
700MHz 40CPU (40 nodes)
7
PC clusters

• Already more than 400 nodes installed.
• Only counting gtmiddle size PC cluster.
• All PC clusters are managed by individual user
  group.
• A major exp. group plan to install several x100
  nodes of blade server in this year.

8
Center Machine

• KEK Computer Center plan to have gt1000 nodes in
  near future (2004).
• Will be installed under 4year rental contract.
• System will be share among many user groups.
  (dont dedicate to one gr.)
• According to their demand to cpu power, system
  partition will be vary.

9
PC cluster for system RD

• Fujitsu TS225 50 nodes
• PentiumIII 1GHz x 2CPU
• 512MB memory
• 31GB disk
• 100BaseTX x 2
• 1U rack mount model
• RS232C x2
• Remote BIOS setting
• Remote reset/power-off

10
Necessary admin tools

• Installation /update
• Command Execution
• Configuration
• Status Monitoring

11
Installation tool
12
Installation tool
Image Cloning
Install system/application
Copy disk partition image to nodes
13
Installation tool
Package server
Package Information Db
Clients
Package archive
14
Remote Installation via NW

• Cloning disk image
• SystemImager (VA) http//systemimager.sourceforge.
  net/
• CATS-i (soongsil Univ.)
• CloneIt http//www.ferzkopp.net/Software/CloneIt/
• Comercial ImageCast, Ghost,..
• Packages/Applications installation
• Kickstart rpm (RedHat)
• LUI (IBM) http//oss.software.ibm.com/developerwor
  ks/projects/lui
• Lucie (TiTec) http//matsu-www.is.titech.ac.jp/ta
  kamiya/lucie/

15
Dolly

• We developed image cloning via NW installer
  dolly.
• WHY ANOTHER?
• We install/update
• frequently (according to user needs)
• 1001000 nodes at a time.
• Traditional Server/Client software suffer server
  bottleneck.
• Multicast copy with GB image seems unstable.(No
  free soft ? )

16
(few) Server - (Many) Client model

• Server could be a daemon process.(you dont need
  to start it by hand)
• Performance is not scalable against of nodes.
• Server bottle neck. Network congestion

Multicasting or Broadcasting

• No server bottle neck.
• Get max performance of network which support
  multicasting in switch fablics.
• Nodes failure does not affect to all the process
  very much, it could be robust.
• Since failed node need re-transfer. Speed is
  governed by the slowest node as in RING topology.
• Not TCP but UDP, so application must take care
  of transfer reliability.

17
Dolly and Dolly

• Dolly
• A Linux application software to copy/clone files
  or/anddisk images among many PCs through a
  network.
• Dolly is originally developed by CoPs project in
  ETH (Swiss) and a free software.
• Dolly features
• Sequential files (no limitation of over 2GB)
  and/or normal files (optinaldecompress and untar
  on the fly) transfer/copy via TCP/IP network.
• Virtual RING network connection topology.
• Pipeline and multi-threading mechanism for
  speed-up.
• Fail recovery mechanism for robust operation.

18
Dolly Virtual Ring Topology
Server host having original image

• Physical network connection is as you like.
• Logically Dolly makes a node ring chain which
  is specified by dollys config file.
• Though transfer is only between its two adjacent
  nodes, it can utilize max. performance ability of
  switching network of full duplex ports.
• Good for network complex by many switches.

node PC
network hub switch
physical connection
Logical (virtual) connection
19
Cascade Topology

• Server bottle neck could be overcome.
• Cannot get maximum network performance but better
  than many client to only one serv. topology.
• Week against a node failure. Failure will spread
  in cascade way as well and difficult to recover.

20
PIPELINING multi threading
3 thread in parallel
21
Fail recovery mechanism

• Only one node failure could be show stopper in
  RING (series connection) topology.
• Dolly provides automatic short cut mechanism
  in node problem.
• In a node trouble, the upper stream node detect
  it by sending time out.
• The upper stream node negotiate with the lower
  stream node for reconnection and retransfer of a
  file chunk.
• RING topology makes its implementation easy.

time out
Short cutting
22
Re-transfer in short cutting
BOF
EOF
1 2 3 4 5 6 7 8 9 ..
File chunk 4MB
6
9
8
7
6
network
Server
5
8
7
Node 1
network
5
7
6
Node 2
Next node
23
Dolly How do you start it on linux
Config file example

• Server side (which has the original file)
• dollyS -v -f config_file
• Nodes side
• dollyC -v

iofiles 3 /dev/hda1 gt /tmp/dev/hda1 /data/file.gz
gtgt /data/file boot.tar.Z gtgt /boot server
n000.kek.jp firstclient n001.kek.jp lastclient
n020.kek.jp client 20 n001 n002
n020 endconfig
of files to Xfer server name of
client nodes clients names end code
The left of gt is input file in the server.
The right is output file in clients. 'gt' means
dolly does not modify the image. 'gtgt' indicate
dolly should cook (decompress , untar ..) the
file according to the name of the file.
24
(No Transcript)
25
Performance of dolly
Less than 5min! for 100 nodes expected
HW FujitsuTS225 PenIII 1GHz x2, SCSI disk,
512MB mem, 100BaseT NW
26
(No Transcript)
27
How does dolly start after rebooting.

• Nodes broadcast over the LAN in search of an
  installation server.
• PXE server respond to nodes with information
  about the nodes IP and kernel download server.
• The kernel and ram disk / FS are Multicast
  TFTPed to the nodes and the kernel gets start.
• The kernel hands off to an installation script
  which run a disk tool and dolly .

28
How does dolly start after rebooting.

• The code partitions the hard drive, creates file
  systems and start dolly client on the node.
• You start dolly master on the master host to
  start up a disk clone process.
• The code then configure individual nodes. (Host
  name, IP addess etc.)
• ready to boot from its hard drive for the first
  time.

29
Remote Execution
30
Remote execution

• Administrator sometimes need to issue a command
  to all nodes urgently.
• Remote execution could be rsh/ssh/pikt/cfengine/S
  UT(mpich ) .
• Points are
• To make it easy to know the execution result
  (fail or success) at a glance.
• Parallel execution among nodes.

) Scalable Unix tools for cluster
http//www-unix.mcs.anl.gov/sut/
31
WANI

• WEB base remote command executer.
• Easy to select nodes concerned.
• Easy to specify script/type-in commands.
• Issue the commands to nodes in parallel.
• Collect result after error/fail detection.
• Currently, the software is in prototyping by
  combinations of existed protocol and tools.
  (Anyway it works!)

32
WANI is implemented on Webmin GUI
Start
Command input
Node selection
33
Command execution result
Switch to another page
Host name
Results from 200nodes in 1 Page
34
Error detection

• Exit code
• fail/failure/error word grep i
• sys_errlist (perror) list check
• strings /bin/sh output check

Flame color represents White initial Yellow
command starts Black finished
1
2
BG color
3
4
35
Stdout output
Click here
Click here
Stderr output
36
Node hosts
execution
WEB Browser
Piktc_svc
PIKT server Webmin server
Piktc
error detector
print_filter
Lpd
37
Status Monitoring

• Cfengine /Pikt1/Pica2
• Ganglia3

1 http//pikt.org 2 http//pica.sourceforge.net
/wtf.html 3 http//ganglia.sourceforge.net
38
Conclusion

• Installation dolly
• Install/Update/Switch system very quick.
• Remote Command Execution
• Result at a glance is important for quick
  iteration.
• Parallel execution is important
• Status monitor
• Configuration manager
• Not matured yet.
• Software is available from http//corvus.kek.jp/
  manabe/pcf/dolly
• Thank you for your reading !
