ProsodyBased Automatic Segmentation of Speech into Sentences and Topics

1

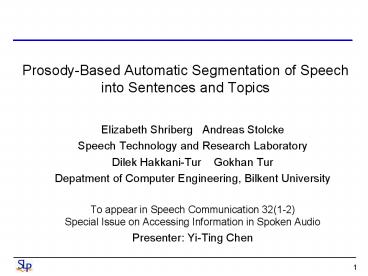

Prosody-Based Automatic Segmentation of Speech
into Sentences and Topics

• Elizabeth Shriberg Andreas Stolcke
• Speech Technology and Research Laboratory
• Dilek Hakkani-Tur Gokhan Tur
• Depatment of Computer Engineering, Bilkent
  University
• To appear in Speech Communication 32(1-2)Special
  Issue on Accessing Information in Spoken Audio
• Presenter Yi-Ting Chen

2
Outline

• Introduction
• Method
• Prosodic modeling
• Language modeling
• Model combination
• Data
• Results and discussion
• Summary and conclusion

3
Introduction (1/2)

• Why process audio data?
• Why automatic segmentation?
• A crucial step toward robust information
  extraction from speech is the automatic
  determination of topic, sentence, and phrase
  boundaries
• Why used prosody?
• In all languages, prosody is used to convey
  structural, semantic, and functional information
• Prosodic cues by their nature are relatively
  unaffected by word identity
• Unlike spectral features, some prosodic features
  are largely invariant to changes in channel
  characteristics
• Prosodic feature extraction can be achieved with
  minimal additional computational load and no
  additional training data

4
Introduction (2/2)

• In this paper we describe the prosodic modeling
  in detail
• Using decision tree and hidden Markov modeling
  techniques to combine prosodic cues with
  word-based approaches, and evaluate performance
  on two speech corpora
• To look at results for both true word, and word
  as hypothesized by a speech recognizer.

5
Method (1/6) Prosodic modeling

• Feature extraction regions
• For each inter-word boundary, we looked at
  prosodic features of the word immediately
  preceding and following the boundary, or
  alternatively within a window of 20 frames
  (200ms) befor and after the boundary
• They extracted prosodic features reflecting pause
  durations, phone durations, pitch information,
  and voice quality information
• They chose not to use amplitude- or energy-based
  features, since previous word showed these
  features to be both less reliable than and
  largely redundant with duration and pitch
  features

6
Method (2/6) Prosodic modeling

• Features
• The features were designed to be independent of
  word identities
• They began with a set of over 100 features, was
  pared down to a smaller set by eliminating
  features
• Pause features Important cues to boundaries
  between semantic units
• The pause model was trained as an individual
  phone
• In the case of no pause at the boundary, this
  pause duration feature was output as 0
• The duration of the pause preceding the word
  before the boundary
• Raw durations and durations normalized were
  investigated for pause duration distributions
  from the particular speaker

7
Method (3/6) Prosodic modeling

• Features
• Phone and rhyme duration features a slowing down
  toward the ends of units, or preboundary
  lengthening
• Preboundary lengthening typically affects the
  nucleus and coda of syllables
• Duration characteristics of the last rhyme of the
  syllable preceding the boundary
• Each phone in the rhyme was normalized for
  inherent duration as

8
Method (4/6) Prosodic modeling

• Features
• F0 features
• Pitch information is typically less robust and
  more difficult to model than other prosodic
  features
• To smooth out microintonation and tracking
  errors, simplify F0 feature computation, and
  identify speaking-range parameters for each
  speaker

9
Method (5/6) Prosodic modeling

• Features
• F0 features
• Reset features
• Range features
• F0 slope features
• F0 continuity features
• Estimated voice quality features
• Other features
• speaker gender?
• turn boundaries?
• time elapsed from the start of turn and the turn
  count in the conversation

10
Method (6/6) Prosodic modeling

• Decision trees
• Decision trees are probabilistic classifiers
• Given a set of features and a labeled training
  set, the decision tree construction algorithm
  repeatedly selects a single feature that has the
  highest predictive value
• The leaves of the tree store probabilities about
  the class distribution of all samples falling
  into the corresponding region of the feature
  space
• Decision trees make no assumptions about the
  shape of feature distributions
• It is not necessary to convert feature values to
  some standard scale
• Feature selection algorithm

11
Method (1/3) Language modeling

• The goal to capture information about segment
  boundaries contained in the word sequences
• To model the joint distribution of boundary types
  and words in a hidden Markov model (HMM)
• To denote boundary classification by and use
  for the word sequencesthe
  structure of the HMM
• Using the slightly more complex forward-backward
  algorithm to maximize the posterior probability
  of each individual boundary classification

12
Method (2/3) Language modeling

• Sentence segmentation
• A hidden-event N-gram language model
• The states of the HMM consist of the end-of
  sentence status of each word, plus any preceding
  words and possibly boundary tags to fill up the
  N-gram context
• Transition probabilities are given by N-gram
  probabilities estimated from annotated
• Boundary-tagged training data using Katz backoff
• Ex

13
Method (3/3) Language modeling

• Topic segmentation
• First, to constructed 100 individual unigram
  topic cluster language models using the Multipass
  k-means algorithm (Using TDT)
• Then to built an HMM in which the states are
  topic clusters, and the observation are sentences
• In addition to the basic HMM segmenter,
  incorporating two states for modeling the initial
  and final sentences of a topic segment

14
Method (1/3) Model combination

• Expecting prosodic and lexical segmentation cues
  to be partly complementary
• Posterior Probability interpolation
• Integrated hidden Markov modeling
• With suitable independence assumption to apply
  the familiar techniques to compute
• or
• To incorporate the prosodic information into the
  HMM, prosodic features are modeled as emissions
  from relecant HMM states, with likelihoods
• So, a complete path through the HMM is associated
  with the total probability

15
Method (2/3) Model combination

• Expecting prosodic and lexical segmentation cues
  to be partly complementary
• Integrated hidden Markov modeling
• How to estimate the likelihoods
• Note that the decision tree estimates posteriors
• These can be converted to likelihoods using
  Bayes rule as in
• A beneficial side effect of this approach is that
  the decision tress models the lower-frequency
  events in greater detail than if presented with
  the raw, highly skewed class distribution
• A tunable model combination weight (MCW) was
  introduced


16
Method (3/3) Model combination

• Expecting prosodic and lexical segmentation cues
  to be partly complementary
• HMM posteriors as decision tress features
• For practical reasons we chose not to use it in
  this work
• Drawback overestimate the informativeness of the
  word-based posteriors based on automatic
  transcriptions
• Alternative models
• HMM A drawback is that the independence
  assumptions may be inappropriate and inherently
  lime the performance of the model
• The decision trees
• advantages enhances discrimination between
  the target classifications and input features can
  be combined easily
• drawbacks the sensitivity to skewed class
  distribution expensive to
  model multiple target variables

17
Method (1/2) Data

• Speech data and annotations
• Switchboard data a sub set of the corpus that
  had been hand-labeled for sentence boundaries by
  LDC
• Broadcast News data for topic and sentence
  segmentation was extracted from the LDC 1997
  Broadcast News (BN) release
• Training of Broadcast News language models used
  an additional 130 million word of text-only
  transcripts from the 1996 Hub-4 language model
  corpus (for sentence segmentation )
• Training, tuning, and test sets

18
Method (2/2) Data

• Word recognition
• 1-best output from SRIs DECIPHER
  large-vocabulary speech recognizer
• Skipping several of the computationally expensive
  or cumbersome steps (such as acoustic adaptation)
• Switchboard test set46.7 WER
• Broadcast News 30.5 WER
• Evaluation metrics
• Sentence segmentation performance for true words
  was measured by boundary classification error
• For recognized words, a string alignment of the
  automatically labeled recognition hypothesis are
  performed
• Then to calculate error rate
• Topic segmentation was evaluated using the metric
  defined by NIST for TDT-2 evaluation

19
Results and discussion (1/10)

• Task 1 Sentence segmentation of Broadcast New
  data
• Prosodic features usage
• The best-performing tree identified six features
  for this task, which fall into four groups
• Pause gt turn gt F0 gt Rhyme duration
• Based on descriptive literature, the behavior of
  the features is precisely

20
Results and discussion (2/10)

• Task 1 Sentence segmentation of Broadcast New
  data
• Error reduction from prosody
• The prosodic model alone performs better than a
  word-based language model
• The prosodic model is somewhat more robust to
  recognizer output than the language model

21
Results and discussion (3/10)

• Task 1 Sentence segmentation of Broadcast New
  data
• Performance without F0 features
• The F0 features used are not typically extracted
  or computed in most ASR systems
• Removing all F0 features
• It could also indicate a higher degree of
  correlation between true words and the prosodic
  features?

22
Results and discussion (4/10)

• Task 2 Sentence segmentation of Switchboard data
• Prosodic feature usage
• A different distribution of features than
  observed for Broadcast News
• The primary feature type used here is
  pre-boundary duration
• Pause duration at the boundary was also useful
• Most interesting about this tree was the
  consistent behavior of duration features, which
  gave higher probability to a sentence boundary

23
Results and discussion (5/10)

• Task 2 Sentence segmentation of Switchboard data
• Error reduction from prosody
• Prosodic alone is not a particularly good mood
  model
• Combining prosody with the language model
  resulted in a statistically significant
  improvement
• All differences were statistically significant

24
Results and discussion (6/10)

• Task 3 Topic segmentation of Broadcast News data
• Prosodic feature usage
• Five feature types most helpful for this task
• The results are similar to those seen earlier for
  sentence segmentation in Broadcast News
• The importance of pause duration is
  underestimated

25
Results and discussion (7/10)

• Task 3 Topic segmentation of Broadcast News data
• Prosodic feature usage
• The speaker-gender feature
• The women in a sense behave more neatly than
  the men
• One possible explanationis that men are more
  likely than women toproduce regions of
  nonmodal voicing oftopic boundaries

26
Results and discussion (8/10)

• Task 3 Topic segmentation of Broadcast News data
• Error reduction from prosody
• All results reflect the word-averaged, weighted
  error metric used in the TDT-2 evaluation
• Chance here correspond to outputting the no
  boundary class at all locations, meaning that
  the false alarm rate will be zero and miss rate
  will be 1
• A weight of 0.7 to false alarms and 0.3 to miss

27
Results and discussion (9/10)

• Task 3 Topic segmentation of Broadcast News data
• Performance without F0 features
• The experiments were conducted only for true
  word, since as shown in table 5, results are
  similar to those for recognized words

28
Results and discussion (10/10)

• Comparisons of error reduction across conditions
• Performance without F0 features
• While researcher typically have found Switchboard
  a difficult corpus to process, in the case of
  sentence segmentation on true word it just the
  opposite-atypically
• Previous word on automatic segmentation on
  Switchboard transcripts is likely to overestimate
  success for other corpora

29
Summary and conclusion

• The use of prosodic information for sentence and
  topic segmentation have studied
• Results showed that on Broadcast News the
  prosodic model alone performed as well as purely
  word0based statistical language models
• Interestingly, the integrated HMM worded best on
  transcribed words, while the posterior
  interpolation approach was much more robust in
  the case of recognized
