A Research Program in Reliable Adaptive Distributed Systems RADS

1

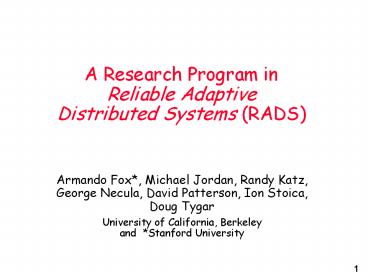

A Research Program inReliable AdaptiveDistribute
d Systems (RADS)

• Armando Fox, Michael Jordan, Randy Katz, George
  Necula, David Patterson, Ion Stoica, Doug Tygar
• University of California, Berkeleyand Stanford
  University

2
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

3
New Approach for RADS(Reliable Adaptive
Distributed Systems)

• Dramatically improve the trustworthiness of
  networked systems
• Observe design observation points throughout
  system
• Analyze SLT as an enabling technology
• Respond detect anomalous behavior vs. baseline
• Learn use observations to modify responses to
  future observations
• Act
• Reactive use control points in system for rapid
  recovery if detect something wrong
• Proactive/protective prophylactically act on
  system to prevent predicted impending failure

4
Todays Systems are Too Brittle

• Fragile, easily broken, yielding poor
  trustworthiness (dependability and security).
• Amazon Revenue 3.1B, Downtime Costs 600,000
  per hour
• Why? Overly focused on performance, performance,
  and cost-performance
• Systems based on fundamentally incorrect
  assumptions
• Humans are perfect
• Software will eventually be bug free
• Maintenance is free
• People/HW/SW failures are facts, not problems
• If a problem has no solution, it may not be a
  problem, but a fact--not to be solved, but to be
  coped with over time Shimon Peres (Peress
  Law)

5
If Failure is Inevitable...then Design for Rapid
Adaptation

• Encompasses rapid server recovery, network
  rerouting, prophylactic/protective actions...
• Blurs distinction between normal operation and
  recovery
• Elements of the solution
• Programming paradigms for robust recovery
• Crash-only software design for rapid server
  recovery
• Network protocols designed for rapid detection of
  assertion violations
• Instrumentation and SLT for online analysis,
  anomaly detection, and diagnosis of failure
• Recovery benchmarks to measure progress
• What you cant measure, you cant improve
• Collect real failure data to drive benchmarks

6
RADS Conceptual Architecture
User
Programming Abstractions For Roll-back (Necula
Operator
Prototype Applications E-voting,
Messaging, E-Mail, etc.
Benchmarks,Tools for Human Operators (Patterson)
Crash-Only Middleware Servers, System
OC Infrastructure (Fox)
SLT Services
Application- Specific Overlay Network
Online Statistical Learning Algorithms (Jordan)
PNE
PNE
Edge Network
Edge Network
Protocols Enabling Fast Detection Route
Recovery, Network OC Infrastructure (Katz,
Stoica)
Router
Router
CommodityInternet IP networks

• Reduction to practice of online SLT and
  observe/analyze/act infrastructure
• Reusable embeddable components

7
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

8
Crash-Only SoftwareDramatically Simplifying
Recovery

• Since robust systems must be crash-safe, make
  crashes the only supported form of
  shutdown/restart
• Software componentsexternal power switch is
  independent ofmisbehaving component
• Recovery becomes inexpensive/safe to try
• Simplifies failure detection, since can be overly
  aggressive
• Simplifies recovery, since only 1 type of
  recovery action and always safe to try
• Idea if something looks anomalous, its probably
  wrong
• Can machine learning and statistical monitoring
  approaches be applied during online operations?

9
Crash-Only SoftwarePractical to Build

• refocus on JAGR, talk about relevance of
  middleware
• Case studies two crash-only state-storage
  subsystems (for session state and durable state)
• OK to crash any node at any time for any reason
• Recovery is highly predictable, doesnt impact
  online performance
• Replication provides probabilistic durability
  capacity during recovery
• Access pattern of workload exploited for
  consistency guarantees
• 9 activity state statistics monitored per
  storage brick
• Metrics compared against those of peer bricks
• Basic idea Changes in workload tend to affect
  all bricks equally
• Underlying (weak) assumption Most bricks are
  doing mostly the right thing most of the time
• Anomaly in 6 or more (out of 9) metrics gt reboot
  brick
• Simple thresholding and substring-frequency used
  to determine anomalous

10
Supporting Crash-Only in Middleware

• Add observation control points to Java
  application middleware
• Observe capture paths taken through system by
  user request
• Analyze look for highly-unlikely anomalous
  (therefore probably buggy) paths
• Act micro-reboot suspected-faulty J2EE
  components transparently to rest of system
• Result fast recovery improves overall
  performability
• micro-reboot is 2-3 orders of magnitude faster
  than full application reboot
• Improves performability (total amount of work per
  unit time in presence of faults)
• Minimizes disruption to users of other
  (non-faulty) parts of system

Fast, cheap uRBs statistical monitoring
provide a degree of application-generic failure
detection recovery
11
Crash-Oriented SoftwareSystematic Approach

• Needed Systematic mechanism for determining when
  micro-reboots are safe
• Programming-language level support for rollback
  and state tracking
• Needed Better integration with SLT
• Which clustering/analysis techniques best
  correlate anomalous paths to particular observed
  failure types? (current prototype uses very
  simple data clustering techniques)
• Are these techniques suitable for online use?
  (current prototype does offline analysis)

12
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

13
Research Challenges

• No protection against DoS attacks
• MS Blaster inflicted Internet packet loss gt 20
• Routing protocols blindly believe routes
  advertised by neighbors
• BGP router misconfigurations
• 200-1200 prefixes affected every day
• CWs (AS3561) misconfiguration caused an outage
  for gt 5000 prefixes for 2 hours (April 2001)
• Malicious routers huge potential threat
• Drop packets and render a destination unreachable
• Eavesdrop the traffic to a given destination
• Impersonate the destination

14
Observe, Analyze, Act

• Observe
• Use multiple vantage points to monitor the
  network
• Design protocols whose behaviors can be verified

• Analyze
• Learn from protocol behavior
• Identify bogus information
• Act
• Contain misbehaving components
• Rise flags for network operators
• Empower end-hosts (e.g., enable end-hosts to stop
  unwanted packets in the network infrastructure)
• End-hosts know better when under attack
  (flashcrowds vs. DoS attacks)
• End-hosts can react faster than infrastructure

sender
receiver
15
Case Study BGP (Listen Whisper)

• Whisper
• Use redundancy to check for route advertisements
  consistency
• Listen
• Monitor TCP flow progress to detect reachability
  problems
• Results
• Whisper reduce the region of Internet vulnerable
  to an isolated adversary to 5
• Scalable, implementation can handle 10 times
  todays BGP load
• Listen detect reachability problems
• Probability of false positives 1
• Vulnerable to port scans ? plan to use SLT

16
Programmable Network Elements
In-Port Classify Transform Out-Port
Edge Network
Edge Network
Router
Router
Commodity Internet IP networks

• Enabling Technology
• Edge network elements for IDS, firewall, traffic
  shaping, etc.
• Next generation exposed APIs for 3rd party
  programming
• Location for efficient network-level monitoring
  and control
• Observe rapid detection of route failure or
  network attack
• Act e.g., filter intrusions, quarantine
  propagating worms
• Avoid configuration and latest patch not
  installed errors

17
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

18
Research Challenge Self-sensing and Reactive
Systems

• Internet scale attacks are fundamentally
  different than host scale attacks
• Traditional Intrusion Detection Systems (IDS)
  have had some success with host scale attacks,
  but also many false positives
• Internet scale attacks offer opportunity (more
  evidence of wide scale attack) but also more
  challenge (integrating data from a large number
  of disparate sources)

19
Observe, Analyze, Act

• Observe what to monitor, how to monitor
• Analyze Learning from patterns of messages (not
  parsing their contents)
• Act
• How to exchange minimal information (in system
  under attack)
• rapidly evolving security protocols (for
  resilience to attack)
• Applications Worm detection, spam detection
• Ultimate challenge beyond detection and into
  response

20
Security of Networked SystemsTechnical Approach

• Mechanisms to learn, share, repair against
  potential threats to dependability
• Strengthen assurance of shared information via
  lightweight authentication and encryption
• TESLA authentication system replaces public-key
  crypto with lightweight symmetric encryption
  uses time asymmetry to provide assurance
• Messages initially encrypted, verification keys
  revealed laterprevents attacker from using a
  received key to forge messages
• Variations provide instant authentication.
• Athena system generate random instances of
  secure protocols
• Ultra-fast checking softwaremodel-checking
  proof-theoretic techniques to verify protocols
  against stated requirements
• Intelligently generate most efficient secure
  protocol satisfying requirements or a random
  instance of a secure protocol satisfying a given
  set of requirements
• Apply for SLT systems to more quickly exchange
  information

21
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

22
Statistical Learning Theory

• Toolbox for design/analysis of adaptive systems
• Algorithms for classification, diagnosis,
  prediction, novelty detection, outlier detection,
  quantile estimation, density estimation, feature
  selection, variable selection, response surface
  optimization, sequential decision-making
• Classification algorithms
• Recent scaling breakthroughs 10K features,
  millions of data points
• Kernel machines functional analysis and convex
  optimization
• Generalized inner productsimilarities among data
  point pairs
• Defined for many data types
• Classical linear statistical algorithms
  kernelized for state-of-the-art nonlinear SLT
  algorithms in many areas

23
Statistical Learning Theory

• Novelty Detection Problem
• Unlimited observations reflecting normal
  activityYet few (or no) instances that reflect
  an attack or a bug
• E.g. intrusion detection, machine diagnostics
• Second-order cone program a convex optimization
  problem with an efficient solution method
• Given cloud of data in a high-dimensional feature
  space, place a boundary around these to guarantee
  that only a small fraction falls outside
• Basic problem---find a boundary that encloses a
  desired fraction of the data, and is as tight as
  possible
• can be done using the generalized Chebyshev
  inequality
• using kernels, this is a convex problem

24
Example Statistical Bug-finding

• Programs are buggy, yet many people use them
• Instrument programs to take samples of program
  state at runtime
• Collect information over the Internet from many
  users runs
• Learn a statistical classifier based on
  successful and failed runs, using feature
  selection methods to pinpoint the bugs
• Example finding a bug in Unix bc utility
• 2908 features instrumented
• All top feature indicate indx being unusually
  large in more_arrays subroutine
• storage.c176 more_arrays() indx gt optopt
• storage.c176 more_arrays() indx gt opterr
• storage.c176 more_arrays() indx gt use_math
• Indeed, array overrun bug in re-allocation
  routine more_arrays() found to cause memory
  corruption and sometimes an eventual crash

25
Example III Diagnosis

• A probabilistic graphical model with 600 disease
  nodes, 4000 finding nodes
• Node probabilities p(f_i d) were assessed from
  an expert (Shwe, et al., 1991)
• Want to compute posteriors p(d_j f)
• Is this tractable?

26
Case Study Medical Diagnosis

• Symbolic complexity
• symbolic expressions fill dozens of pages
• would take years to compute
• Numerical simplicity
• Jaakkola and Jordan (1999) describe a variational
  method based on convexity that computes
  approximate posteriors in less than a second

27
Challenge for SLT

• Challenge on-line versions of the best
  algorithms have yet to be developed
• update the learning systems state based on small
  sets of data
• Available for some kernelized problems
• On-line versions of the best algorithms have yet
  to be developed!

28
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

29
System Prototype

• Comprehensive system architecture
• Reduction of SLT to practical software components
  embedded within a distributed systems context
• Exhibition of an architecture for dramatically
  improving the reliability and security of
  important systems through observation-coordination
  -adaptation mechanisms.

30
Messaging as an Application

• E-mail is now mission-critical application
• Organizational storage capacity shifting from
  financial data bases to email (email is fastest
  growing storage)
• Loss of email more critical to continuing
  operation of organization than telephony (imagine
  if govt had no email for a week)
• Instant Messaging is now mission-critical
  application
• In a crisis, many communication schemes will be
  used land-based telephony, cellular telephony,
  instant messaging, email,
• Coordination among first-responders during crisis
  response in field (administrators operators)
• Demands for dependability, resistance to attack,
  establishment of trust among interacting entities
• Despite attempts by hackers, terrorists,

31
Measuring Sucess

• Build email/IM prototype using RADS design
  principles and tools
• Put realistic performance workload on prototype
• Subject prototype to increasingly difficult
  failure workloads and attack workloads
• E.g., hardware failures, software failures,
  operator failures, worms attacks, DDOS attacks,
• Measure false positive rates, accuracy rates,
  time to analyze failures, time to act,
  performance impact of actions, availability of
  prototype, performability of prototype,
• Compare results to conventional email/IM systems
  under similar performance, failure, and attack
  workloads

32
Disaster Response Messaging Application
Active Adversary Service Attacks
DHS/Federal Network
Net Failure
Coalition Internet
Trust Relations
Allies Networks
Allies Networks
Allies Networks
Adversary
Net Failure
Allies Networks
Local Police, Fire, State Police
Adversary
Incident Reports Responder Locations GIS Data Etc.
Compromised Network With Embedded Adversaries
33
Presentation Outline

• Why We Need a New Approach to Networked Systems
• New Design Philosophy for RADS
• Applying the Philosophy Early Experience with
  Specific Approaches
• Approaches for Software and Hardware
  Dependability
• Approaches for Networking
• Approaches for Security
• Applying SLT to dependability problems
• Elements of a unified Experimental Prototype
• Summary and Conclusions

34
Old Science vs. New Science

• First 50 years of computer science
• manually-engineered systems
• lack of adaptability, robustness, and security
• no concern with closing the loop with the
  environment
• Next 50 years of computer science
• statistical learning systems throughout the
  infrastructure
• self-configuring, adaptive, sentient systems
• perception, reasoning, decision-making cycle
• systems are always recovering because of this
  ongoing automatic and dynamic adaptation
• New way to think about and design adaptive
  systems
• Makes continuous monitoring and reaction a
  first-class goal
• Provides point of leverage for applying SLT and
  related techniques

35
Scientific Foundation For Self- Systems

• New design principles and tools for systems that
  continuously adjust their behavior in response to
  analysis of online observations
• New metrics and benchmarks for evaluating
  self-adapting networked systems
• Advances in Statistical Learning Theory to move
  from offline to online analysis of large-scale
  distributed systems

36
BACKUP SLIDES
37
Statistical Learning Theory

• Super kernels combine heterogeneous data via
  multiple kernels
• Semidefinite programs, convex optimization
  problems with efficient solutions involving
  efficient decomposition techniques
• Useful in fusing evidence at distributed nodes
• Problems of interest require combined parameter
  estimation and optimization
• Response surface methodology building local
  mappings from configurations to performance, and
  suggesting gradient directions in configuration
  space leading to performance improvements
• Policy-gradient methods SLT algorithms that make
  sequences of decisions, yielding a behavior or
  policy successfully developed policies for
  nonlinear control problems involving high degrees
  of freedom

38
Statistical Machine Learning

• Kernel methods
• neural network heritage
• convex optimization algorithms
• kernels available for strings, trees, graphs,
  vectors, etc.
• state-of-the-art performance in many problem
  domains
• frequentist theoretical foundations
• Graphical models
• marriage of graph theory and probability theory
• recursive algorithms on graphs
• modular design
• state-of-the-art performance in many problem
  domains
• Bayesian theoretical foundations

39
Self-Verifiable ProtocolsBGP Whisper

• AS1 advertises its address prefix
• Chooses a secrete key x, and sends y h(x)
• h() well-known one-way hash function
• Every router forwards y h(y)
• AS4 performs consistency check (y1)3 (y2)3 ?
• If yes, assume both routes are correct
• If no, at least one rout is incorrect (but dont
  know which) ?rise a flag

(AS1,AS2,y1h2(x))
(AS1,AS2,AS3,y1h3(x))
AS3
AS2
(AS1, y1h(x))
AS4
Chose secret key x
AS1
(AS1,AS3,y2h2(x))
(AS1, y2h(x))
AS3
40
Enabling TechnologyEdge Services by Network
Appliances

• In-the-Network Processing the Computer IS THE
  Network

41
Self-Verifiable ProtocolsStatus and Future Plans

• Two examples
• BGP verifications (Listen Whisper)
• Can trigger alarms and contain malicious routers
• Minimal changes to BGP incrementally deployable
  (Listen)
• Self-verifiable CSFQ
• Per-flow isolation without maintaining per flow
  state
• Detect and contain malicious flows
• Ultimate goal develop distributed system able to
  self diagnose and self-repair
• Eliminate faulty components
• Minimum raise a flag in case of configurations
  and attackers
• Develop set of principles and techniques for
  robust protocols

42
Enabling TechnologyProgrammable Networks

• Problem
• Common programming/control environment for
  diverse network elements to realize full power of
  inside the network services and applications
• Approach
• Software toolkit and VM architecture for PNEs,
  with retargetable optimized backend for diverse
  appliance-specific architectures
• Current Focus
• Network health monitoring, protocol interworking
  and packet translation services, iSCSI processing
  and performance enhancement, intrusion and worm
  detection and quarantining
• Potential Impact
• Open framework for multi-platform appliances,
  enabling third party service development
• Provable application properties and invariants
  avoidance of configuration and latest patch not
  installed errors

43
Enabling TechnologyProgrammable Networks

• Generalized PNE programming and control model
• Generalized virtual machine model for this
  class of devices
• Retargetable for different underlying
  implementations
• Edge services of interest
• Network measurement and monitoring supporting
  model formation and statistical anomaly detection
• Framework for inside-the-network protocol
  listening
• Selective blocking/filtering/quarantining of
  traffic
• Application-specific routing
• Faster detection and recovery from routing
  failures than is possible from existing Internet
  protocols
• Implementation of self-verifiable protocols

44
Crash-Only Statistical Monitoring Resilience
to Real-World Transients

• Simple fault model observed anomalies coerced
  into crash faults
• Surprise! Statisticalmonitoring catches
  manyreal-world faults, withouta pre-established
  baseline

45
Self-Verifiable ProtocolsStatement of the
Problem

• Problem Detect and contain network effects of
  misconfigurations and faulty/malicious components

• Approach design network protocols so each
  component verifies correct behavior of the
  protocol
• Examples
• e2e protocols
• routing (BGP) protocols

46
Self-Verifiable ProtocolsCase Study BGP

• Propagating invalid BGP routes can bring the
  Internet down
• Multiple causes
• Router misconfigurations happen daily, yielding
  outages lasting hours
• Malicious routers huge potential threat
• Routers with default passwords
• Possible to buy routers passwords on darknets
• Existing solutions
• Hard to deploy (e.g., Secure-BGP), or
  insufficient security
• Our solution
• Whisper verify the correctness of router
  advertisements
• Listen verify the reachability on the data plane

47
Self-Verifiable ProtocolsBGP Whisper

• Use redundancy to check consistency of peers
  information
• Whisper game
• Group sits in a circle., person whispers secret
  phrase to neighbors
• Person at other end concludes
• Phrase is correct if same phrase from both
  neighbors
• Otherwise, at least one phrase is incorrect

48
Self-Verifiable ProtocolsBGP Listen

• Monitor progress of TCP flows
• If TCP flow doesnt make progress, might be
  because route is incorrect
• Use heuristics to reduce number of false
  positives and negatives
• Still difficult to handle traffic patterns like
  port scanners
• Use SLT techniques to improve the detection
  accuracy?

49
Military Messaging Application
Active Adversary Service Attacks
US Forces Network
Net Failure
Coalition Internet
Trust Relations
SitReps
Allies Networks
Allies Networks
Allies Networks
Adversary
Net Failure
Allies Networks
Allies Networks
Adversary
Compromised Network With Embedded Adversaries
