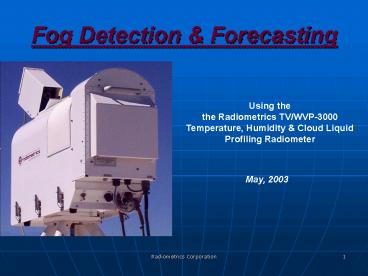

Fog Detection

1
Fog Detection Forecasting
Using the the Radiometrics TV/WVP-3000
Temperature, Humidity Cloud Liquid Profiling
Radiometer
May, 2003
2
Fog Forecast and Detection thru Radiometric
Profiling

• Airports worldwide need a reliable operational
  system for fog forecasting
• Water vapor saturation near the surface is
  required for condensation of fog
• Accurate fog forecast and detection is possible
  with radiometric profiling of relative humidity
  and cloud liquid

3
Mar 03 Denver Case Study

• Commercial jet engines sustained severe damage
  from freezing drizzle at Denver International
  Airport
• Traditional forecasts failed to predict fog or
  supercooled drizzle
• Radiometric retrievals of relative humidity
  increased to saturation during the 12 hours prior
  to onset of fog
• Accurate fog forecast and detection of
  supercooled fog onset was possible with
  radiometric RH and cloud liquid soundings

4
Radiometric retrievals at Boulder showing arrival
of cold upslope air below 1 km height and
associated condensation of supercooled fog.
5
Radiometric RH retrievals (blue) increasing from
30 to saturation below 1000 m height from 00 to
12 UTC on 4 Mar 03 at Boulder. The 00 and 12 UTC
Denver radiosondes are shown for comparison (red).
6
Radiometric retrievals at Boulder (blue) compared
with radiosonde soundings at Denver (red) during
arrival of upslope and supercooled fog. Start
slide show to animate
7
Conclusions

• Conventional numerical forecasts did not predict
  fog conditions which caused airport closing
• Radiometric retrievals showed steady RH increase
  to saturation for 10 hours prior to fog onset
• Accurate numerical fog forecast was obtained when
  radiometric soundings were assimilated
• Time series of RH and cloud liquid soundings can
  help forecasters predict timing and severity of
  fog conditions.
