Lessons Learned in High Performance Schools

1

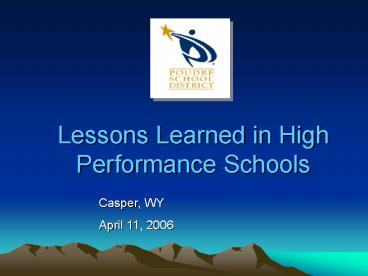

Lessons Learned in High Performance Schools
Casper, WY April 11, 2006
2
Presentation Overview

• High Performance Design Defined
• Goals
• Examples Results to Date
• Lessons Learned

3
What Is High Performance Design?

• Integrated Design
• Involve ALL Stakeholders
• Buildings that Teach
• Great Educational Opportunity
• Materials Energy Consumption
• Building Components Systems
• Impact on Natural Resources

4
PSD Planning Standards

• Educational Specifications
• Mission, Beliefs, and Goals

• Technical Specifications
• Design Guidelines
• Bidding Contract Requirements
• CSI Division Specifications

• Sustainable Design Guidelines

5
High Performance Partners
6
Energy Strategies

• Micro-Loaded Building
• Thermal Ice Storage
• Daylighting / Controls
• Occupancy Sensors
• CO2 Sensors
• Super Insulation
• Electronic Ballasts
• T-8 T-5 Lamps
• GeoExchange

• Variable Frequency Drive Motors
• Shared Raw Water Irrigation System
• HVAC Reheat System
• Operable Windows
• GeoExchange System
• Energy Management System

7
Commissioning

• Intent Verify and ensure that fundamental
  building elements and systems are designed,
  installed and calibrated to operate as intended.
• Independent third-party hired by the Owner.

• Key member of an integrated design team

8
Buildings That Teach
9
Buildings That Teach
10
Condiment Delivery System
11
Sustainable Finishes
12
Shingles from Engine Gaskets
13
Waterless Urinal Not Yet
14
A school designed to Code is the worst
facility you can legally build.
15
Elementary Energy Costs
16
Lighting Models
17
(No Transcript)
18
(No Transcript)
19
Construction Cost Savings

• Synthetic Tiles vs. Face Brick
• Reduced Loads Chiller vs. Ice Storage
• Exposed Structure
• Reduced Hard Surface, Less Sod
• Smaller Footprint
• Donated Materials
• Contractor Familiarity

20
Zach Elementary
21
(No Transcript)
22
Flex Room / Cafeteria
23
Media Center
24
Gymnasium
25
(No Transcript)
26
(No Transcript)
27
Bacon Elementary(2nd Prototype Building )
28
(No Transcript)
29
Bacon Elementary
30
Operations Center
31
(No Transcript)
32
Fossil Ridge High School
33
High School Energy Costs
70,000 annual savings over the average PSD High
School
34

• FRHS is certified Silver version 2.1 with USGBC.
• FRHS earned the Energy Star in 2005.

35
Daylight Zones
36
(No Transcript)
37
(No Transcript)
38
Fossil Ridge H.S. Class Room
39
We Dont Need No Stinkn Daylight
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
Synthetic playfield
Raw water irrigation
44
Water CostJuly 2004 Jan. 2006(20,268 Savings)
45
Ice Storage
46
FRHS vs. FCHSSept. 2004 Jan. 2006(46,082
Savings)
FCHS
Electrical consumption 9/1/04 to 9/10/04
FRHS
47
High Efficiency Condensing Boilers
(3) 2,000,000 Btu Units
48
Natural Gas CostSept. 2004 Jan. 2006(109,567
Savings)
49
PV Panels (5.2 Kw)
50
Kinard GeoExchange System
51
Kinard Junior High Solatubes
52
Kinard Junior High Solatube Final Installation
53
Construction Recycling
54
Construction Waste Diversion Rate and Costs
55
Scrap drywall was ground and land applied to FRHS
site
56
Wind Powered
Zach ES is the first school to subscribe to the
Fort Collins Utilities Wind Power Program. The
district is purchasing 100 percent wind energy at
the school.
Other PSD Buildings Operation Building Bacon
Elementary Fossil Ridge High School Kinard Junior
High (Under Construction)
57
Harris Elementary School
58
Harris Elementary Class Room
59
Harris Elementary Gym
60
Centennial High Before
61
Centennial High After
62
Centennial High School Gym/Flex Room
63
Lessons Learned

• Need A CHAMPION!
• Define YOUR TEAM
• Define Specific Goals Outcomes
• Education/Facilities Support
• Commission!
• Meetings, Meetings, and Meetings

64
High performance design deliverssavings and
comfort!
65
You Get What You Pay For
Design
Construction/Life Cycle Costs
Traditional Approach

Integrated Approach
Life of the building
66
Building a School consists of 1,000,000 different
decisions
Get 99 of them right and you still miss 10,000
You!
67
Questions??
68
