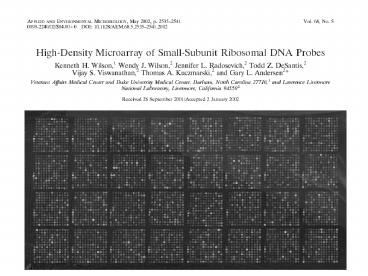

Probes can be designed in an evolutionary hierarchy

1
(No Transcript)
2
Probes can be designed in an evolutionary
hierarchy
3
Probes can be designed to be highly redundant to
increase the certainly of identification
4
The match between clone counts and hybridization
intensity
5
Genomics terminology

• Shotgun cloning undirected cloning effort where
  the entire sample is cloned and sequenced
• Contig - assembled continuous sequence derived
  from sequence reads from a single clone
• Scaffold assembled sequence reads derived from
  multiple overlapping clones
• nX coverage mean number of times a region was
  sequenced from independent clones
• Mini-scaffold scaffold assembled only by paired
  ends of overlapping contigs (approx. 1X coverage)

6
Environmental GenomicsEd Delong

• Shotgun cloning of Megabase fragments from marine
  environments
• Probe for those with rRNA gene of interest
• Sequence and use bioinformatics to infer function
• Used to connect diverse psbA (photosystem II)
  genes to known 16S sequence groups

7
Shotgun cloning and assembly of enviromental
genomes

• Tyson et al 2004, Nature 42837-43
• Venter et al 2004, Science 30466-74.

8
Tyson et al. 2004. Iron Mt. study

• Pink biofilm growing at pH 0.87, which was known
  to be composed of 6 rRNA types
• 103,462 sequence reads from shotgun clones
  provided 10X coverage for two species
  (Leptospirillum III and Ferroplasma II), and 3X
  coverage for Leptospirillum II.
• Very low polymorphism in Leptospirillum III
  interpreted as evidence for a single strain
• Higher polymorphism (2.2) in Ferroplasma II
  interpreted as evidence for 3 strains which show
  evidence of past recombination
• A single nitrogen fixer was found (Leptospirillum
  III

9
An aside about rRNA

• 16S rRNA sequences of Fer I isolate and assembled
  Fer II strains differ by less than 1.
• The assembled genomes of Fer I and FerII differ
  by more than 22 even though gene order and
  content appear to be conserved.

10
Tyson et al. FISH image of biofilm
Yellow (red green) Leptospirillum Green
(Eubacterial) Blue (Archaea) predominantly
Ferroplasma
11
(No Transcript)
12
Some numbers from the Venter et al. study

• From 200L of filtered sea water, 1.66 million
  sequence reads were derived.
• 246 mbp were assembled into 64,398 scaffolds
  ranging from 826 bp to 2.6 Mbp
• 170 mbp of miniscaffolds and unpaired reads
• 1.2 million protein-coding genes (10X more than
  previously in protein database)
• 69,901 conserved open reading frames with no
  assignable function
• 60,000 16S sequences, 148 of which are at least
  3 different from previously known sequence

13
Summary of genes found in the Sargasso sea survey
14
Assembly problems

• Most abundant genomes are over-represented
• Assembled genomes are composites of different
  individuals (particularly genomes with lower
  coverage)

15
Estimates of species diversity

• At least 300 species/sample assuming homologous
  sequences that are greater than gt6 are from
  different species
• Using models based on a poisson distribution and
  3 different coverage models, estimates of species
  for the whole study range from 1800 to 47,000.
• A minimum of 12X greater sequence effort would be
  needed to sample 95 of the unique sequence

16
Population level findings

• Scaffolds with 14X coverage contain about 1
  SNP/10,000 bases, and also contain inserted phage
  sequences
• SAR 11- like (a previously characterize 16S type)
  sequences are abundant but are very polymorphic

17
Venter et al. 2004 evidence the the composite
genome represents a population
18
Other interesting findings

• Species distributions are patchy even in the
  ocean (e.g. Burkholderia and Sewanella abunance
  in sample 1 but not 2)
• Clear copy bias in rRNA gene sequences in favor
  of beta and gamma proteobacteria, which typically
  have two or more gene copies
• Huge diversity of rhodopsin sequences, possible
  non-chlorophyll light harvesting?

19
Estimates of abundance of major groups based on
different gene families
20
Rhodopsin tree showing the novelty of the
Sargasso sea samples (SAR)
21
Advantages and disadvantages of environmental
genomics

• Avoids PCR and all the inherent biases
• Not dependent on rRNA
• Lots of new genes and new information about who
  has them

• Currently way too expensive for mere mortals
• Not very efficient if structure and activity are
  the main questions

22
(No Transcript)
23
Hybridization to rRNA for identification and
quantification

• Extract total RNA from sample (no amplification
  or cloning!)
• Spot it on a filter
• Probe it with oligonucliotide probes

24
(No Transcript)
25
From MacKay et al. 2002
26
From MacKay et al. 2002
27
Landeweert et al 2003

• Wanted to measure competition between two
  mycorrhizal fungi Suillus Paxillus
• Setup pot inoculations with pine trees and either
  fungus or both fungi together
• Measured total mycelium, PLFAs
• Amplified ITS region with basidiomycete specific
  primers
• Compared via DGGE, clone counts, real-time PCR
  quantification

28
Mycelium (white) of Suillus in co- culture with
pine
29
(No Transcript)
30
DGGE gel of amplified basidiomycete ITS from soil
31
(No Transcript)
32
Conclusions

• DGGE, Clone counts, and real-time quantification
  agree that Suillus ITS increases as Paxillus
  decreases
• What have we gained by real-time?
• Quantification of the template, rather than the
  amplicons
