Network diagnostics made easy

1

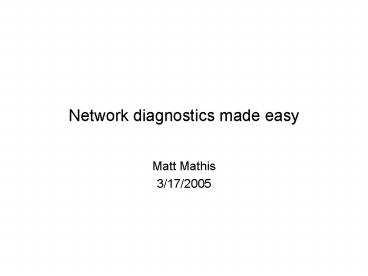

Network diagnostics made easy

• Matt Mathis
• 3/17/2005

2
The Wizard Gap
3
The non-experts are falling behind

• Year Experts Non-experts Ratio
• 1988 1 Mb/s 300 kb/s 31
• 1991 10 Mb/s
• 1995 100 Mb/s
• 1999 1 Gb/s
• 2003 10 Gb/s 3 Mb/s 30001
• 2004 40 Gb/s
• Why?

4
TCP tuning requires expert knowledge

• By design TCP/IP hides the net from upper layers
• TCP/IP provides basic reliable data delivery
• The hour glass between applications and
  networks
• This is a good thing, because it allows
• Old applications to use new networks
• New application to use old networks
• Invisible recovery from data loss, etc
• But then (nearly) all problems have the same
  symptom
• Less than expected performance
• The details are hidden from nearly everyone

5
TCP tuning is really debugging

• Six classes of bugs limit performance
• Too small TCP retransmission or reassembly
  buffers
• Packet losses, congestion, etc
• Packets arriving out of order or even duplicated
• Scenic IP routing or excessive round trip
  times
• Improper packet sizes (MTU/MSS)
• Inefficient or inappropriate application
  designs

6
TCP tuning is painful debugging

• All problems reduce performance
• But the specific symptoms are hidden
• But any one problem can prevent good performance
• Completely masking all other problems
• Trying to fix the weakest link of an invisible
  chain
• General tendency is to guess and fix random
  parts
• Repairs are sometimes random walks
• Repair one problem at time at best

7
The Web100 project

• When there is a problem, just ask TCP
• TCP has the ideal vantage point
• In between the application and the network
• TCP already measures key network parameters
• Round Trip Time (RTT) and available data
  capacity
• Can add more
• TCP can identify the bottleneck
• Why did it stop sending data?
• TCP can even adjust itself
• autotuning eliminates one of the 6 classes of
  bugs
• See www.web100.org

8
Key Web100 components

• Better instrumentation within TCP
• 120 internal performance monitors
• Poised to become Internet standard MIB
• TCP Autotuning
• Selects the ideal buffer sizes for TCP
• Eliminate the need for user expertise
• Basic network diagnostic tools
• Requires less expertise than prior tools
• Excellent for network admins
• But still not useful for end users

9
Web100 Status

• Two year no-cost extension
• Can only push standardization after most of the
  work
• Ongoing support of research users
• Partial adoption
• Current Linux includes (most of) autotuning
• John heffner is maintaining patches for the rest
  of Web100
• Microsoft
• Experimental TCP instrumentation
• Working on autotuning (to support FTTH)
• IBM z/OS Communications Server
• Experimental TCP instrumentation

10
The next step

• Web100 tools still require too much expertise
• They are not really end user tools
• Too easy to over look problems
• Current diagnostic procedures are still
  cumbersome
• New insight from web100 experience
• Nearly all symptoms scale with round trip time
• New NSF funding
• Network Path and Application Diagnosis
• 3 Years, we are at the midpoint

11
Nearly all symptoms scale with RTT

• For example
• TCP Buffer Space, Network loss and reordering,
  etc
• On a short path TCP can compensate for the flaw
• Local Client to Server all applications work
• Including all standard diagnostics
• Remote Client to Server all applications fail
• Leading to faulty implication of other components

12
Examples of flaws that scale

• Chatty application (e.g., 50 transactions per
  request)
• On 1ms LAN, this adds 50ms to user response time
• On 100ms WAN, this adds 5s to user response time
• Fixed TCP socket buffer space (e.g., 32kBytes)
• On a 1ms LAN, limit throughput to 200Mb/s
• On a 100ms WAN, limit throughput to 2Mb/s
• Packet Loss (e.g., 1 loss with 9kB packets)
• On a 1ms LAN, models predict 500 Mb/s
• On a 100ms WAN, models predict 5 Mb/s

13
Review

• For nearly all network flaws
• The only symptom is reduced performance
• But the reduction is scaled by RTT
• On short paths many flaws are undetectable
• False pass for even the best conventional
  diagnostics
• Leads to faulty inductive reasoning about flaw
  locations
• This is the essence of the end-to-end problem
• Current state-of-the-art relies on tomography and
  complicated inference techniques

14
Our new technique

• Specify target performance for S to RC
• Measure the performance from S to LC
• Use Web100 to collect detailed statistics
• Loss, delay, queuing properties, etc
• Use models to extrapolate results to RC
• Assume that the rest of the path is ideal
• Pass/Fail on the basis of extrapolated
  performance

15
Example diagnostic output

• End-to-end goal 4 Mb/s over a 200 ms path
  including this sectionTester at IP address
  xxx.xxx.115.170 Target at IP address
  xxx.xxx.247.109Warning TCP connection is not
  using SACKFail Received window scale is 0, it
  should be 2.Diagnosis TCP on the test target is
  not properly configured for this path.gt See TCP
  tuning instructions at http//www.psc.edu/networki
  ng/perf_tune.htmlPass data rate check maximum
  data rate was 4.784178 Mb/sFail loss event
  rate 0.025248 (3960 pkts between loss
  events)Diagnosis there is too much background
  (non-congested) packet loss.   The events
  averaged 1.750000 losses each, for a total loss
  rate of 0.0441836FYI To get 4 Mb/s with a 1448
  byte MSS on a 200 ms path the total   end-to-end
  loss budget is 0.010274 (9733 pkts between
  losses). Warning could not measure queue length
  due to previously reported bottlenecks
• Diagnosis there is a bottleneck in the tester
  itself or test target   (e.g insufficient buffer
  space or too much CPU load)gt Correct previously
  identified TCP configuration problemsgt Localize
  all path problems by testing progressively
  smaller sections of the full path.FYI This path
  may pass with a less strenuous application
  Try rate4 Mb/s, rtt106 ms   Or if you can
  raise the MTU   Try rate4 Mb/s, rtt662 ms,
  mtu9000Some events in this run were not
  completely diagnosed.

16
Key features

• Results are specific and less technical
• Provides a list of action items to be corrected
• Provides enough detail for escalation
• Eliminates false pass test results
• Test becomes more sensitive on shorter paths
• Conventional diagnostics become less sensitive
• Depending on models, perhaps too sensitive
• New problem is false fail
• Flaws no longer mask other flaws
• A single test often detects several flaws
• They can be repaired in parallel

17
Some demos

• wget http//www.psc.edu/mathis/src/diagnostic-cli
  ent.c
• cc diagnostic-client.c -o diagnostic-client
• ./diagnostic-client kirana.psc.edu 70 90

18
Local server information

• Current servers a single threaded
• Silent wait if busy
• Kirana.psc.edu
• GigE attached directly to 3ROX
• Outside the PSC firewall
• Optimistic results to .61., .58. and .59. subnets
• Scrubber.psc.edu
• GigE attached in WEC
• Interfaces on .65. and .66. subnets
• Can be run on other Web100 systems
• E.g. Application Gateways

19
The future

• Collect (local) network pathologies
• Raghu Reddy is coordinating
• Keep archived data to improve the tool
• Harden the diagnostic server
• Widen testers to include attached campuses
• 3ROX (3 Rivers Exchange) customers
• CMU, Pitt, PSU, etc
• Expect to find much more interesting
  pathologies
• Replicate server at NCAR (FRGP) for their campuses

20
Related work

• Also looking at finding flaws in applications
• An entirely different set of techniques
• But symptom scaling still applies
• Provide LAN tools to emulate ideal long paths
• Support local bench testing
• For example classic ssh
• Long known performance problems
• Recently diagnosed to be due to internal flow
  control
• Chris Rapier developed a patch
• Already running on many PSC systems
• See http//www.psc.edu/networking/projects/hpn-ss
  h/
