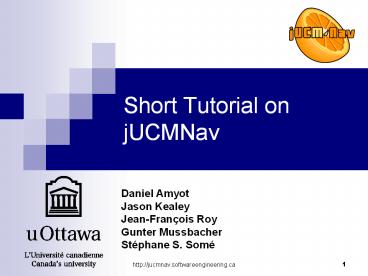

Short Tutorial on jUCMNav

1
Short Tutorial on jUCMNav

• Daniel Amyot
• Jason Kealey
• Jean-François Roy
• Gunter Mussbacher
• Stéphane S. Somé

2
Pronounced juicy em nav
3
Overview

• jUCMNav installation
• Crash course on URN for BPM (with simplified
  example from a hospital data warehouse access
  process)
• GRL editing
• GRL analysis with strategies
• UCM editing
• UCM analysis with scenario definitions
• URN model export (figures, HTML)
• MSC generation from UCM scenarios
• GRL/UCM linking
• URN model export to Telelogic DOORS
• KPI analysis and links to data warehouses
  (presented by Pengfei)

4
Useful Resources

• Installation
• http//jucmnav.softwareengineering.ca/twiki/bin/vi
  ew/ProjetSEG/JUCMNavRelease241
• Online Help
• http//jucmnav.softwareengineering.ca/twiki/bin/vi
  ew/ProjetSEG/HelpOnLine
• Animated Demos
• http//jucmnav.softwareengineering.ca/twiki/bin/vi
  ew/ProjetSEG/JUCMNavTutorials
• Papers (URN Virtual Library)
• http//www.UseCaseMaps.org/pub/
• Search for papers written by Roy or Kealey

5
User Requirements Notation

• URN is a semi-formal, lightweight method for
  modeling and analysis of user requirements in the
  form of goals and scenarios
• Combines two existing notations
• Goal-oriented Requirements Language (GRL)
• Use Case Map (UCM)
• URN can be used to model business processes,
  reactive systems, distributed systems, etc.
• Weiss, Amyot Business Process Modeling with URN.
  IJEBR, 2005

6
jUCMNav Features

• Editing, analysis, and transformation of URN
  models
• jUCMNav takes advantage of the Eclipse views
  (hierarchical/graphical outline, properties,
  resources)
• Good usability drag drop editing, group
  manipulation, zoom, unlimited undo/redo,
  preferences,
• Multiple element references
• Autolayout mechanism
• Only allows the creation of syntactically valid
  models
• Export and analysis facilities

7
Goal-oriented Requirements Language

• Goals describe the objectives a system should
  achieve why do an activity?
• Towards a higher, strategic level of modeling the
  current or future system and environment
• Focus is very much on system evolution
• Can explore opportunities andvulnerabilities

8
Use Case Maps

• UCMs model scenarios as causal flows of
  responsibilities that can be superimposed on
  underlying structures of components
• What should this activity be precisely? Who is
  involved in this activity? Where/when perform the
  activity?

components
Different structures suggested by alternatives
in a GRL model can be evaluated by allocating
responsibilities to UCM components
responsibilities
9
Getting Started

• Start Eclipse
• Create a new general project
• Add a new file (from jUCMNav category)
• Use Case Map / GRL Graph
• Create a new UCM and/or GRL diagram
• You can rename the project and the .jucm file

10
Adding/Renaming a UCM/GRL Diagram

• Right-click on URNspec (or on an existing
  diagram), add a new UCM or GRL graph
• Many diagrams can be added, but they all are
  views of the same model
• Rename the diagram, and add a description
• Use the Property view
• Delete a diagram, and undo this!

11
Adding Intentional Elements

• Add a couple of goals, softgoals, tasks
• Rename them
• Use the property view to change
• Description
• Name
• Colour
• Priority/Criticality
• See effect on Outline (textual/graphical) and
  Elements panels

12
Adding Decompositions and Contributions

• Add decomposition links from multiple decomposed
  intentional elements to a single source element
• Change the decomposition type of the source
  element (And/Or) via the property view
• Add a few contributions/correlations
• Change their contribution type

13
Adding Beliefs

• Add a belief with a long name/explanation
• Link it to another intentional element

14
Auto-Layout

• Try the auto-layout feature on your diagram
• Can be undone if needed ?

15
Adding Actors

• Actors contain intentional elements (their
  individual concerns)
• Add a few actors and rename them
• Distribute your intentional elements among them
  (or create new ones)
• Move/resize actors
• Actors can contain actors too

16
Adding Dependencies

• Add a few dependencies between actors
• Create a dependum (intentional element between
  two actors)
• Create a dependency link between the source
  element (depender) in one actor to the dependum
• Create a dependency link between the dependum
  and a target element (dependee) in another actor
• jUCMNav does not yet support dependency links
  between actors

17
Reusing Actors/Elements

• Create a new GRL graph
• Dragdrop existing actors and elements from the
  Outline
• New references are created
• Rename them and check impact
• Change the reference to the definition via the
  properties view

18
Changing Preferences

• Window ? Preferences ? jUCMNav Preferences

19
Exercise 1

• Open jUCMNavDemo_v1.jucm and add this
  complementary GRL diagram (named
  DoUsefulResearch)

20
GRL Strategies

• User defined sets of initial evaluations
• Evaluation propagated in the model
• Implemented using the strategies view
• Numerical interpretation of the satisfaction
  levels
• Evaluation of the impact of strategies on the
  operational and architectural aspects, using URN
  links

21
Strategies in jUCMNav
A star () indicates an initial value part of a
given strategy. All the others are evaluated
through a propagation algorithm.
22
Actor Evaluation

• Evaluation to deal with negotiation between
  stakeholders.
• Helps analyzing and comparing the satisfaction
  levels of each actor based on the selected
  strategy
• Computed from priority and criticality attributes
  of intentional element references bound to actors

23
Actor Evaluation Example
Priority Low Criticality None
Priority None Criticality High
24
Exercise 2

• Open jUCMNavDemo_v2.jucm and add 2 strategies
• SurveyOnly
• Set Use Survey Only to 100
• AgreementWithLogs
• Same as AgreementNoLogs but with Verify Access
  Logs set to 100
• Which of the 4 strategies is the best?
• How do we delete a value initialization in a
  given strategy?

25
Editing UCM Diagrams

• The PathTool can be used to
• Create a new path
• Extend an existing path (start/end point)
• Insert empty points
• The rest is similar to the GRL editor
• Components are like actors
• Path elements are bound to components

26
UCM Path Nodes

• Add various elements on path nodes
• Using the palette
• Using the contextual menu
• Add/remove branches on forks, joins, stubs
• Experiment with merging start/end points,
  end/path, end/join, start/stub, etc.

27
UCM Components

• Add components around paths
• Bind/unbind path elements
• Look at properties and change them
• Component type can be modified there too

28
Stubs

• Edit Stub Plugins (on a given stub)
• Select a plug-in map for a stub
• Bind its IN/OUT segments to start/end points of
  the plug-in map
• Add guarding selection conditions to the plug-ins
  in a dynamic stub
• Requires the definition of variables.

29
Exercise 3

• Open jUCMNavDemo_v3.jucm and add a new plug-in
  map (Agreement) for stub CheckAccountability.
• Bind it properly to the stub. Adjust its
  precondition.
• In map Review, add a timeout path between
  WaitREBdone and the OR-join found before the
  Reject end point

30
UCM Scenario Definitions and Path Traversal
(Highlight)

• Extraction of individual scenarios based on a
  traversal algorithm
• Conditions attached to selection points
• Initialization of variables, and selection of
  start/end points
• Transformation to MSC

31
jUCMNav 2.4 Features

• Groups of scenarios can be run together
• Scenarios can be exported to
• UCM model where all scenarios are linearized
• Stubs flattened and choices resolved (but
  documented with special waiting places)
• UCM model where all scenarios are linearized and
  well-formed
• From graph to tree (especially for AND-joins)
• Some concurrency may be lost along the way
• MSC model with one diagram per scenario (next
  page)
• Can be visualized with embedded MSC viewer

32
Exercise 4

• Open jUCMNavDemo_v4.jucm and make sure your
  Problems View is open
• Add a scenario to test what happens when the REB
  is not ready (start point not triggered)
• Using scenario inclusion, add a scenario for
  RejectTrust
• What can go wrong and how can the Problems View
  help with clickable error messages?

33
Exercise 5

• Add URN links
• From HIC (GRL) to the Hospital component
• From Trust User (GRL) to the TrustUser map
• From Check Ethical Issues (GRL) to the
  ChkEthicsCompliance responsibility
• Examine that responsibility as strategies are
  highlighted.

34
Exporting Diagrams/Models

• Select the URNSpec in the Outline or click on a
  diagram background
• Right-click to export (starts a Wizard)
• Export individual diagrams or entire models to
  various formats

35

• jUCMNav 2 supports
• MSC viewer
• MSC export to images

36
URN Model Export to Telelogic DOORS
