Reconfigurable Communications Processor

1

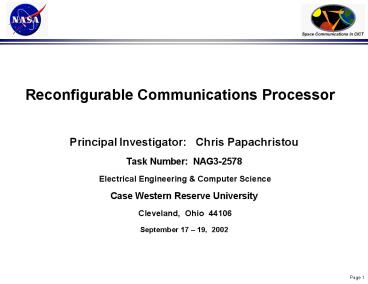

Reconfigurable Communications Processor

• Principal Investigator Chris Papachristou
• Task Number NAG3-2578
• Electrical Engineering Computer Science
• Case Western Reserve University
• Cleveland, Ohio 44106
• September 17 19, 2002

2
Reconfigurable Communications Processor Project
Overview

• A novel reconfigurable communications processor
• for high data rate agile communications
• Features
• - Reconfigurability adaptability,
• - Low power, system-on-chip technology,
• - Real time, robust performance,
• - Fault tolerance,
• - Self-healing.
• Platform autonomous sensor or unit
• being a typical node in space

3
Concept The Big Picture
4
Reconfigurability
Ability of a device to change its internal
structure, functionality, and behavior, either on
command, or autonomously. Reconfigurability
Classes Static Configuration performed while
device is off line. Dynamic Configuration
device is on-line, "on the fly". Self
Reconfiguration performed autonomously by
device. Evolution type Self Reconfiguration
with adaptation such as replication and growth,
"bio-inspired". ...
5
Earth Science Enterprise Configurable
communication nodes employed in access
networking can be very useful in Earth Science
Enterprise. Specific application Sensor Web
networks.
Space Science Enterprise Self Configurable
communication nodes employed in proximity
wireless networking are very important in Science
Enerprise. Specific application Software
Radio-based communications.
6

Access Networking Static and Dynamic
configuration useful process to quickly modify
the behavior of processing node Proximity
wireless Networking Dynamic and Self
Configuration is important for slower autonomous
adaptation
7
Advantages over competing FPGA and DSP
processors Flexibility ability for
self-reconfiguration Granularity ability to
scale for variable bit-length operations Cost
simpler upgrading of protocols, algorithms, code
schemes Fault Tolerance ability for self repair
and self healing from SEUs Low Power efficient
energy consumption through configuration
8
Communication Requirements in Missions

• Rapid adaptation of onboard systems to changing
  environments
• Dynamic communications links
• - self adaptable bandwidth to meet changing
  throughput requirements
• - self managing channel capacity
• Passive communication to reduce power
• Communication Protocol adaptation
• - adapt to changing communication protocols
  for each situation
• Reconfigurable Hardware enabling technology to
  meet these requirements.

9
Sensor Web Scenario
Communication Tradeoffs Bandwidth Buffer
/ Latency Data Rate,
Protocol, Error
Bit Rate.
10
Architecture reconfigurable at four Layers
Layer 4 the Adaptation Manager. Layer 3
the Real-Time Operating System RTOS. Layer 2
the Embedded Processors and Memory. Layer
1 the Reconfigurable Hardware Fabric.
11
Architecture Non Traditional Reconfigurable
12
Strategy
Reconfiguration Occurs at several
levels (a) Selection of application modules by
the Adaptation Manager. (b) Mapping of modules
into the hardware fabric or the embedded
processors, depending on performance
requirements. (c) Configuration of the
hardware fabric and the embedded processor to
meet performance and data delivery
requirements. The reconfigurable hardware is
essential for mapping of wireless communications
algorithms such as IR filtering, multichannel
CDMA, complex encoding, advanced imaging.
13
Self Adaptation - Dynamic Configuration
14
(No Transcript)
15
(No Transcript)
16
Results
Architecture Mapper Software A tool inputing an
algorithm flow graph and generating an
architecture resource netlist Binding
Configuration Software A tool inputing an
architecture resource graph and generating
connectivity within HW fabric Results on
several benchmarks VHDL synthesis algorithms,
including scheduling, resource allocation,
config. mapping. Simulator of hardware
Fabric VHDL models of the HW fabric,behavioral
and structural models.
17
Algorithm Data Flow
Synthesis tools
Architecture Mapper
Arch Resource Netlist
Binding Configurator
Connectivity Bindings
18
Synthesis Data Flow transormation of the
application into a resource
graph. Binding allocation of resources
into configurable modules, This
involves functional, local memories and
interconnect modules. Configuration
Core compact description of the
mapping -- in space
and time Key idea Pre-Load the configuration
matrix into Double Buffered FIFOs to employ
mapping.
19
Core Switch Matrix
20
Double Buffer Configuration Switch
Cell
21
Application
Allocated
Operator
Size of 2 Core
Memories
Units
Matrices
Deq
5
5
(10X10) and (5X5)

Bandpass Filter
9
9
(18X18) and (9X9)

Cosine Filter
11
11
(22X22) and (11X11)
Elliptical Filter
8

8
(16X16) and (8X8)
Arfilter
9
9
(18X18) and (9X9)
Wave Filter
6
6
(12X12) and (6X6)
DCT
12
12
(24X24) and (12X12)
22
Collaborations Good collaboration and synergism
has been established with NASA Glenn researchers.
We have also collaborative relations with
industry such as CISCO, Conexant, Broadcom.
These collaborations will address difficulties
and optimize opportunities.
23
Proof of Concept
For proof of concept, we will employ advanced
FPGA boards from Xilinx and Altera, as well as
CAD tools that we have obtained from commercial
vendors.
We will develop an advanced prototyping
environment based on these tools and
software. We will implement by emulation our
proposed reconfigurable hardware on these boards,
without actual chip design. Emulation and
prototyping is quite feasible.
